M.2 WiFi gold finger to USB 19pin female adapter

Brand: ADT-Link

Product model: WK9

Product Name:M.2 WiFi to USB 19pin female adapter

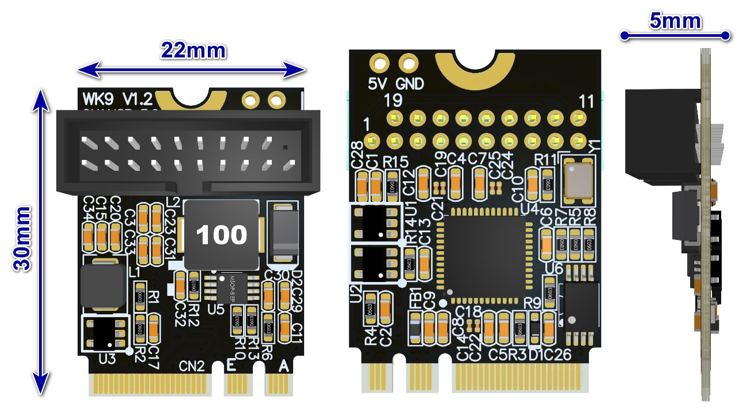

Adapter board specifications: M.2 WiFi WWAN interface, size 30x22x5mm, adapter board supports USB 3.0

Weight: 3g

Operation Temperature: -40℃~+80℃

Applicable equipment: USB wireless card, USB mouse receiver, USB SSD

Product use: can make the notebook empty M.2 WiFi slot to USB 19pin interface, this product for transfer use

Product restrictions: This product is a special design, difficult to assemble, size compatibility restrictions, limited to professional engineers designated for purchase. Please confirm your notebook space restrictions and product specifications before placing an order.

Purchase tips: Be sure to buy 1~2 samples before purchasing in bulk. This product is only an adapter board and does not include demonstration equipment such as wireless network cards, hard disks, et

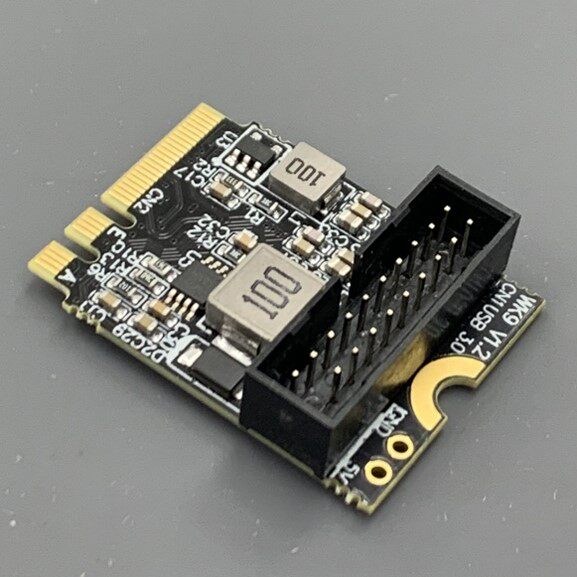

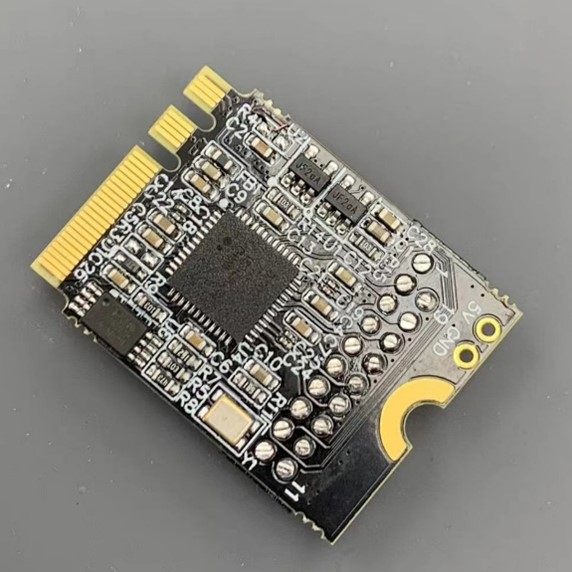

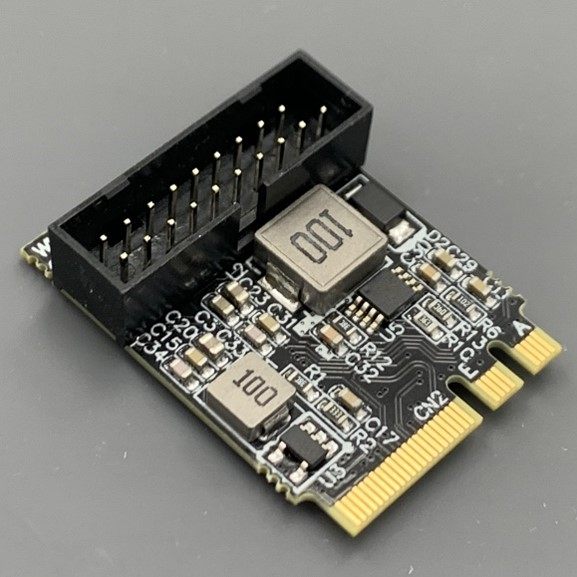

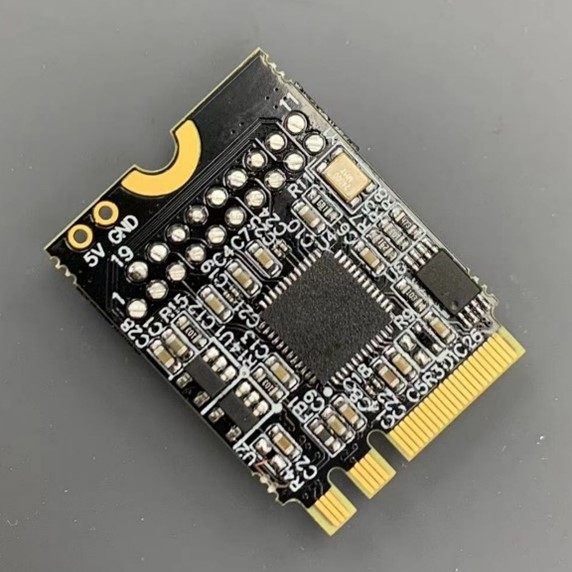

Photo:

Summary of technical issues:
What are the size and thickness limits for USB devices?

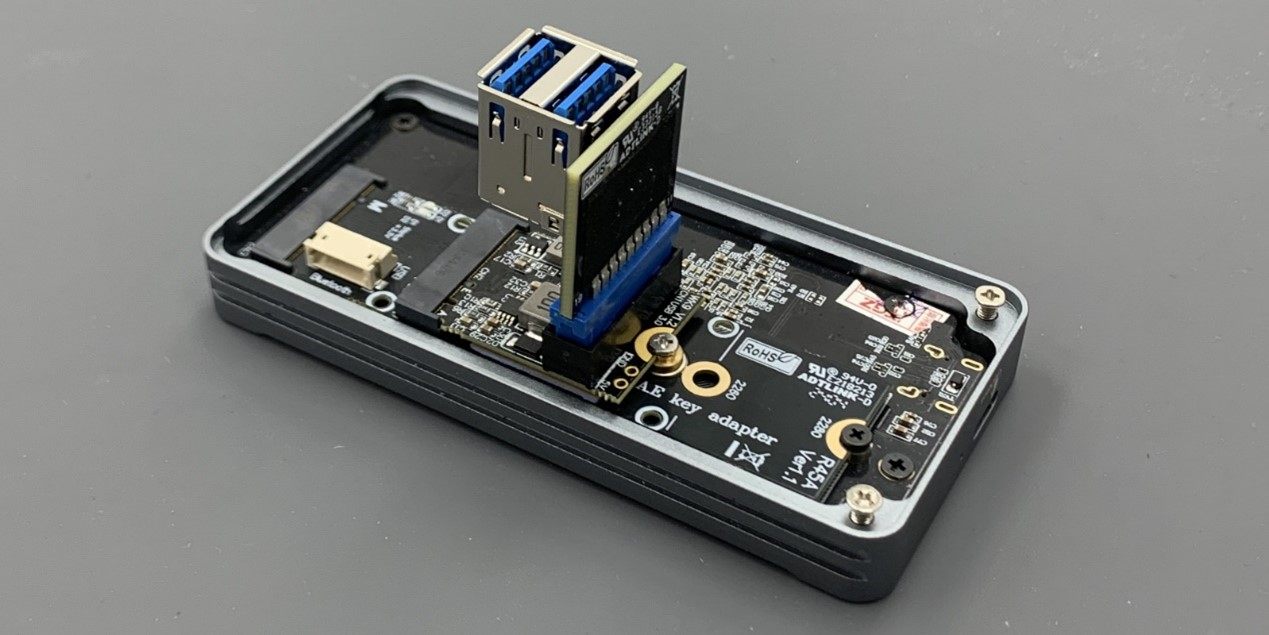

As shown in the figure below, the thickness of the adapter board is 5mm, and whether it can be installed depends on the thickness of the U disk and the space of your notebook

Chipset specification:（Renesas μPD720202）

Compliant with Universal Serial Bus 3.0 Specification Revision 1.0, which is released by USB

Implementers Forum, Inc

- Supports the following speed data rate as follows: Low-Speed (1.5 Mbps) / Full-Speed (12

Mbps) / Hi-Speed (480 Mbps) / SuperSpeed (5 Gbps)

- μPD720202 supports up to 2 downstream ports for all speeds

- Supports all USB compliant data transfer types as follows; Control / Bulk / Interrupt /

Isochronous transfer

 Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0

- Supports USB debugging capability on all SuperSpeed ports.

 Supports USB legacy function

 Compliant with PCI Express Base Specification Revision 2.0

 Supports Latency Tolerance Reporting ECN of PCI Express Specification

 Supports PCI Express Card Electromechanical Specification Revision 2.0

 Supports PCI Bus Power Management Interface Specification Revision 1.2

 Supports USB Battery Charging Specification Revision 1.2 and other portable devices

- DCP mode of BC 1.2

- CDP mode of BC 1.2

- China Mobile Phone Chargers

- EU Mobile Phone Chargers

- Apple iOS products

 Operational registers are direct-mapped to PCI memory space

 Supports Serial Peripheral Interface (SPI) type ROM for Firmware

 Supports Firmware Download Interface from system BIOS or system software
