WK6

Product ID:ADT-WK6

Product name: M.2 B-key WWAN 4G network card slot to SD 4.0 interface adapter

Interface: M.2 Key-B / SD 4.0

Application: Make the notebook empty 4G network card slot to SD 4.0 interface

Operation Temperature: 0℃~70℃

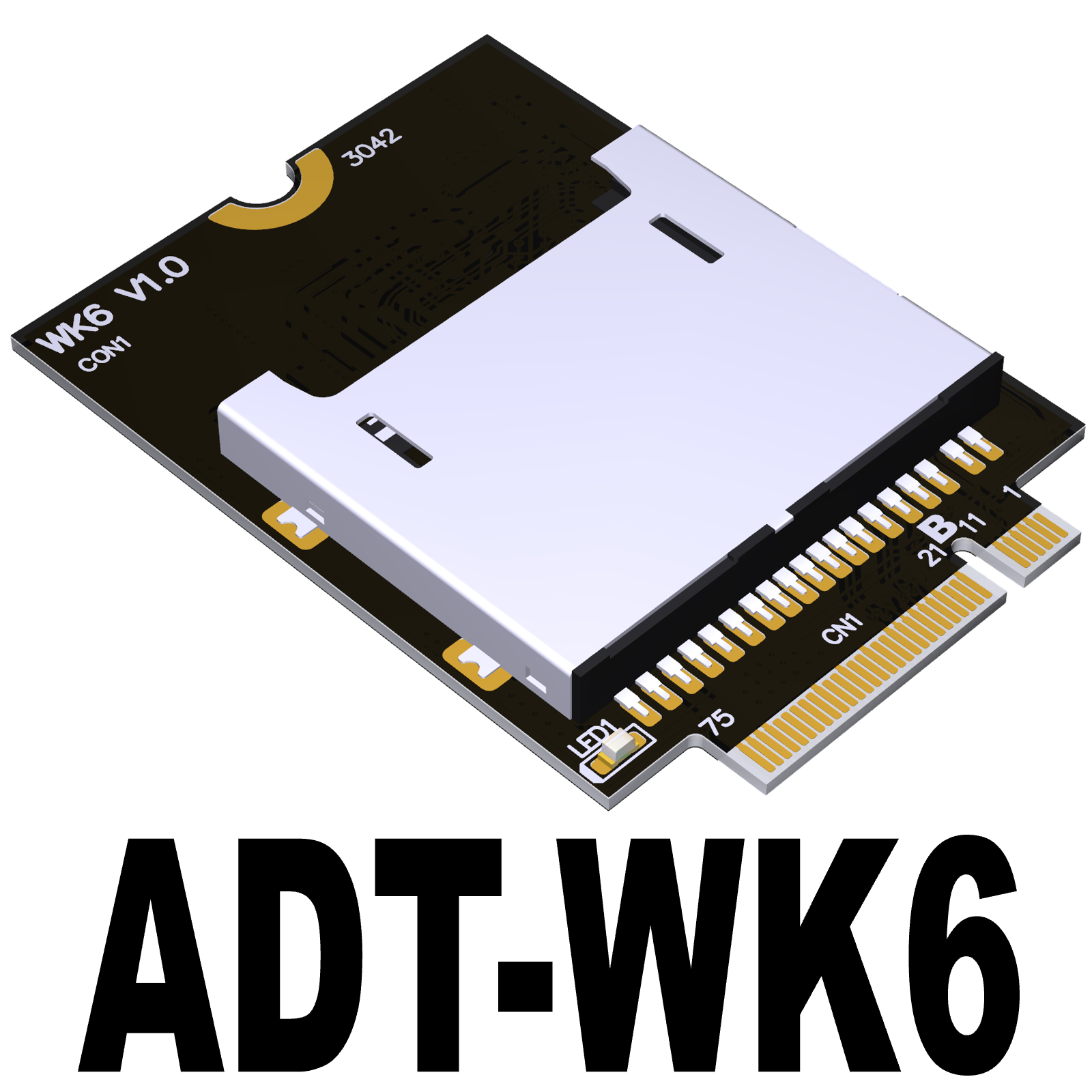

M.2 B-key gold finger to SD 4.0 UHS-II connector adapter

Brand: ADT-Link

Product model: WK6

Product Name:M.2 B-key WWAN 4G network card slot to SD 4.0 interface adapter board

Adapter board specifications: M.2 B-key WWAN interface, size 30x42mm, adapter board supports USB 3.0

Weight: 5g

Operation Temperature: 0℃~70℃

Applicable equipment: SD card

Product use: can make the notebook empty 4G network card slot to SD 4.0 interface, this product for transfer use

Product restrictions: This product is a special design, difficult to assemble, size compatibility restrictions, limited to professional engineers designated for purchase. Please confirm your notebook space restrictions and product specifications before placing an order.

Purchase tips: Be sure to buy 1~2 samples before purchasing in bulk. This product is only an adapter board and does not include demonstration equipment such as wireless network cards, hard disks, et


Part-Number Description:

Part-Number
Description
Speed
ADT-WK6M.2 B-key gold finger to SD 4.0 UHS-II connector adapterUSB 3.0 / SD-UHS-II



Photo:

Summary of technical issues:
What are the size and thickness limits for WWAN slot?

As shown in the figure below, the thickness of the adapter board is 5.0mm, and whether it can be installed depends on the thickness of your notebook

Chipset specification:

Genesys GL3232S

USB 3.2 GEN1 to SD 4.0
Memory Card Reader Controller

 USB specification compliance
- Comply with Universal Serial Bus 3. 1 Specification ( USB 3.1 GEN1)
- Comply with Universal Serial Bus Specification rev. 2.0 (USB 2.0)
- Comply with USB Mass Storage Class Specification rev. 1.0
- Support USB Mass Storage Class Bulk Only Transport (BOT)
- Support 1 device address and up to 3 endpoints: Control (0) / Bulk Data Read In (1) / Bulk Data Write Out (2)
- Support 5 Gbps SuperSpeed, 480 Mbps high speed, and 12 Mbps full speed transfer rates
 Integrated USB building blocks
- SuperSpeed US B/ USB 2.0 transceiver macro (UTM), Serial Interface Engine (SIE), and embedded P ower O n R eset (POR)
 Embedded high speed 8051 micro controller
 High efficien cy hardware DMA engine improves data transfer performance between USB and flash card interfaces
 Support Se cure Digital TM v1.0 / v1.1 / v2.0/ SDHC / SDXC c apacity up to 2TB)
 Support Secure Digital TM v 3.0 UHS I (Ultra High Speed): SDR12/SDR25/SDR50/DDR50/SDR104
 Support Secure Digital TM v 4.0 UHS II: Full Duplex Mode and Half Duplex Mode
 Support DDR200 speed mode to enhance the UHS-I performance
 Support SANDISK EXTREME® 160 MB/s microSD UHS-I CARD
 Support MultiMediaCard TM (MMC)
- MMC specification v3. x / v4.0 / v4.1 v4.2 / v4.3 / v4.4
- x1 / x4 bit data bus
 Support HUAWEI Nano Memory Card
 Support ISP (In System Programming) for firmware upgrade from the external SPI F lash via USB port
 On Chip power MOSFETs for supplying flash media card power
 On chip 5V to 3.3V and 3.3V to 1. 2 V regulator
 On chip 5V to 1.2V DC DC to improve power efficiency.
 Support Over Current protection mechanism
 Support USB 2.0 LPM (Link Power Management)
 Support USB 3.1 GEN1 LTM (Latency Tolerance Messaging)
 Support USB 3.1 GEN1 U1/U2/U3 low power link state
 Support La tency Tolerance Messaging
 Support remote wakeup funct ion
 Support Intel Power Optimizer
 Support Windows Connected Standby
 Support Spread Spectrum Clock for SD to reduce EMI effect
 Available in QFN48 pin package (6x6mm)

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D PDF, SETP and schematic files download http://www.adt.link/download/ADT_WK6_3D.zip

FTP: Hong Kong

3D PDF, SETP and schematic files download http://www.adtlink.cn/download/ADT_WK6_3D.zip

WebShop:

http://www.adt.link/product/ADT-WK6-Shop.html
