WK5

Product ID：ADT-WK5

Product name: M.2 B-key t to USB 3.0 adapter

Interface: M.2 Key-B / USB 3.0

Application: Make the notebook empty 4G network card slot to USB 3.0 interface

Product limitation: The thickness of the adapter plate is 5.8mm

Buy Now

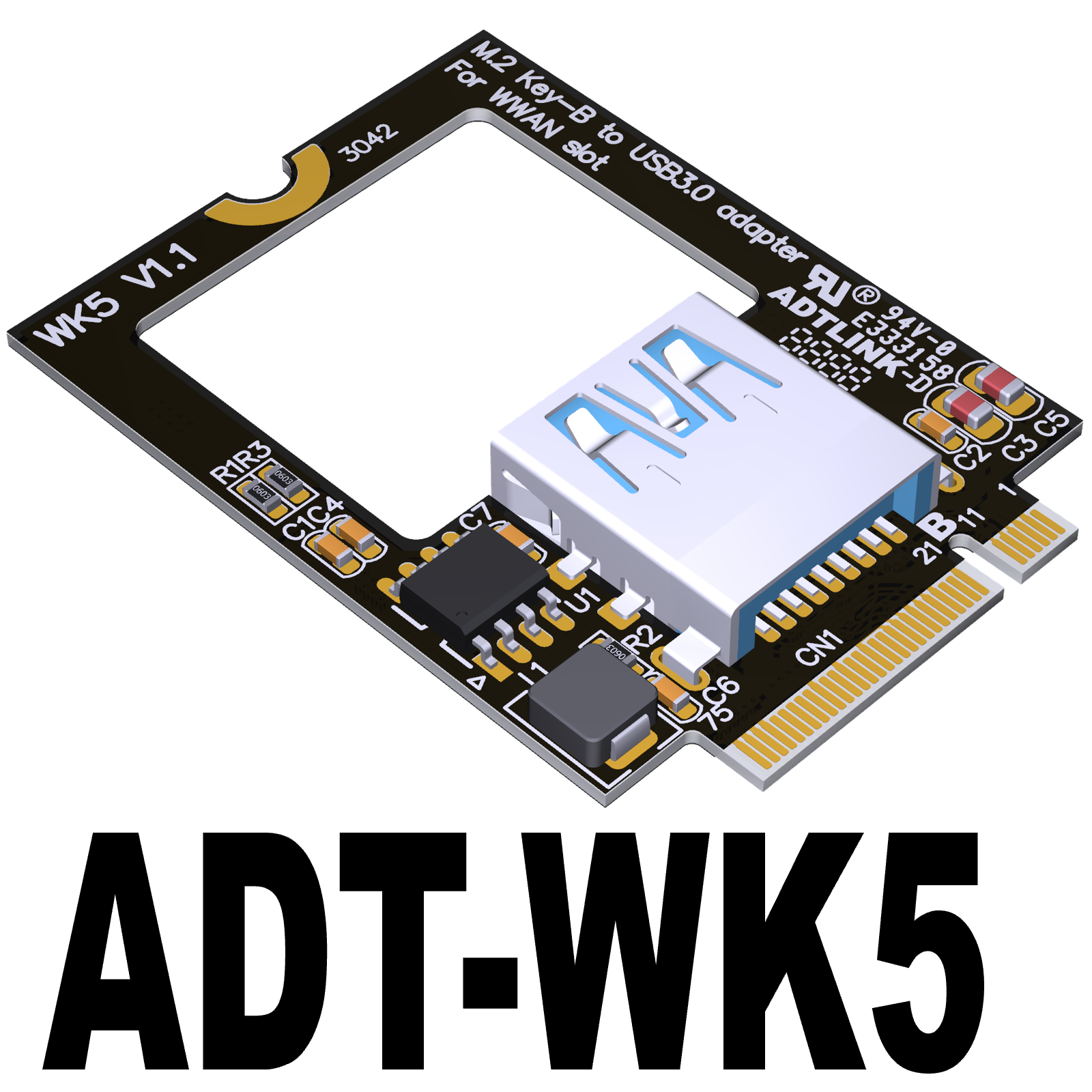

M.2 B-key gold finger to USB 3.0 type-A female adapter

Brand: ADT-Link

Product model: WK5

Product Name:M.2 B-key WWAN 4G network card slot to USB3.0 interface adapter board

Adapter board specifications: M.2 B-key WWAN interface, size 30x42mm, adapter board supports USB 3.0

Weight: 3g

Operation Temperature: -40℃~+80℃

Applicable equipment: USB wireless card, USB mouse receiver, USB SSD

Product use: can make the notebook empty 4G network card slot to USB 3.0 interface, this product for transfer use

Product restrictions: This product is a special design, difficult to assemble, size compatibility restrictions, limited to professional engineers designated for purchase. Please confirm your notebook space restrictions and product specifications before placing an order.

Purchase tips: Be sure to buy 1~2 samples before purchasing in bulk. This product is only an adapter board and does not include demonstration equipment such as wireless network cards, hard disks, et

Part-Number Description:

Part-Number	Description	Speed
ADT-WK5	M.2 B-key gold finger to USB 3.0 type-A female adapter	USB 3.0

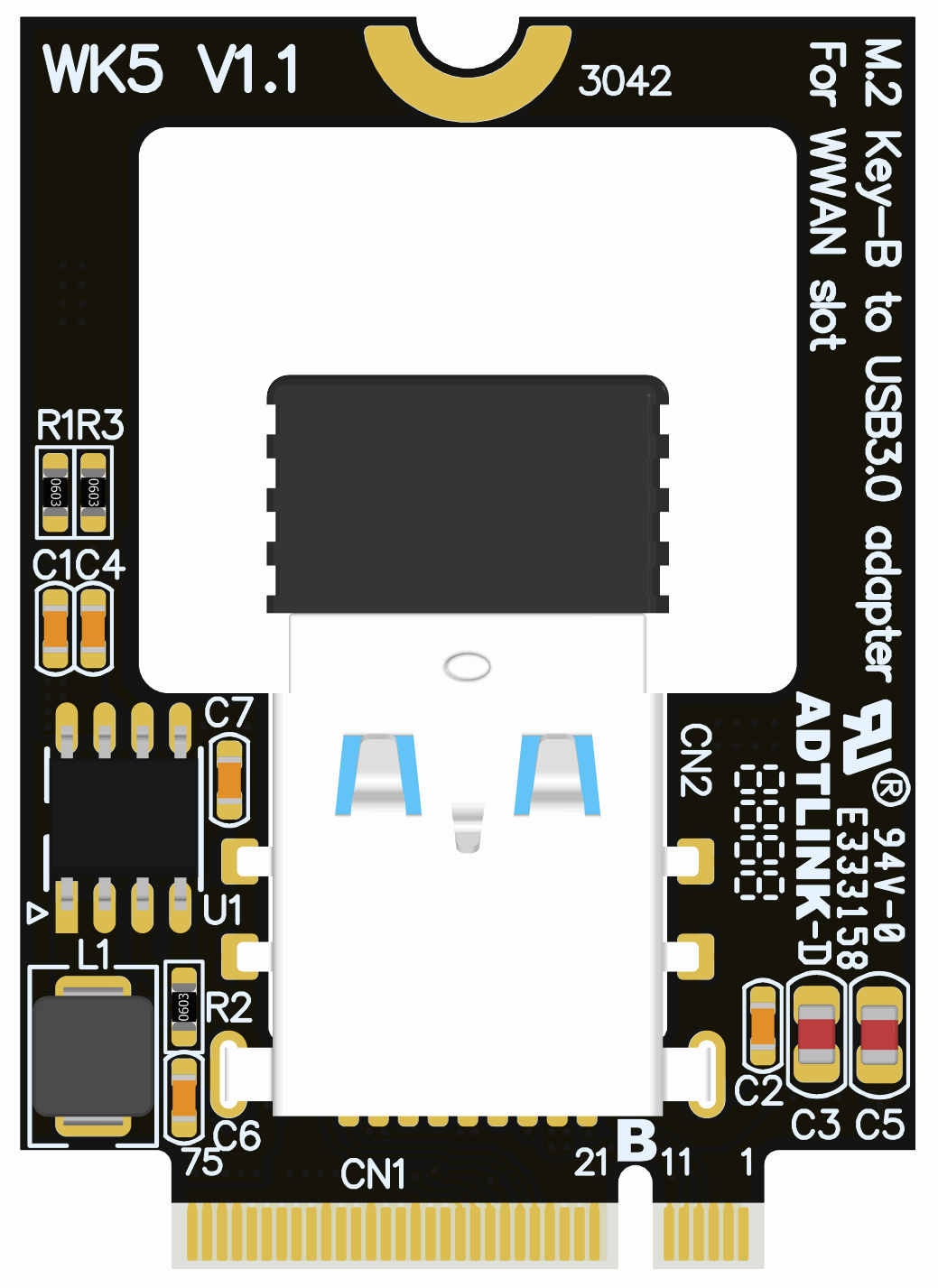

Photo:

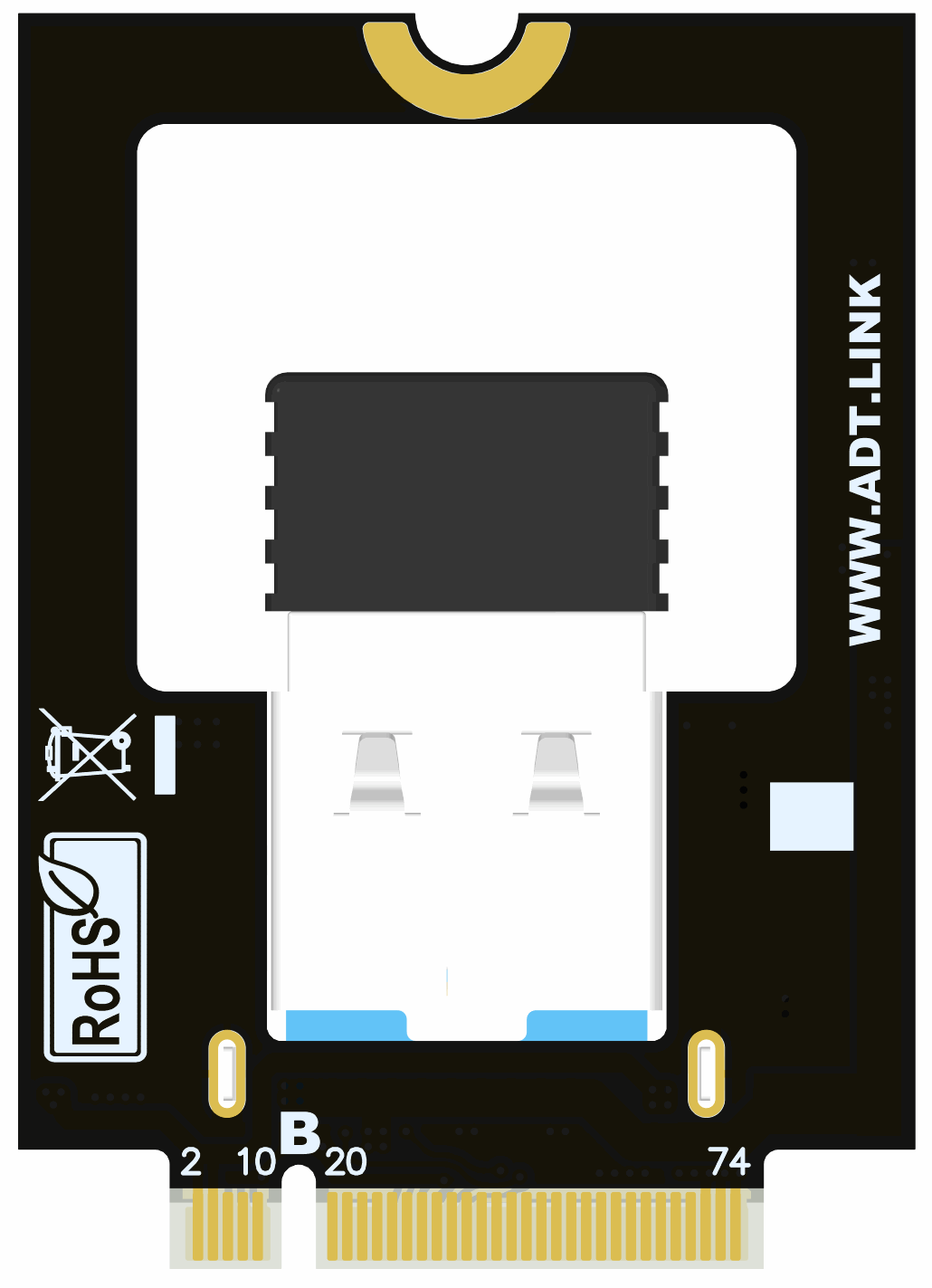

Real picture:
This product only refers to the adapter board, does not include wireless network card hard disk and other demonstration equipment

Summary of technical issues:
What is the size and length limit for USB devices?
As shown in the figure below, the length of the U disk must be within 28mm, and it cannot be installed beyond 28mm

What are the size and thickness limits for USB devices?
As shown in the figure below, the thickness of the adapter board is 5.8mm, and whether it can be installed depends on the thickness of the U disk and the space of your notebook
