R45A

Product ID：R45A

Interface: M.2 Key M / Key E

Application: NVMe/WiFi adapter

Transfer speed: PCIe 4.0 gen4 x2 (Max.)

Product description: R45A M.2 NVMe to WiFi adapter

Buy Now

ADT-Link M.2 NVMe to WiFi adapter

Brand name: ADT-LINK

Product name: M.2 NVMe to WiFi adapter

Product model: R45A

Transfer speed: PCIe 4.0 gen4 x2 (Max.)

Weight: 20g

Dimension: support M.2 2230 WiFi card to NGFF key M(2280) 22mm x 80mm socket

Application: M.2 NVMe to WiFi adapter extesnion adapter card

Purchase restrictions: This product is a special design, difficult to assemble, and only professional engineers can specify to purchase. Please confirm the specifications clearly before placing an order. Intel network card only supports Win10/Win11 operating system
Purchasing tips: Be sure to buy 1~2 samples first, test and verify that they are correct, and then purchase in bulk.

Product testing:

Can achieve PCIE x2 speed (needs to be used with x2 network card)

Part-Number Description:

1. Two RPSMA 2.4G/5G dual-band antennas

2. PCIE long bezel (full height)

3. PCIE short bezel (half height) (no short bezel, please contact customer service to purchase)

4. M.2 transfer Card (standard configuration)

5. INTEL AX210 sixth-generation network card

6. Screw package with 3 M2 screws and 1 M3 screw (standard configuration)

7. USB shielded Bluetooth data cable (standard configuration, length 60cm)

8. RPSMA to MHF4 Two fourth-generation coaxial cables (length 30cm)

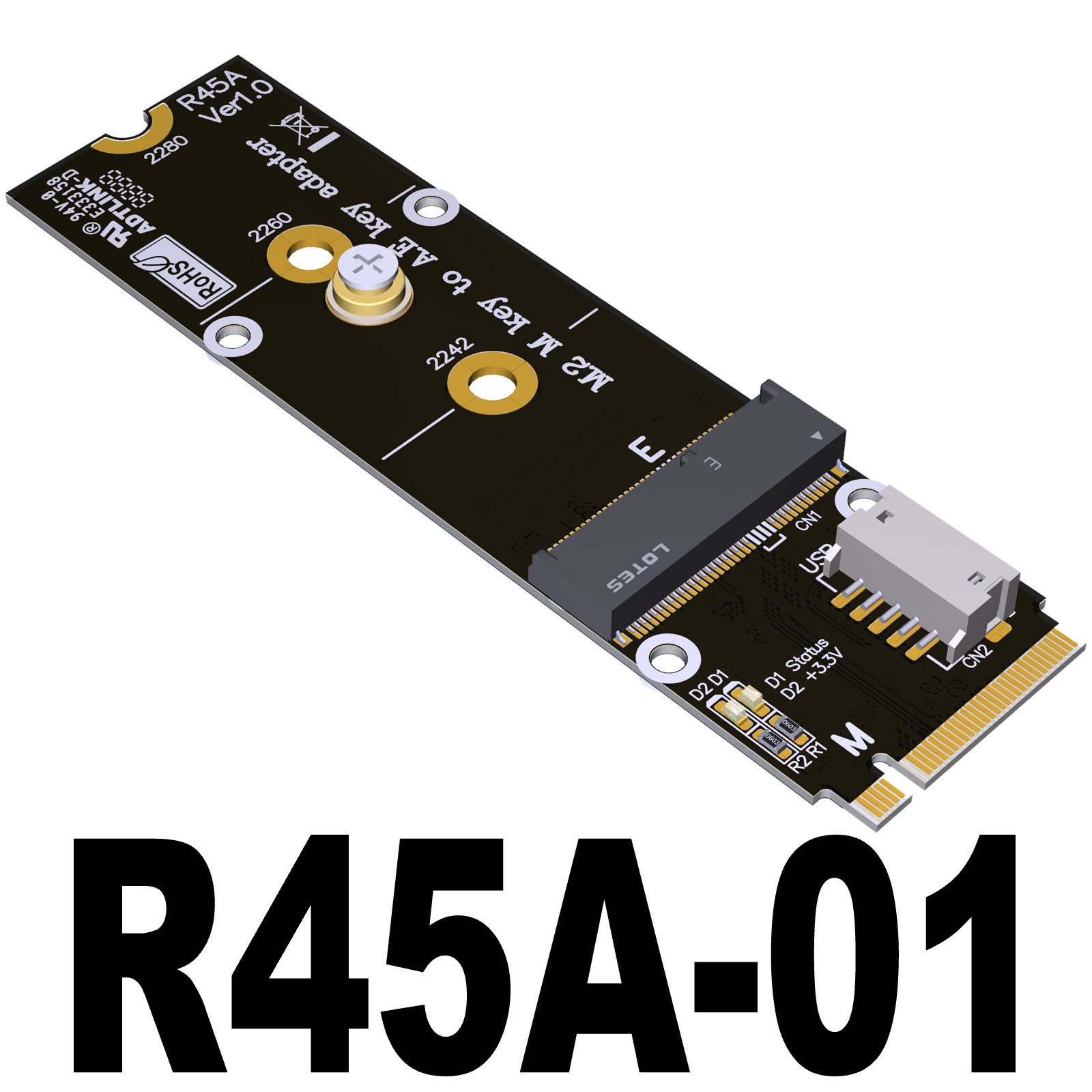

R45A-01 product list: 4. Adapter card 6. Screw package 7. Bluetooth cable
R45A-02 product list: 4. Adapter card 5. AX210 network card 6. Screw package 7. Bluetooth cable
R45A-03 product list: 1. 2 antennas 2. Full-height baffle 4. Adapter card 5. AX210 network card 6. Screw package 7. Bluetooth cable 8. 2 fourth-generation coaxial cables

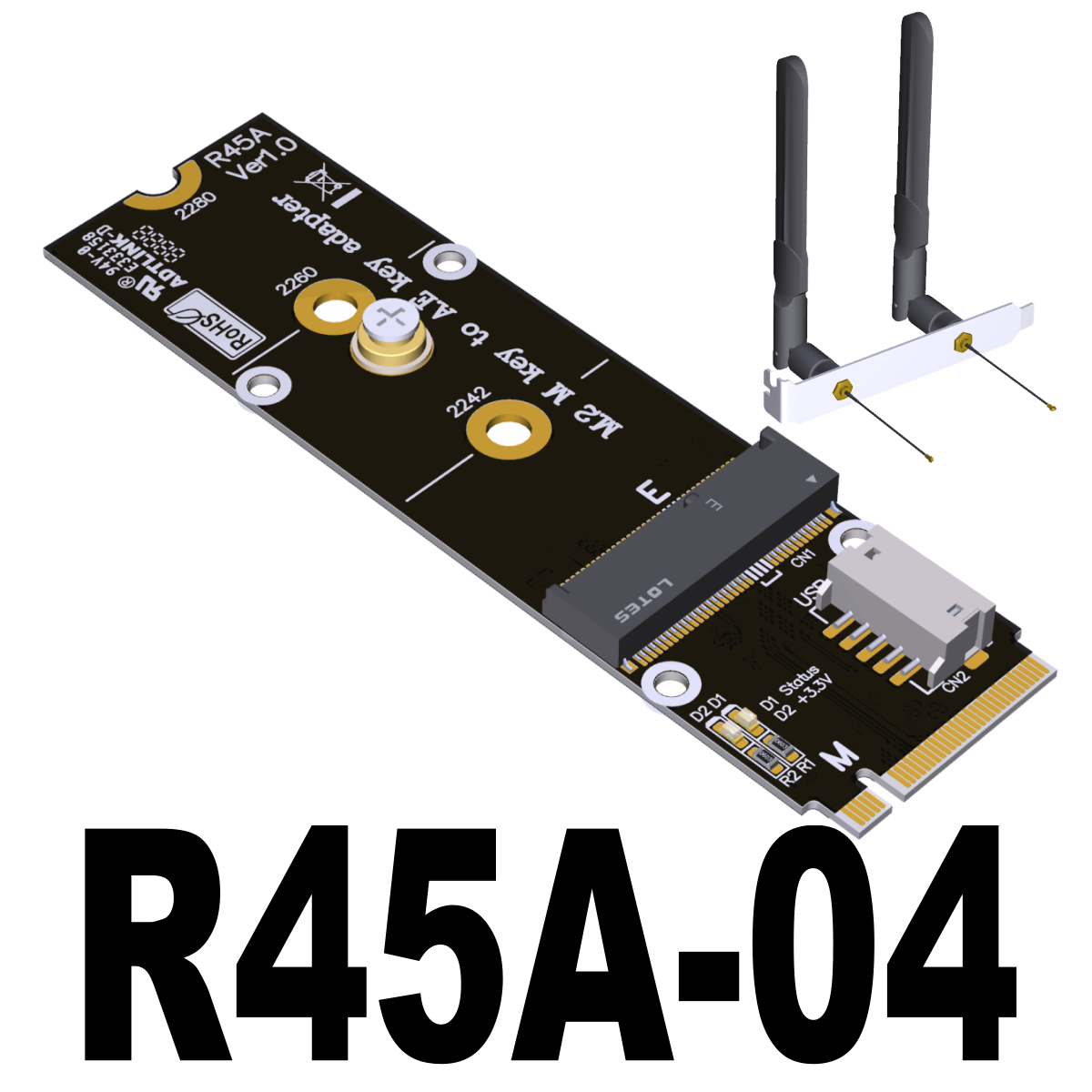

R45A-04 product list: 1. 2 antennas 2. Full-height baffle 4. Adapter card 6. Screw package 7. Bluetooth cable 8. 2 fourth-generation coaxial cables

Photo:

What are the 2 LED indicators on model R45A for?
D1 Status yellow light, the light on means that the network card hardware self-test is normal and the software driver is normal
D2 +3.3V green light, the light on means the power supply is normal (D1 and D2 must be lighted to be able to use normally)

Model R45A riser card installation process?

How long is the accessory wire for model R45A? What is the role?
The Bluetooth cable is a USB2.0 data cable with a length of 60cm. It must be connected to have the function of sending and receiving Bluetooth data.
The coaxial cable is an extension cable for the dual-band antenna, the length is 30cm, and it must be connected to have a stable wireless transceiver function
