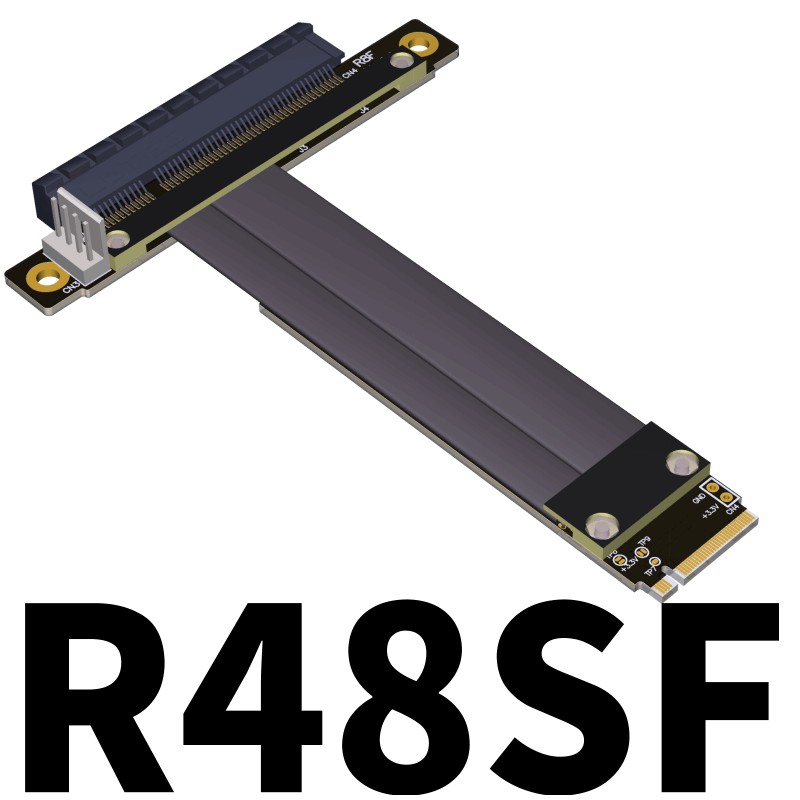

R48SF

Product ID: R48SF

Interface: PCIe x8 / M.2 NVMe

Application: Extension

Transfer speed: PCIe3.0 x4 full speed, 32G/bps (Max.)

Product description: M.2 NVMe to PCIe x8 extender adapter jumper for LAN, RAID SSD cards.

ADT-Link M.2 NVMe to PCI express 3.0 x8 Extension Cable

Brand name: ADT-LINK

Product name: M.2 NVMe to PCIe x8 extension cable

Product model: R48SF

Transfer speed: PCIe3.0 x4 full speed, 32G/bps (Max.)

Wire length: 10 ~ 100 cm, the length can be customized

Application: PCIe x8  LAN, RAID SSD cards to M.2(ultra SSD, M-key) extension


Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 8cm blue arrow in the figure below.

R48SF Cable length

Accessories description:

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

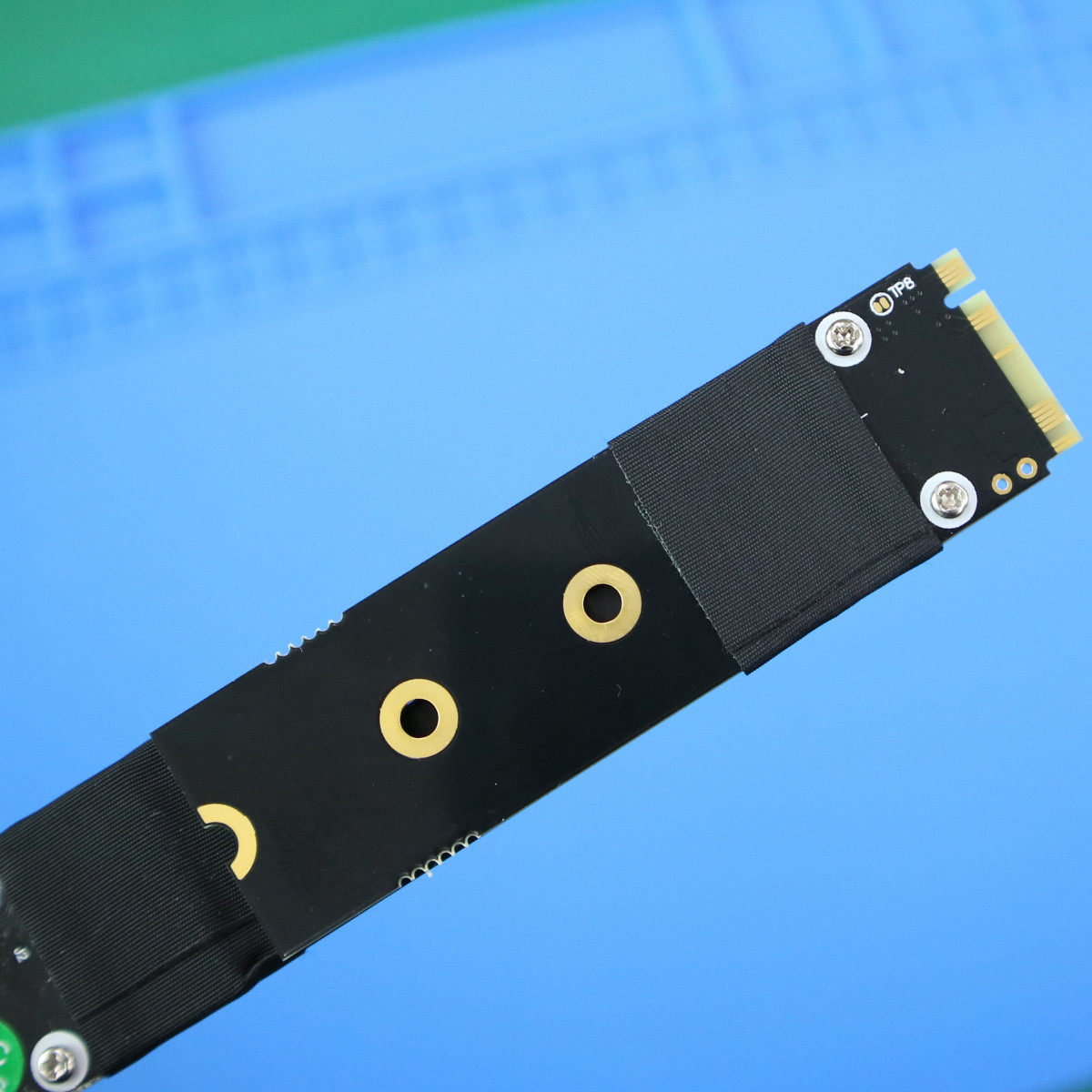

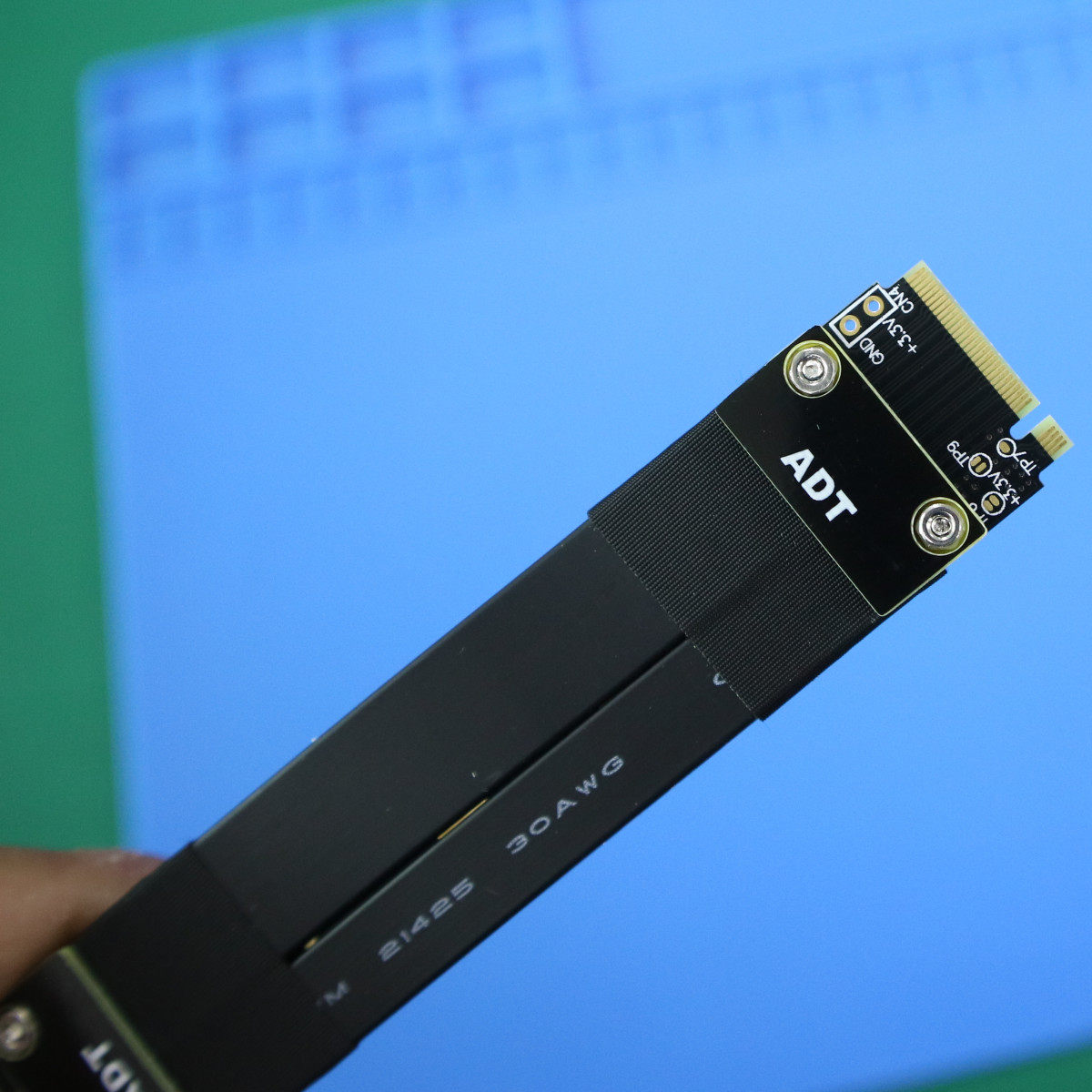

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model STEP & PDF files download http://www.adt.link/Uploads/download/ADT_R48_3D.zip

Spec download http://www.adt.link/Uploads/download/ADT_R48SF Cable specification 20200630.pdf

FTP: Hong Kong

3D model STEP & PDF files download http://www.adtlink.cn/Uploads/download/ADT_R48_3D.zip
