R42SF,R42SL,R42SR,R42DF,R42DL,R42DR

Product ID:R42SF,R42SL,R42SR,R42DL,R42DR

Interface: M.2 NVMe / PCIe x4

Application: Extension

Product description: M.2 NVMe to PCI express x4 extender adapter jumper for GPU graphics video cards.

ADT-Link M.2 NVMe to PCI-Express x4 Extension Cable

Brand name: ADT-LINK

Product name:M.2 NVMe to PCIe x4 extension cable

Product model:R42SF,R42SL,R42SR,R42DF,R42DL,R42DR

Transferspeed:PCIe3.0 x4 full speed, gen3, 32G/bps (Max.)

Wire length:10 ~ 100 cm, the length can be customized

Application: PCIe x4  SSD RAID, LAN, Capture cards to M.2(ultra SSD, M-key)extension


ADT R42 series Part-Number Description:

P/N
Description
Bandwidth

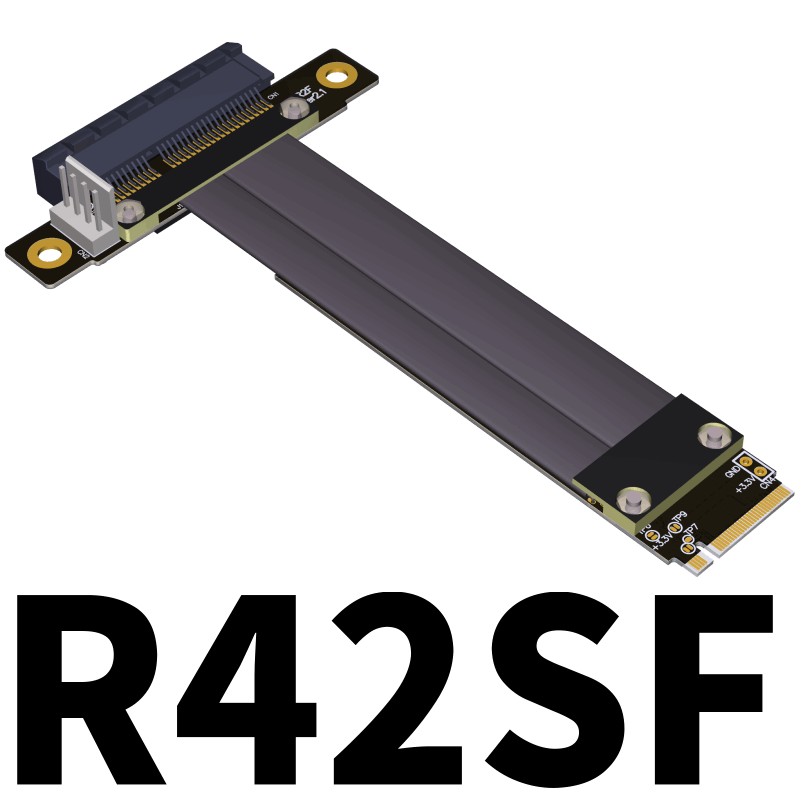

R42SF
M.2 NVMe to PCIe x4, connector splint vertical extension cablesPCIe 3.0 x4 (32G/bps)

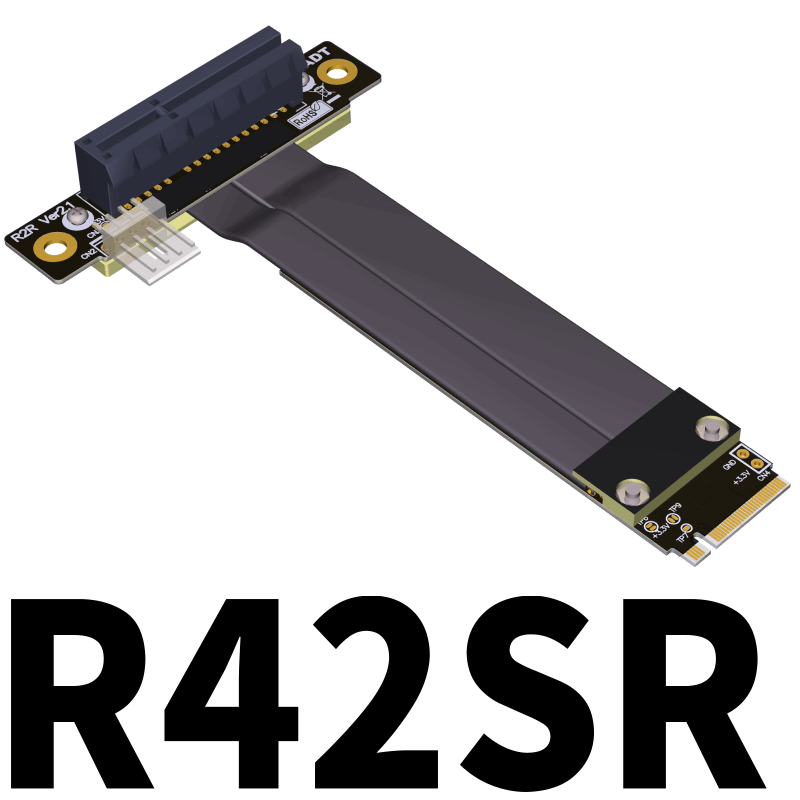

R42SRM.2 NVMe to PCIe x4, connector inverted reverse extension cablesPCIe 3.0 x4 (32G/bps)

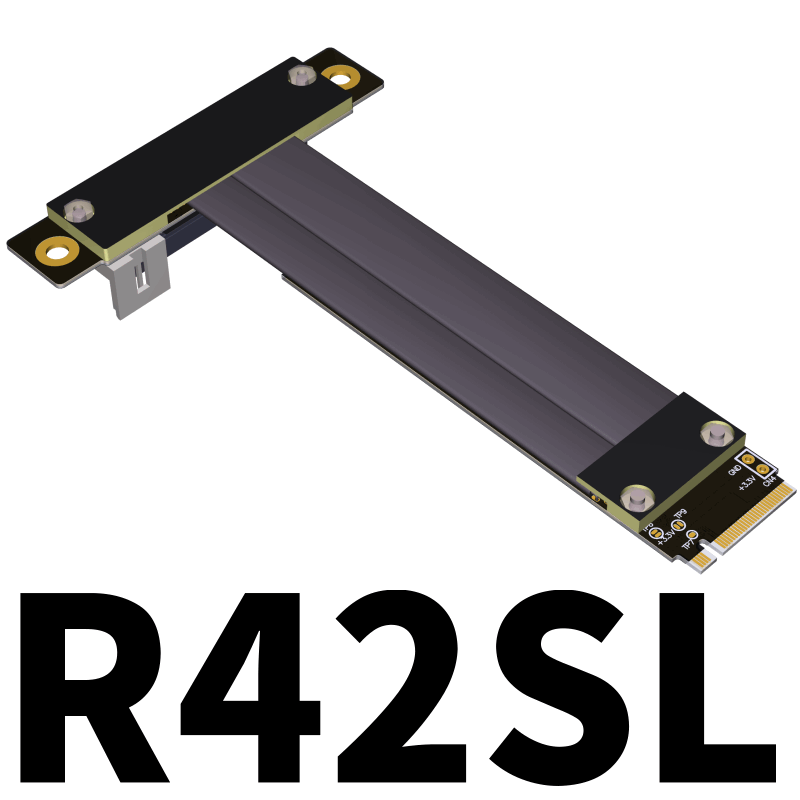

R42SLM.2 NVMe to PCIe x4, connector upright right angle extension cablesPCIe 3.0 x4 (32G/bps)

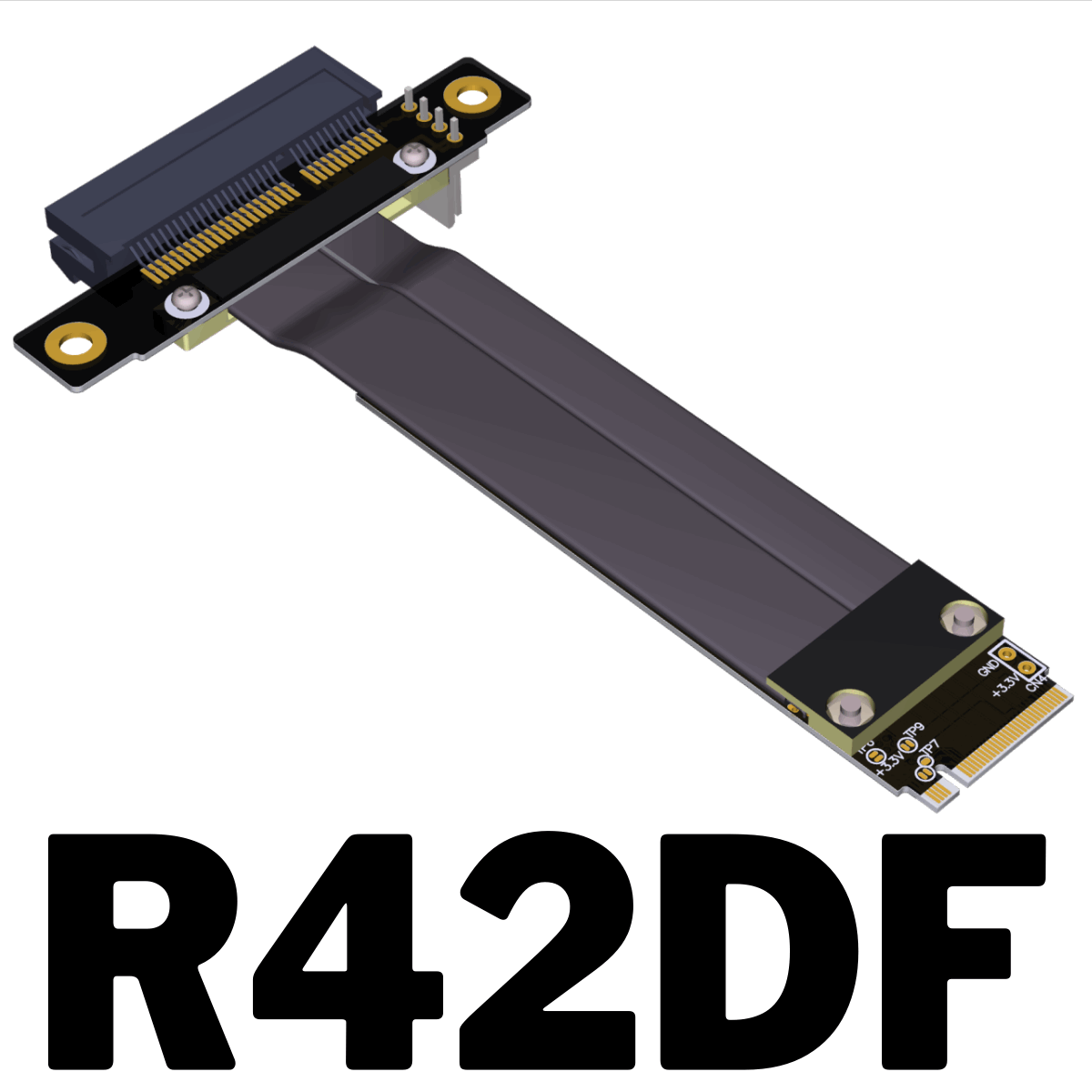

R42DF
M.2 NVMe to PCIe x4, connector rotate 180 ° splint vertical extension cablesPCIe 3.0 x4 (32G/bps)

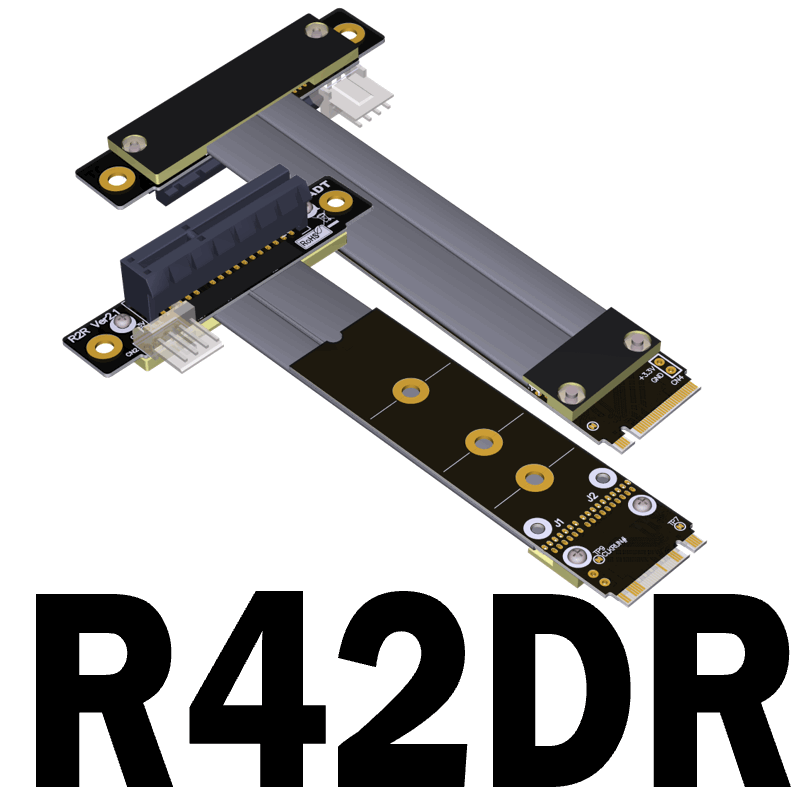

R42DRM.2 NVMe to PCIe x4, connector rotate 180 ° inverted reverse extension cablesPCIe 3.0 x4 (32G/bps)

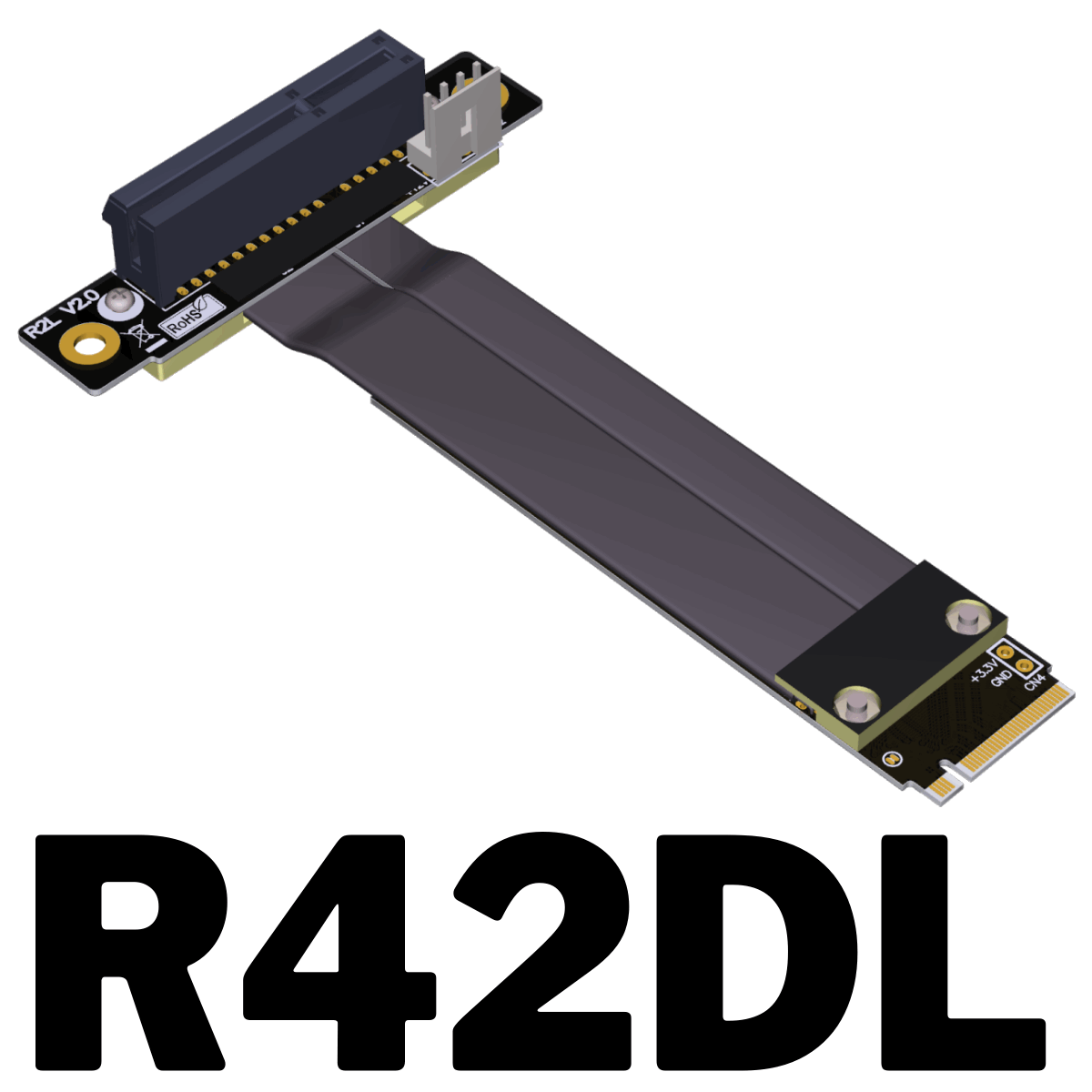

R42DLM.2 NVMe to PCIe x4, connector rotate 180 ° upright right angle extension cablesPCIe 3.0 x4 (32G/bps)

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 8cm arrow in the figure below.

Accessories description:

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

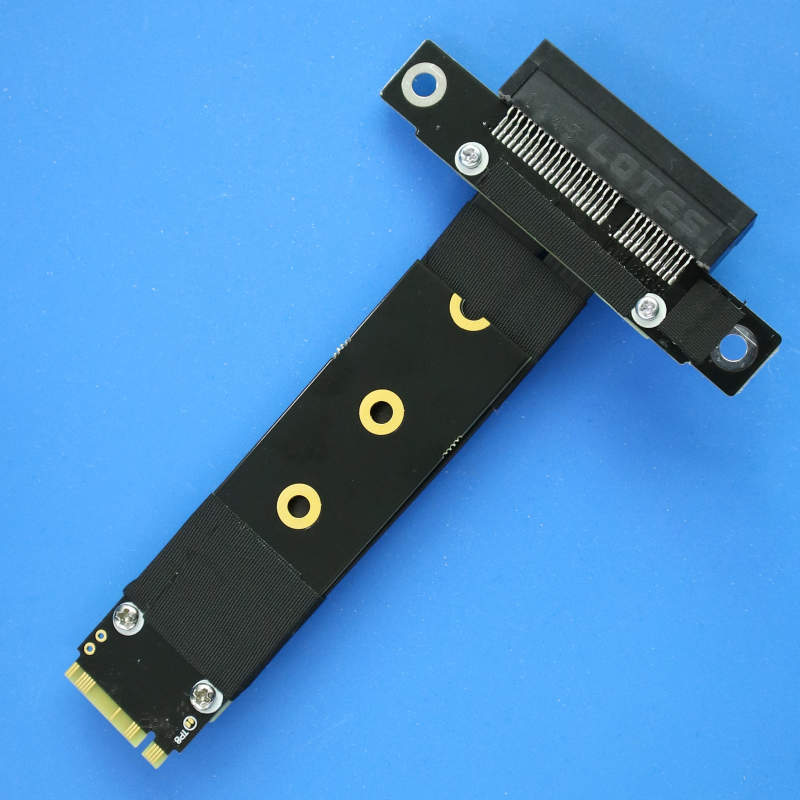

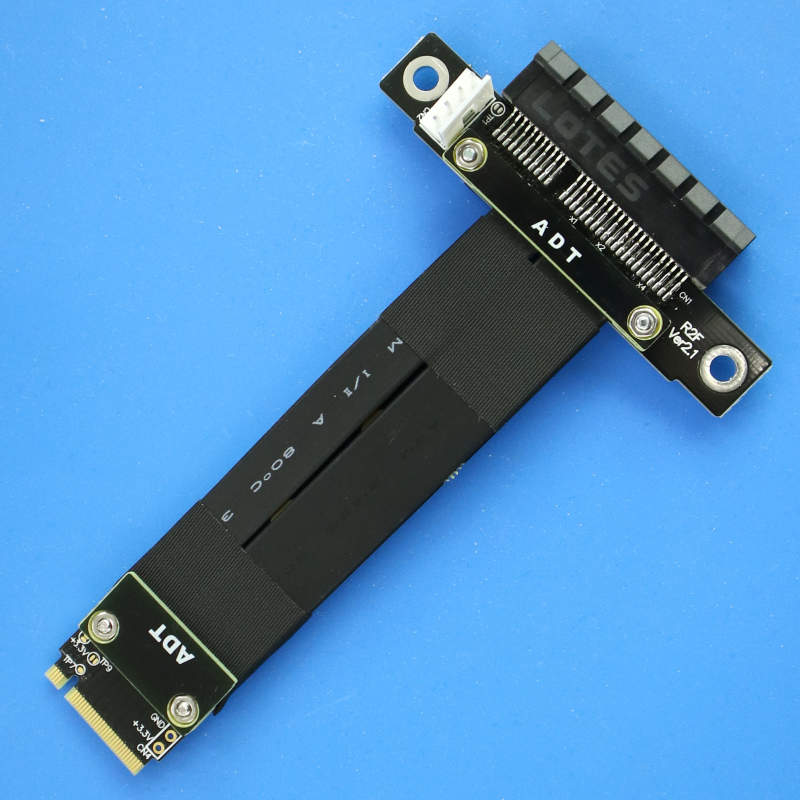

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model PDF files download http://www.adt.link/Uploads/download/ADT_R42_3D.zip

3D model STEP files download http://www.adt.link/Uploads/download/ADT_R42_STEP.zip

Spec download http://www.adt.link/Uploads/download/ADT_R42SF Cable specification 20200630.pdf

Spec download http://www.adt.link/Uploads/download/ADT_R42SS schematic 20200117.pdf

FTP: Hong Kong

3D model PDF files download http://www.adtlink.cn/Uploads/download/ADT_R42_3D.zip

3D model STEP files download http://www.adtlink.cn/Uploads/download/ADT_R42_STEP.zip

WebShop:

http://www.adt.link/product/R42-Shop.html
