R51SF, R51SL, R51SR

Product ID：R51SF , R51SL , R51SR

Interface: M.2 WiFi / PCIe x1

Transfer speed: PCIe 3.0 x1 full speed, 8G/bps (Max.)

Application: Extension

Product description: M.2 Key A.E. to PCIe x1 extender adapter

Buy Now

ADT-Link M.2 Key A.E. to PCIe x1 Extension Cable

Brand name: ADT-LINK

Product name: M.2_A.E. to PCIe x1 extension cable

Product model: R51SF , R51SL , R51SR

Transfer speed: PCIe 3.0 x1 full speed, 8G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized,

Application: PCIe x1 audio card, wireless LAN card to M.2 A.E extender

ADT PCIe R51 Part-Number Description:

Part-Number	Description	Bandwidth

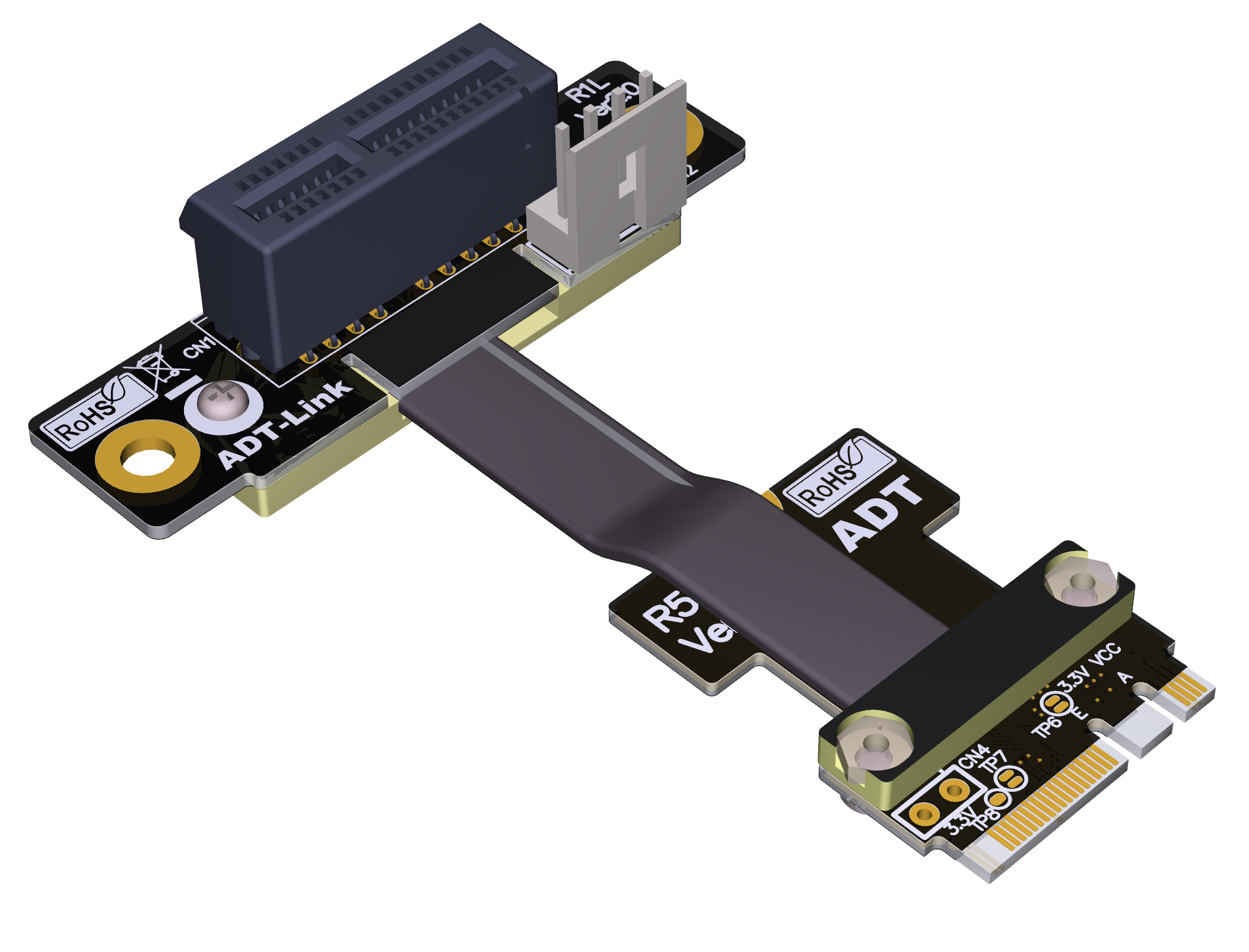

R51SL	M.2_A.E. to PCIe x1 connector turn 90 degree upright right angle extension cables	PCIe 3.0 x1 (8G/bps)

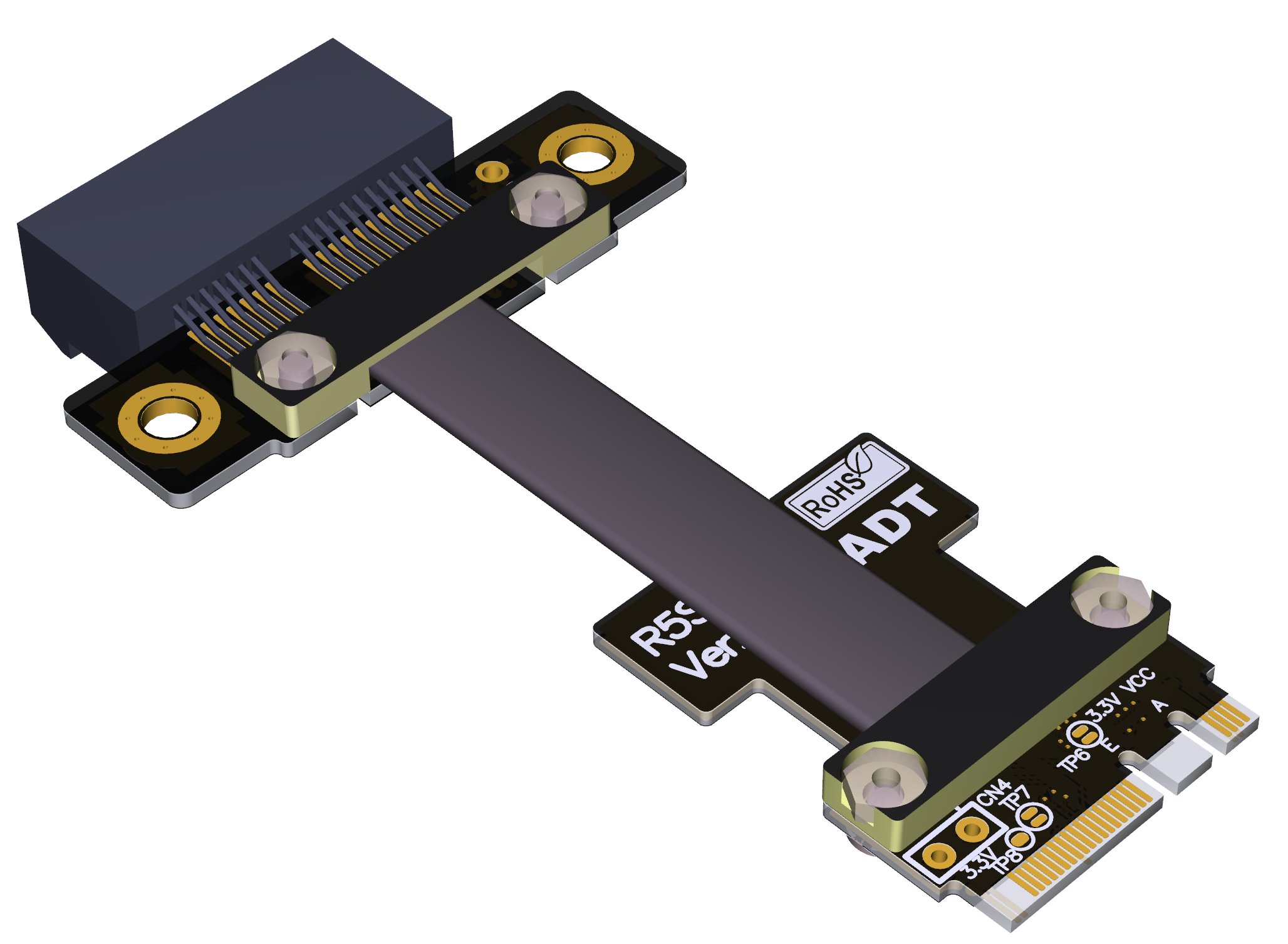

R51SF	M.2_A.E. to PCIe x1 connector turn 180 degree splint vertical extension cables	PCIe 3.0 x1 (8G/bps)

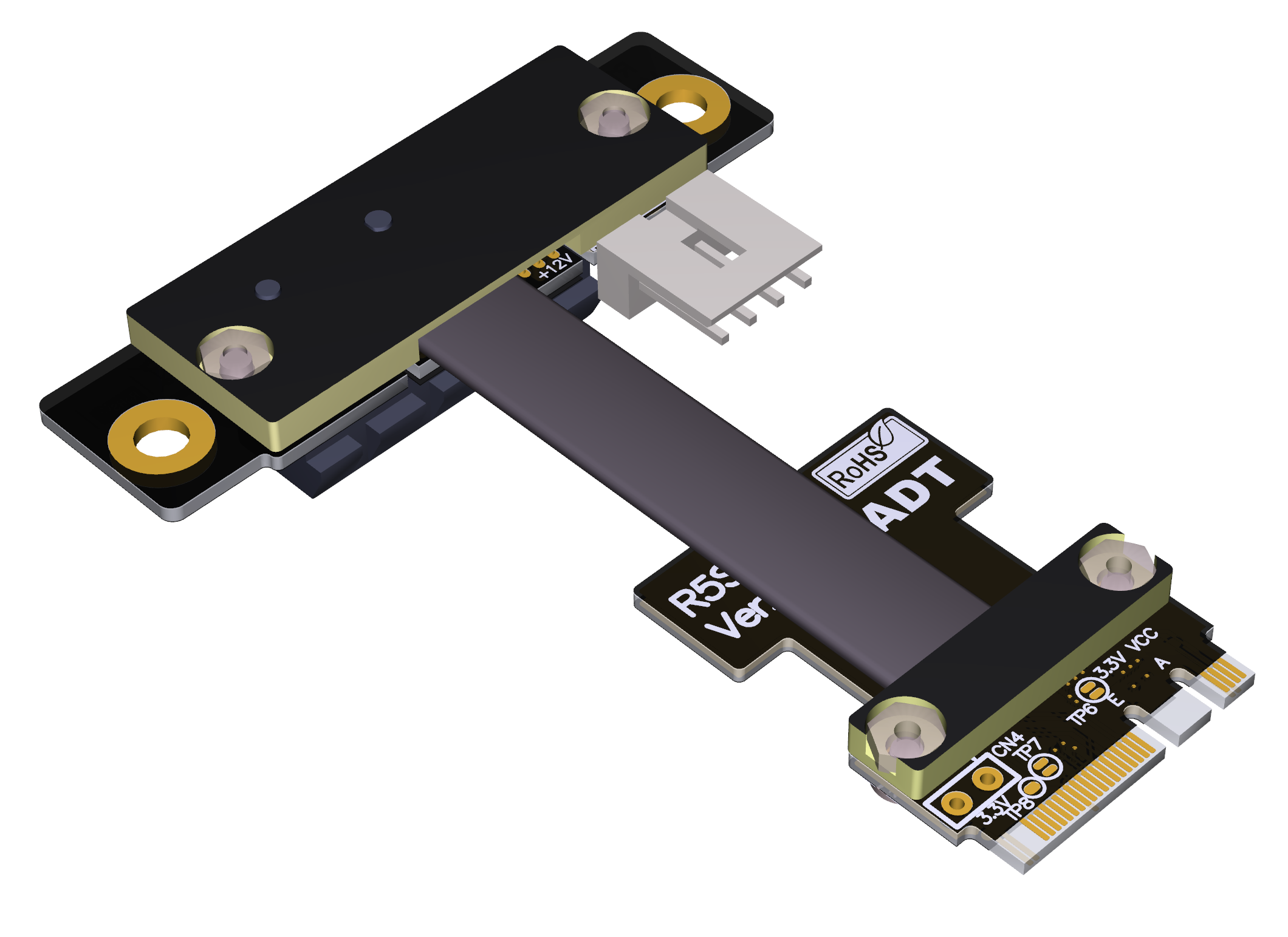

R51SR	M.2_A.E. to PCIe x1 connector turn 270 degree inverted reverse extension cables	PCIe 3.0 x1 (8G/bps)

Accessories description:

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Photo:

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
