R33SF, R33SL, R33SR

Product ID: R33SF, R33SL, R33SR

Interface: PCIe x16 / PCIe x16

Transfer speed: PCIe3.0 x16 full speed, 128G/bps (Max.)

Application: Extension

Product description: PCIe x16 to x16 adapter for graphics video cards extension.

ADT-Link PCI express 3.0 x16 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x16 to x16 extension cable

Product model: R33SF , R33SL , R33SR

Transfer speed: PCIe3.0 x16 full speed, 128G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized,

Application: PCIe x16 graphics video card to PCIe x16 slot extension cable


ADT R33 series Part-Number Description:

Part-Number
Description
Bandwidth

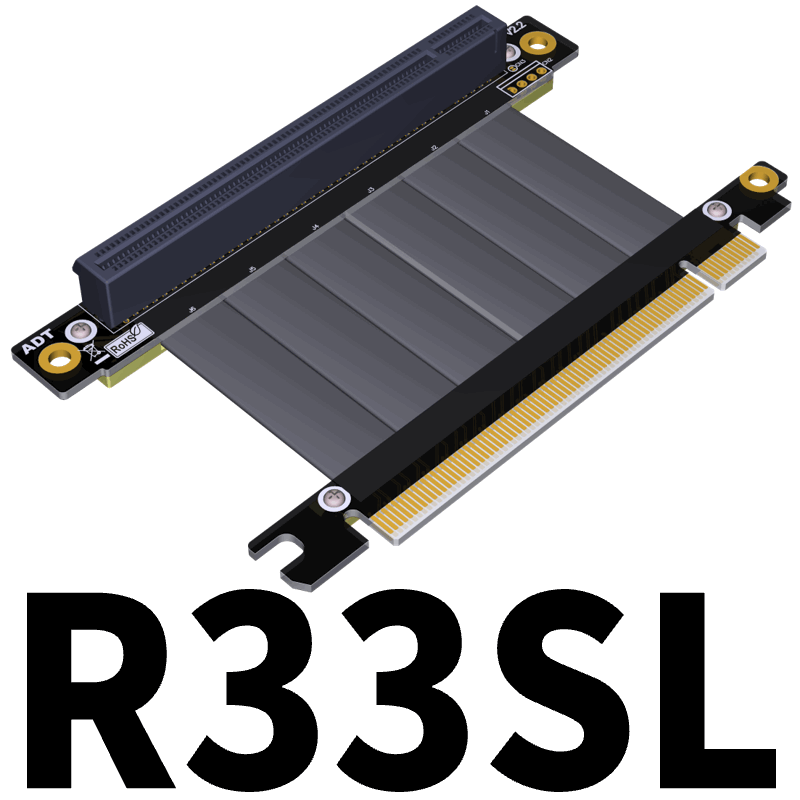

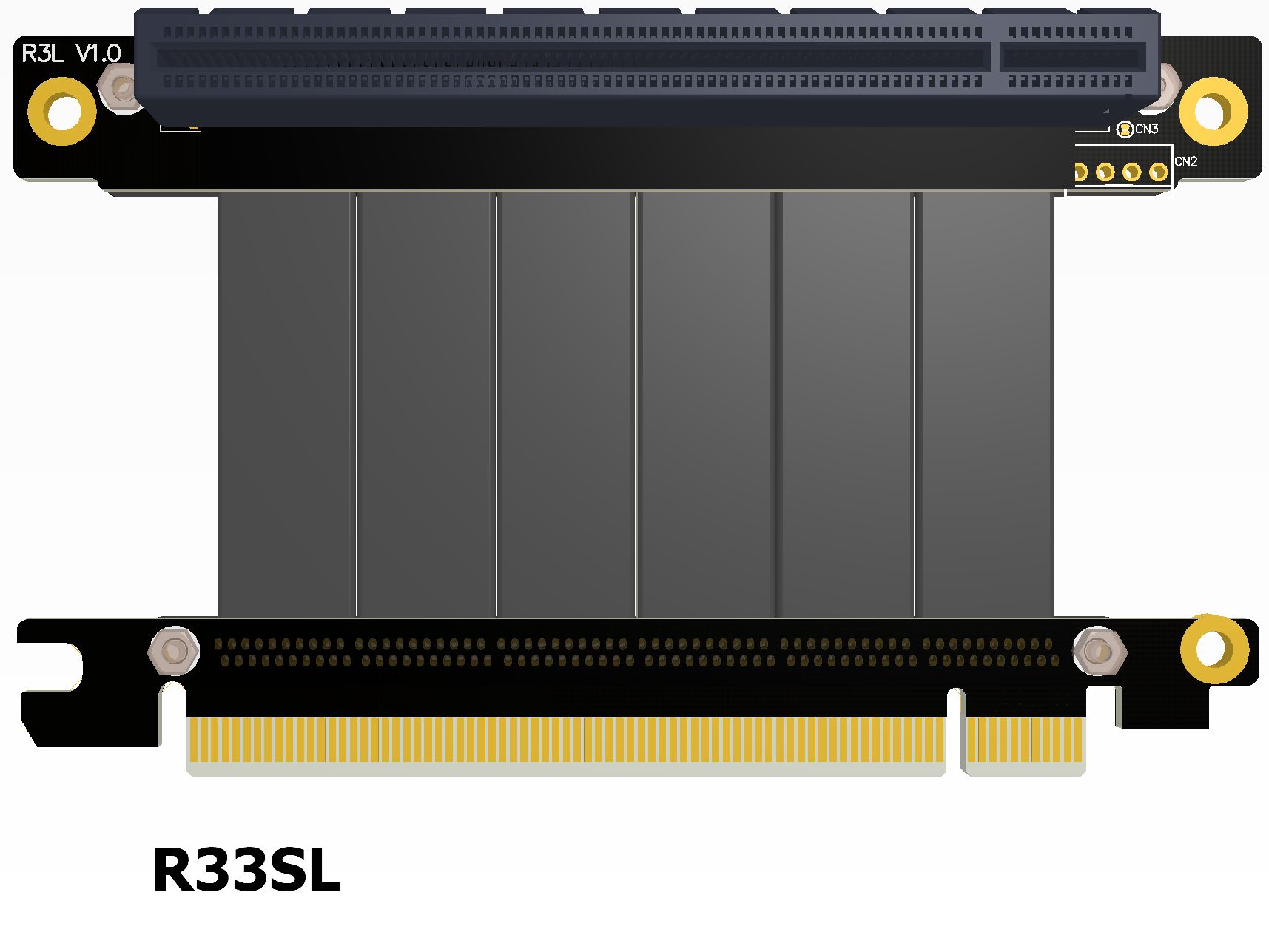

R33SLPCI-E x16 to x16 turn 90 degree upright right angle extension cablesPCIe 3.0 x16 (128G/bps)
R33SF

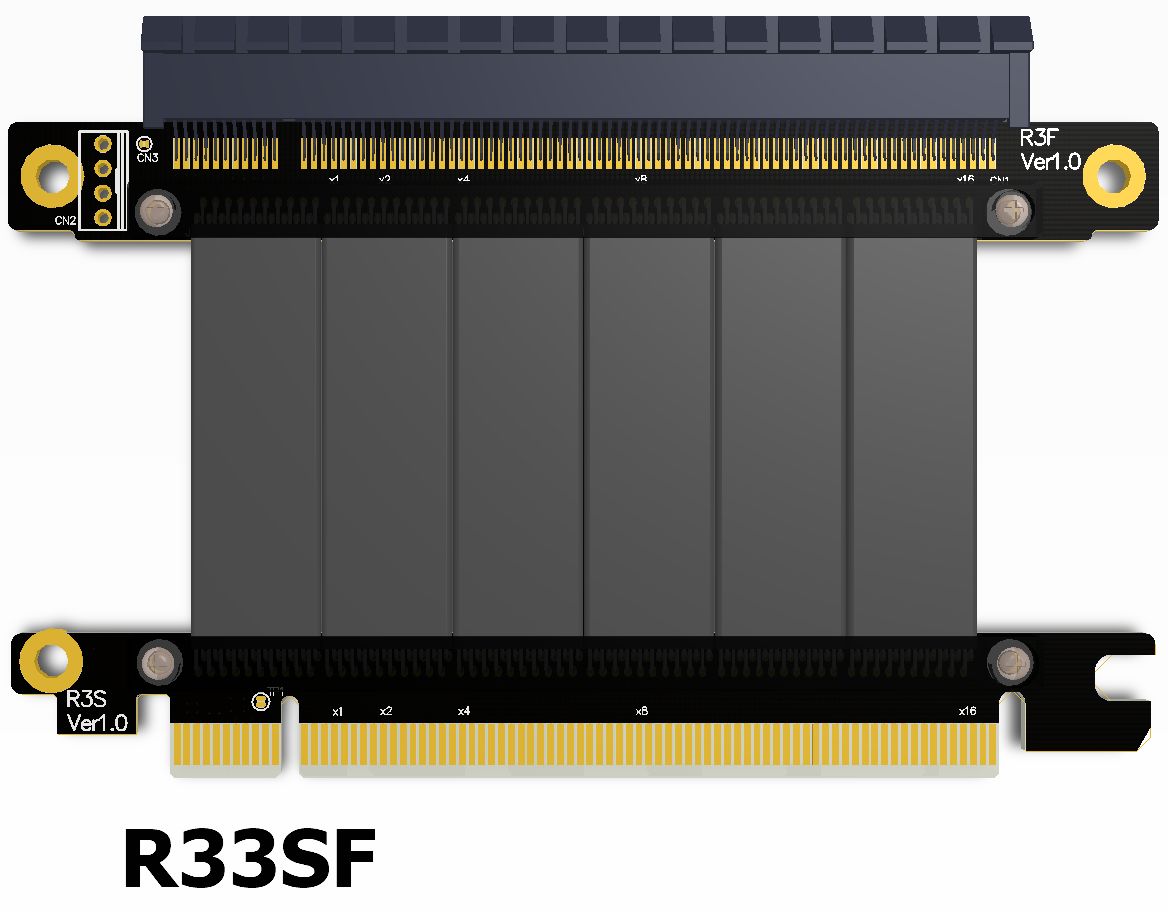

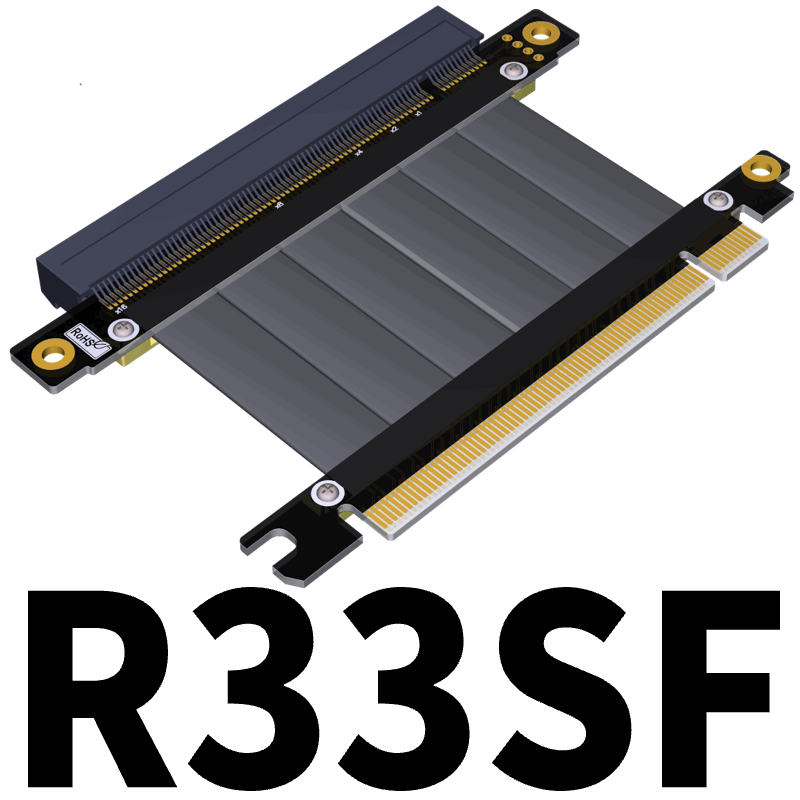

PCI-E x16 to x16 turn 180 degree splint vertical extension cablesPCIe 3.0 x16 (128G/bps)

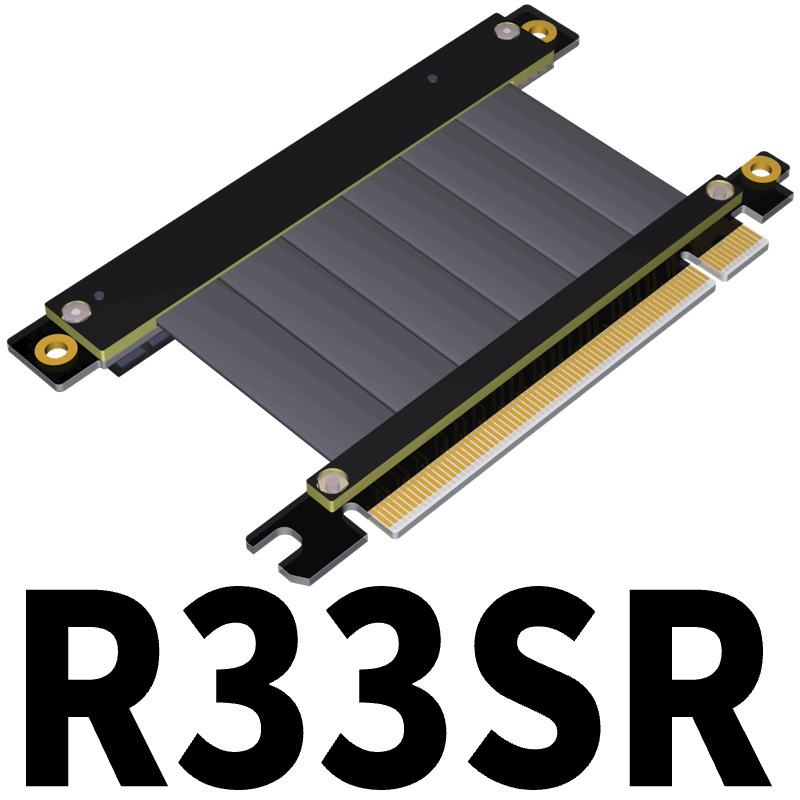

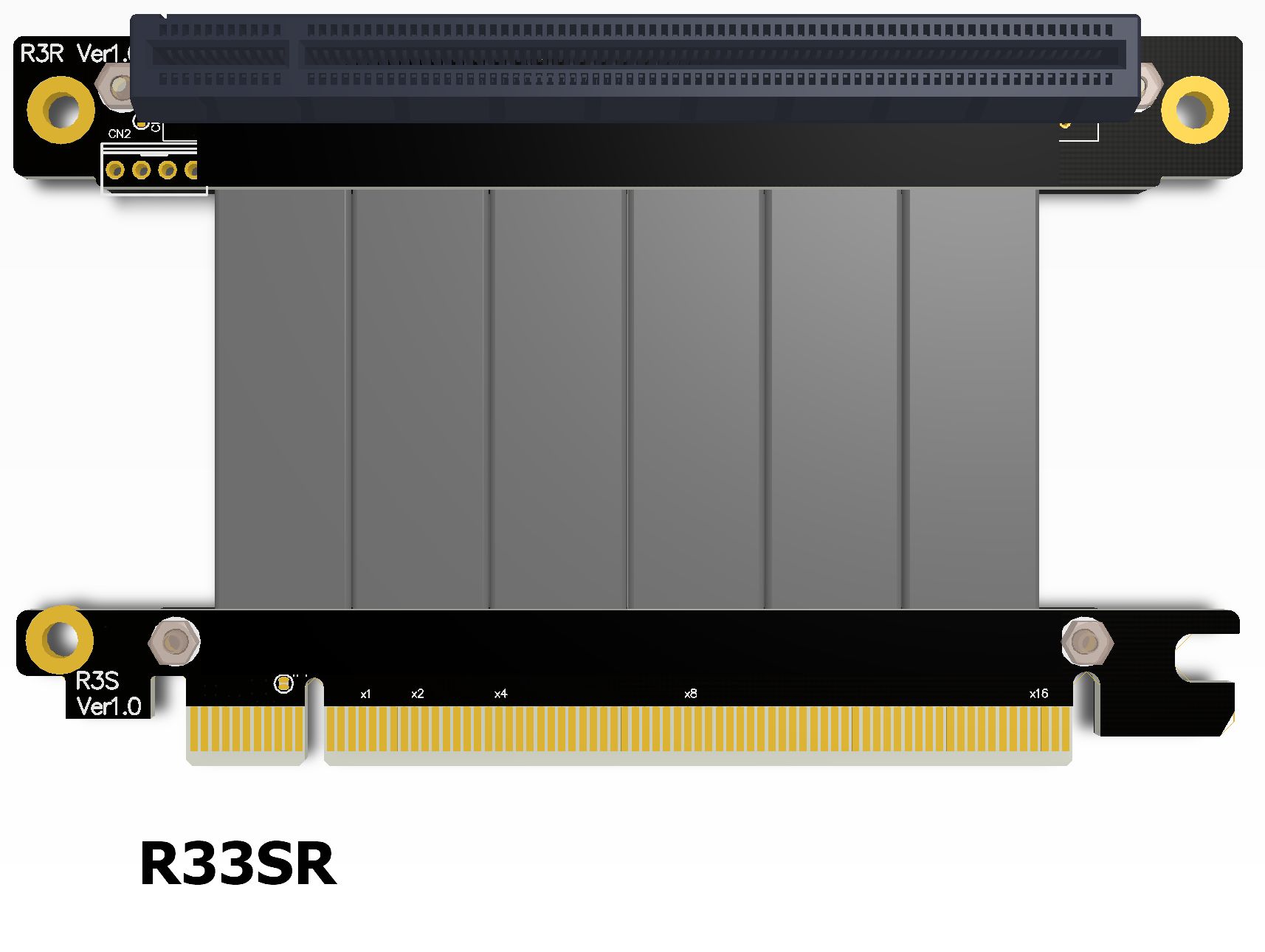

R33SRPCI-E x16 to x16 turn 270 degree inverted reverse extension cablesPCIe 3.0 x16 (128G/bps)

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 20cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

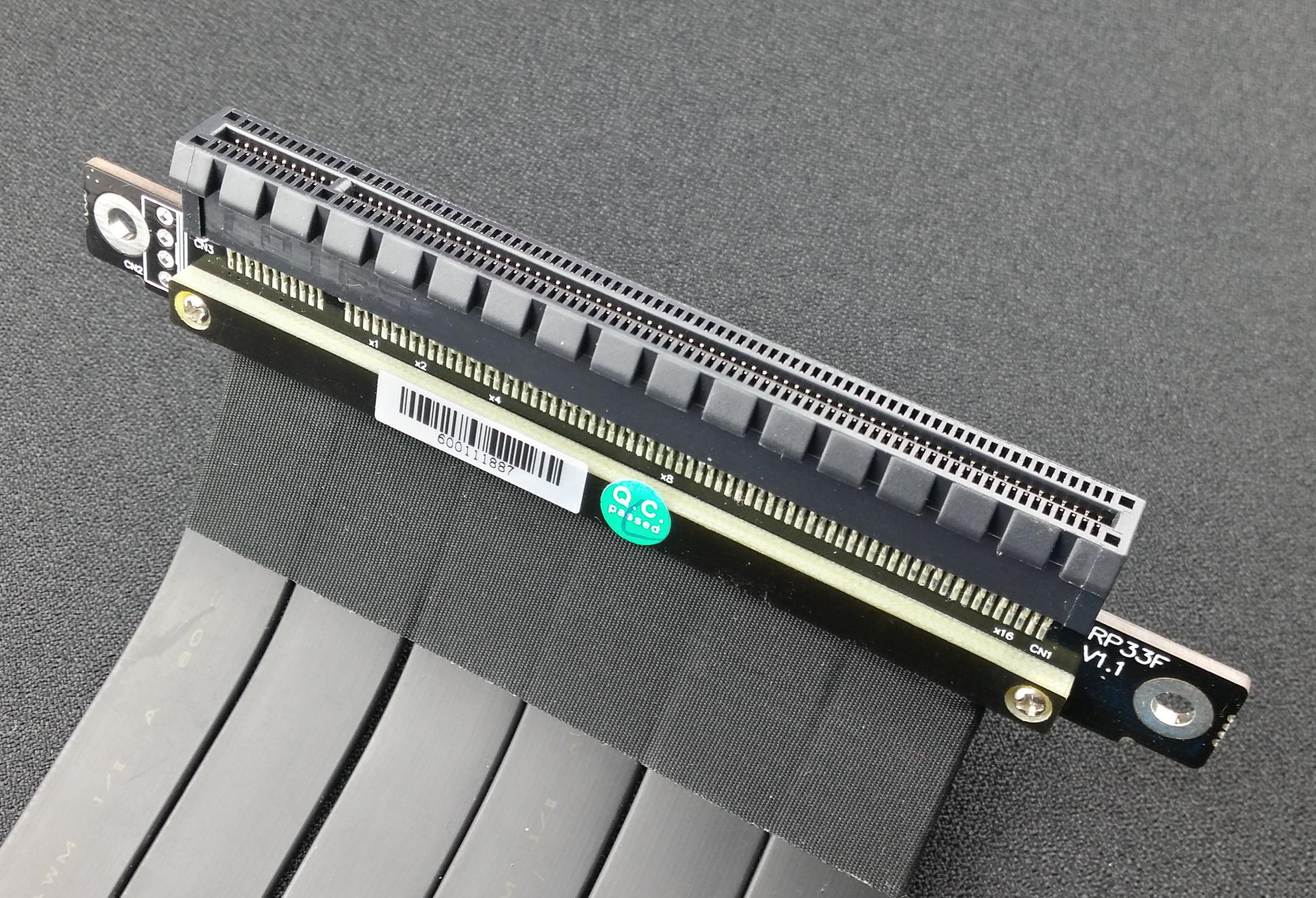

Photo:


Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model STEP & PDF files download http://www.adt.link/Uploads/download/ADT_R33_3D.zip

Spec download http://www.adt.link/Uploads/download/ADT_R33SF Cable specification 20200521.pdf

Spec download http://www.adt.link/Uploads/download/ADT_R33SL Cable specification 20200521.pdf

Spec download http://www.adt.link/Uploads/download/ADT_R33SS Cable specification 20190820.pdf

Schematic download http://www.adt.link/Uploads/download/ADT_R33SF Schematic 20191211.pdf

FTP: Hong Kong

3D model STEP & PDF files download http://www.adtlink.cn/Uploads/download/ADT_R33_3D.zip
