R31SF, R31SL, R31SR

Product ID:R31SF, R31SL, R31SR
Interface: PCIe x16 / PCIe x1
Application: Extension
Product description: PCI express x16 to x1 extension cable riser board , extender adapter Edge Card connector

ADT-Link PCI express 3.0 x16 to x1 Extension Cable

Brand name: ADT-LINK

Product name:PCIe x16 to x1 extension cable

Product model:R31SF, R31SL, R31SR

Transferspeed:PCIe 3.0 x16 to x1, 8G/bps (Max.)

Wire length:3 ~ 100 cm, the length can be customized,

Operating Temp: -20 ~ 80oC

RoHS Compliant: Yes

ADT R31 series Part-Number Description:

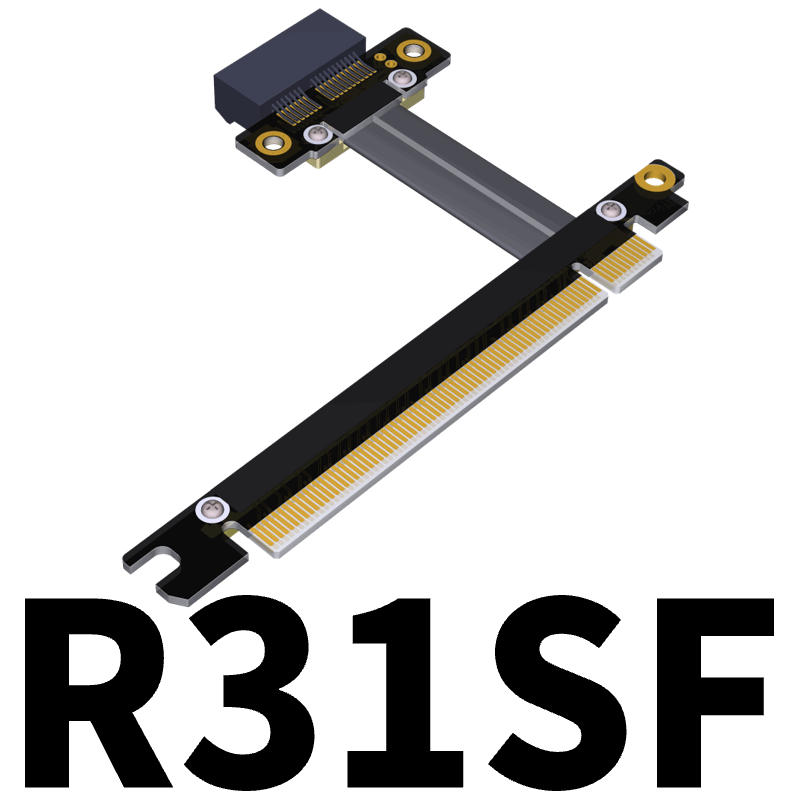

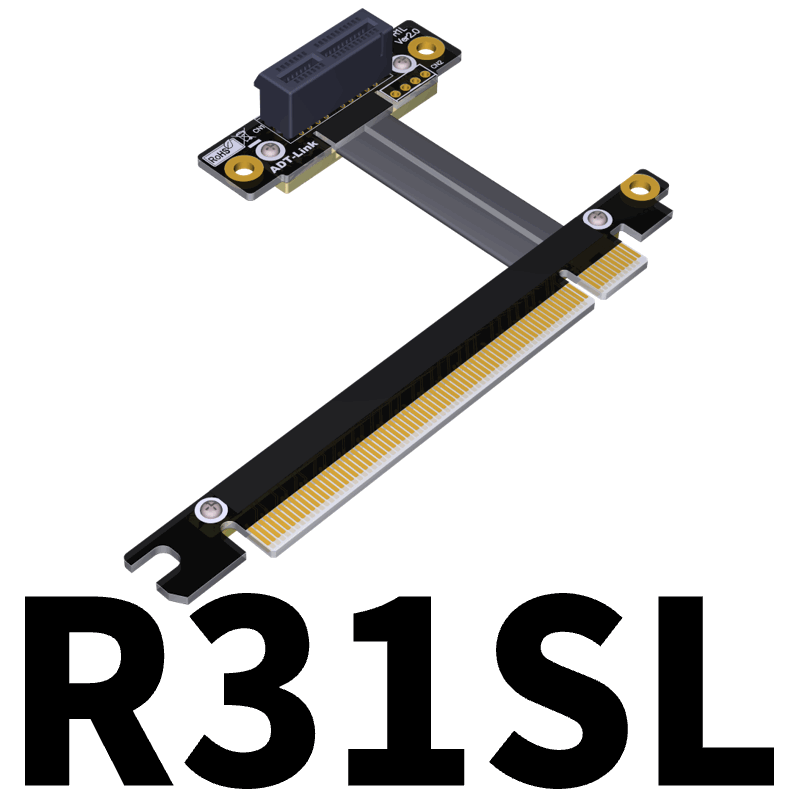

R31SLPCI-E x16 to x1 turn 90 degree upright right angle extension cablesPCIe 3.0 x1 (8G/bps)
PCI-E x16 to x1 turn 180 degree splint vertical extension cablesPCIe 3.0 x1 (8G/bps)

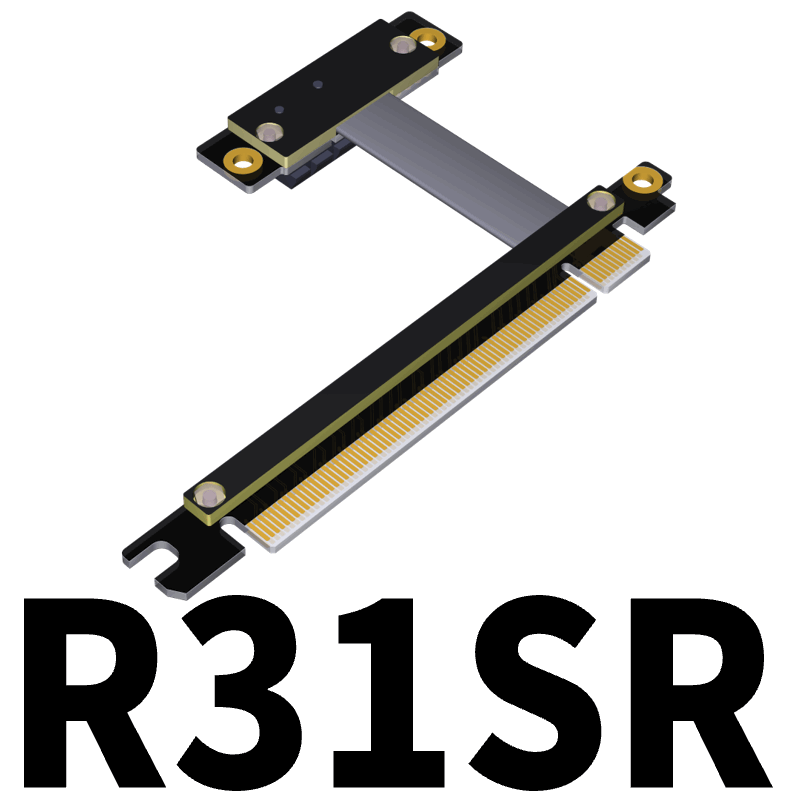

R31SRPCI-E x16 to x1 turn 270 degree inverted reverse extension cablesPCIe 3.0 x1 (8G/bps)

R31: PCIe x16 to x1

SL: turn 90 degree upright right angle ; SF: turn 180 degree splint vertical ; SR: turn 270 degree inverted reverse angle

-PW solder 4P power connector and bundle 15Pin SATA external power cable

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.


Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Cable thickness? Can it be bent?
The thickness of the wire is 1.4mm, and it can be bent and folded without affecting the use.
