R32SF, R32SL, R32SR

Product ID：R32SF, R32SL, R32SR

Interface: PCIe x16 / PCIe x4

Application: Extension

Product description: PCIE express x16 to x4 extension cable riser board , extender adapter Edge Card connector

Buy Now

ADT-Link PCI express 3.0 x16 to x4 Extension Cable

Brand name: ADT-LINK

Product name:PCIe x16 to x4 extension cable

Product model:R32SF, R32SL, R32SR

Transferspeed:PCIe 3.0 x16 to x4, 32G/bps (Max.)

Wire length:3 ~ 100 cm, the length can be customized,

Operating Temp: -20 ~ 80oC

RoHS Compliant: Yes

ADT R32 series Part-Number Description:

Part-Number	Description	Bandwidth

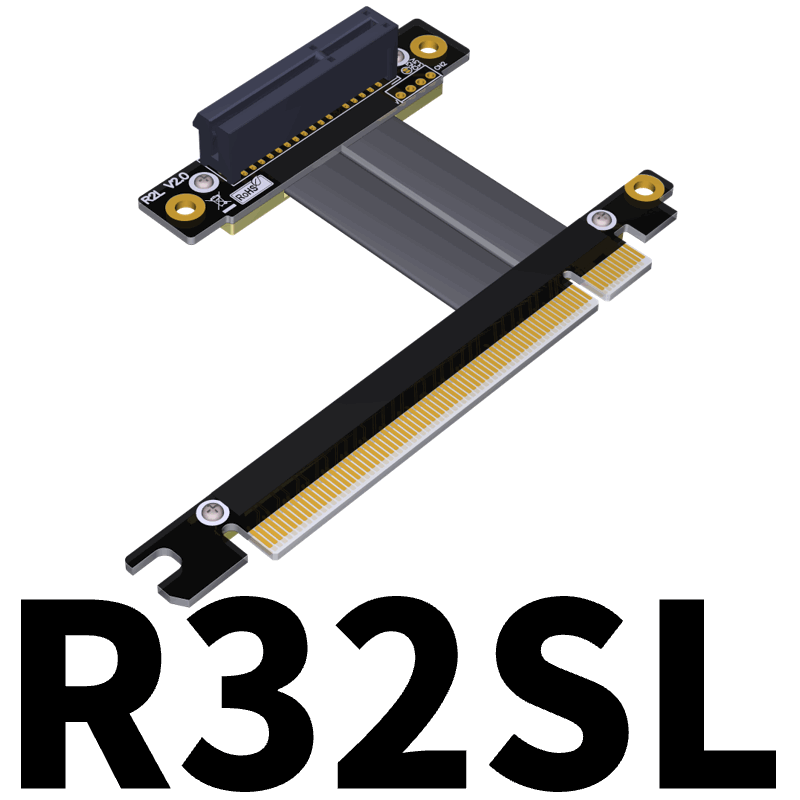

R32SL	PCI-E x16 to x4 turn 90 degree upright right angle extension cables	PCIe 3.0 x4 (32G/bps)

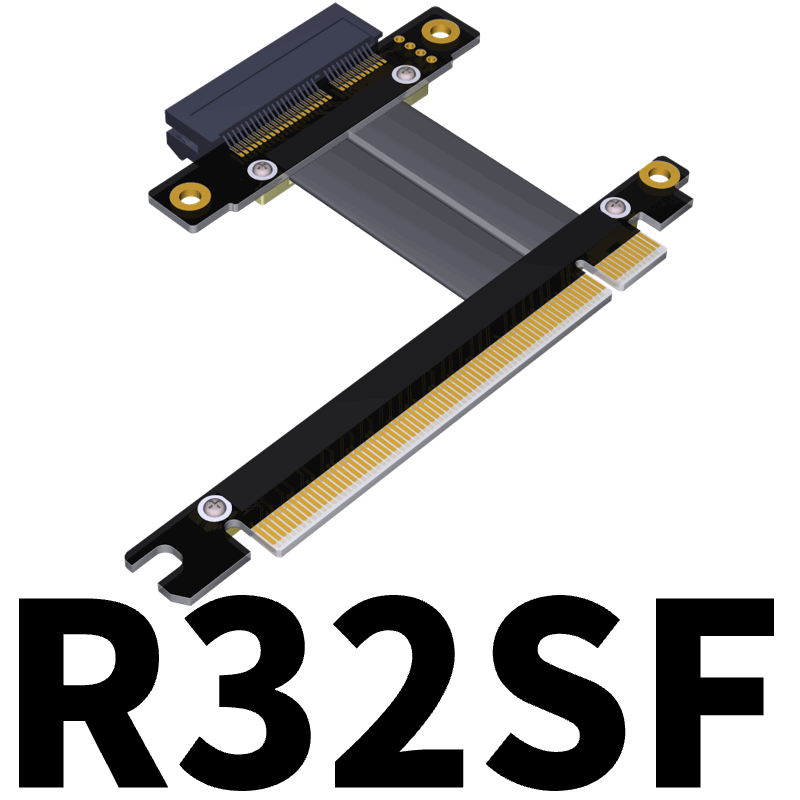

R32SF	PCI-E x16 to x4 turn 180 degree splint vertical extension cables	PCIe 3.0 x4 (32G/bps)

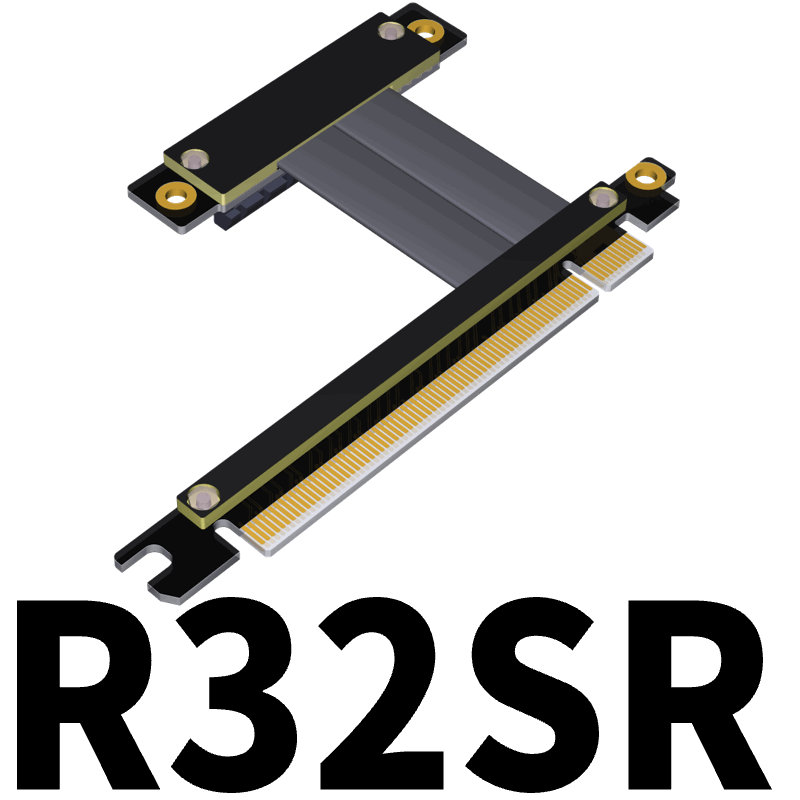

R32SR	PCI-E x16 to x4 turn 270 degree inverted reverse extension cables	PCIe 3.0 x4 (32G/bps)

R32: PCIe x16 to x4

SL: turn 90 degree upright right angle ; SF: turn 180 degree splint vertical ; SR: turn 270 degree inverted reverse angle

-PW solder 4P power connector and bundle 15Pin SATA external power cable

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
