M48UF,M48UL,M48UR

Product ID: M48UF,M48UL,M48UR

Interface: M.2 NVMe / PCIe x8

Application: Extension

Product description: M.2 NVMe to PCIe x8 extender adapter jumper for LAN, RAID SSD cards.

Buy Now

ADT-Link M.2 NVMe to PCI express 4.0 x8 Extension Cable

Brand name: ADT-LINK

Product name: M.2 NVMe to PCIe x8 extension cable

Product model: M48UF,M48UL,M48UR

Transfer speed: PCIe 4.0 x4 , 64G/bps (Max.)

Wire length: 10 ~ 100 cm, the length can be customized,

Application: PCIe x8 LAN, RAID SSD cards to M.2(ultra SSD, M-key) extension

Part-Number Description:

Part-Number	Description	Bandwidth (Max.)
M48UF 4.0	M.2 key-M NVMe to PCIe x8 turn 180 degree splint vertical extension cables	PCIe 4.0 x4 (64G/bps)
M48UL 4.0	M.2 key-M NVMe to PCIe x8 turn 90 degree splint vertical extension cables	PCIe 4.0 x4 (64G/bps)
M48UR 4.0	M.2 key-M NVMe to PCIe x8 turn 270 degree splint vertical extension cables	PCIe 4.0 x4 (64G/bps)

Accessories description:

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

Cable length Description:

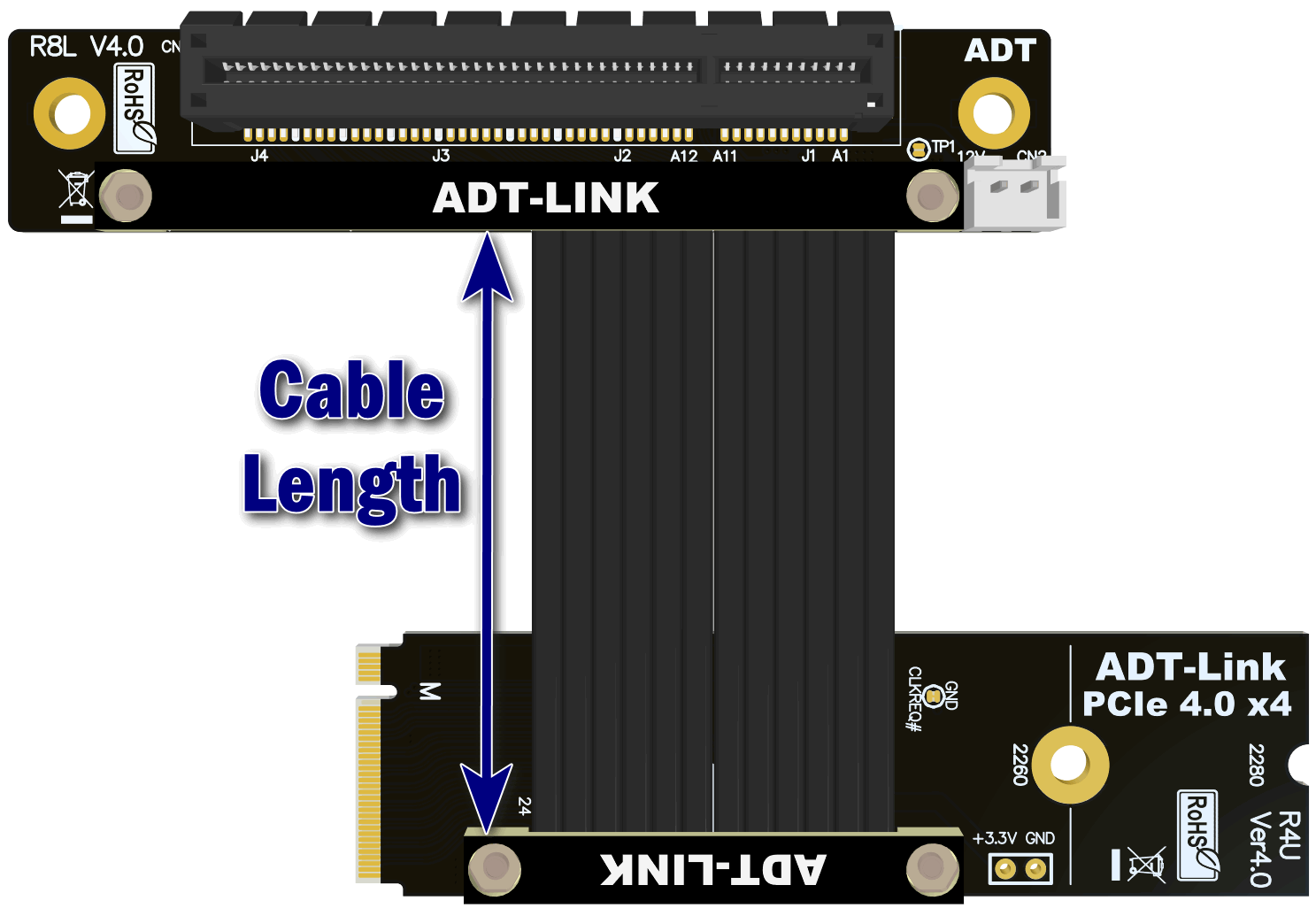

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

Photo:
