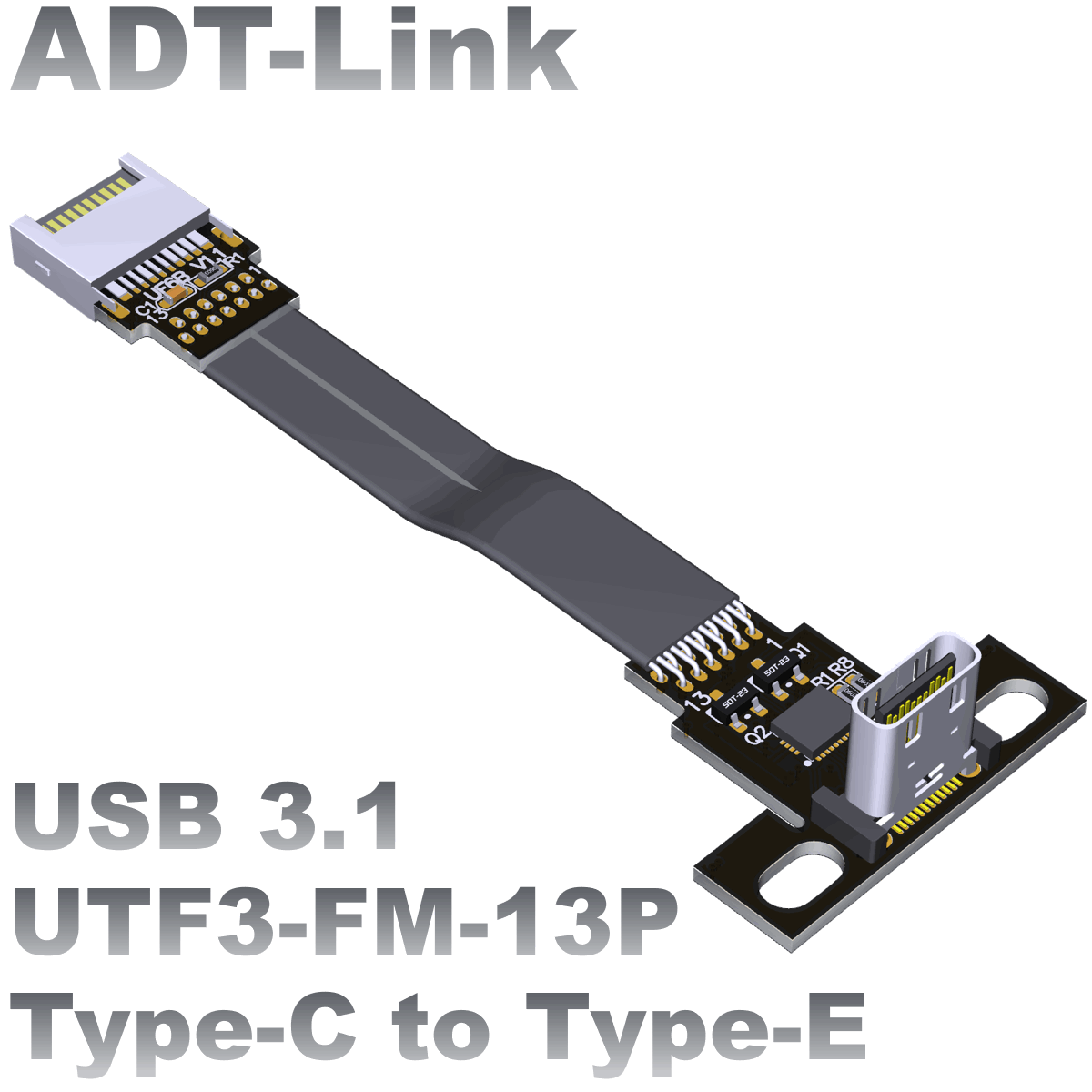

USB 3.1 Type-C female to Type-E male flat cable

Not recommended for new designs

Brand name: ADT-LINK

Product name: USB 3.1 Type-C female to Type-E male flat cable

Product model: UTF3-FM-13P series

Transfer speed: support of increased bandwidth up to USB3.1 Gen2 , 10G/bps

Wire length: 3~300 cm, the length can be customized

Product application: ITX/ATX motherboard built-in internal 20Pin USB connector or type-e connector, suitable for A4-ITX chassis customized side panel USB type-C port.

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

ADT USB series Part-Number Description:

S=USB-A ; C=USB-C ; W=USB-B ; F=USB-E

Product List:

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm black arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

No Metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Cable thickness? Can it be bent?
The thickness of the wire is 1.4mm, and it can be bent and folded without affecting the use.

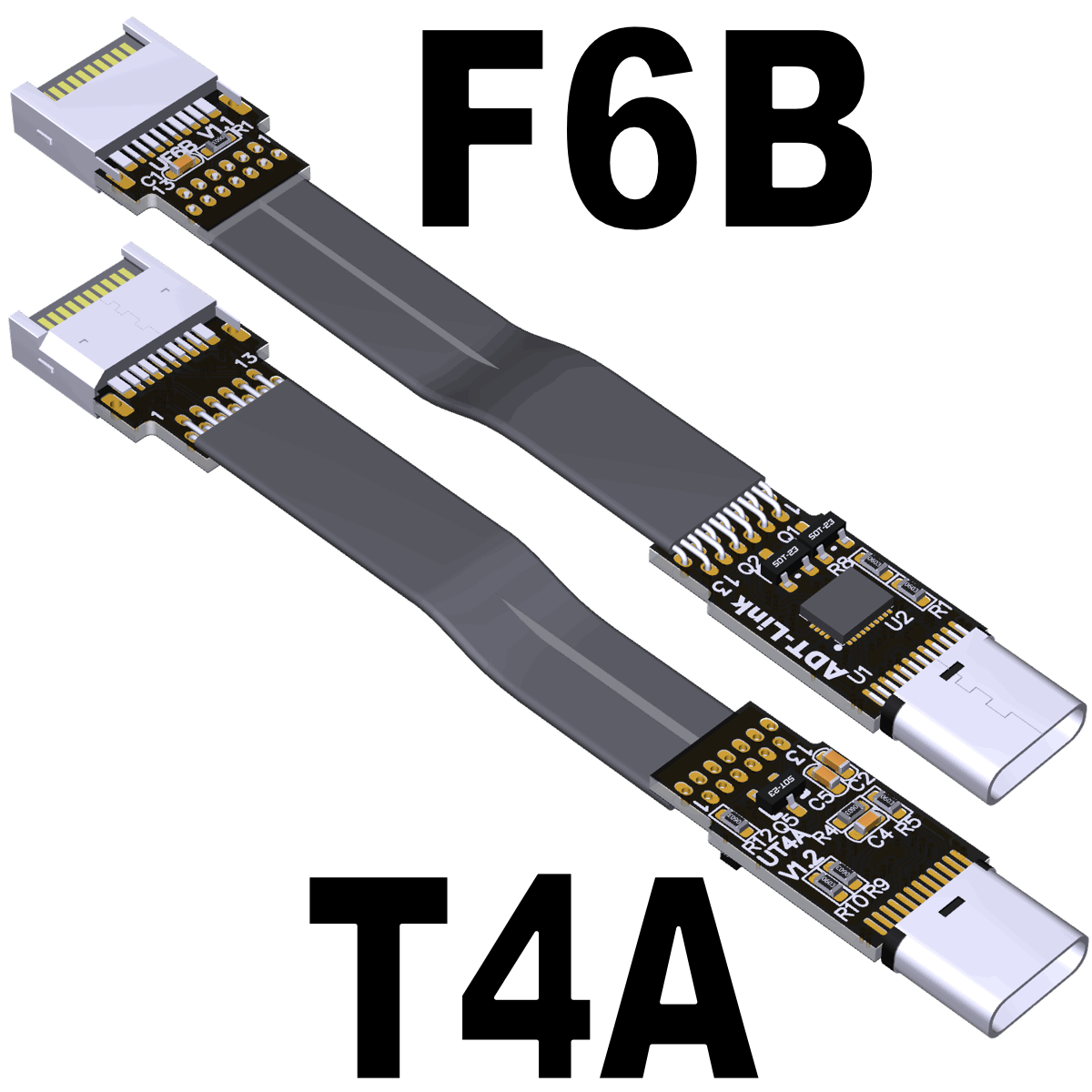

What is the difference between product model T4A and T4B?

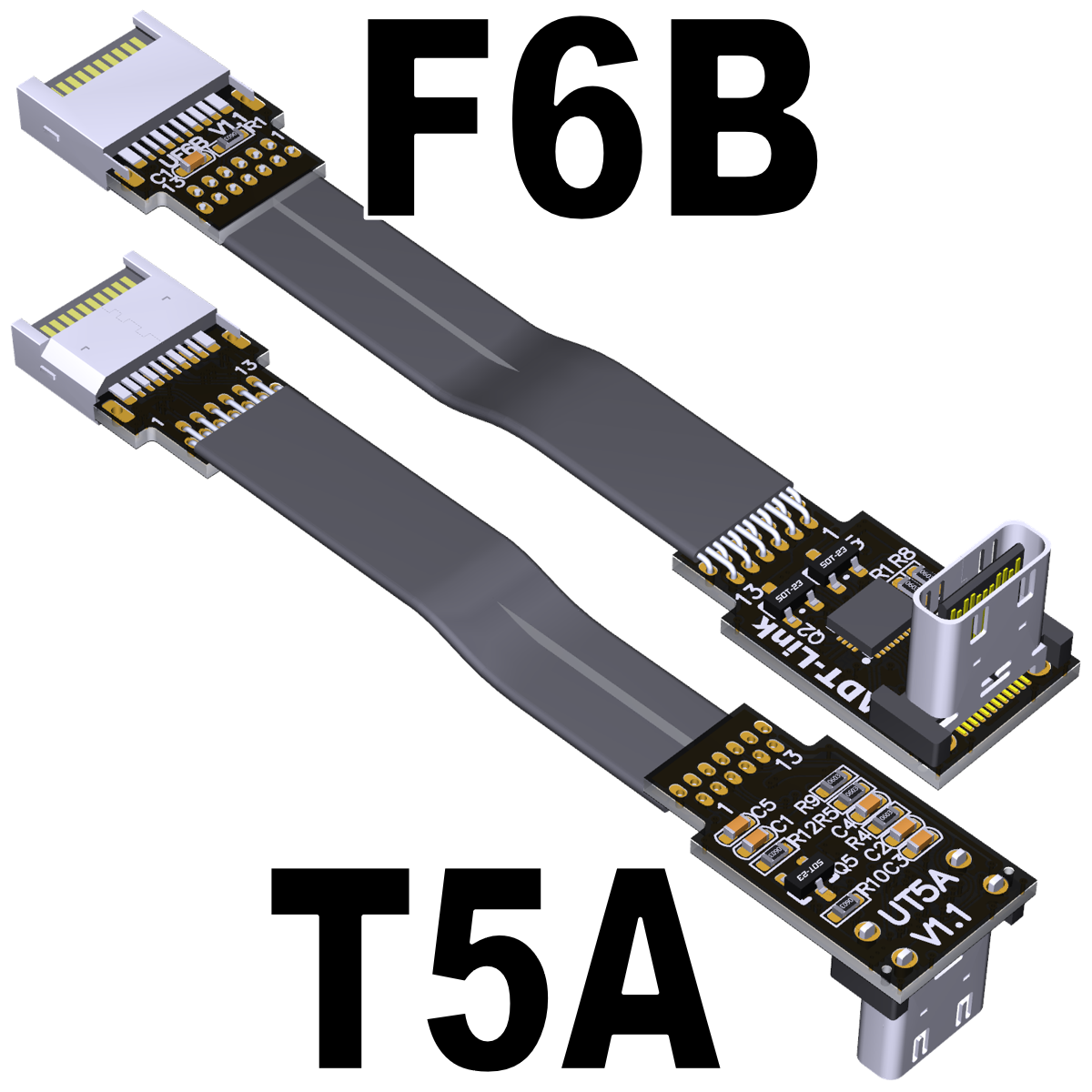

T4A/T5A with chip, supports USB3.0 positive and negative plug, both are 5G high speed
T4B/T5B does not have a chip, and also supports positive and negative insertion. The positive insertion can support USB3.0 high speed but the reverse insertion only supports USB2.0 low speed

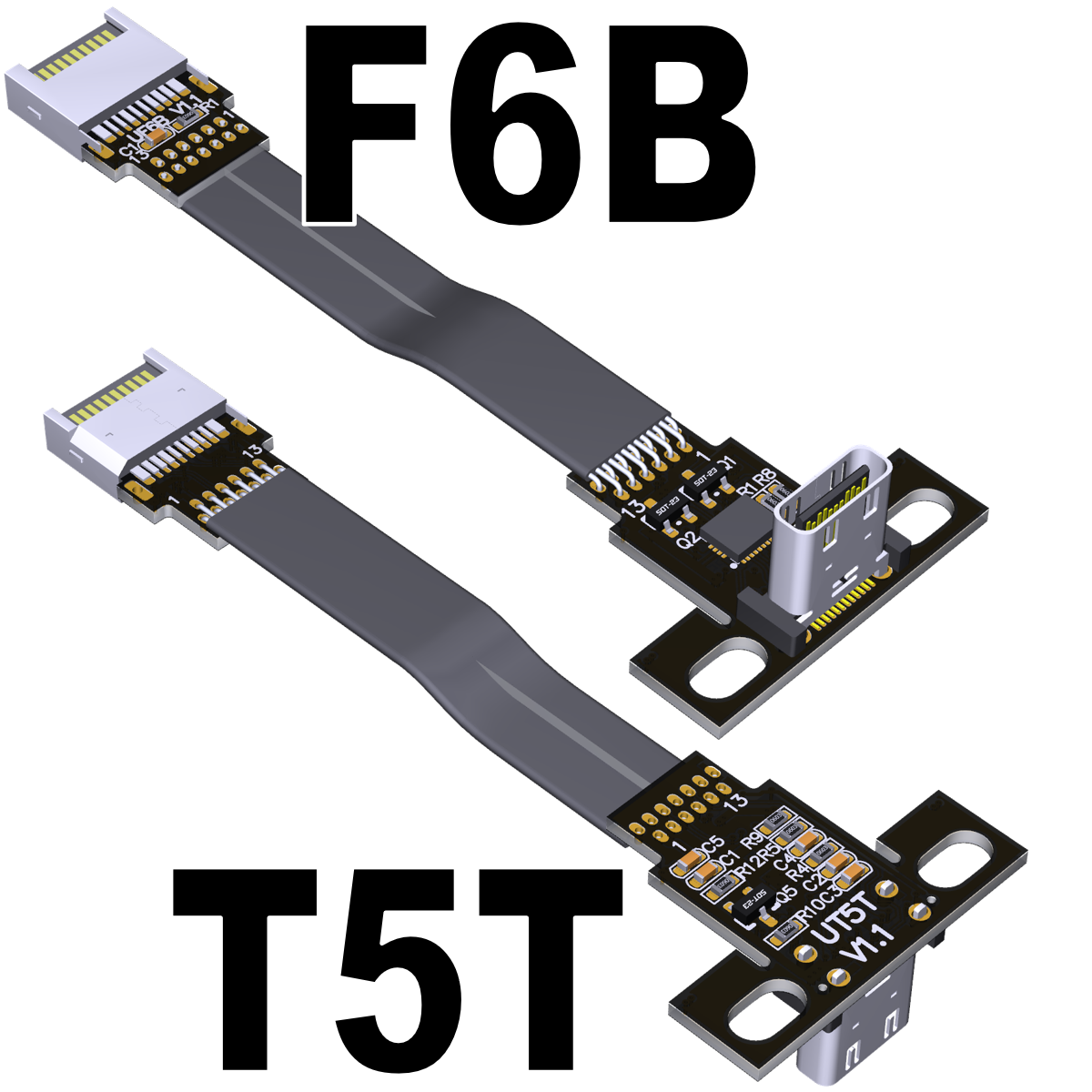

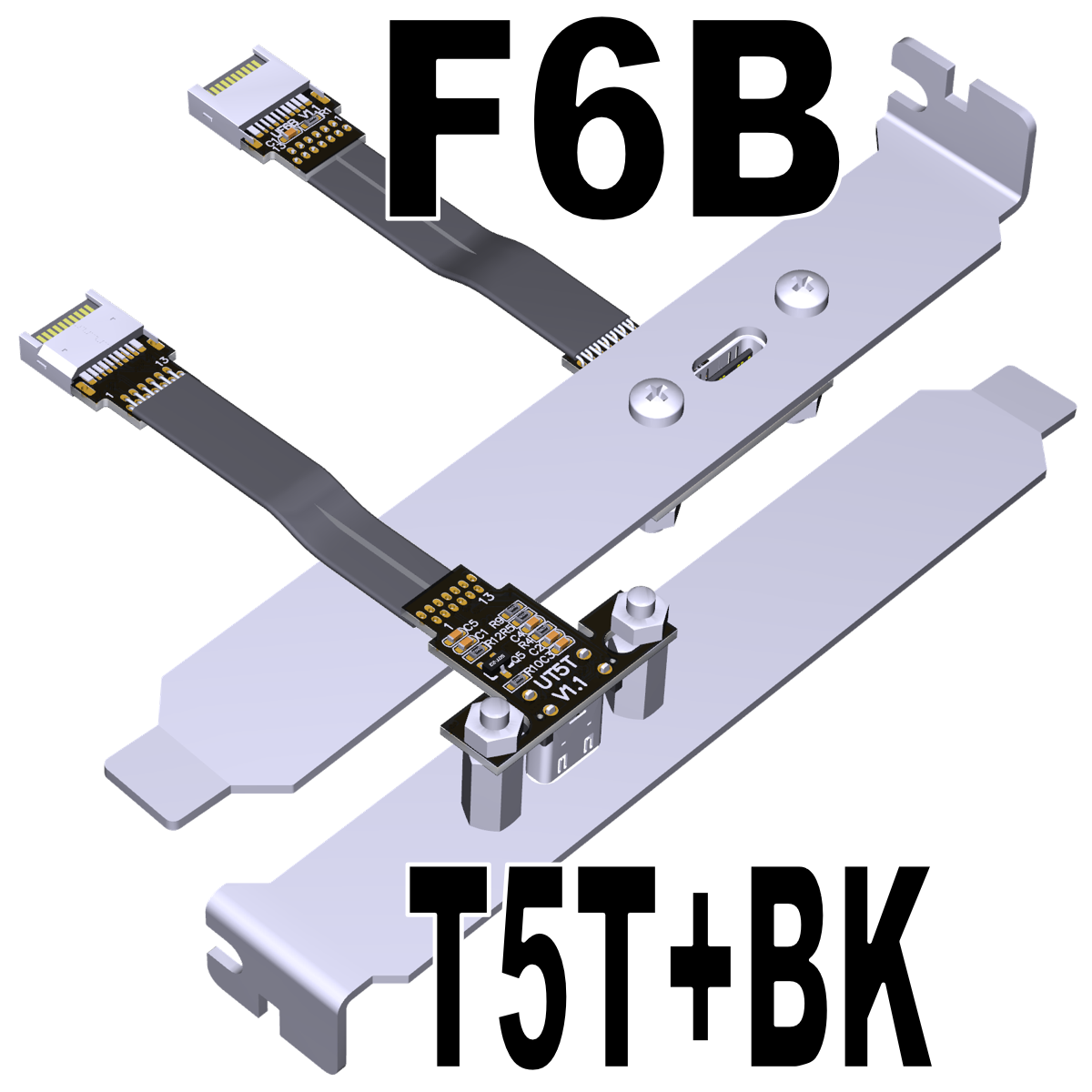

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

Schematic file download: http://www.adt.link/download/schematic_usb.pdf

3D model STEP & PDF files download: http://www.adt.link/download/UTF3-FM-13P.ZIP

FTP: Hong Kong

3D model STEP & PDF files download: http://www.adtlink.cn/download/UTF3-FM-13P.ZIP

Schematic file download: http://www.adtlink.cn/download/schematic_usb.pdf

WebShop:

http://www.adt.link/product/UTF3-FM-13P-Shop.html
