ADT-Link Oculink(SFF-8611/SFF-8612) to PCI express x16 eGPU Adapter

Brand name: ADT-LINK

Product name:Oculink(SFF-8611/SFF-8612) to PCIe x16 eGPU Adapter

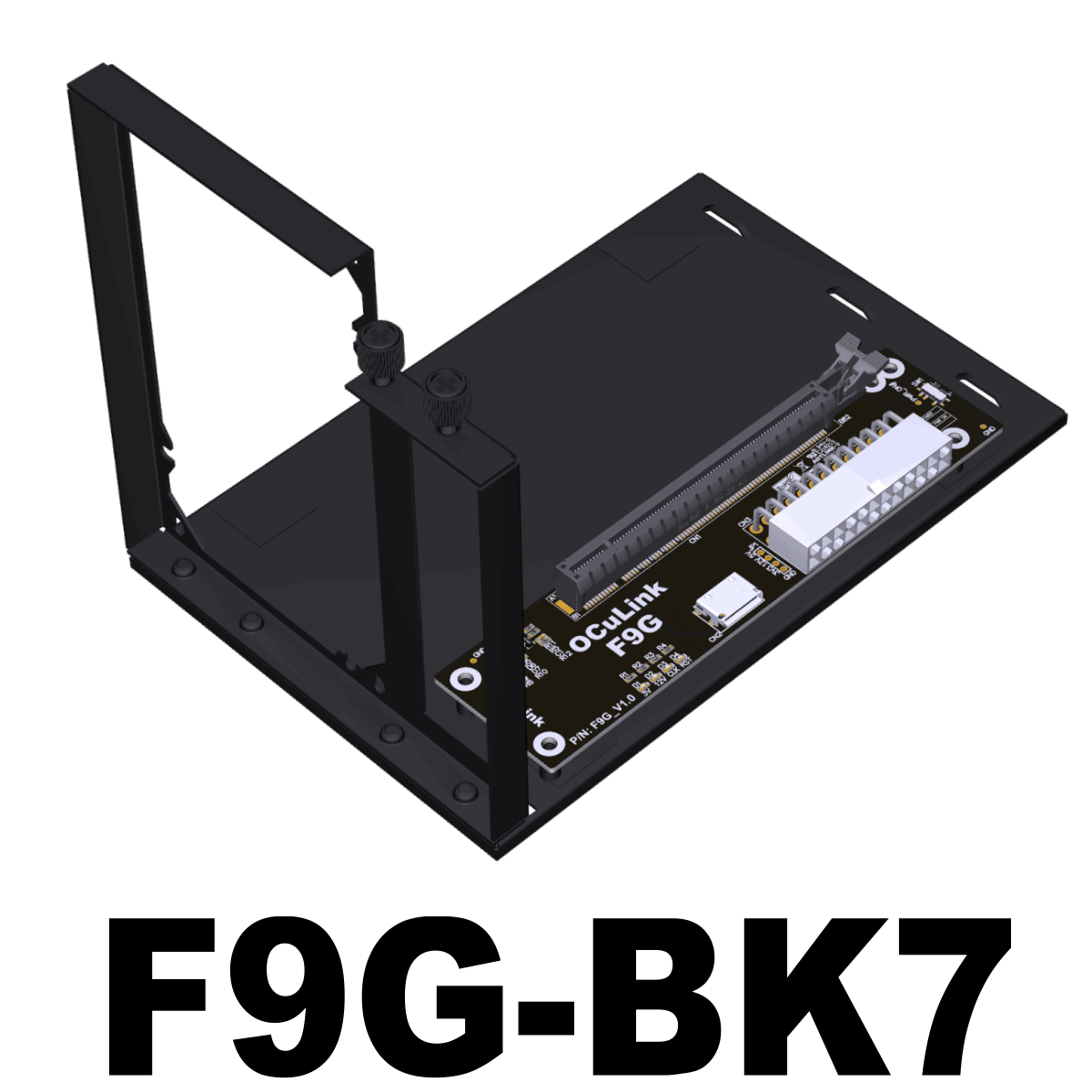

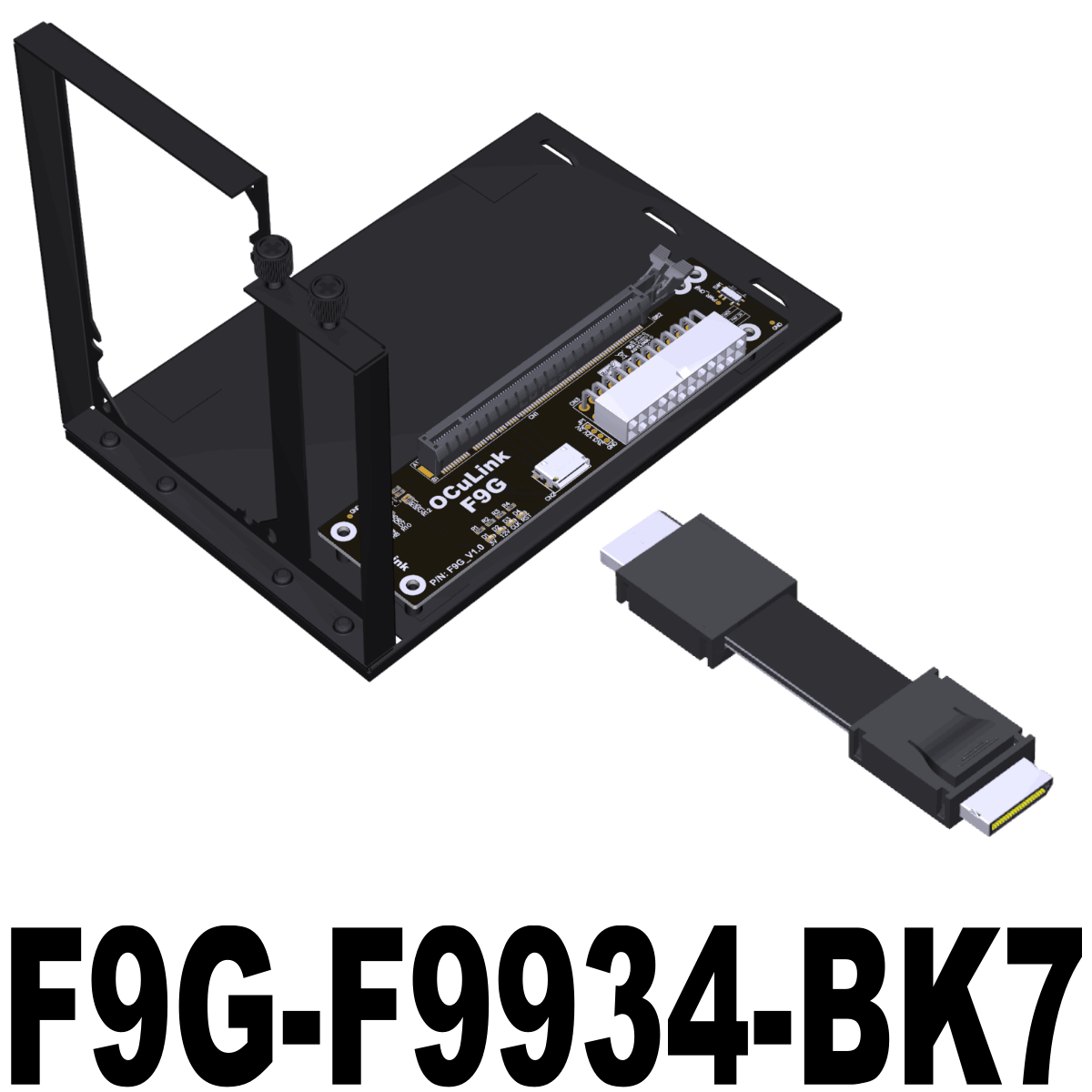

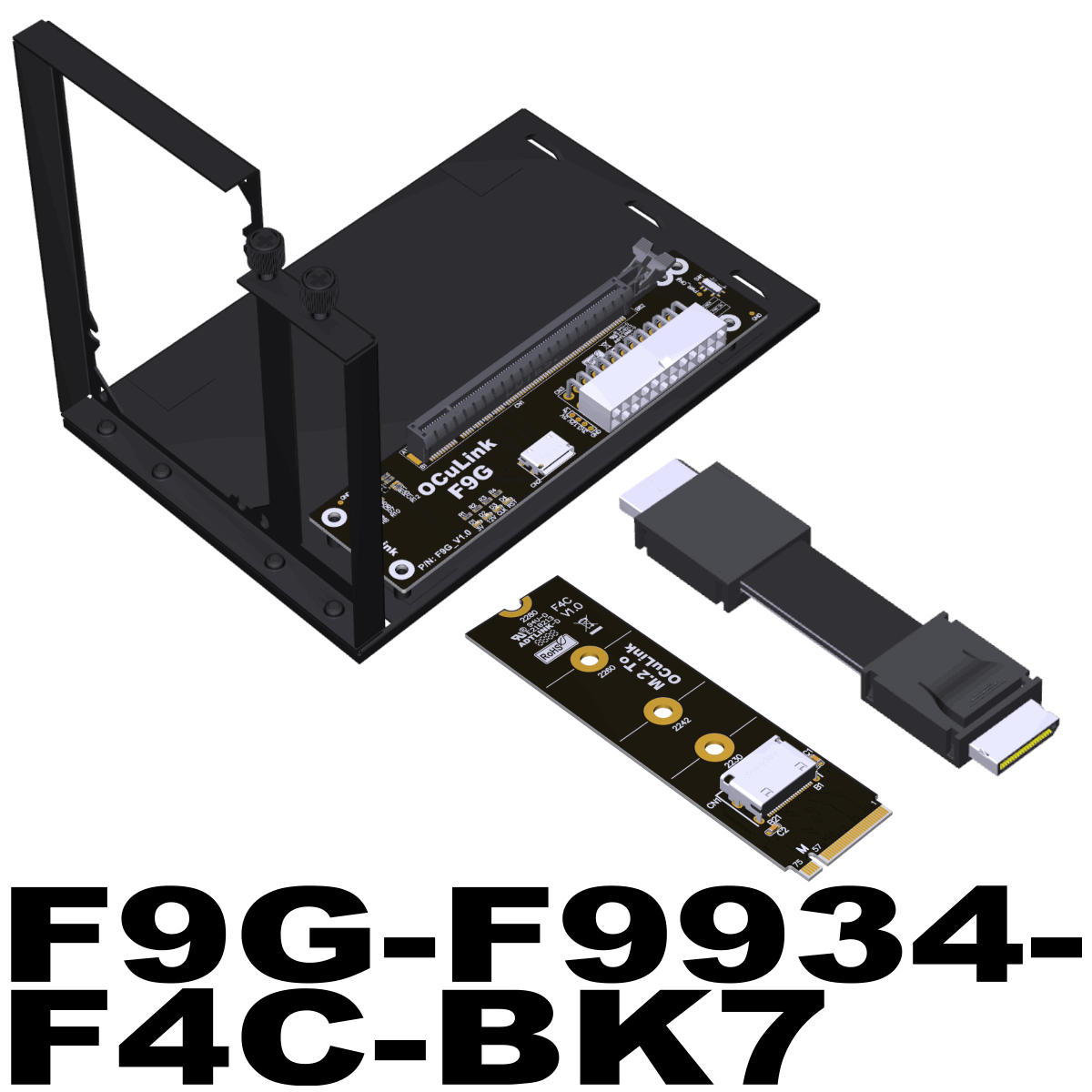

Product model: F9G-BK7,F9G-F9934-BK7,F9G-F9934-F4C-BK7,F9G-F4C-BK7

Transferspeed:PCIe 4.0 x4, gen4, 64G/bps (Max.)

Wire length: 25cm,50cm

Application: eGPU for NUC / ITX / STX / Notebook PC

Friendly reminder: Oculink does not support hot swapping

Product advantages: Oculink is an interface transferred from the NVME solid-state drive slot of the computer motherboard. NVME uses a pure PCIe channel, so the Oculink external graphics card dock also uses a PCIe channel with little performance loss. Compared with the traditional Thunderbolt transfer solution, Oculink's effective bandwidth can reach 64Gbps in the case of PCIe 4.0 x4, far exceeding the Thunderbolt solution.

Cable length Description:

The cable length of this product is the length of F9934. It does not include the PCB and the connector. For the wire length, please refer to the figure below.

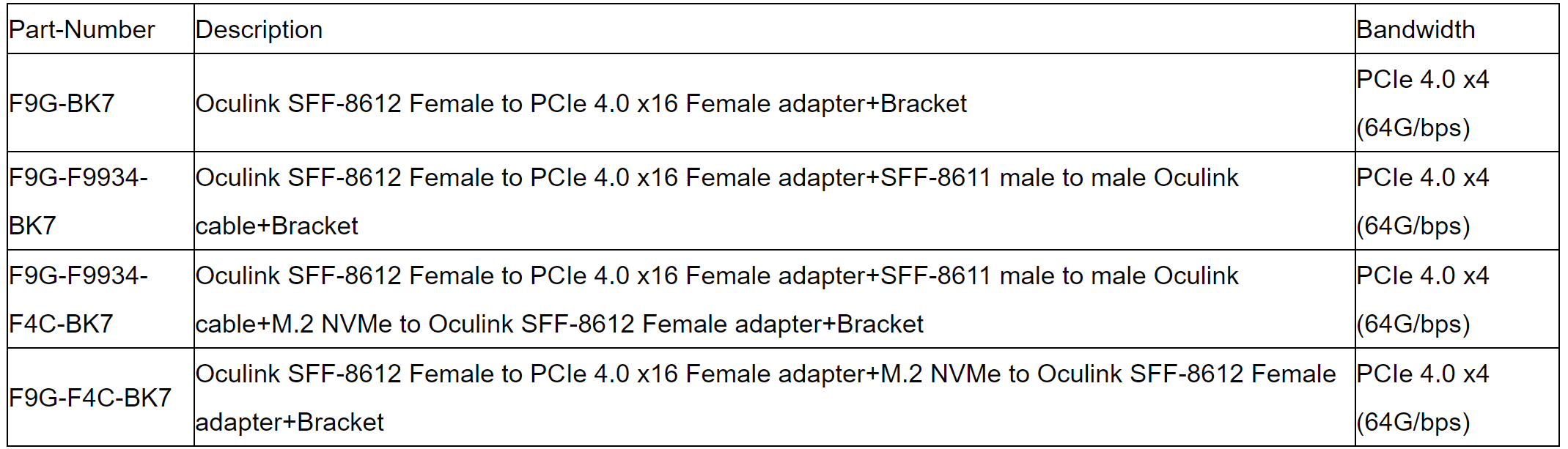

ADT F9G-BK7 series Part-Number Description:

F9G:

F9934:

Is there any EMI shielding for Cable?

With metal shielding.  The cable uses the latest EMI shielding materials with full cable coverage shielding to prevent the incoming or outgoing of electromagnetic frequencies, minimizing interference and performance degradation, and reducing the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?

The thickness of the cable wire is 0.5mm, so the wire is softer and can be bent or folded.

F4C:

1.It can support M.2 NVMe interface up to 2280 height and can be cut as needed

2.Using Amphenol Oculink SFF-8612 connector, supports PCIe 4.0 full-speed stable transmission

3.UL certified PCB material, gold finger gold-plated 15µ", good conductivity, can reduce the blue screen problem caused by oxidation and rust resistance increase.
