ADT-Link M.2 NVMe to PCI express x16 eGPU Adapter

Brand name: ADT-LINK

Product name:M.2 NVMe to PCIe x16 eGPU Adapter

Product model: F43SG

Transferspeed:PCIe 5.0 x4, gen5, 128G/bps (Max.)

Wire length: 25cm,50cm

Application: eGPU for NUC / ITX / STX / Notebook PC

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the figure below.

ADT F43SG series Part-Number Description:

P/N	Description	Bandwidth

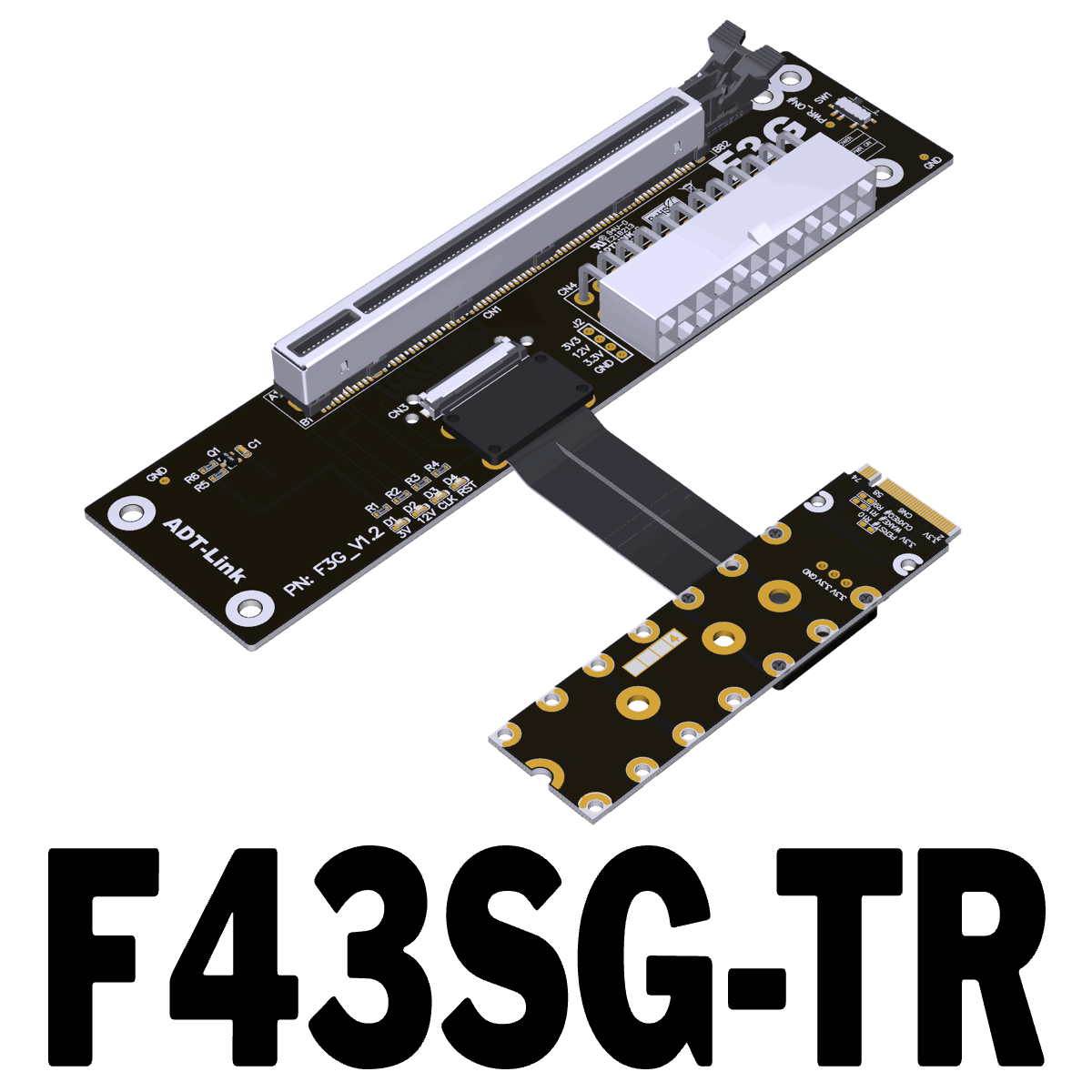

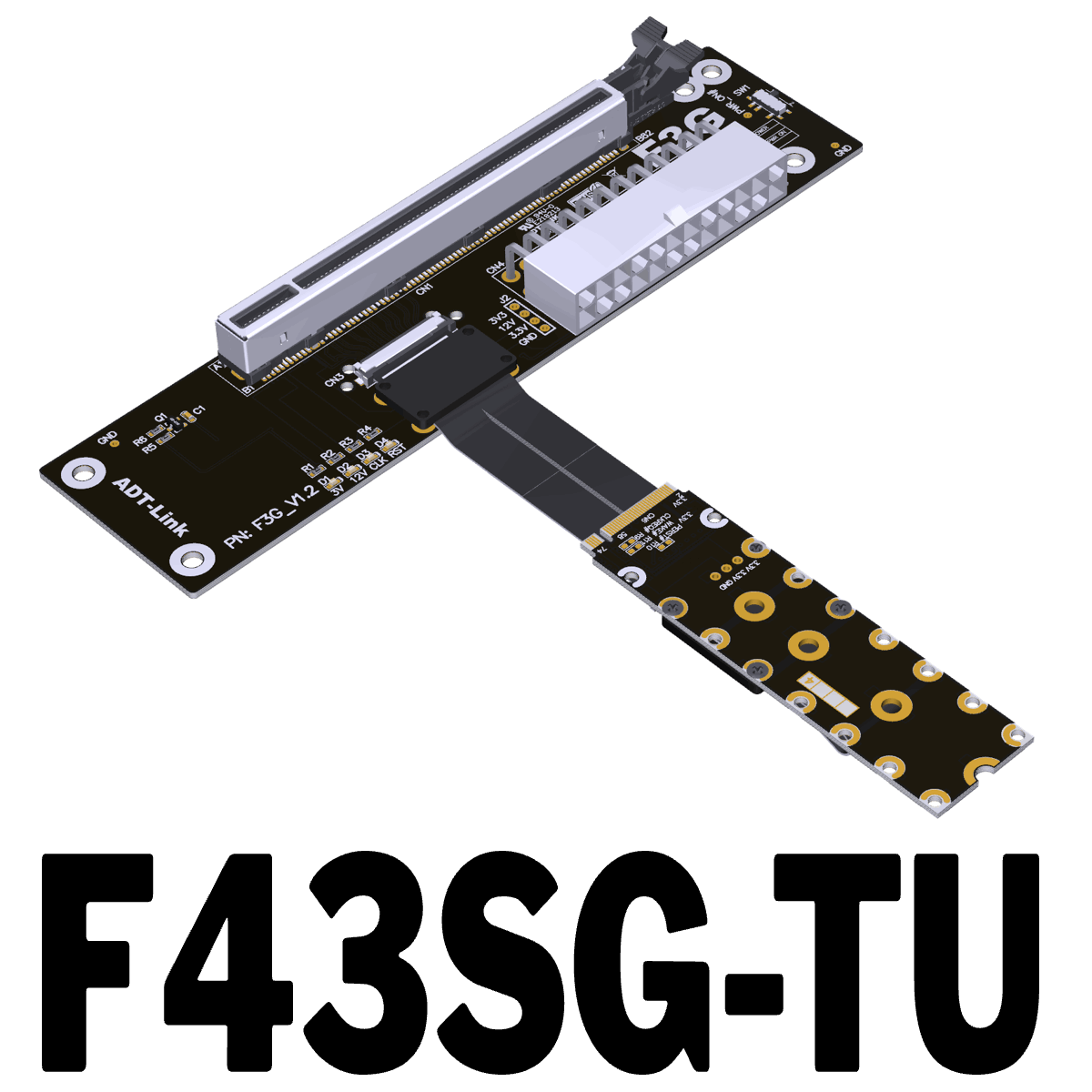

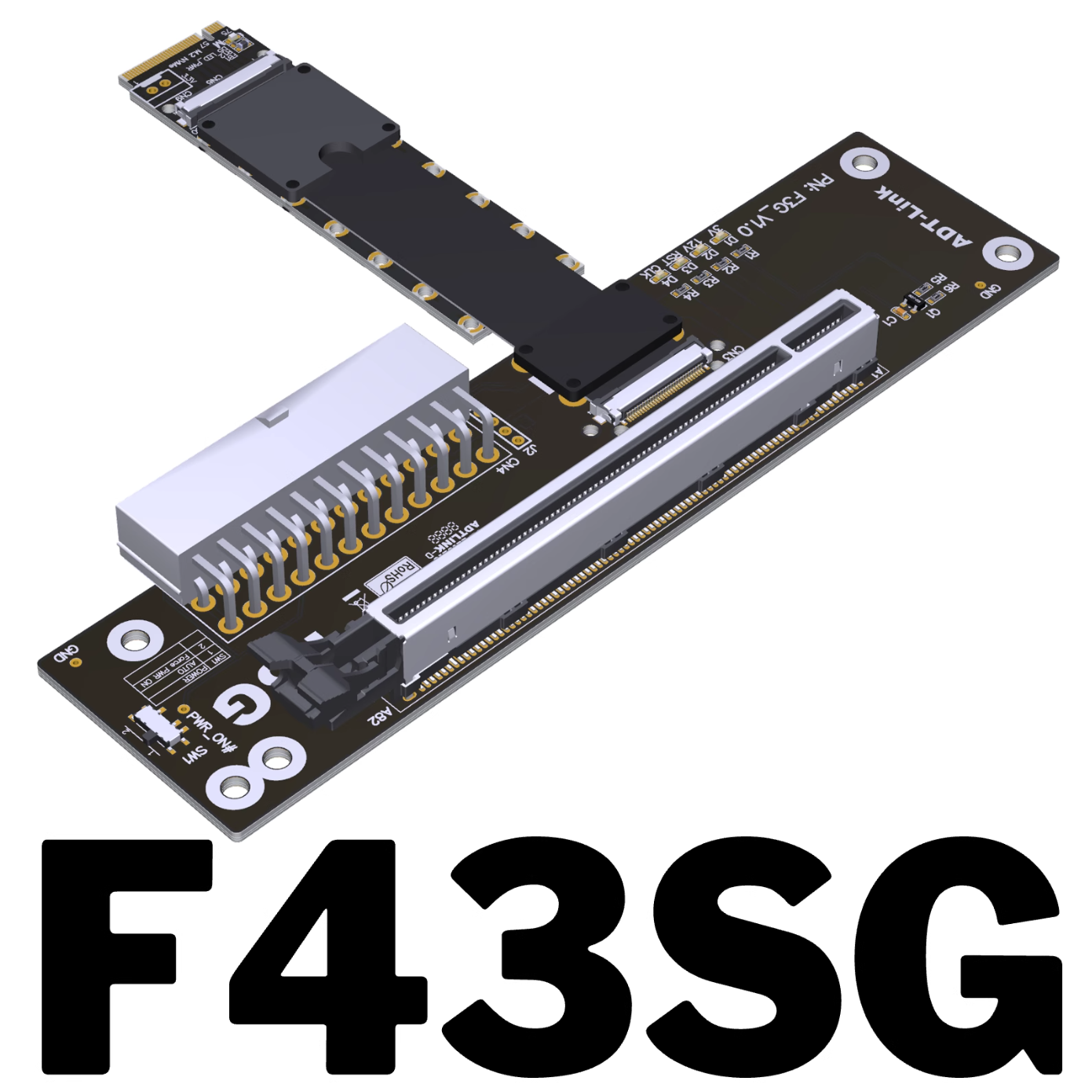

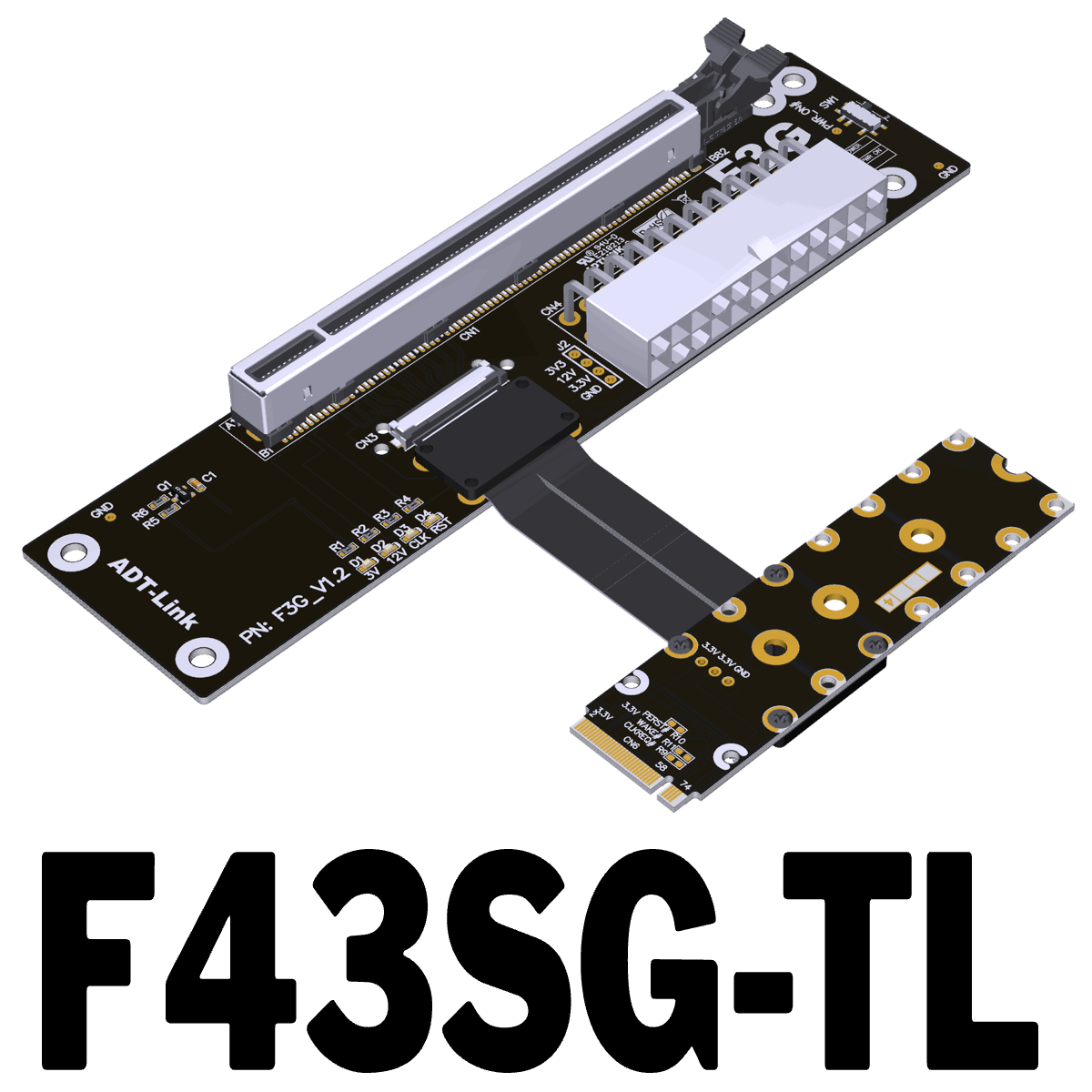

F43SG	M.2 NVMe to PCIe x16, connector turn 90° extension cable	PCIe 5.0 x4 (128G/bps)

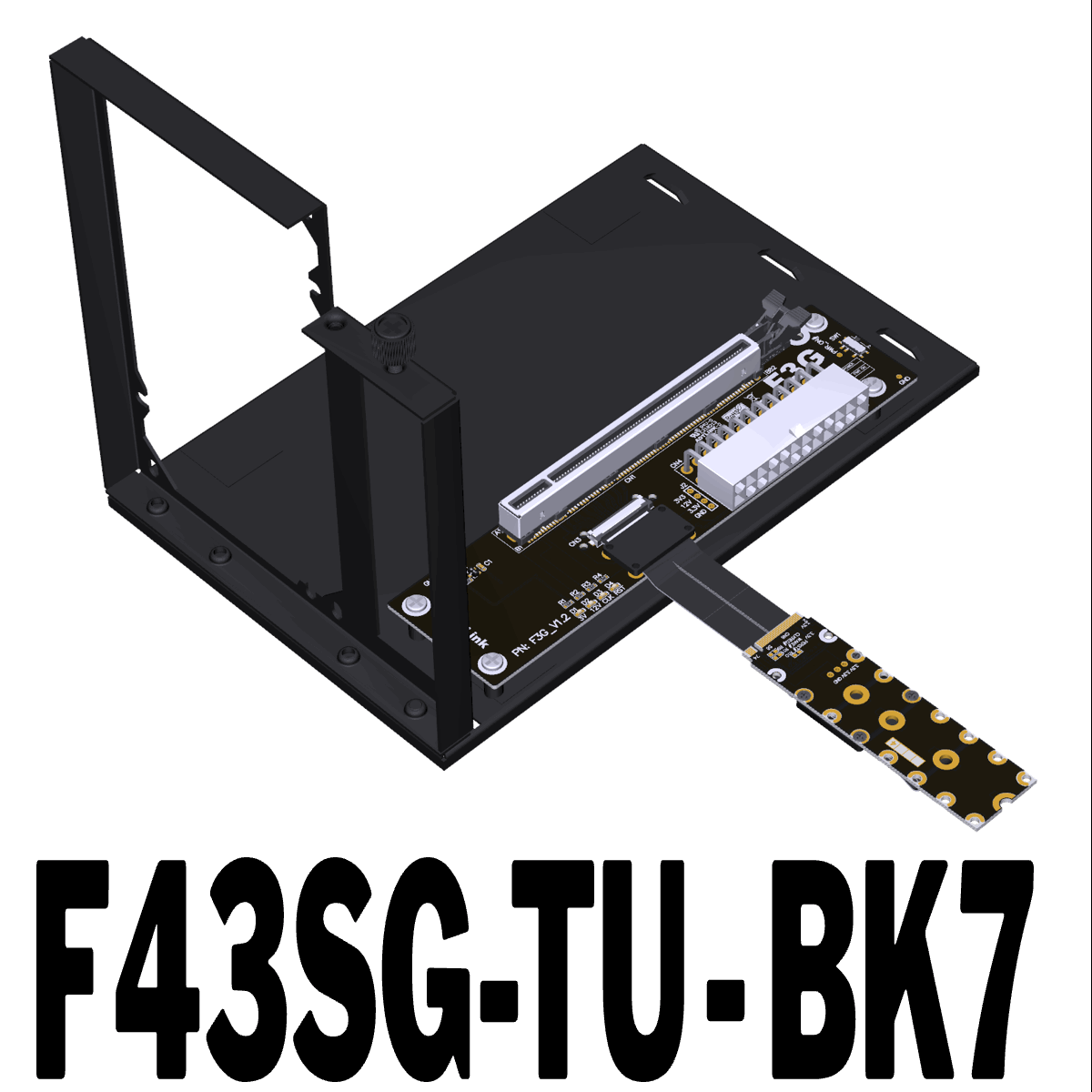

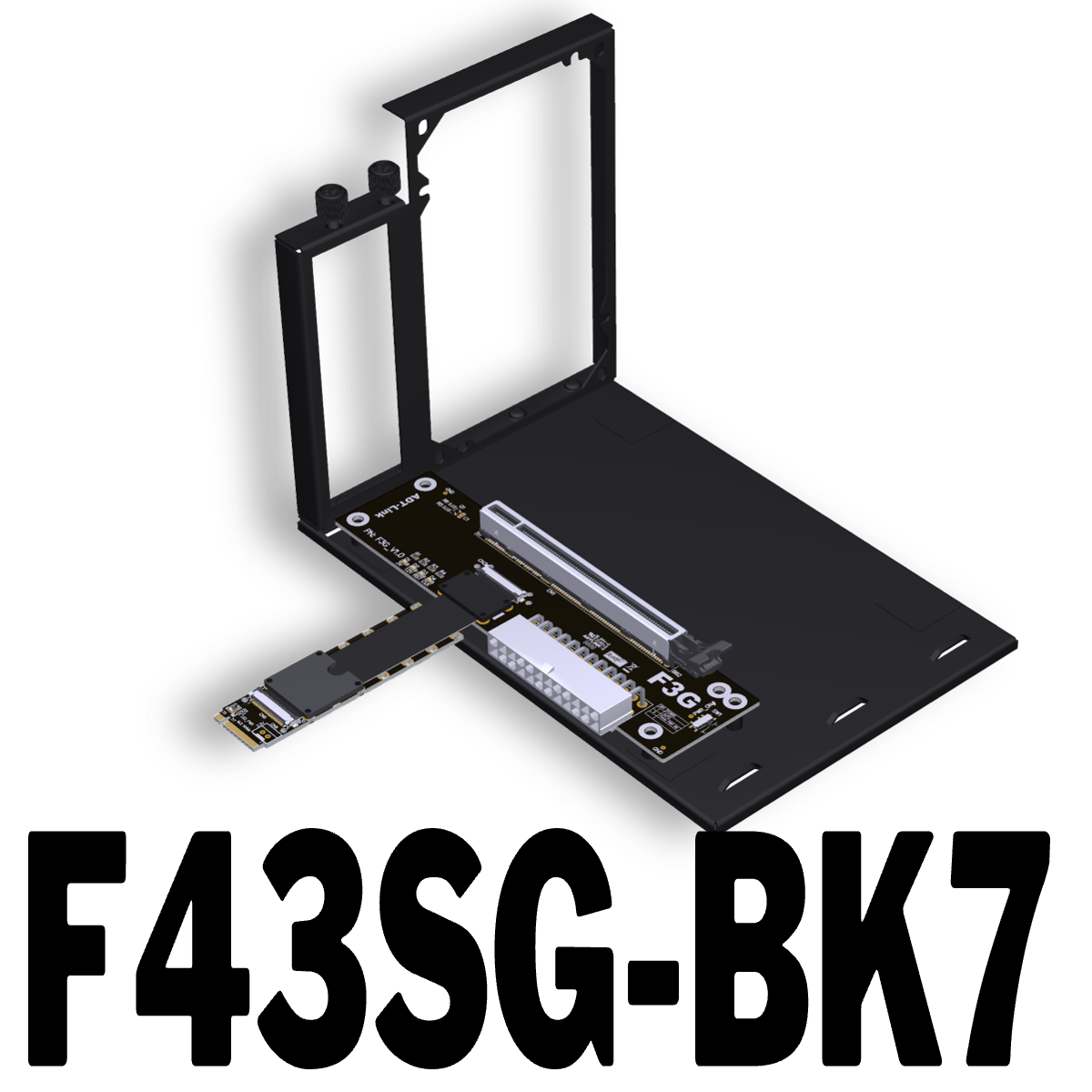

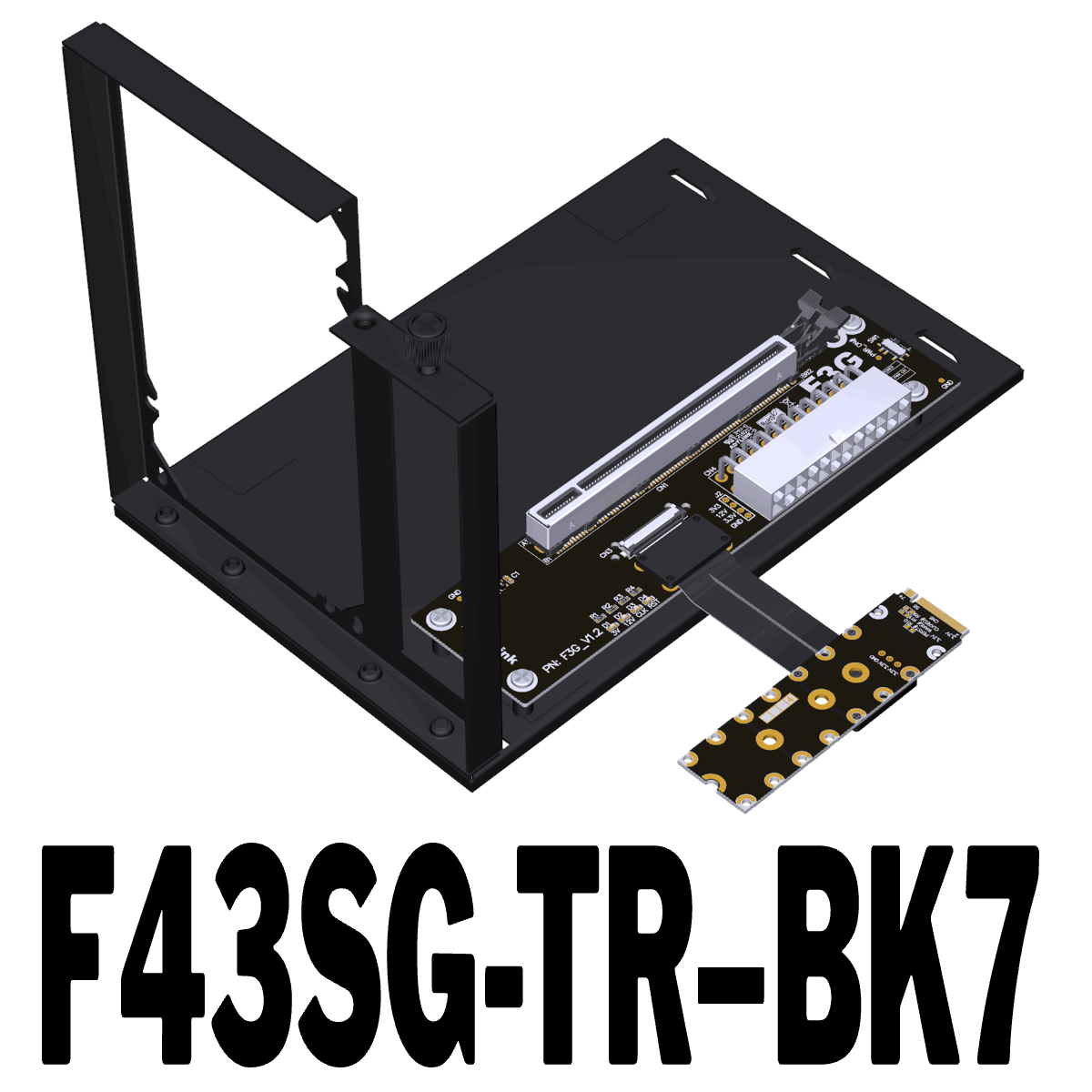

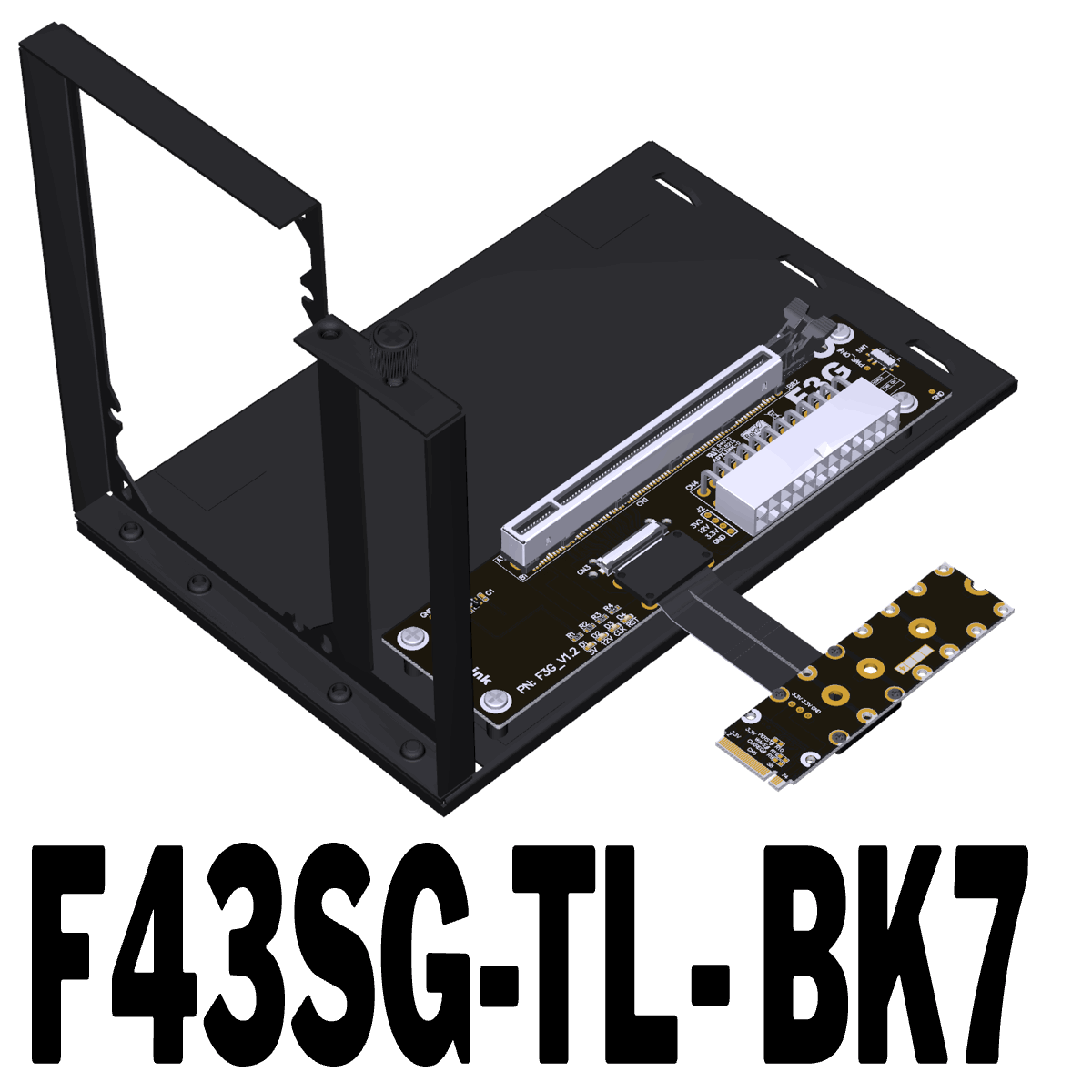

F43SG-BK7	M.2 NVMe to PCIe x16, connector turn 90° extension cable+Bracket	PCIe 5.0 x4 (128G/bps)

Can F43SG Support PCIe 5.0?

The laboratory measurement can achieve full speed of PCIe 5.0,The picture below is the test result of F43SG-50cm

Product advantages

1.Four LED indicators: CLK, RST, 12V and 3V

2.Using aluminum alloy gaskets, it can effectively block interference and noise, making it strong and durable.

3.FFC wire, flat cable design with full coverage and shielding, thickness only 0.5mm, ultra-soft and ultra-thin.

4.The PCB uses a four-layer high-frequency impedance board with advanced design, exquisite workmanship, stable and fast signals, excellent wiring, good isolation, and can reach the PCIe 5.0 standard.

5.The gold finger is 10µ" gold-plated, resistant to plugging and unplugging, and has better stability.

6.The connector is from Amphenol, the shell material is PA10T/LCP, the socket has a durability of 50 Cycles, supports high frequency and complies with RoHS/Free (HF) requirements.

Installation renderings

Photo:

Q&A:

Is there any EMI shielding for Cable?

With metal shielding.  The cable uses the latest EMI shielding materials with full cable coverage shielding to prevent the incoming or outgoing of electromagnetic frequencies, minimizing interference and performance degradation, and reducing the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?

The thickness of the cable wire is 0.5mm, so the wire is softer and can be bent or folded.

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D Step & 3D PDF files download http://www.adt.link/download/ADT_F43SG_3D.zip

Installation Tutorial file download http://www.adt.link/download/F43SG-BK7 Installation Tutorial.mp4

FTP: Hong Kong

3D Step & 3D PDF files download http://www.adtlink.cn/download/ADT_F43SG_3D.zip

Installation Tutorial files download http://www.adtlink.cn/download/F43SG-BK7 Installation Tutorial.mp4
