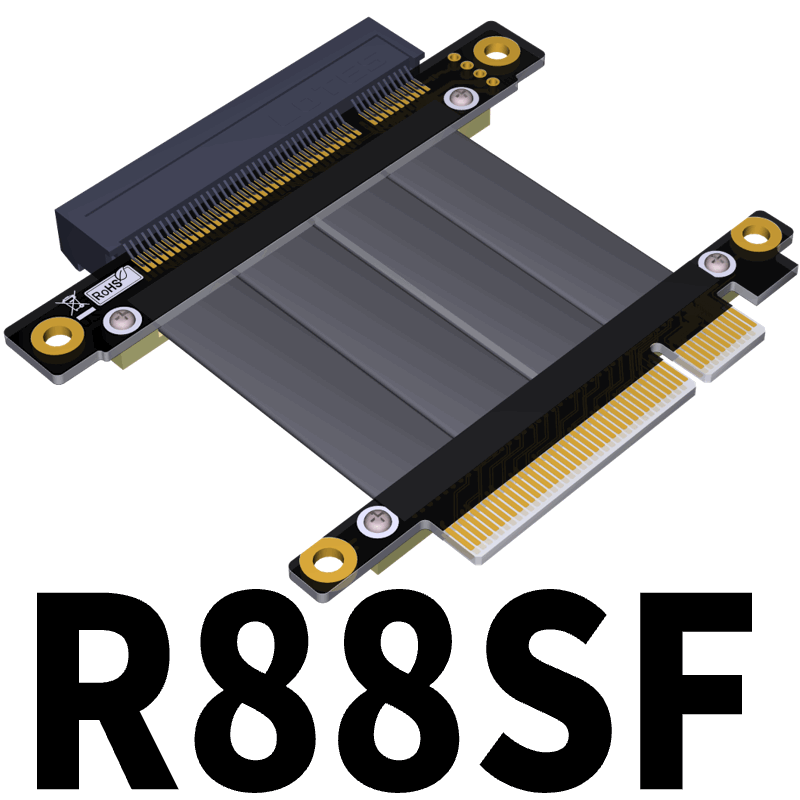

Product ID: R88SF

Interface: PCIe x8 / PCIe x8

Application: Extension

Product description: PCIe x8 to x8 adapter for graphics video cards extension.

ADT-Link PCI express 3.0 x16 to x8 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x8 to x8 extension cable

Product model: R88SF

Transfer speed: PCIe3.0 x8 to x8, 64G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: PCIe x8 to PCIe x8 slot extension cable

ADT R88 series Part-Number Description:

R88SFPCI-E x8 to x8 turn 180 degree upright right angle extension cablesPCIe 3.0 x8 (64G/bps)

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Dimension Description: (female to male)

R88SFPCIe x8 to x8 flat mount extension cable


Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.



To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model STEP & PDF files download http://www.adt.link/Uploads/download/ADT_R88_3D.zip

Spec download http://www.adt.link/Uploads/download/ADT_R88SF Cable specification 2020326.pdf

FTP: Hong Kong

3D model STEP & PDF files download http://www.adtlink.cn/Uploads/download/ADT_R88_3D.zip
