R81SF, R81SL, R81SR

Product ID: R81SF, R81SL, R81SR

Interface: PCIe x8 / PCIe x1

Application: Extension

Transfer speed: PCIe3.0 x1

Product description: PCIe x8 to x1 adapter for PCIe x1 USB, Audio, Wireless LAN cards extension.

ADT-Link PCI express 3.0 x8 to x1 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x8 to x1 extension cable

Product model: R81SF, R81SL, R81SR

Transfer speed: PCIe3.0 x1, 8G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: PCIe x1 card to PCIe x8 slot extension cable


ADT R81 series Part-Number Description:

P/N
Description
Bandwidth

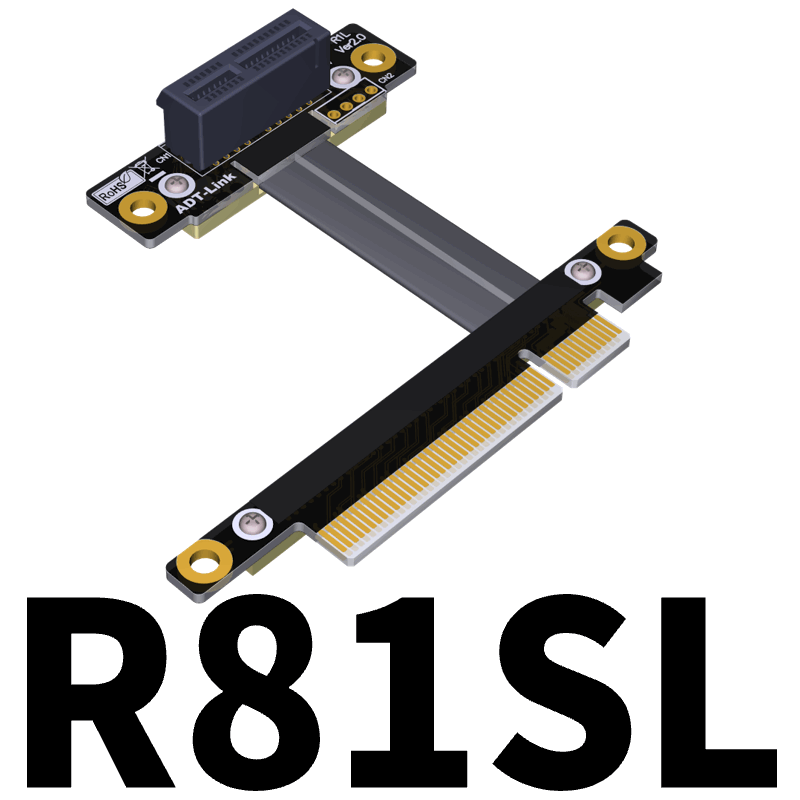

R81SLPCI-E x8 edge to x4 connector. turn 90 degree upright right angle extension cablesPCIe 3.0 x1 (8G/bps)
R81SF

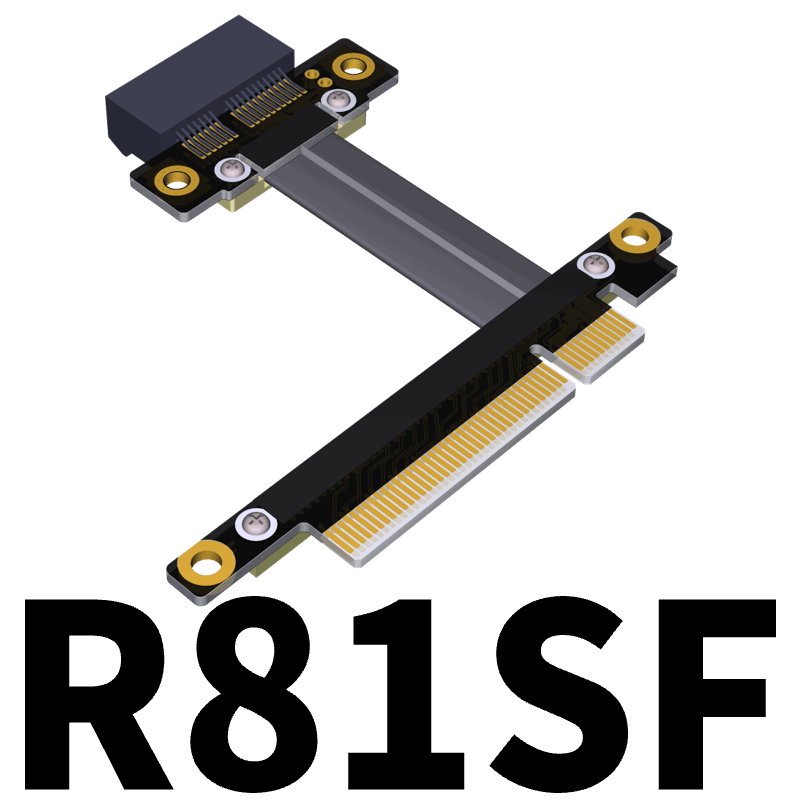

PCI-E x8 edge to x4 connector. turn 180 degree splint vertical extension cablesPCIe 3.0 x1 (8G/bps)

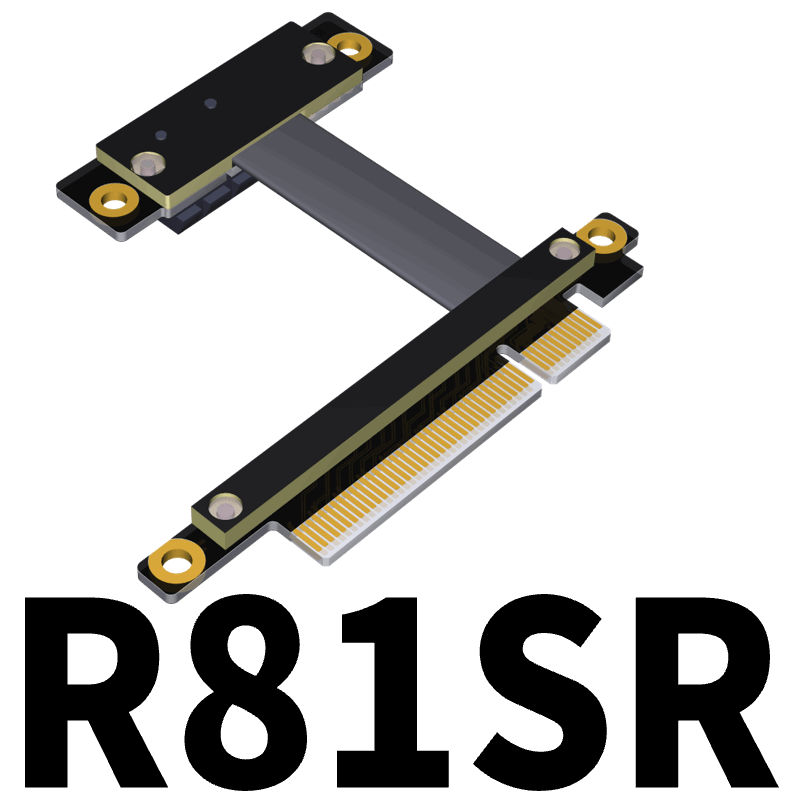

R81SRPCI-E x8 edge to x4 connector. turn 270 degree inverted reverse extension cablesPCIe 3.0 x1 (8G/bps)



Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?

The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model STEP & PDF files download http://www.adt.link/Uploads/download/ADT_R81_3D.zip

FTP: Hong Kong

3D model STEP & PDF files download http://www.adtlink.cn/Uploads/download/ADT_R81_3D.zip
