R44SF

Product ID：R44SF

Interface: M.2 NVMe / M.2 NVMe

Transfer speed: PCIe3.0 x4 full speed, 32G/bps (Max.)

Application: Extension

Product description: M.2 NVMe extender for M.2 NVMe SSD

Buy Now

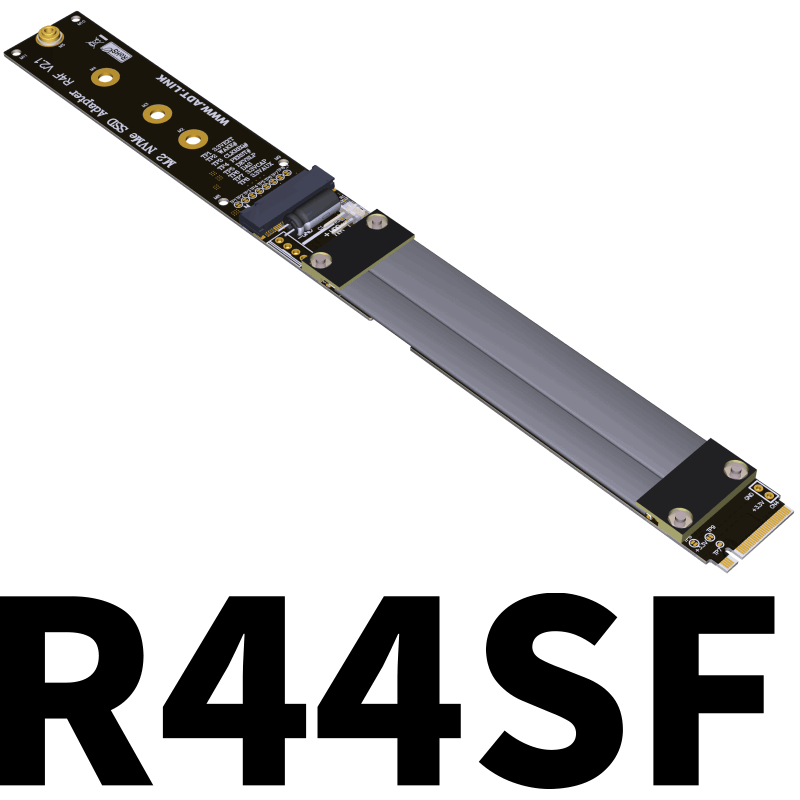

ADT-Link M.2 NVMe SSD Extension Cable

Brand name: ADT-LINK

Product name: M.2 NVMe Key M extension cable

Product model: R44SF

Transfer speed: PCIe3.0 x4 full speed, 32G/bps (Max.)

Wire length: 10 ~ 100 cm, the length can be customized

Application: M.2 NVMe SSD cards extension

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 8cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.
