M88SF,M88SL,M88VR 4.0

Product ID:M88SF,M88SL,M88VR

Interface: PCIe x8 / PCIe x8

Transferspeed: PCIe 4.0 x8 , 128G/bps (Max.)

Product description: PCIe x8 to x8 adapter for graphics video cards extension.

Buy Now

ADT-Link PCI express 4.0 x8 to x8 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x8 to x8 extension cable

Product model:M88SF,M88SL,M88VR

Transferspeed: PCIe 4.0 x8 , 128G/bps (Max.)

Wire length:5 ~ 100 cm, the length can be customized

Application: PCIe x8 to PCIe x8 slot extension cable

ADT M88 series Part-Number Description:

Part-Number	Description	Bandwidth

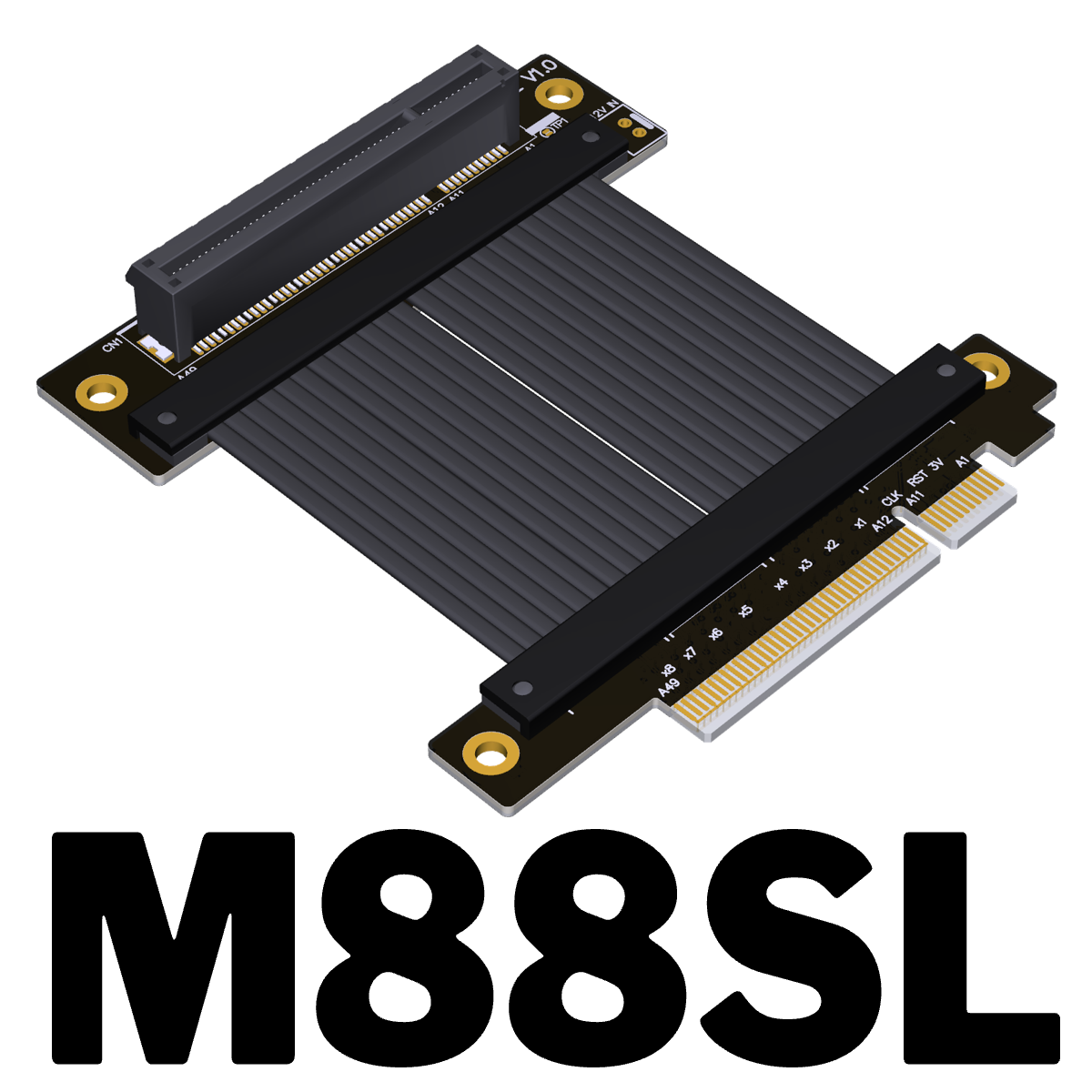

M88SL	PCI-E x8 to x8 turn 90 degree upright right angle extension riser cables	PCIe 4.0 x8 (128G/bps)

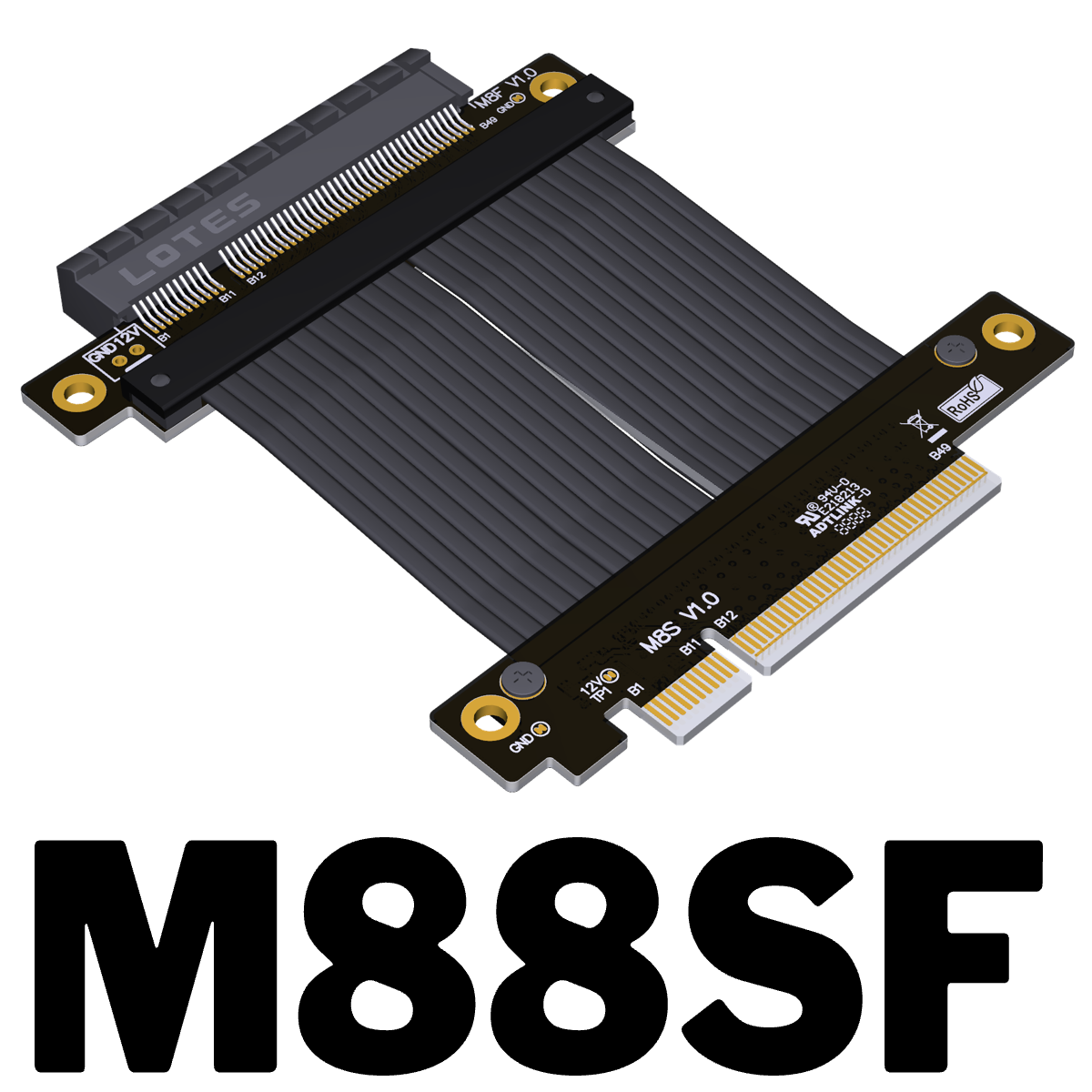

M88SF	PCI-E x8 to x8 turn 180 degree splint vertical extension riser cables	PCIe 4.0 x8 (128G/bps)

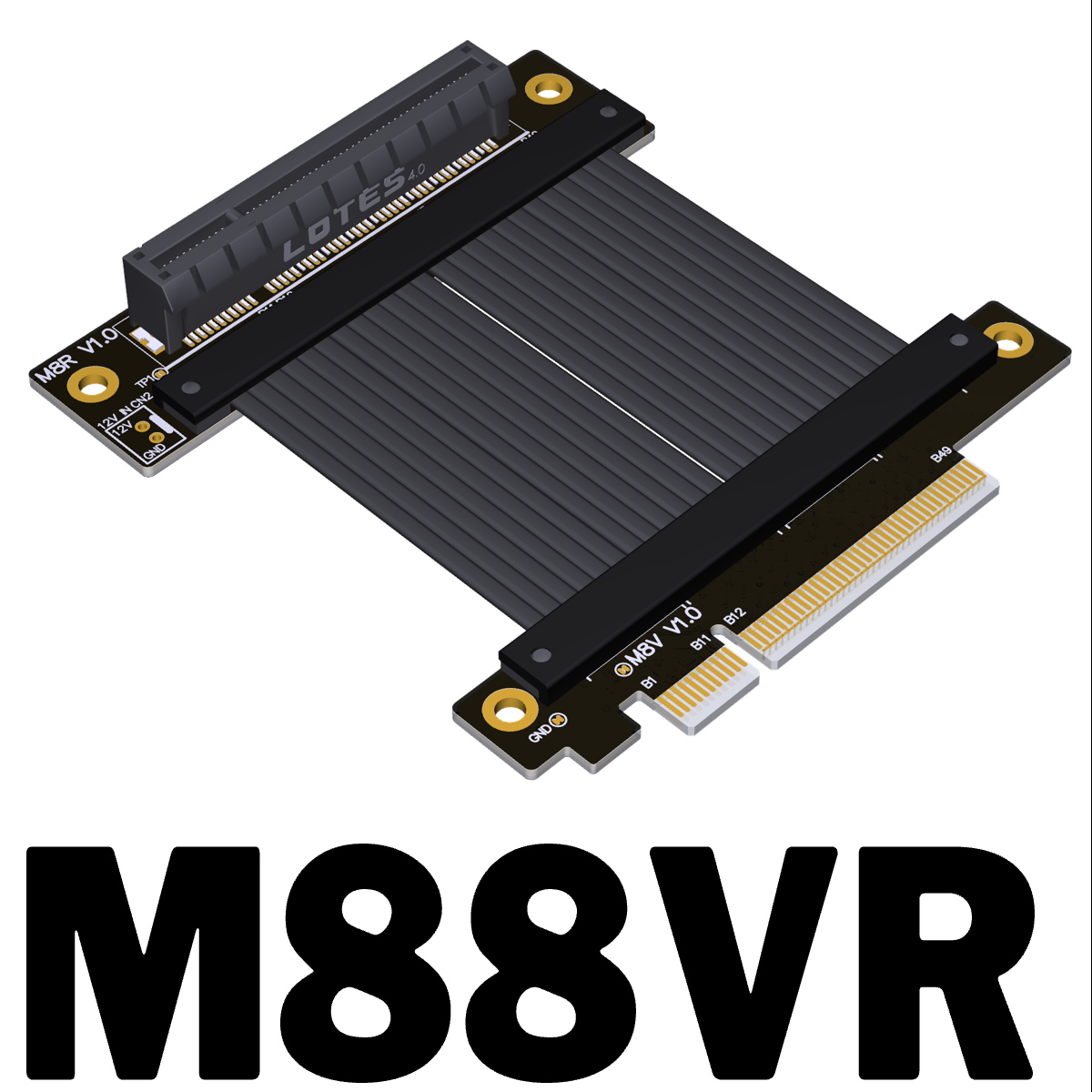

M88VR	PCI-E x8 to x8 turn 270 degree inverted reverse angle extension riser cables	PCIe 4.0 x8 (128G/bps)

M88: PCIe x8 to x8

SL: turn 90 degree upright right angle ; SF: turn 180 degree splint vertical ; SR: turn 270 degree inverted reverse angle

-PW solder power connector and bundle 15Pin SATA external power cable

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
