K44SS-TT K44SS-TR

Product model: K44SS-TT K44SS-TR

Transfer speed: PCIe4.0 x4 , 64G/bps (Max.)

Wire length: 10 ~ 100 cm, the length can be customized,

Application: M. 2 NVME Jumper Extension Riser Cable

Buy Now

ADT-Link M.2 NVMe SSD Jumper Extension Cable

Brand name: ADT-LINK

Product name: M.2 NVMe Key M jumper extension cable

Product model: K44SS-TT K44SS-TR

Transfer speed: PCIe4.0 x4 , 64G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: M.2 nvme board to board jumpers , extender , adapter , flexible , foldable , pluggable

Operating Temp: -20 ~ 80℃

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the blue arrow in the figure below.

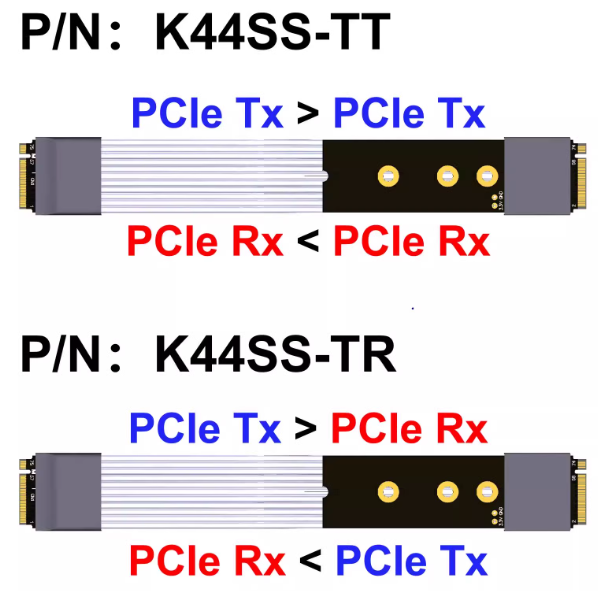

What is the difference between ADT model K44SS-TT and K44SS-TR?

Part-Number	Description	Bandwidth

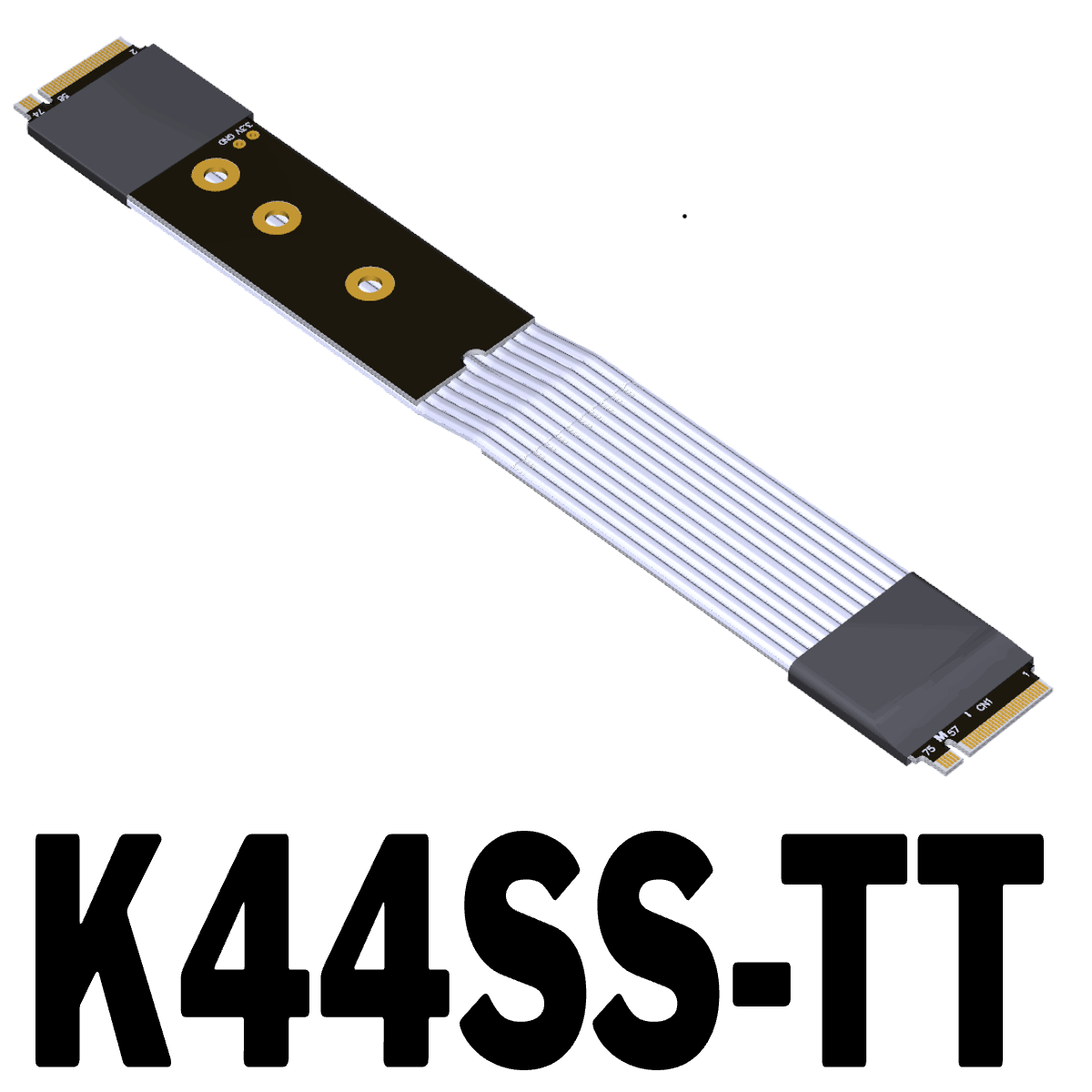

K44SS-TT	M.2 NVMe ,goldfinger to goldfinger, Tx to Tx direct extension	PCIe 4.0 x4 (32G/bps)

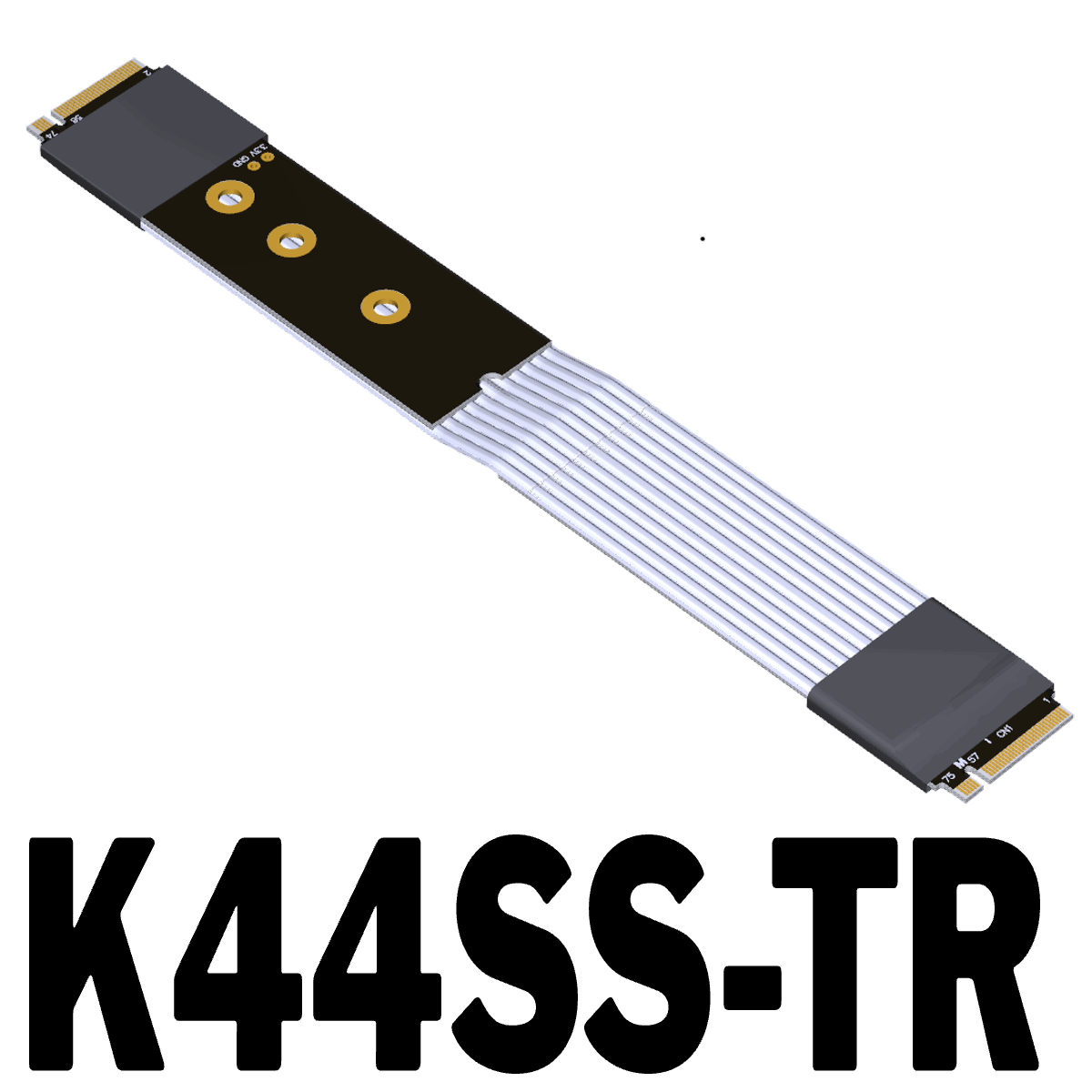

K44SS-TR	M.2 NVMe ,goldfinger to goldfinger, Tx to Rx swap extension	PCIe 4.0 x4 (32G/bps)

Q&A：

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.1mm, so the wire is softer. The wire can be bent or folded, but do not pull it.
