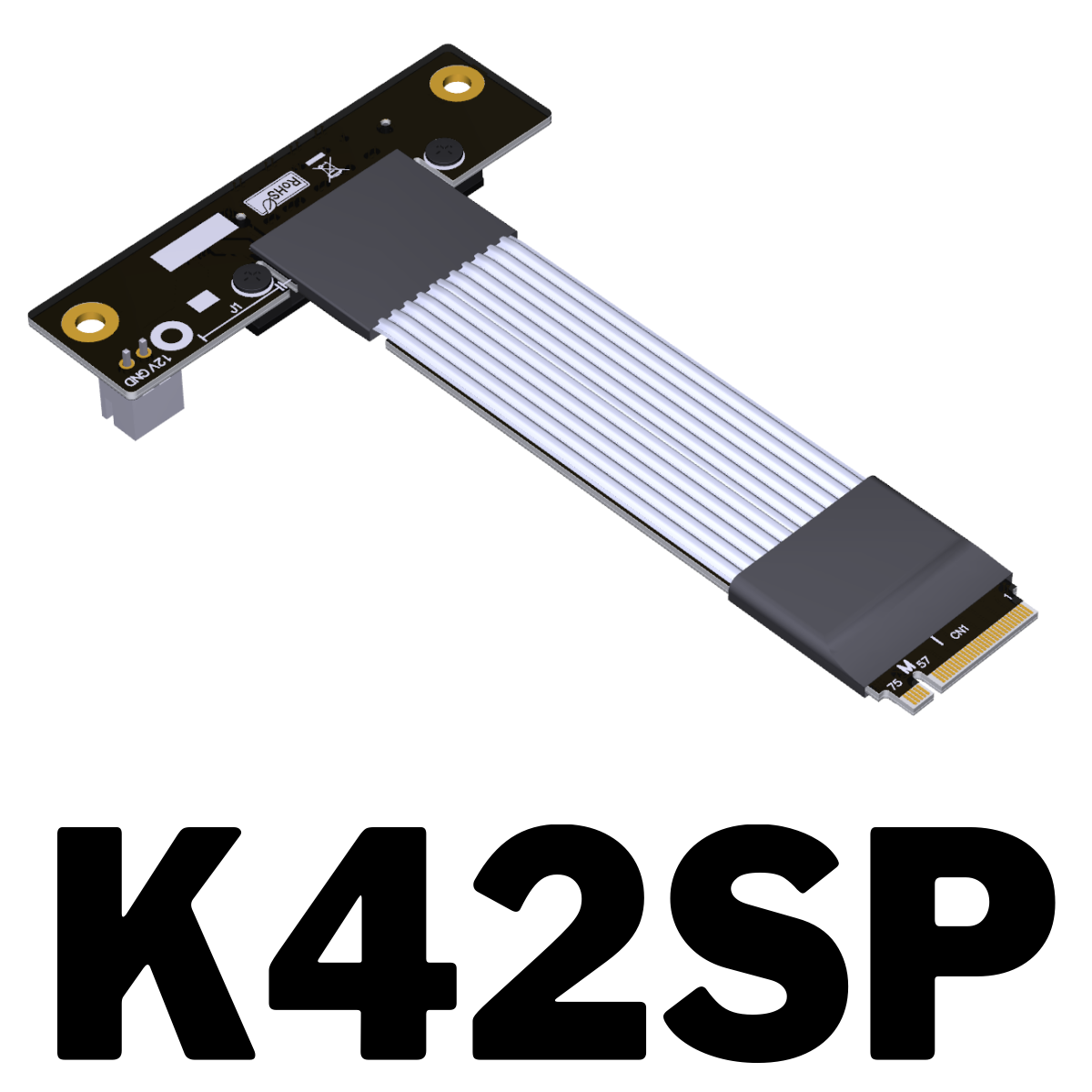

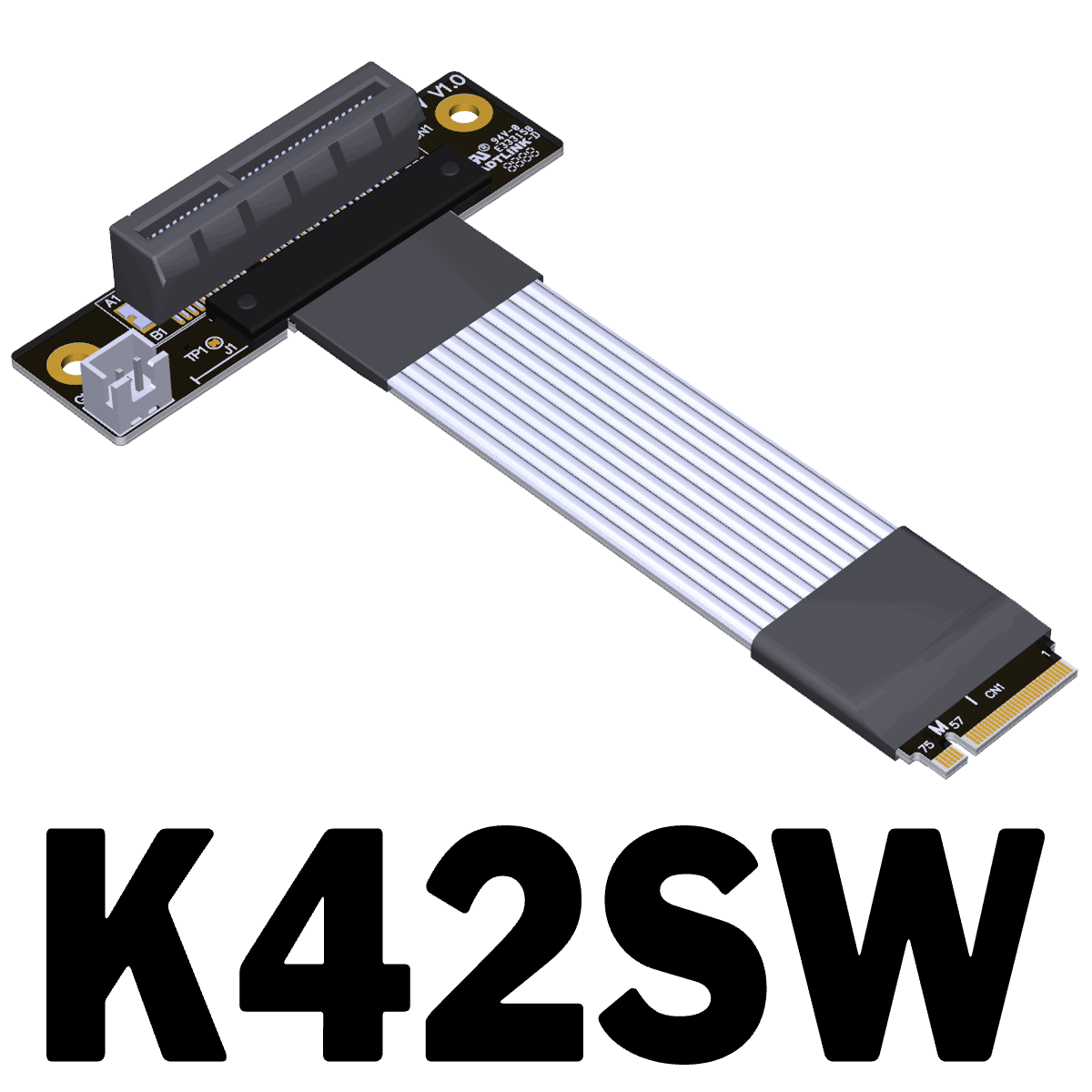

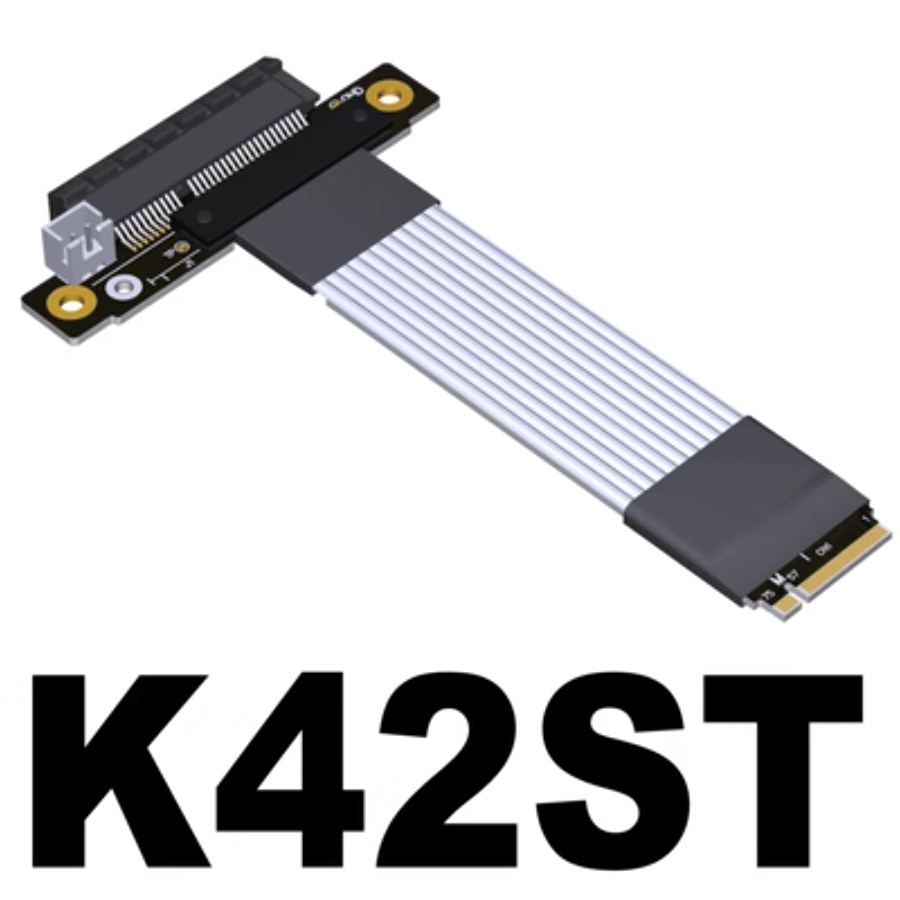

K42ST,K42SW,K42SP

Product name:M.2 NVMe to PCIe x4 extension cable

Product model: K42ST,K42SW,K42SP

Transferspeed:PCIe 4.0 x4, gen4, 64G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized,

Application: PCIe x4 SSD RAID, LAN, Capture cards to M.2(ultra SSD, M-key)extension

ADT-Link M.2 NVMe to PCI express x4 Extension Riser Cable

Brand name: ADT-LINK

Product name:M.2 NVMe to PCIe x4 extension cable

Product model: K42ST,K42SW,K42SP

Transferspeed:PCIe 4.0 x4, gen4, 64G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized,

Application: PCIe x4  SSD RAID, LAN, Capture cards to M.2(ultra SSD, M-key)extension


Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Accessories description:

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

Photo:

Q&A

Is there any EMI shielding for Cable?
With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.1mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D Step & 3D PDF files download http://www.adt.link/download/ADT_K42xx_3D.zip

Test report files download http://www.adt.link/download/ADT-Cable 24P 5.0 test report.pdf

Cable specification files download http://www.adt.link/download/ADT-Cable 24P 5.0 specification.pdf

FTP: Hong Kong

3D Step & 3D PDF files download http://www.adtlink.cn/download/ADT_K42xx_3D.zip

Test report files download http://www.adtlink.cn/download/adt-cable 24p 5.0 test report.pdf

Cable specification files download http://www.adtlink.cn/download/adt-cable 24p 5.0 specification.pdf
