M2S-M31,M2S-M32,M2S-M33 4.0

Product ID:M2S-M31,M2S-M32,M2S-M33

Interface: PCIe x4 / PCIe x16

Transferspeed:PCIe4.0 x4 , 64G/bps (Max.)

Product description: PCIe x4 to x16 extender adapter jumper for Capture Card, RAID SSD, gigabit LAN, usb cards.

Buy Now

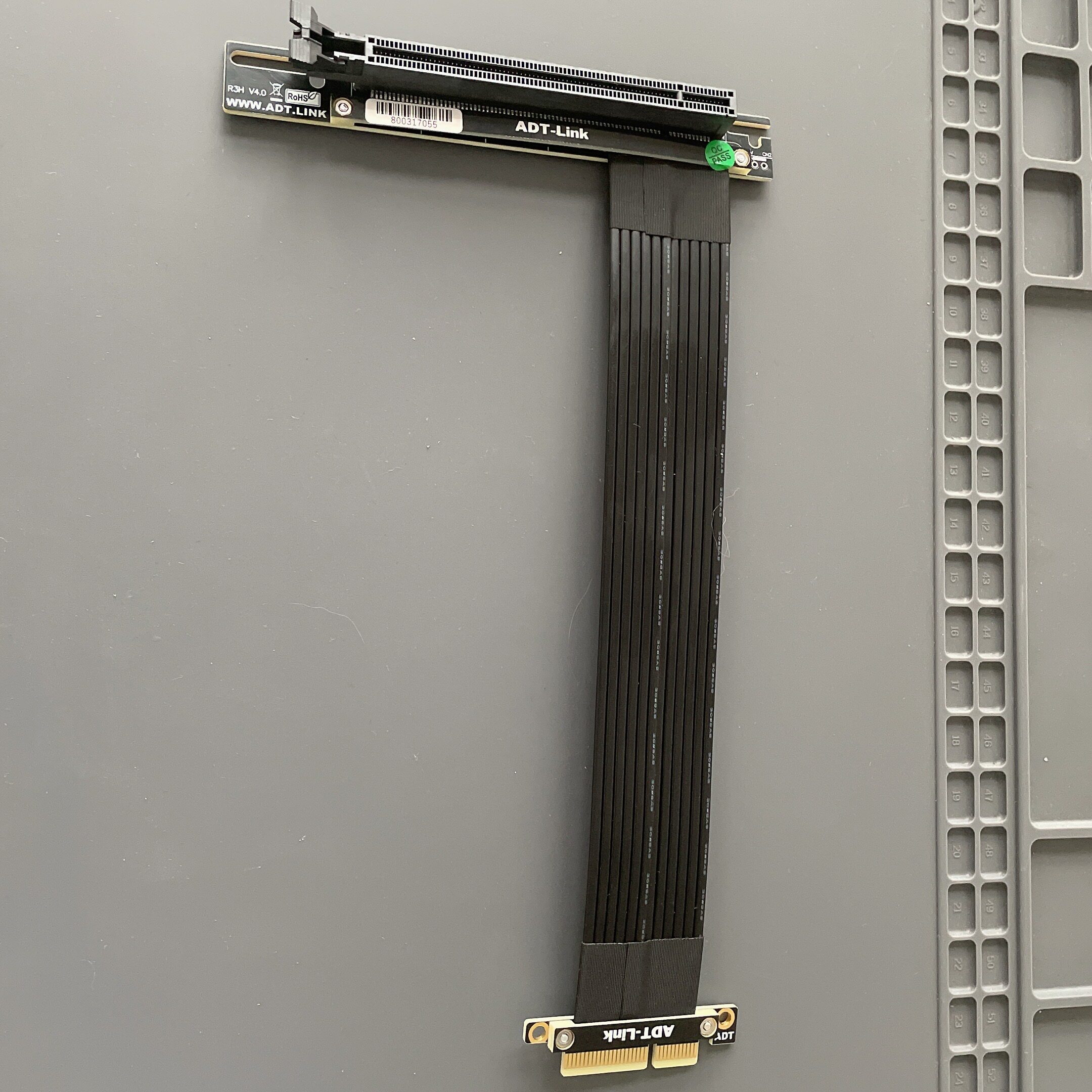

ADT-Link PCI express 4.0 x4 to x16 Extension Cable

Brand name: ADT-LINK

Product name:PCIe x4 to x16 extension cable

Product model:M2S-M31,M2S-M32,M2S-M33

Transferspeed:PCIe4.0 x4 , 64G/bps (Max.)

Wire length:3 ~ 100 cm, the length can be customized

Application: PCIe x16 Video Card to x4 extension riser cable

ADT M23 series Part-Number Description:

Part-Number	Description	Bandwidth
M2S-M31	PCI-E x4 to x16 turn 180 degree upright right angle extension cables	PCIe 4.0 x4 (64G/bps)
M2S-M31-TL	PCI-E x4 to x16 finger turn 90 degree and connector turn 180 degree cables	PCIe 4.0 x4 (64G/bps)
M2S-M32	PCI-E x4 to x16 turn 90 degree upright right angle extension cables	PCIe 4.0 x4 (64G/bps)
M2S-M32-TL	PCI-E x4 to x16 finger turn 90 degree and connector turn 90 degree cables	PCIe 4.0 x4 (64G/bps)
M2S-M33	PCI-E x4 to x16 turn 270 degree inverted reverse extension cables	PCIe 4.0 x4 (64G/bps)
M2S-M33-TL	PCI-E x4 to x16 finger turn 270 degree and connector turn 270 degree cables	PCIe 4.0 x4 (64G/bps)

M23: PCIe x4 to x16

SL: turn 90 degree upright right angle ; SF: turn 180 degree splint vertical ; SH: turn 90 degree connector support lock version

-PW solder 4P power connector and bundle 15Pin SATA external power cable

Cable length Description:

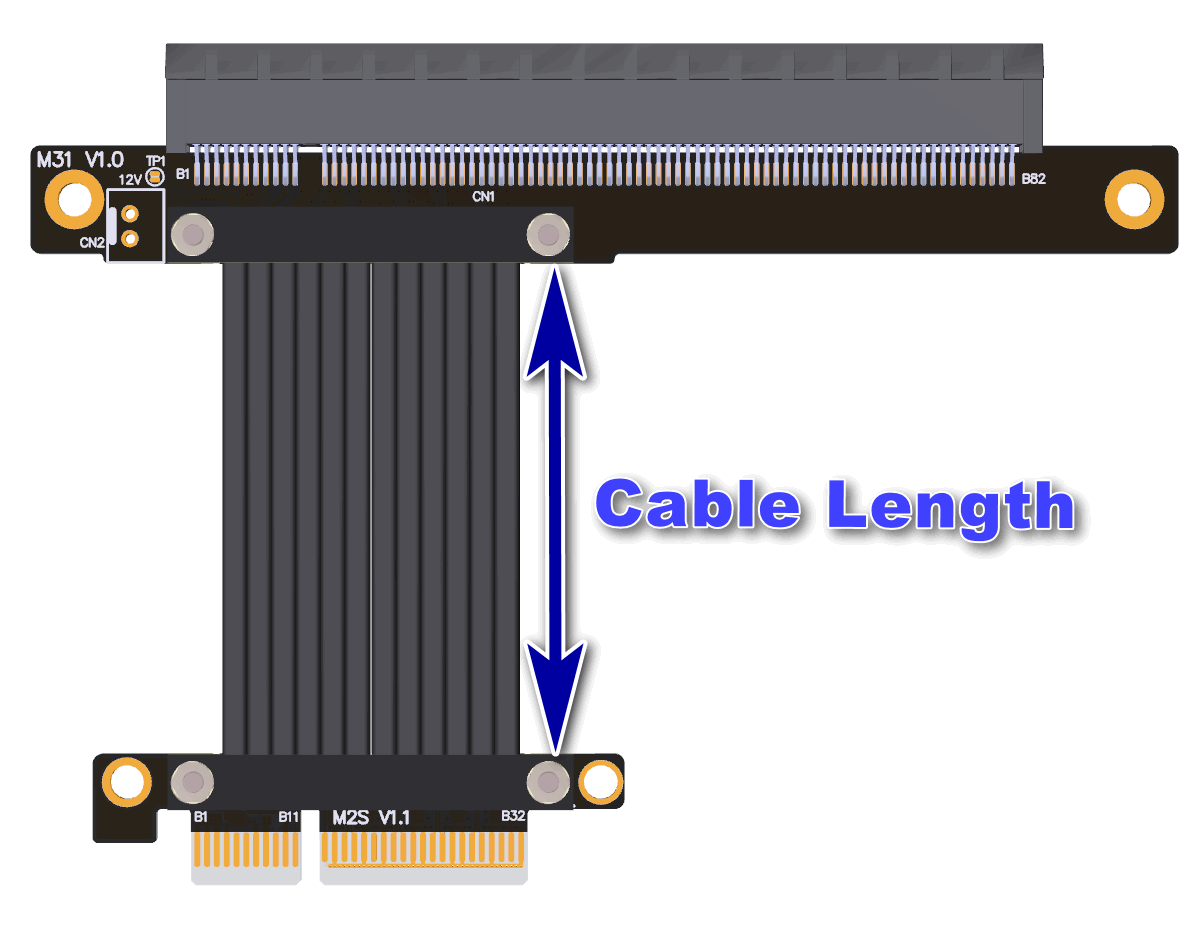

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
