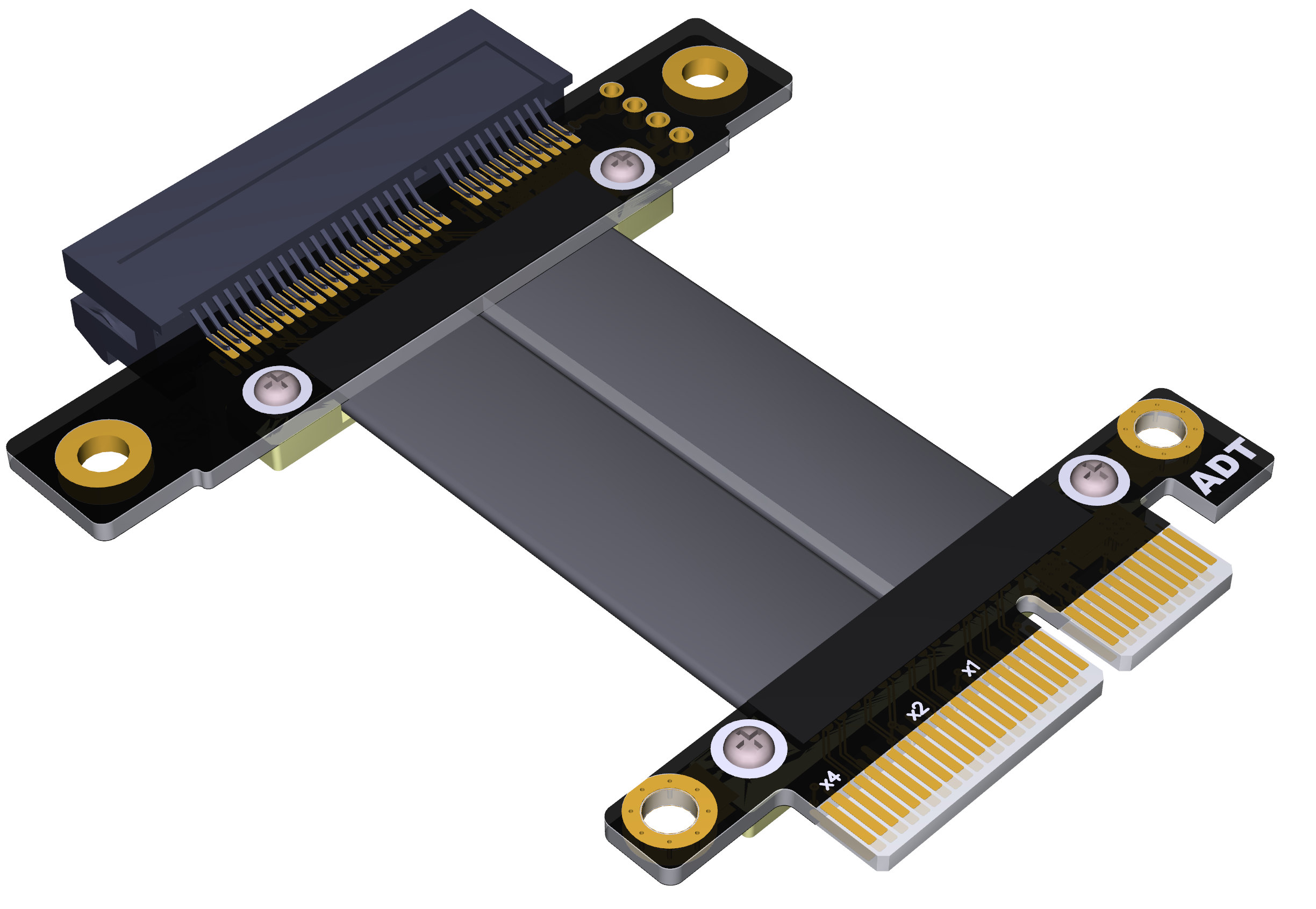

R22SF,R22SL,R22SR,R22AB

Product ID: R22SF,R22SL,R22SR,R22AB

Interface: PCIe x4 / PCIe x4

Application: Extension

Transferspeed:PCIe3.0 x4

Product description: PCIe x4 extender adapter jumper for Capture Card, RAID SSD, gigabit LAN, usb cards.

Buy Now

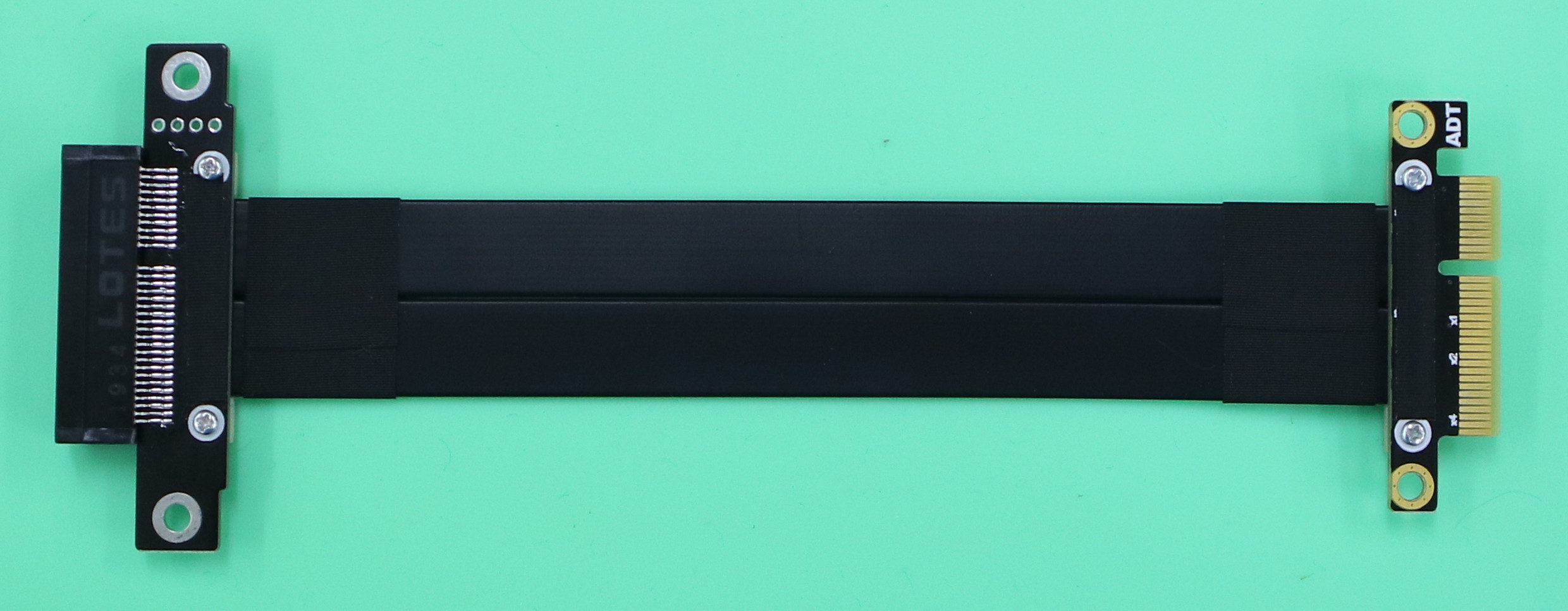

ADT-Link PCI express 3.0 x4 Extension Cable

Brand name: ADT-LINK

Product name:PCIe x4 extension cable

Product model:R22AB

Transferspeed:PCIe3.0 x4 full speed, 32G/bps (Max.)

Wire length:3 ~ 100 cm, the length can be customized,

Application: PCIe x4 Capture Card , RAID SSD, LAN, USB cards,extension

ADT R22 series Part-Number Description:

Part-Number	Description	Bandwidth
R22SL	PCI-E x4 to x4 turn 90 degree upright right angle extension cables	PCIe 3.0 x4 (32G/bps)
R22SF	PCI-E x4 to x4 turn 180 degree splint vertical extension cables	PCIe 3.0 x4 (32G/bps)
R22SR	PCI-E x4 to x4 turn 270 degree inverted reverse extension cables	PCIe 3.0 x4 (32G/bps)
R22AB	PCI-E x4 to x4 turn 180 degree splint vertical cables support SMBUS, WAKE#	PCIe 3.0 x4 (32G/bps)

R22: PCIe x4 to x4

SL: turn 90 degree upright right angle ; SF: turn 180 degree splint vertical ; SR: turn 270 degree inverted reverse angle

-PW solder 4P power connector and bundle 15Pin SATA external power cable

Cable length Description:

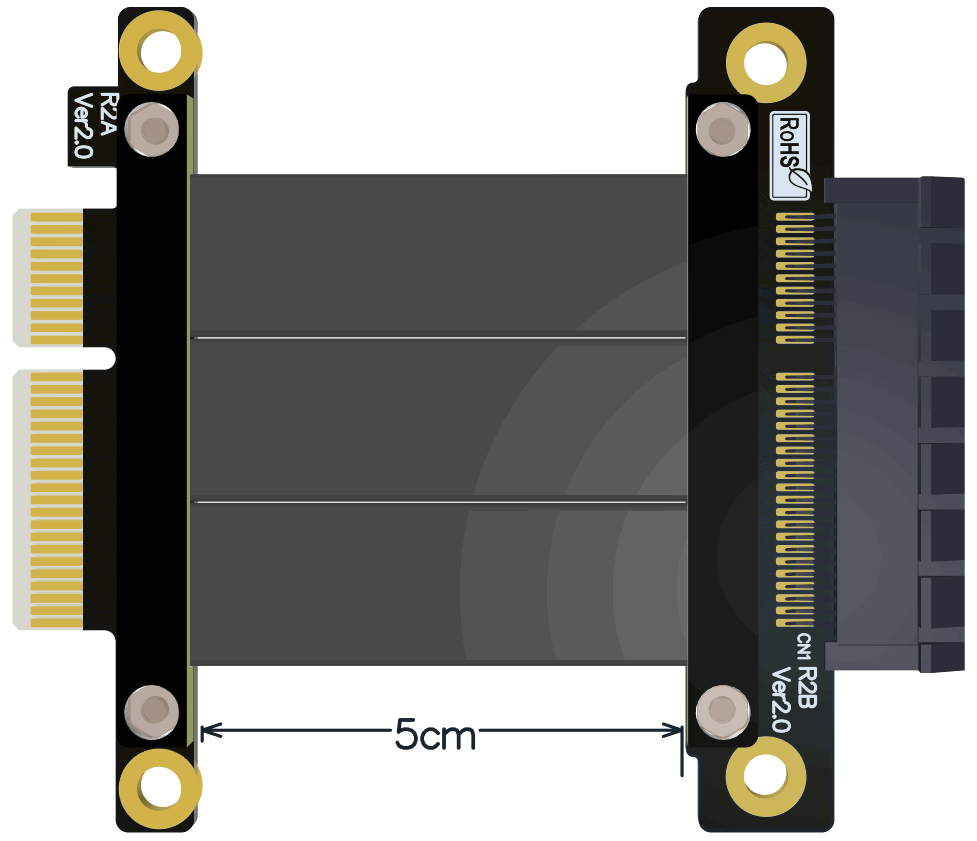

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm in the figure below.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
