DMP 1.4 series

Product ID:DMP series
Interface:miniDP / DP
Application: Displayport Cable
Shelf time:2021-9-15 11:07:19
Product description: ADTLINK miniDPto DP flat cable

ADT-Link mini-DP to DP Flat Cable

Brand name: ADT-LINK

Product name: mDP to DP Cable

Product model: DMP series

Transfer speed: DP1.4

Wire length: 3 ~ 200 cm, the length can be customized,

Operating temperature: -20°C ~ 80°C

Application: For Video card, Graphics card extension

Purchase restriction: This product is designed to connect to built-in internal devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

Note: The extension cable does not support two or more DP cables connected in series. If you connect more than two DP cables in series, the signal will be attenuated. It may not be used normally.

ADT DP series Part-Number Description:

Product NameCable MaterialPart-NumberBandwidth

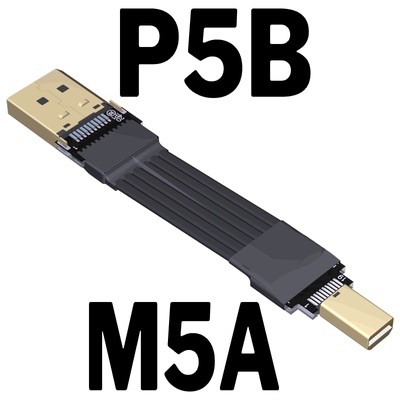

DP Cable, flat mount male to flat mount maleBlack with metal shieldM5A-P5BDP1.4

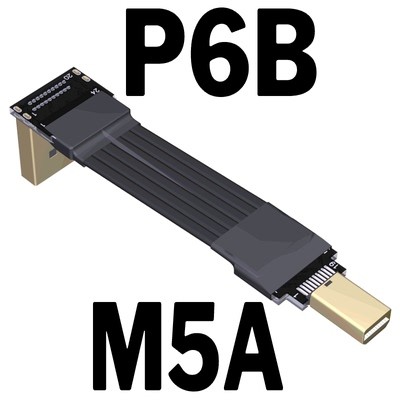

DP Cable, flat mount male to Turn up maleBlack with metal shieldM5A-P6BDP1.4

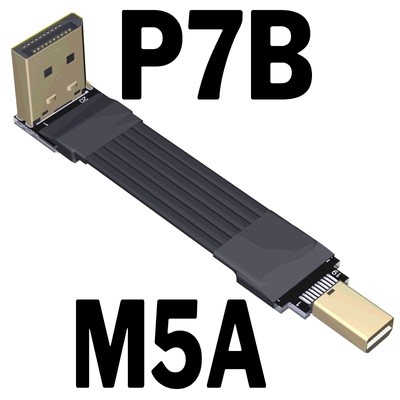

DP Cable, flat mount male to Turn down maleBlack with metal shieldM5A-P7BDP1.4

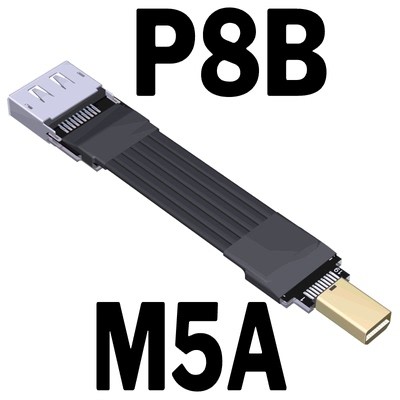

DP Cable, flat mount male to flat mount femaleBlack with metal shieldM5A-P8BDP1.2/1.4

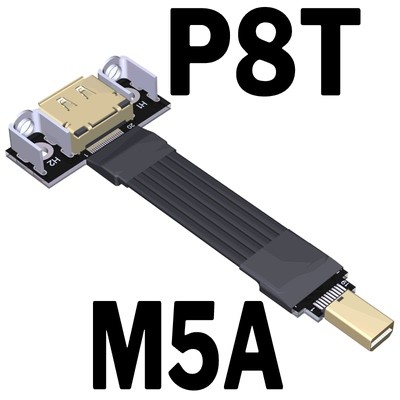

DP Cable, flat mount male to flat mount female with fixing holeBlack with metal shieldM5A-P8TDP1.2/1.4

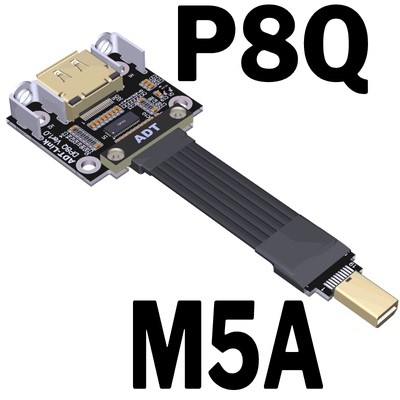

DP Cable, flat mount male to flat mount female with fixing hole with re-driver ICBlack with metal shieldM5A-P8QDP1.4

P5_DP flat mount; P6_DP turn up; P7_DP turn down; P8_DP female
M5_mini DP flat mount;

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm black arrow in the figure below.


How compatible are wires?

Supports DP 1.4 high-speed, supports 4K/1440hz full-speed. High compatibility.

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. The cable is added with a metal shield. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.


What is the difference between model P8T/P8Q?

Model DP8T has no chip, and the signal attenuation may not meet the requirements of DP1.4 high-speed signal transmission after two DP lines are connected in series.

Model DP8Q with chip, using Diodes/Pericom's PI3DPX1203 Redriver signal repeater (Repeater IC), this chip can regenerate the signal to enhance its signal quality. To reduce the error rate of signal transmission, the reference diagram is as follows:.

What is the hole pitch for model P4T/P8Q?

As shown in the figure below, please use M4 screws with a hole pitch of 27mm. 3D STEP files can be downloaded.



To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D PDF files download http://www.adt.link/Uploads/download/ADT_DMP14_3D.zip

FTP: Hong Kong

3D PDF files download http://www.adtlink.cn/Uploads/download/ADT_DMP14_3D.zip
