Product ID：USW2-FM-OTG-13P series
Interface:TYPE-A / micro-B 2.0
Application: USB extension cable
Shelf time：2022-05-16
Product description: USB 2.0 Type-A female to Micro-B male OTG flat cable

WebStore

USB 2.0 Type-A female to Micro-B male OTG flat cable

Brand name: ADT-LINK

Product name: USB 2.0 Type-A female to Micro-B male OTG flat cable

Product model: USW2-FM-OTG-13P series

Transfer speed: support of increased bandwidth up to 480M/bps

Wire length: 3~300 cm, the length can be customized,

Current capacity: 1.5A within 50cm ; 0.9A within 1 meter

Product application: GPS navigator, hard disk, ROCK Pi 4 Raspberry Pi MCU development board, built-in USB device to extend the use of adapter, convenient for brushless pan/tilt, USB power supply and camera video transmission of handheld pan/tilt, etc.

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

ADT USB series Part-Number Description:

Product List:

Brand	Part-number	Product-Description

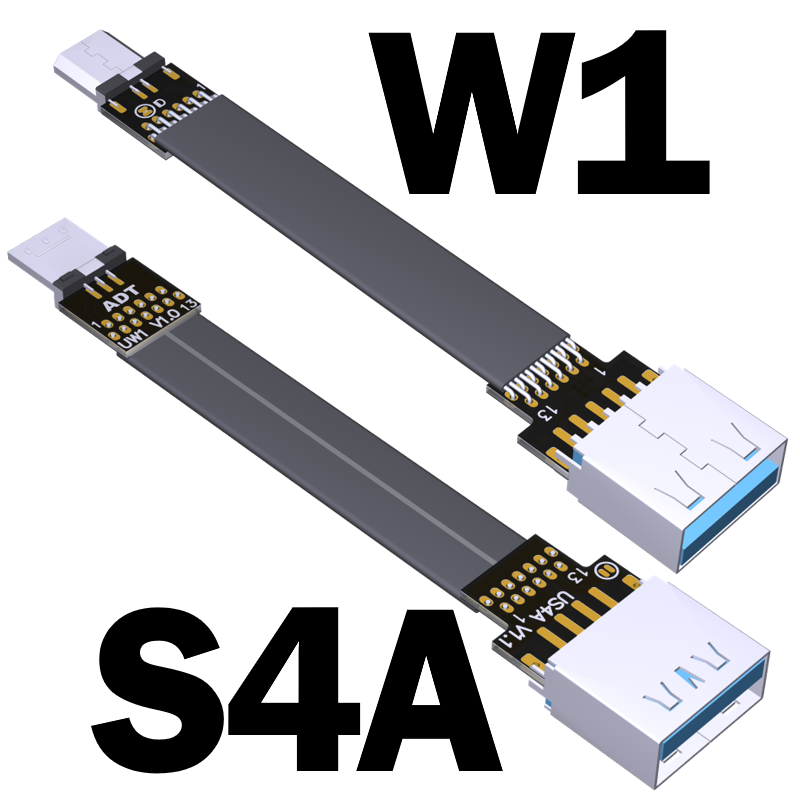

ADTLINK	US4A-UW1	USB 2.0 Type-A female to Micro-B male OTG flat cable

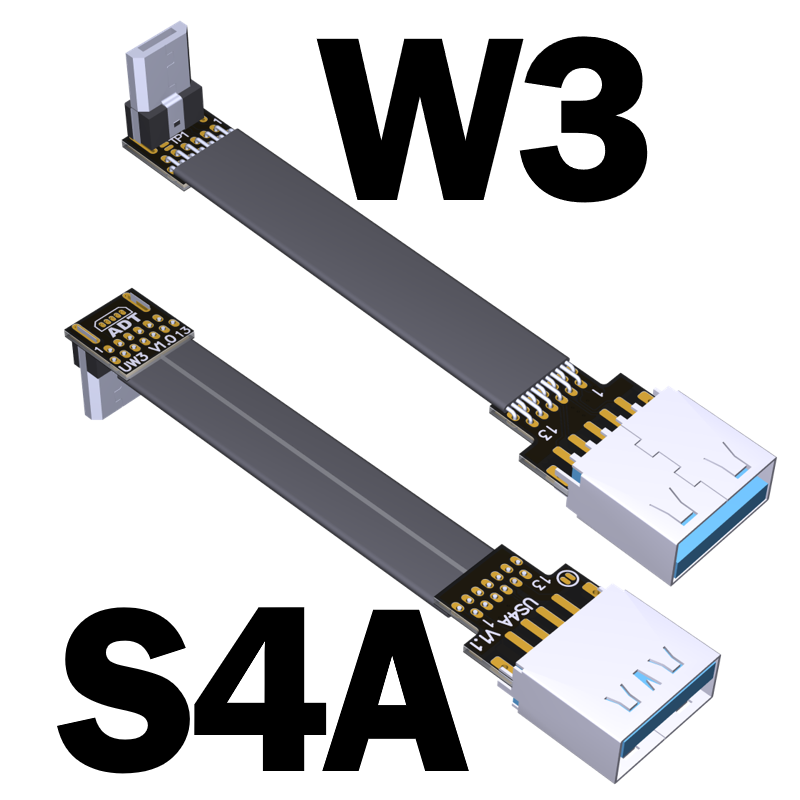

ADTLINK	US4A-UW3	USB 2.0 Type-A female to Micro-B male OTG flat cable

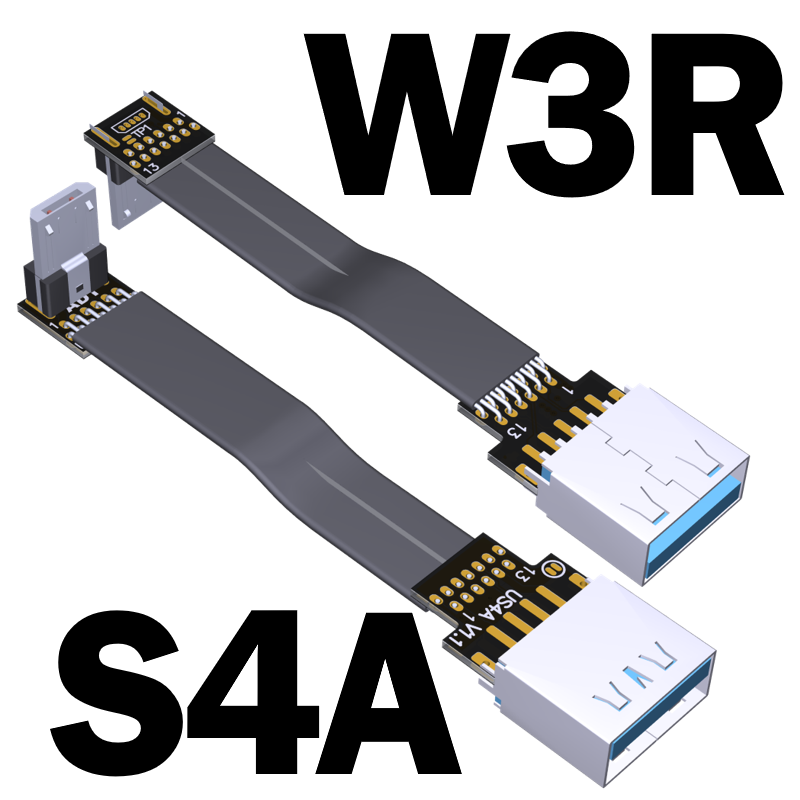

ADTLINK	US4A-UW3-R	USB 2.0 Type-A female to Micro-B male OTG flat cable

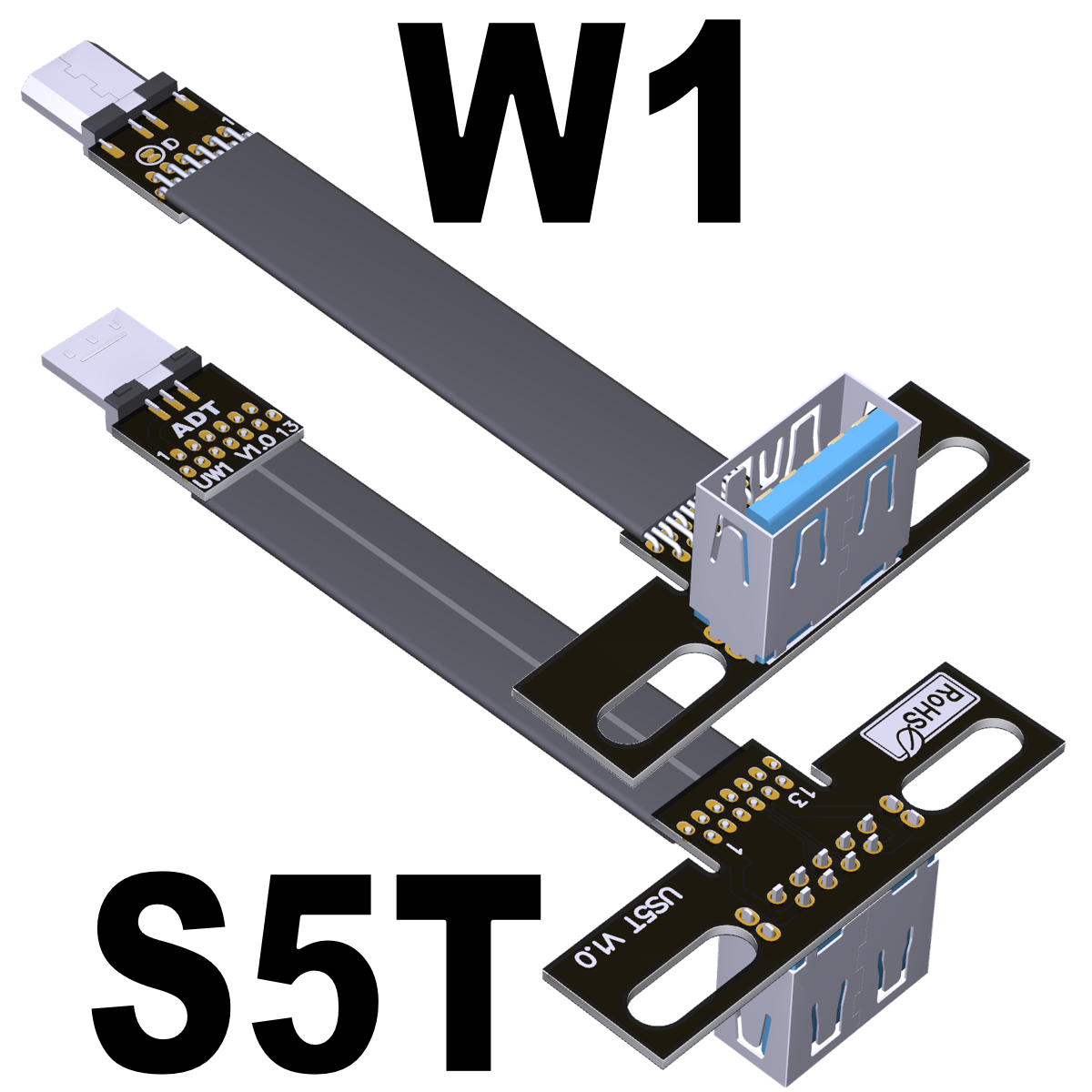

ADTLINK	US5T-UW1	USB 2.0 Type-A female to Micro-B male OTG flat cable

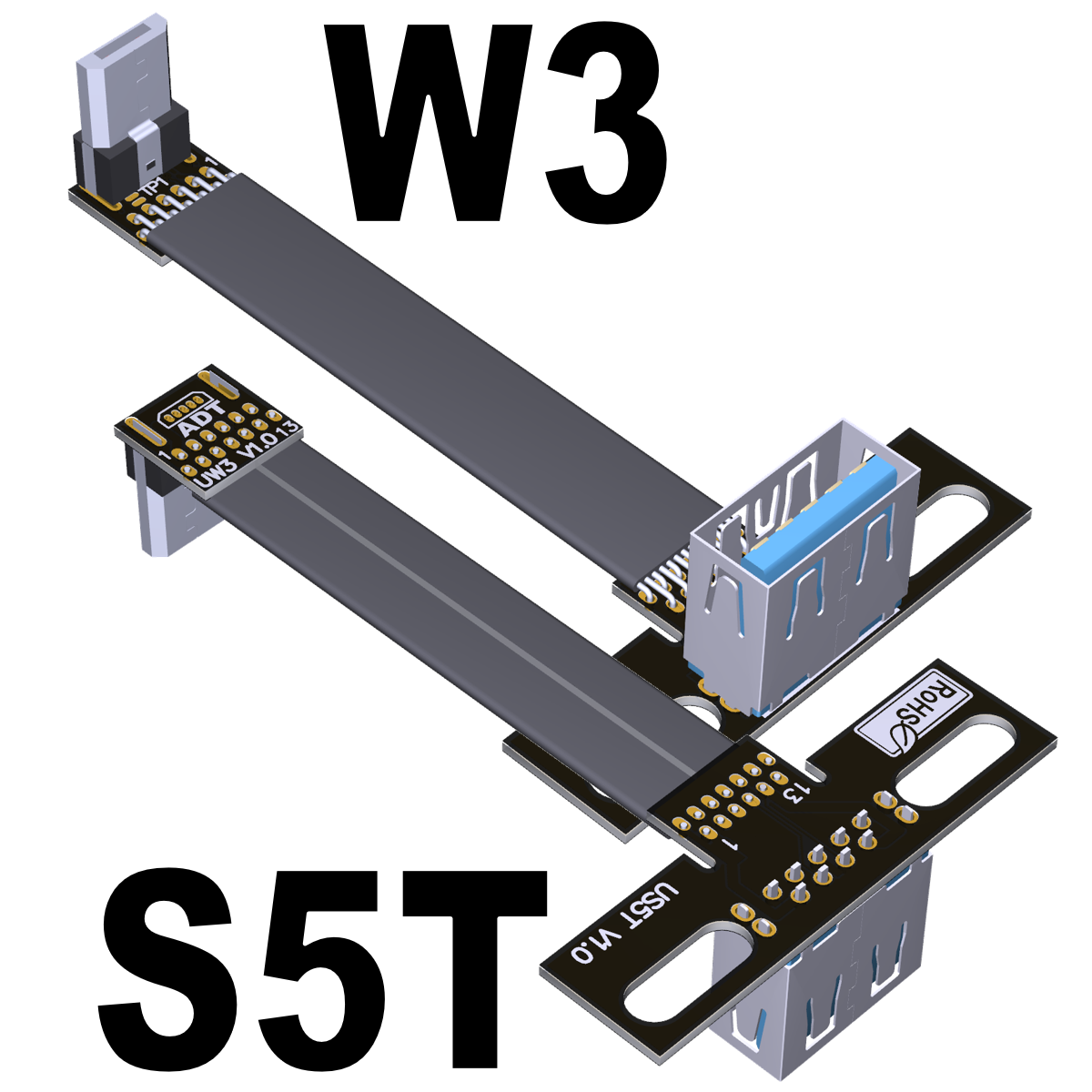

ADTLINK	US5T-UW3	USB 2.0 Type-A female to Micro-B male OTG flat cable

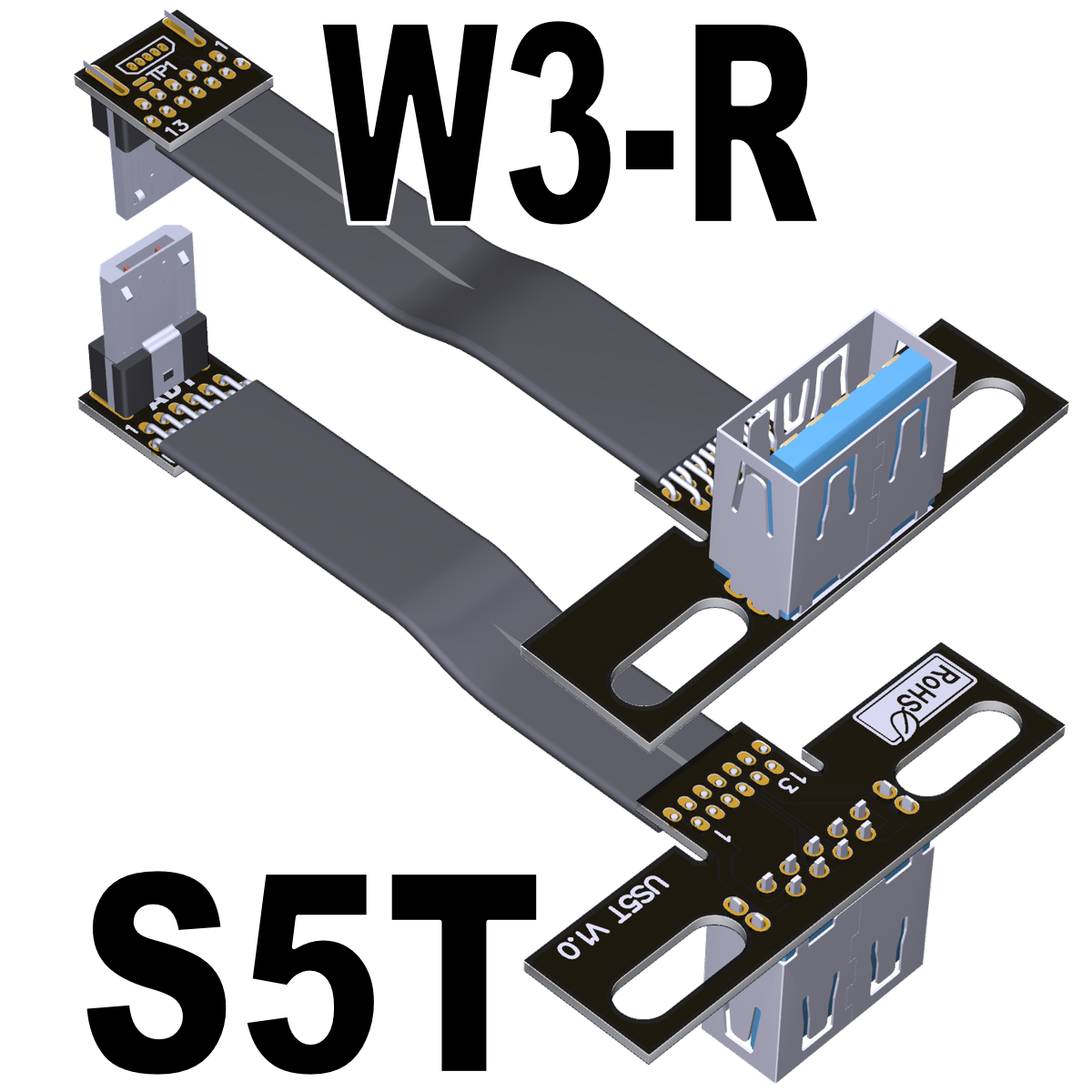

ADTLINK	US5T-UW3-R	USB 2.0 Type-A female to Micro-B male OTG flat cable

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Can wires and PCB connectors be split?

No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.

Cable thickness? Can it be bent?
The thickness of the wire is 1.4mm, and it can be bent and folded without affecting the use.
