USF3-FM-16P series

Product ID：USF3-FM-16P series

Interface:USB Type-A / Type-E

Application: USB extension cable

Shelf time：2022-05-15

Product description: USB 3.1 Type-A female to Internal 20Pin type-E male Flat Cable

Buy Now

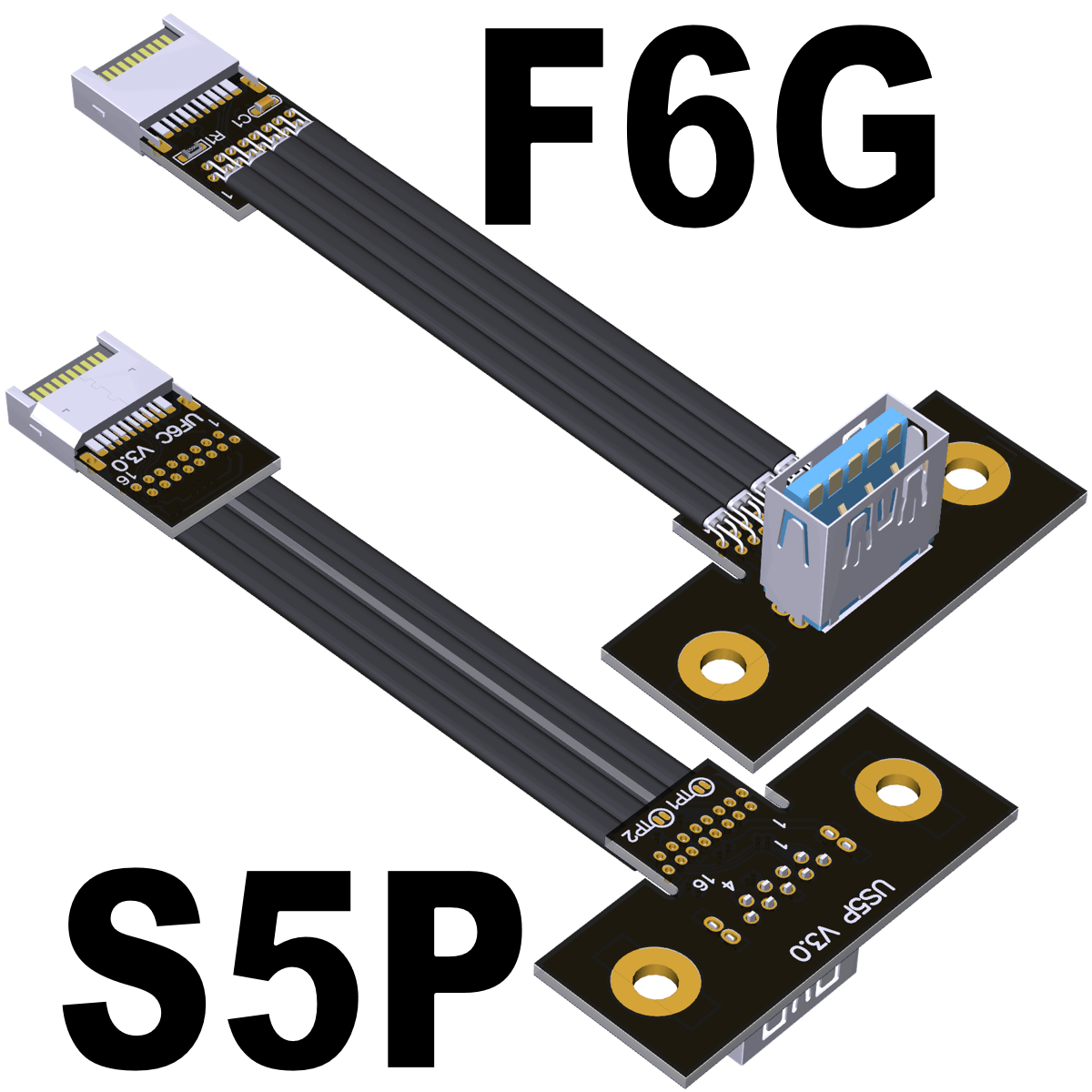

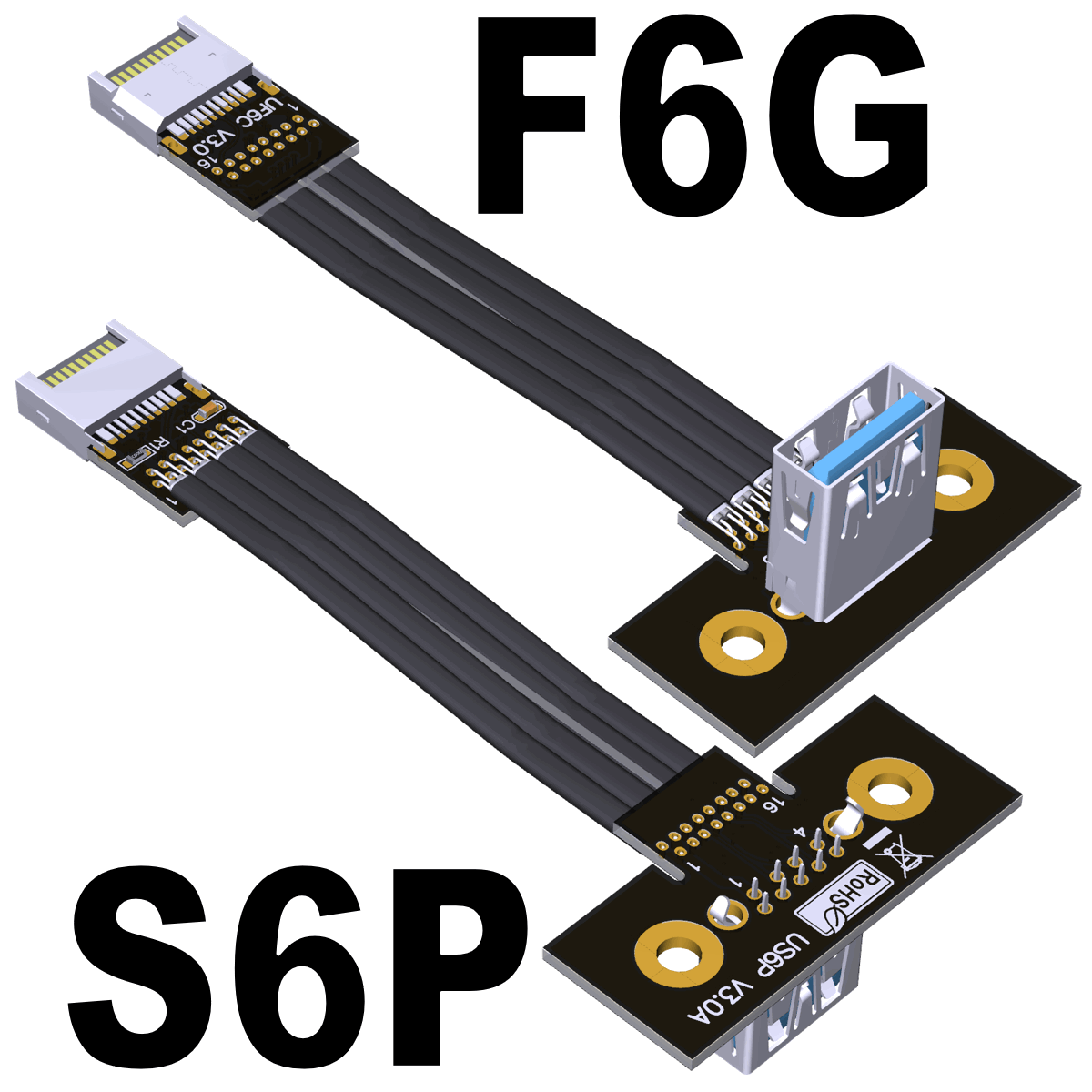

USB 3.1 Type-A female to Internal 20Pin type-E male Flat Cable

Brand name: ADT-LINK

Product name: USB 3.1 Type-A female to Internal 20Pin type-E male Flat Cable

Product model: USF3-FM-16P series

Transfer speed: support of increased bandwidth up to USB3.1 , 10G/bps (max.)

Wire length: 3 ~ 300 cm, the length can be customized

Current capacity: 5V/1.5A within 50cm ; 5V/0.9A within 1 meter)

Product application: USB3.1 internal 20Pin type-E connector extension cable

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

ADT USB series Part-Number Description:

S=USB-A ; C=USB-C ; W=USB-B ; F=USB-E

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

Yes, there is a metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Can wires and PCB connectors be split?

No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.

Cable thickness? Can it be bent?

The thickness of the wire is 1.3mm, and it can be bent and folded without affecting the use.
