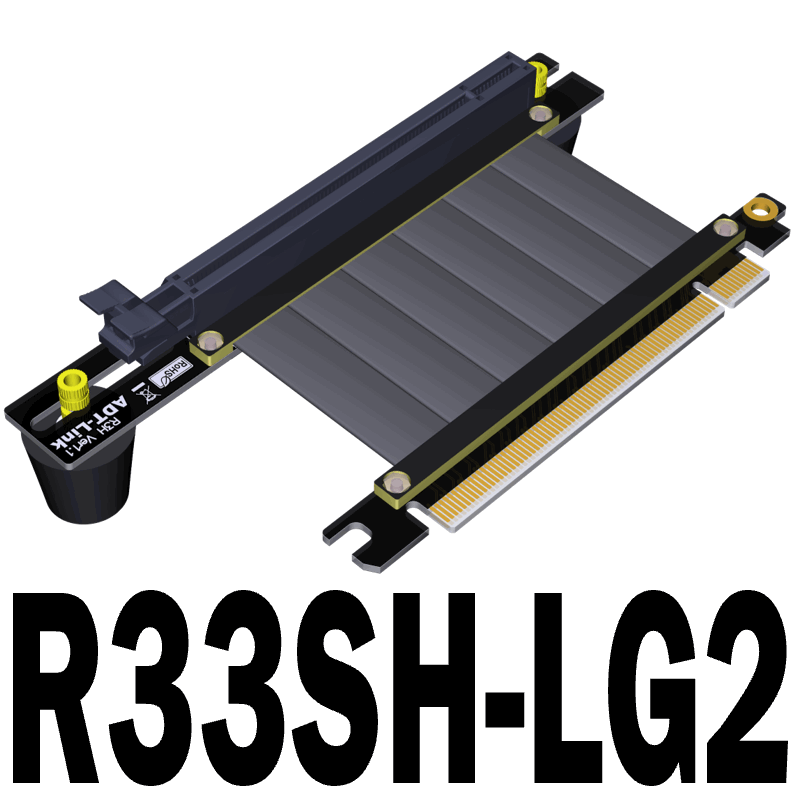

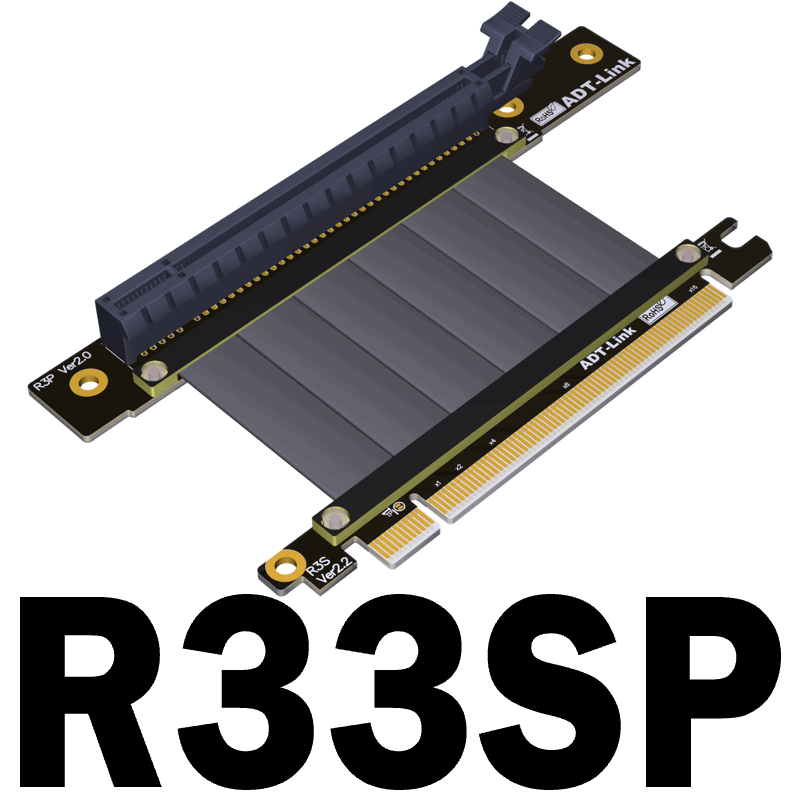

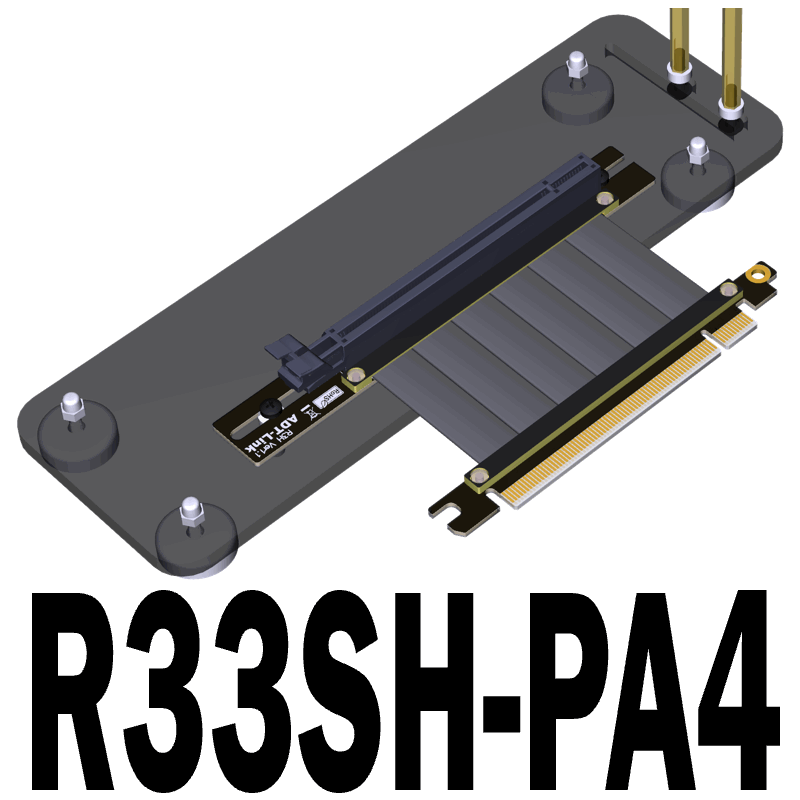

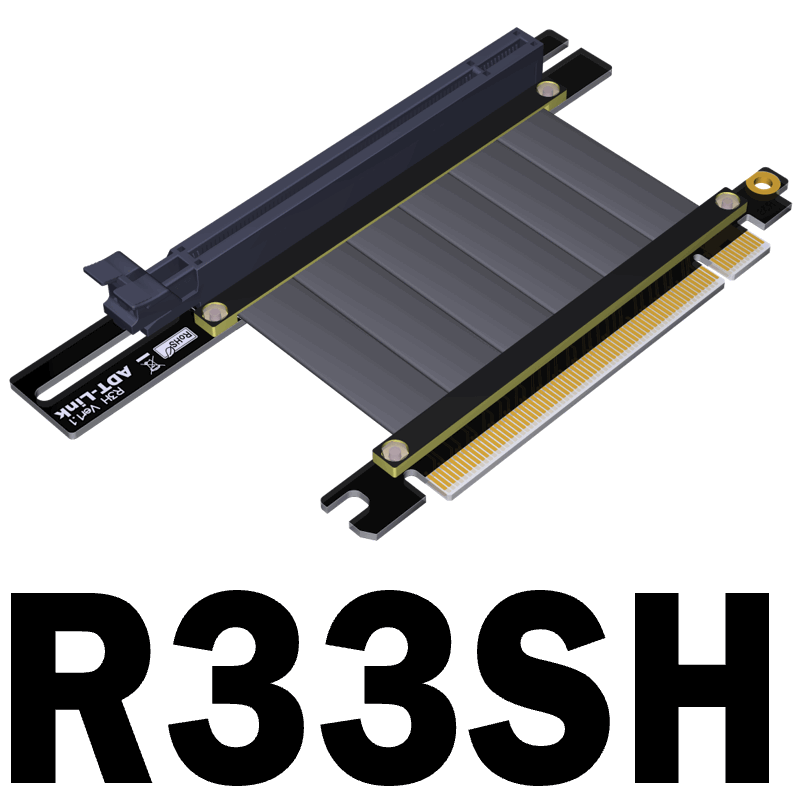

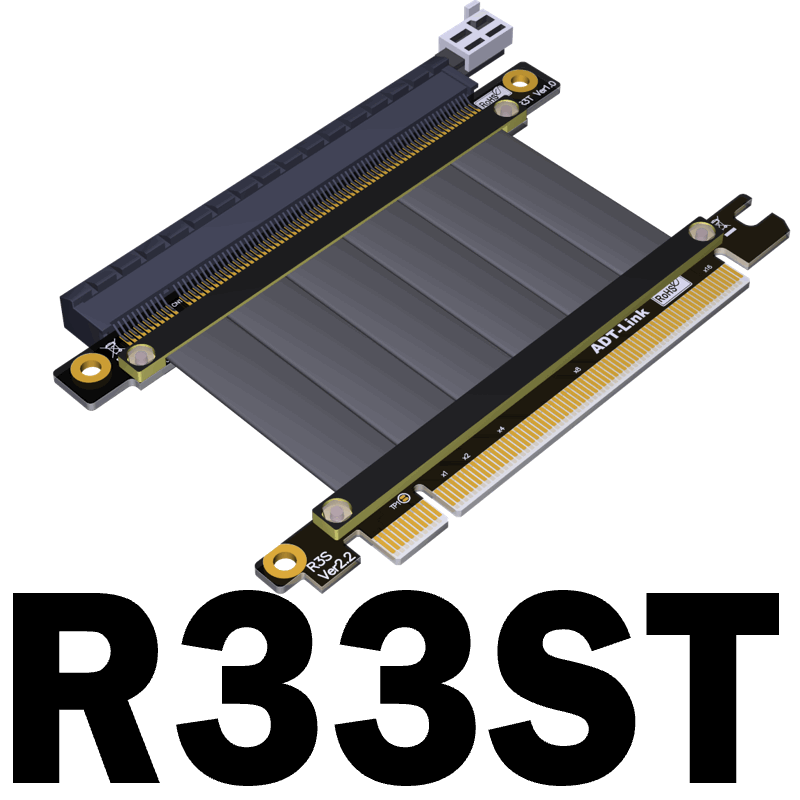

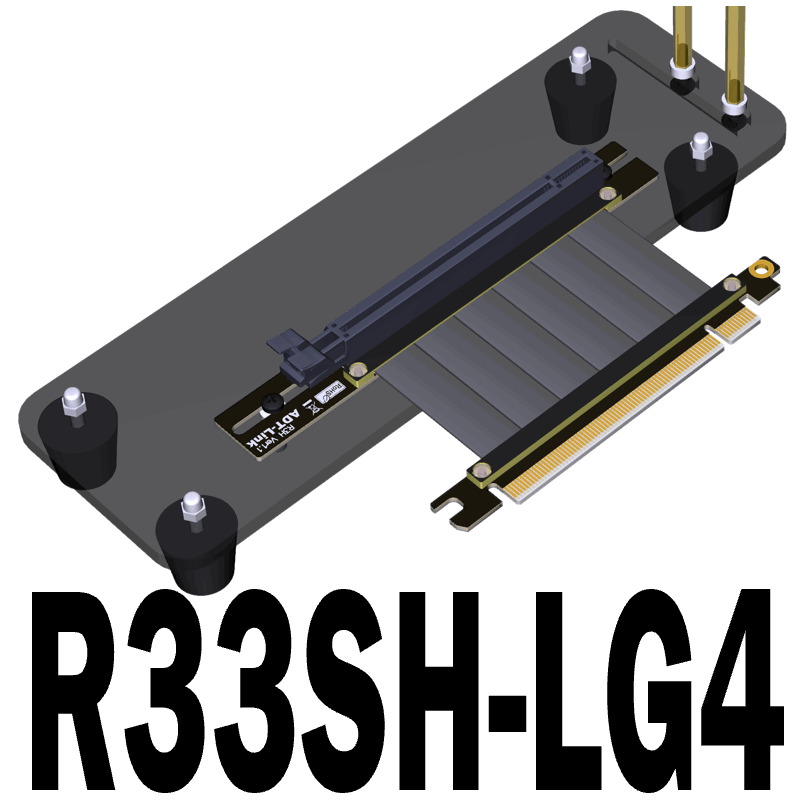

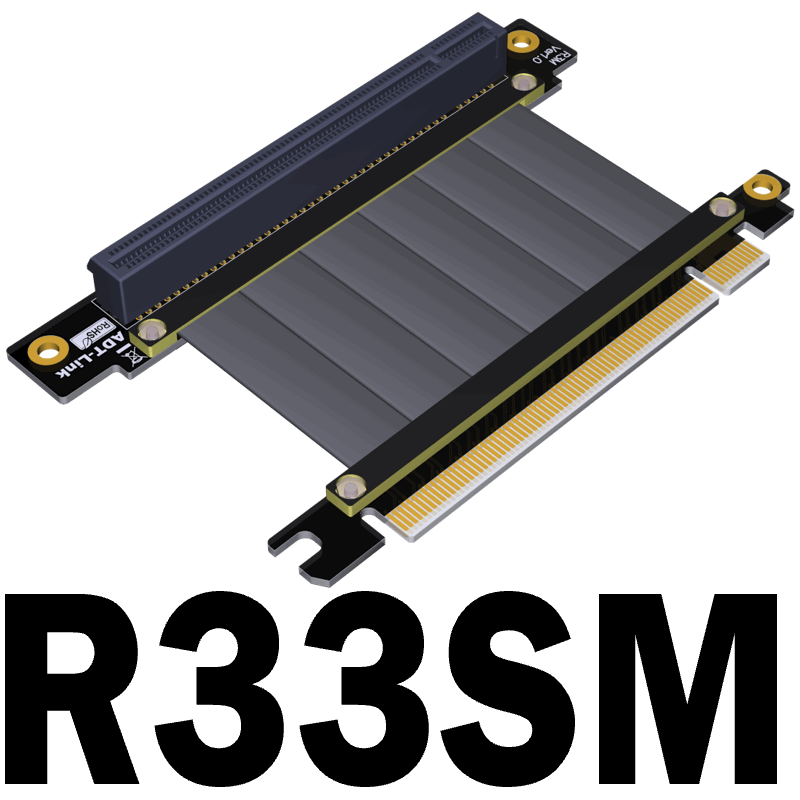

Product ID: R33SH , R33SH-LG2 , R33SM , R33SP , R33ST,R33SA

Interface: PCIe x16 / PCIe x16

Application: Extension

Transfer speed: PCIe3.0 x16 full speed, 128G/bps (Max.)

Product description: PCIe x16 graphics video card to PCIe x16 slot extension cable for ATX PC-Case

ADT-Link PCI express 3.0 x16 Extension Cable

Brand name: ADT-LINK

Product name: PCIe x16 to x16 extension cable

Product model: R33SH , R33SH-LG2 , R33SQ , R33SQ-LG2 , R33SM , R33SP , R33ST

Transfer speed: PCIe3.0 x16 full speed, 128G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized,

Application: PCIe x16 graphics video card to PCIe x16 slot extension cable for ATX PC-Case


Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 20cm blue arrow in the figure below.

Compatibility list:

Chassis model , ADT model , Note

Antec 安钛克 P110 R33SQ-LG2 20cm
ASUS 华硕 GT501 R33SA 20cm
ASUS 华硕 TUF GAMING GT501 R33SA 20cm
ASUS 华硕 GX601 R33SA 20cm
ASUS 华硕 ROG Strix Helios 太阳神AURA R33SA 20cm
CMT-LINK 显卡支架 R33SH 20cm
CoolMaster 酷冷至尊 SL600M R33SH-LG2 20cm
CoolMaster 酷冷至尊 H500M R33SH-LG2 20cm
CoolMaster 酷冷至尊 H500P R33SH-LG2 20cm
CoolMaster 酷冷至尊 坦克兵加强版 R33SQ-LG2 20cm
CoolMaster 酷冷至尊 显卡转向支架 R33SM 15cm
Corsair 美商海盗船 275R R33SH-LG2 20cm
Corsair 美商海盗船 500D R33SH-LG2 20cm
Corsair 美商海盗船 680X R33SH-LG2 20cm
Corsair 美商海盗船 SPEC-06 RGB R33SH-LG2 20cm
Deepcool 九州风神 NewArk90 R33SH-LG2 20cm
Deepcool 九州风神 病毒机箱 R33SH-LG2 20cm
FD Fractal Design Define R6 TG 分型工艺 R33SH-LG2 20cm
FD Fractal Design Define S2 分型工艺 R33SH-LG2 20cm
Gigabyte 技嘉 AORUS AC300W R33SQ 20cm
Gigabyte 技嘉 AORUS C300 R33SH-LG2 20cm
Lian-Li 联力机箱 包豪斯 o11 R33SH-15cm
Lian-Li 联力机箱 ALPHA 330 R33SH-LG2 20cm
Lian-Li 联力机箱 ALPHA 550 R33SH-LG2 20cm
Lian-Li 联力机箱 双子座 R33SH-LG2 20cm
MSI 微星 MAG BUNKER机箱 R33ST 20cm
MSI 微星 MAG PYLON机箱 R33ST 20cm
NZXT 恩杰 H500i R33SH-LG2 20cm
PHANTEKS 追风者 EVOLV X PK-518XTG R33SH 20cm
PHANTEKS 追风者 MG普力魔 NEO G Mini210G ITX R33SH 20cm
PHANTEKS 追风者 P600 R33SH-20cm
PHANTEKS 追风者 P600-ITX R33SH-60cm
PHANTEKS 追风者 PK-217E R33SP 12cm;R33SP 32cm 详见注2
PHANTEKS 追风者 PK-217XE R33SP 12cm;R33SP 32cm 详见注2
PHANTEKS 追风者 PK-217XE R33SP 12cm;R33SP 32cm 详见注2
PHANTEKS 追风者 PK-518-ITX R33SH-60cm
PHANTEKS 追风者 PK-518XTG R33SH-20cm
PHANTEKS 追风者 PR22延长线 PH-CBRS R33SH-20cm
PHANTEKS 追风者 PR60延长线 R33SH-60cm
Segotep 鑫谷 阔01游戏机箱 R33ST 20CM
Segotep 鑫谷 雷诺塔T5全塔机箱 R33ST 20CM
TT Thermaltake 曜越 Core G3 R33ST 20cm
TT Thermaltake 曜越 Core P3 R33ST 20cm;R33ST 25cm 详见注1
TT Thermaltake 曜越 Core P5 R33ST 20cm;R33ST 25cm 详见注1
TT Thermaltake 曜越 Core P7 TG R33ST 20cm;R33ST 25cm 详见注1
TT Thermaltake 曜越 Core P90 TG R33ST 20cm;R33ST 25cm 详见注1
TT Thermaltake 曜越 Core V51 TG R33ST 20cm
TT Thermaltake 曜越 Core V71 TG R33ST 20cm
TT Thermaltake 曜越 Core V71 TG RGB R33ST 20cm
TT Thermaltake 曜越 Level20 GT R33ST 20cm
TT Thermaltake 曜越 Suppressor F51 TG R33ST 20cm
TT Thermaltake 曜越 View 27 R33ST 20cm
TT Thermaltake 曜越 View 27 RGB R33ST 20cm
TT Thermaltake 曜越 View 31 R33ST 20cm
TT Thermaltake 曜越 View 37 R33ST 20cm
TT Thermaltake 曜越 View 37 RGB R33ST 20cm
TT Thermaltake 曜越 View 71 TG R33ST 20cm
TT Thermaltake 曜越 View 90 TG RGB R33ST 20cm;R33ST 25cm 详见注1
TT Thermaltake 曜越 红色警戒 R33ST 20cm

TT Thermaltake 曜越 启航者S5 R33ST 20cm

Note 1: TT graphics card extension cable is usually 20cm, but if your chassis is special, the graphics card is farther away from the motherboard, it is recommended to select more than 25cm in length.
Note 2: The video card extension cable of the PK-217 ADT is usually 12cm, but if you want the video card to be flipped, the length is 32cm.
Note 3: The video card extension cable of the PK-518 ADT does not support the fixed base of the graphics card. Please use the extension cord after removing it.
Note 4: Only support the vertical graphics card bracket accessories

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?

The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

Photo:





Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D model PDF files download http://www.adt.link/Uploads/download/ADT_R33_ATX_3D.zip

3D model STEP files download http://www.adt.link/Uploads/download/ADT_R33_ATX_STEP.zip
