Product name: PCIe 4.0 x1 extension cable

Product model:K11SF K11SL K11TM

Transferspeed:PCIe4.0 x1 , 16G/bps (Max.)

Application: PCIe x1 Capture Card , RAID SSD, LAN, USB cards, extension

Product description: ADT-Link PCI express 4.0 x1 to x1 Extension Riser Cable

ADT-Link PCI express 4.0 x1 to x1 Extension Riser Cable

Brand name: ADT-LINK

Product name: PCIe 4.0 x1 to x1 extension cable

Product model:K11SF K11SL K11TM

Transferspeed:PCIe4.0 x1 , 16G/bps (Max.)

Wire length:5 ~ 100 cm, the length can be customized

Application: PCIe x1 Capture Card , RAID SSD, LAN, USB cards, extension


ADT K11 series Part-Number Description:

Part-Number
Description
Bandwidth

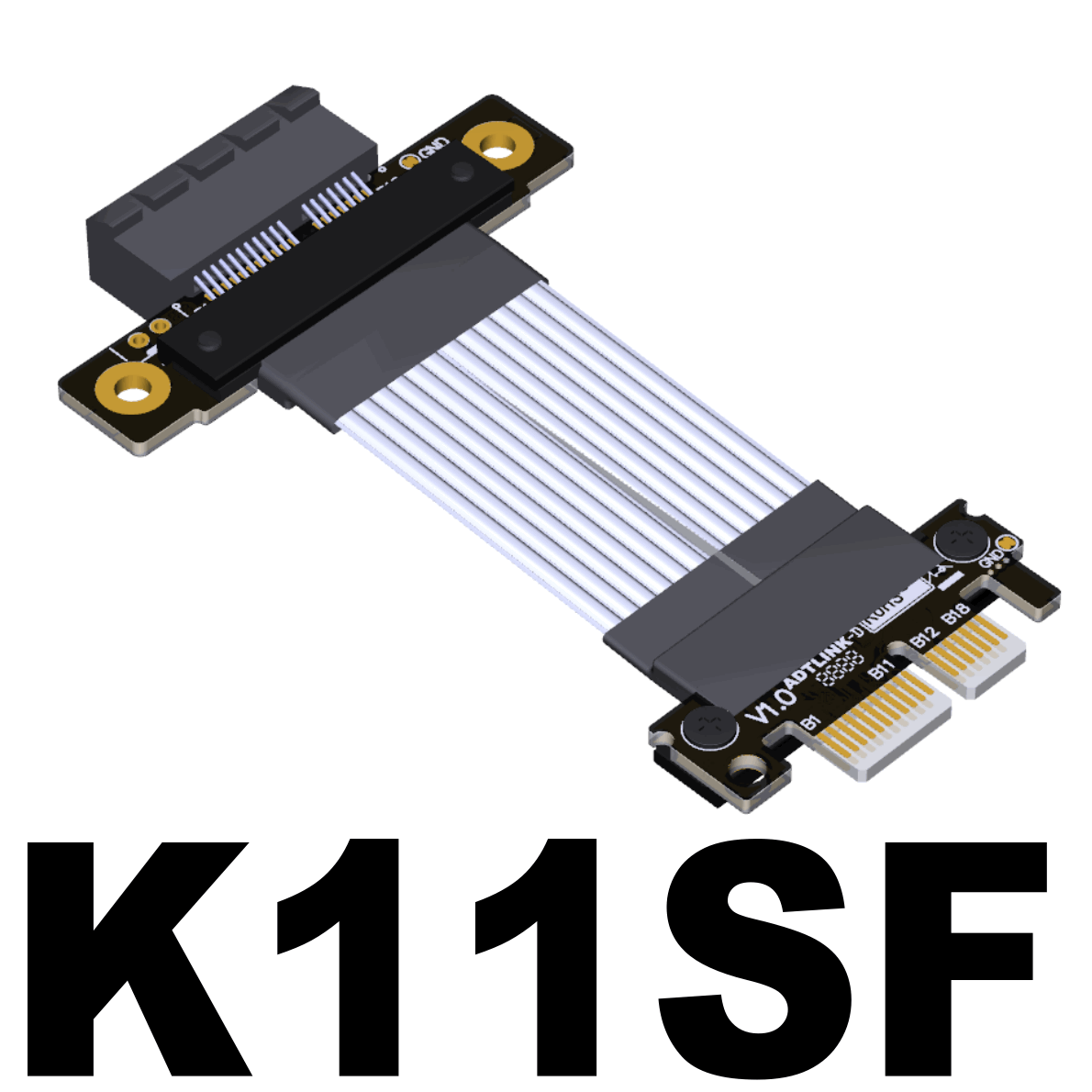

K11SF
PCI-E x1 to x1 turn 180 degree splint vertical extension cablePCIe 4.0 x1 (16G/bps)

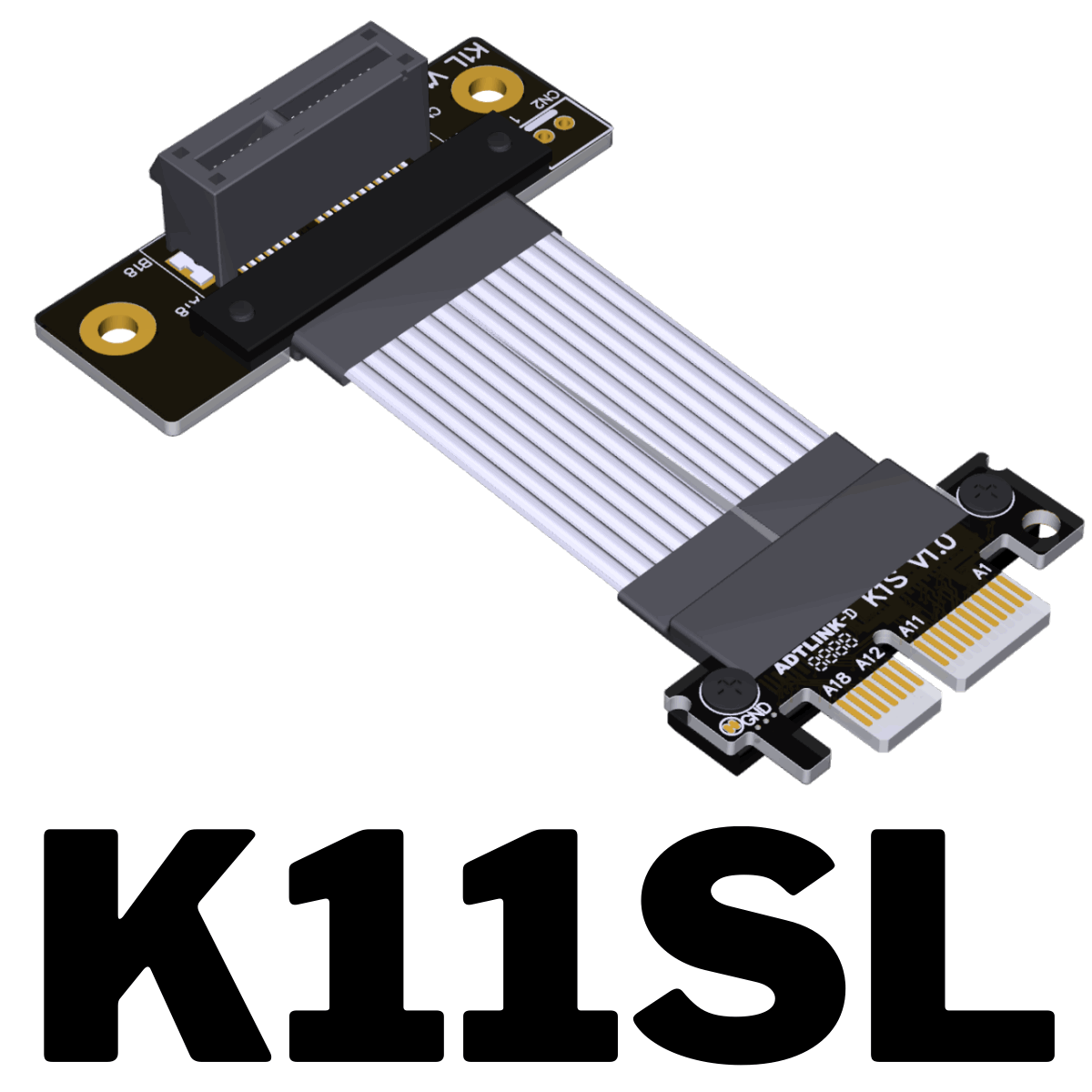

K11SL
PCI-E x1 to x1 turn 90 degree upright right angle extension cable
PCIe 4.0 x1 (16G/bps)

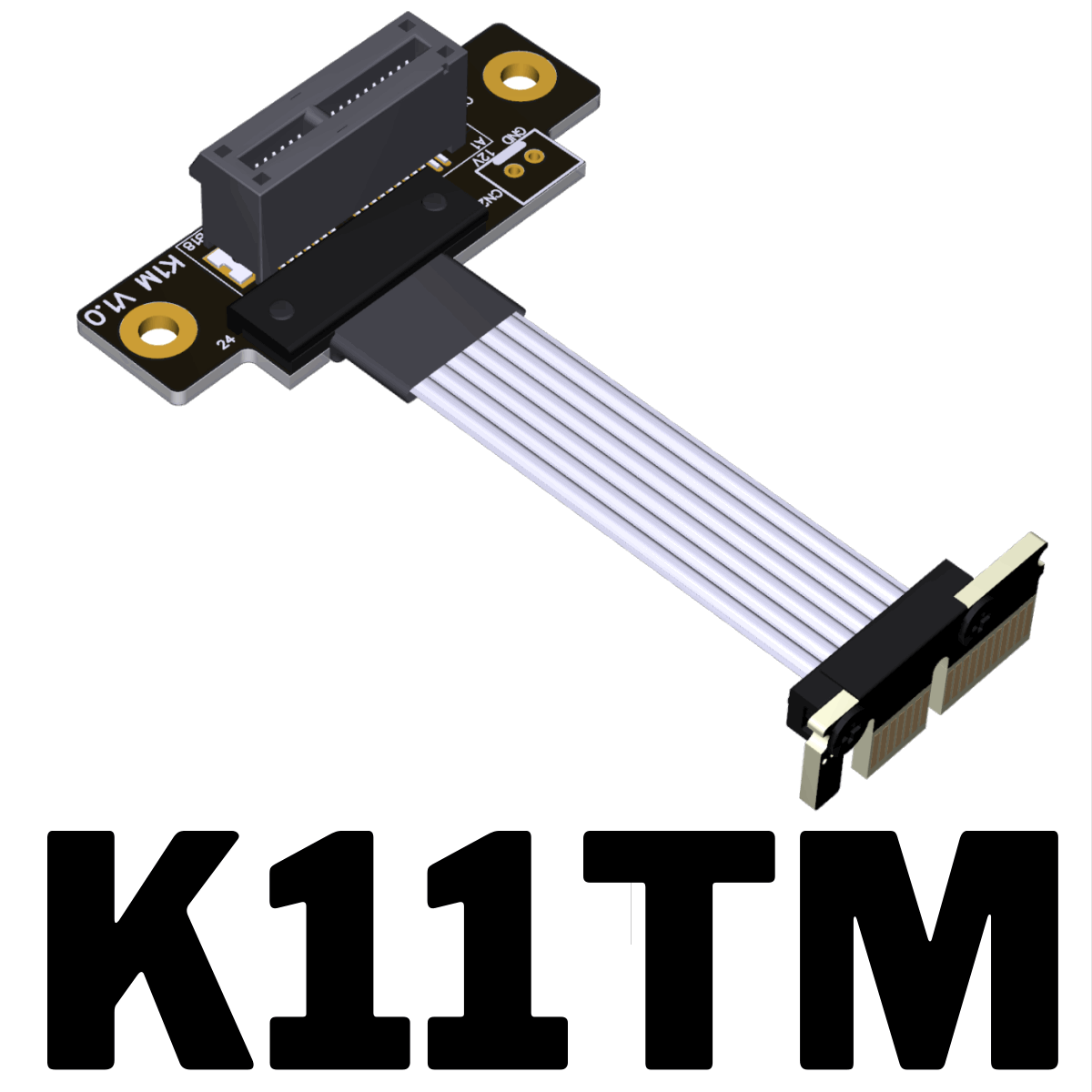

K11TM
PCI-E x1 to x1 turn 90 degree dual right upright angle extension cable
PCIe 4.0 x1 (16G/bps)


Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.


Q&A

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Photo:

Download:

FTP: Los Angeles

3D Step & 3D PDF files download http://www.adt.link/download/ADT_K11_3D.zip

Schematic files download http://www.adt.link/download/ADT_K11_schematic.zip

Cable specification files download http://www.adt.link/download/ADT-Cable 24P 5.0 specification.pdf

Test report files download http://www.adt.link/download/ADT-Cable 24P 5.0 test report.pdf

FTP: Hong Kong

3D Step & 3D PDF files download http://www.adtlink.cn/download/ADT_K11_3D.zip

Schematic files download http://www.adtlink.cn/download/ADT_K11_schematic.zip

Test report files download http://www.adtlink.cn/download/adt-cable 24p 5.0 test report.pdf

Cable specification files download http://www.adtlink.cn/download/adt-cable 24p 5.0 specification.pdf

WebShop:

http://www.adt.link/product/K11-Shop.html

PayPal Acceptance Mark
