HAA-MF-20P series

Product ID:HAA-MF-20P series

Interface: HDMI / HDMI

Application: HDMI Cable

Shelf time:2022-07-04

Product description: HDMI 2.0 A-type male to A-type female Flat Cable

ADT-Link HDMI to HDMI Flat Cable

Brand name: ADT-LINK

Product name: HDMI 2.0 A-type male to A-type female Flat Cable

Product model: HAA-MF-20P series

Transfer-speed: support HDMI V2.0b of increased bandwidth up to 18 G/bps, resolutions up to 4K @ 60 Hz,

Wire length: 3 ~ 200 cm, the length can be customized,

Application: For FPV Aerial Photography Gopro Camera

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.


ADT HAA-MF-20P series series Part-Number Description:

BrandPart-NumberProduct-Description

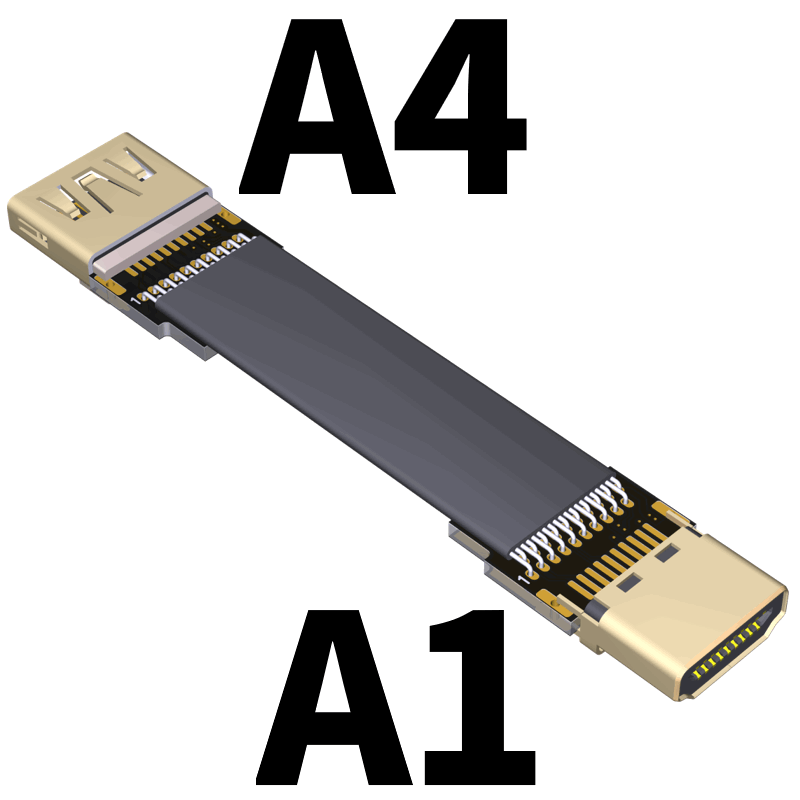

ADTLINKHA1-HA4HDMI 2.0 A-type flat mount male to A-type flat mount female

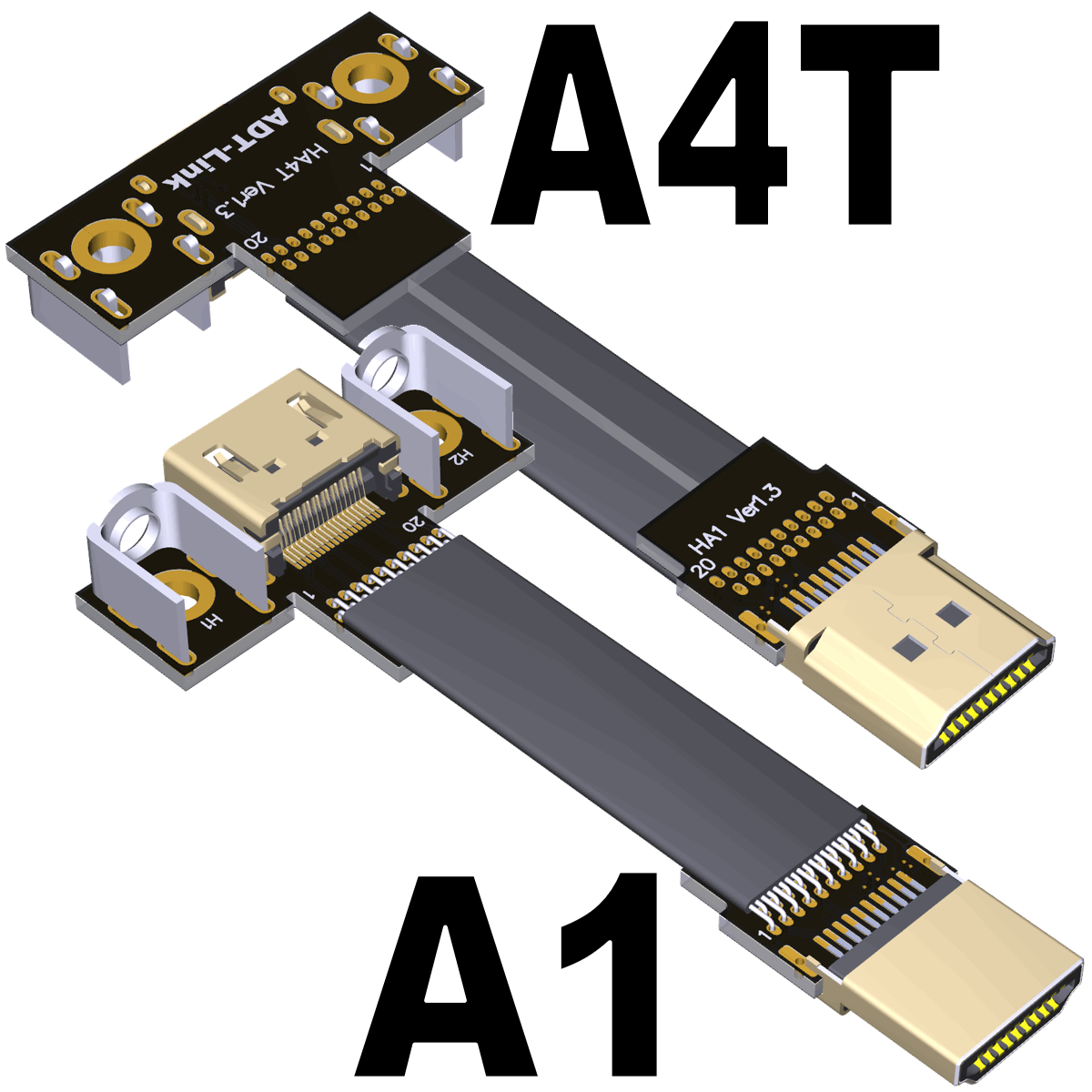

ADTLINKHA1-HA4THDMI 2.0 A-type flat mount male to A-type Flat mount female with fixing holes

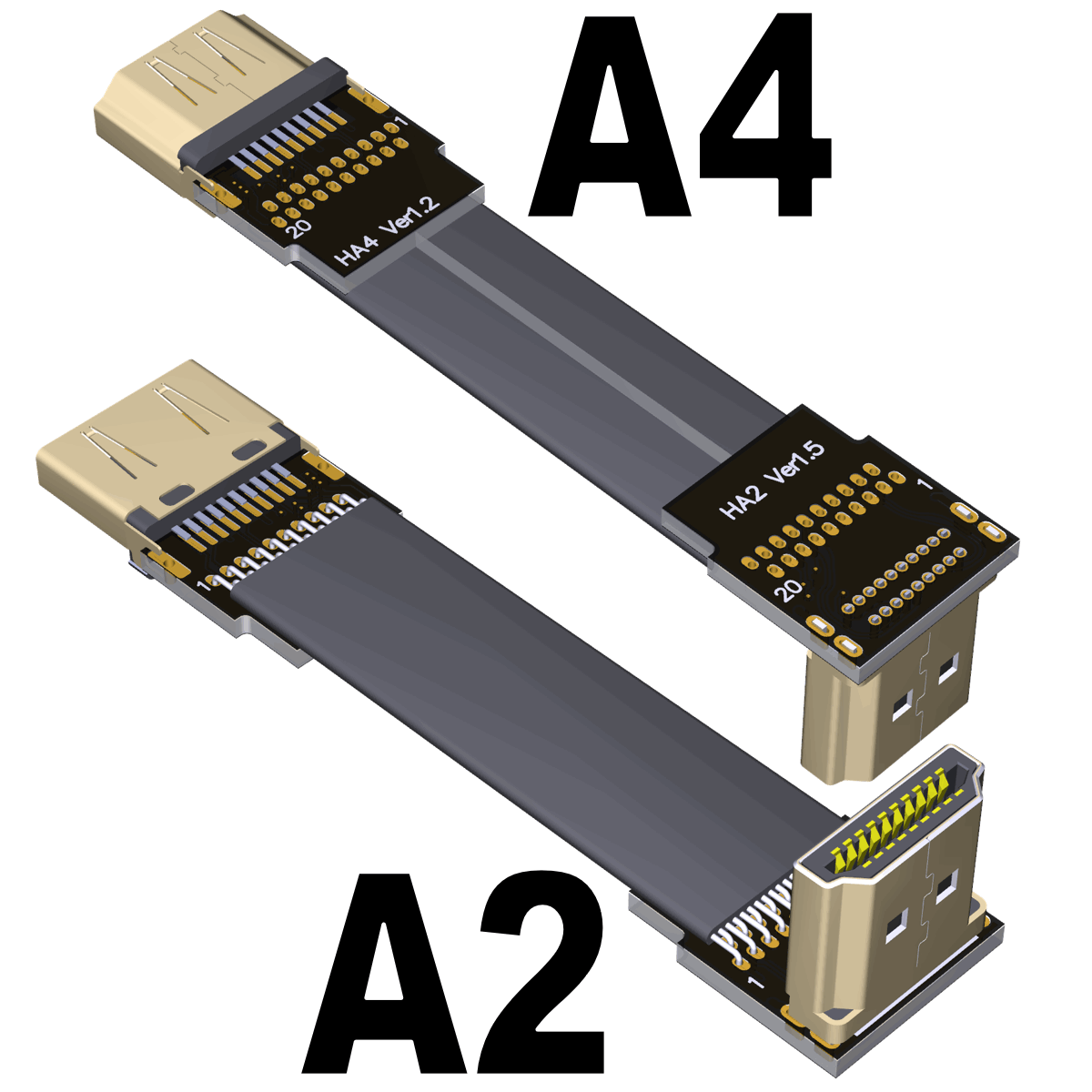

ADTLINKHA2-HA4HDMI 2.0 A-type turn up male to A-type flat mount female

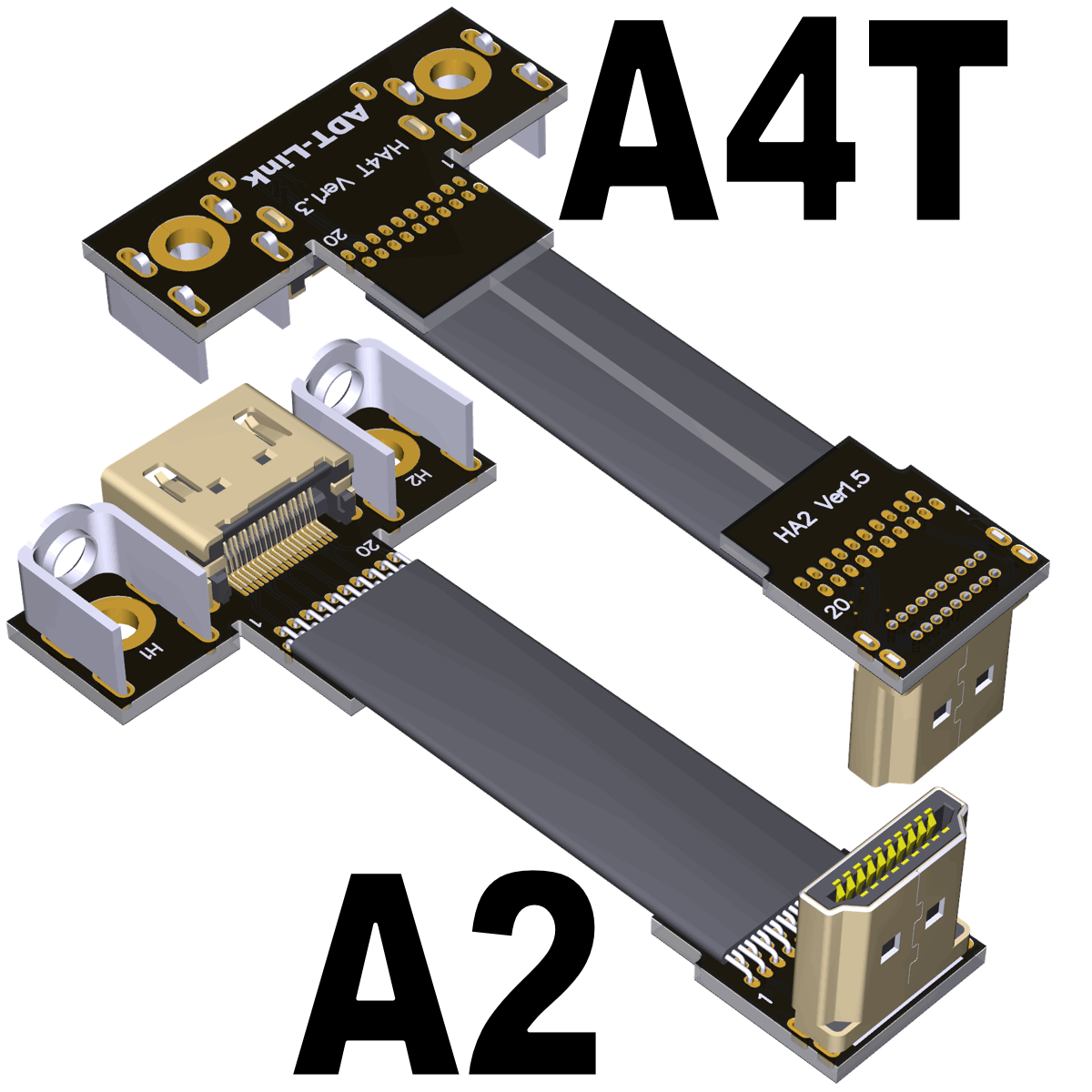

ADTLINKHA2-HA4THDMI 2.0 A-type turn up male to A-type Flat mount female with fixing holes

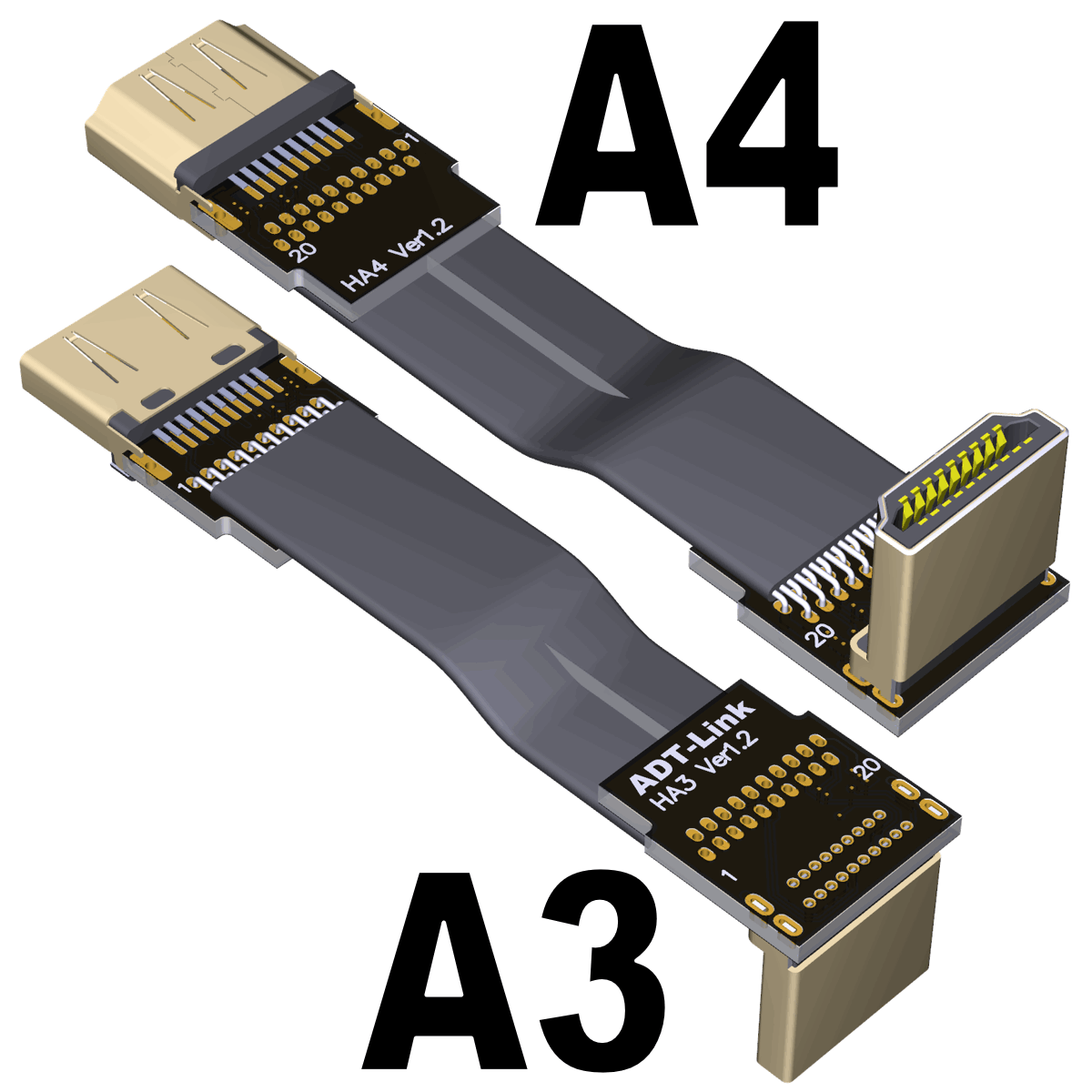

ADTLINKHA3-HA4HDMI 2.0 A-type turn down male to A-type flat mount female

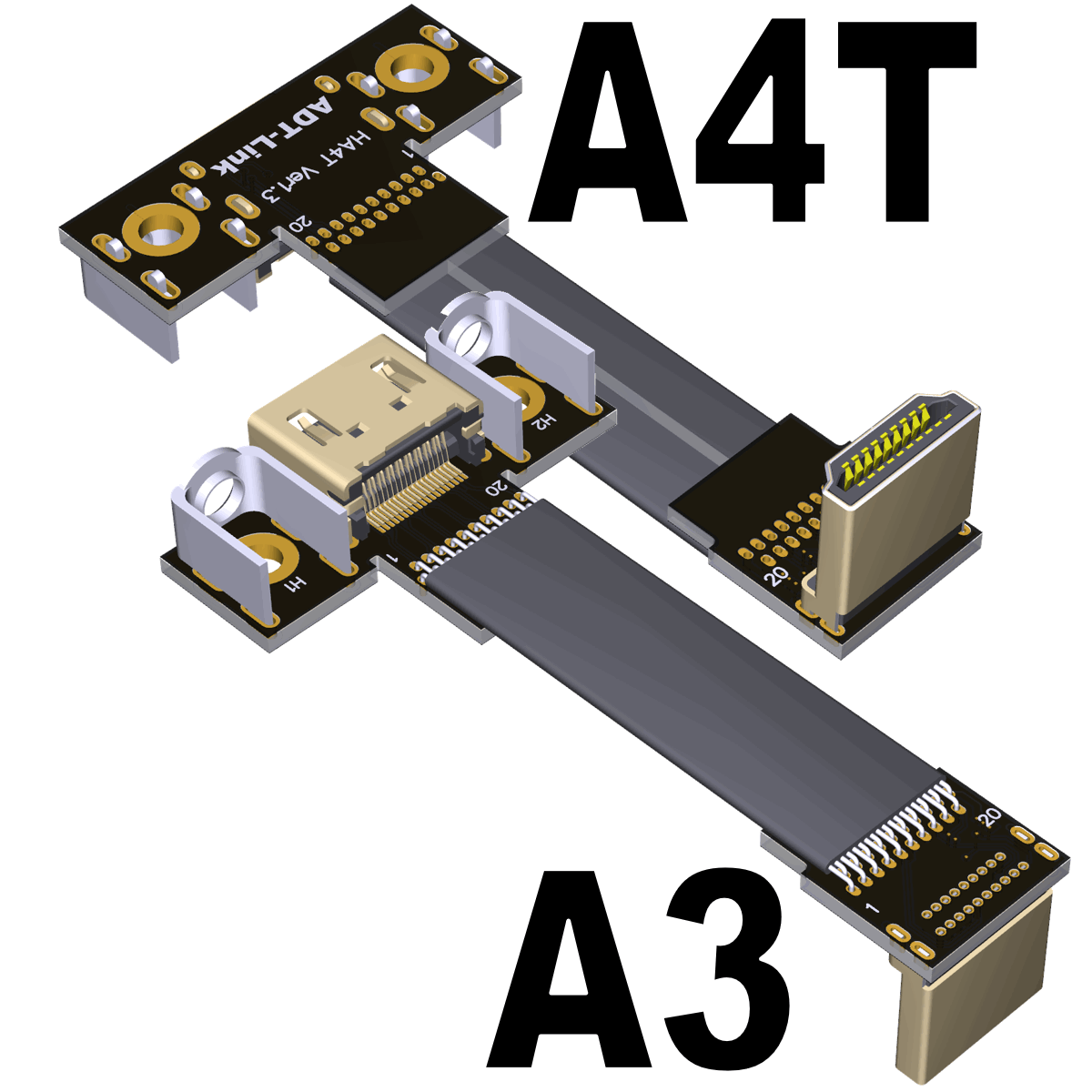

ADTLINKHA3-HA4THDMI 2.0 A-type turn down male to A-type Flat mount female with fixing holes

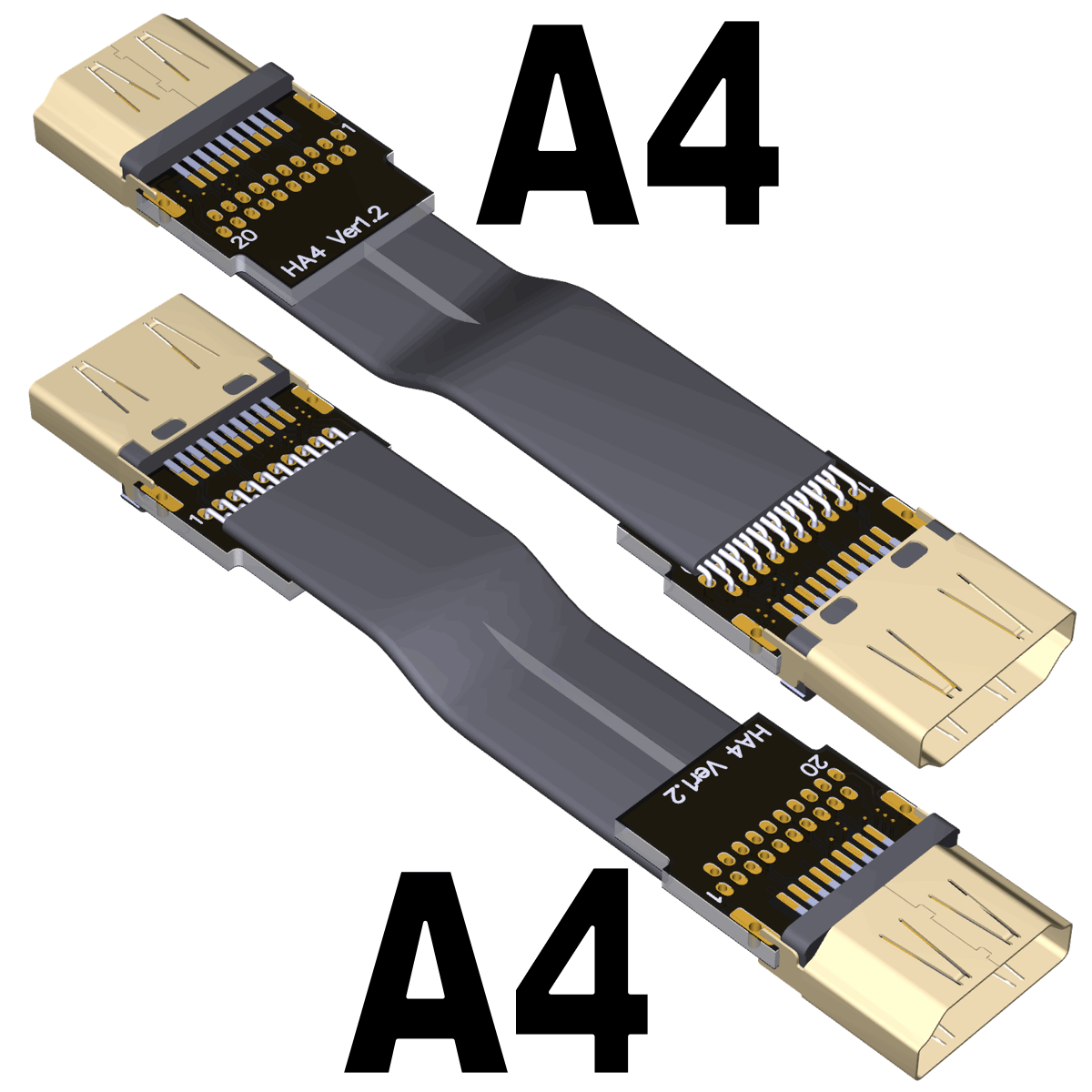

ADTLINKHA4-HA4HDMI 2.0 A-type flat mount female to A-type flat mount female

ADT HDMI series Part-Number Description:

A1_HDMI flat mount; A2_HDMI turn up; A3_HDMI turn down; A4_HDMI female          (HDMI A type)

C1_mHDMI flat mount;C2_mHDMI turn up;C3_mHDMI turn down;C4_mHDMI female  (mini HDMI C type)

D1_uHDMI flat mount;D2_uHDMI turn up;D3_uHDMI turn down;D4_uHDMI female     (micro HDMI D type)

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 4cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Can wires and PCB connectors be split?

No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.

How compatible are wires?

Supports HDMI 1.2 / 1.4 / 2.0 high-speed, supports 4K/60hz full-speed. High compatibility.
The product uses high-definition screen 4K/60hz monitor, all of product test PASS 100% before shipping.

Cable thickness? Can it be bent?

The thickness of the wire is 1.4mm, and it can be bent and folded without affecting the use.



How many weights does the product have?

The weight of the wire 5cm is 1.57g. The weight of the connector and the PCB board is 7.45g (the specifications and models are numerous, for reference only)



Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D PDF files download: http://www.adt.link/download/HAA-MF-20P.ZIP

Schematic download: http://www.adt.link/download/schematic_hdmi.pdf

FTP: Hong Kong

3D PDF files download: http://www.adtlink.cn/download/HAA-MF-20P.ZIP

Schematic download: http://www.adtlink.cn/download/schematic_hdmi.pdf
