WK9

ADT工厂直销，产品性能优良，口碑超好产品，100%全检通电测试发货。

公司品牌：ADT（尔达特）电子

产品型号：ADT-WK9

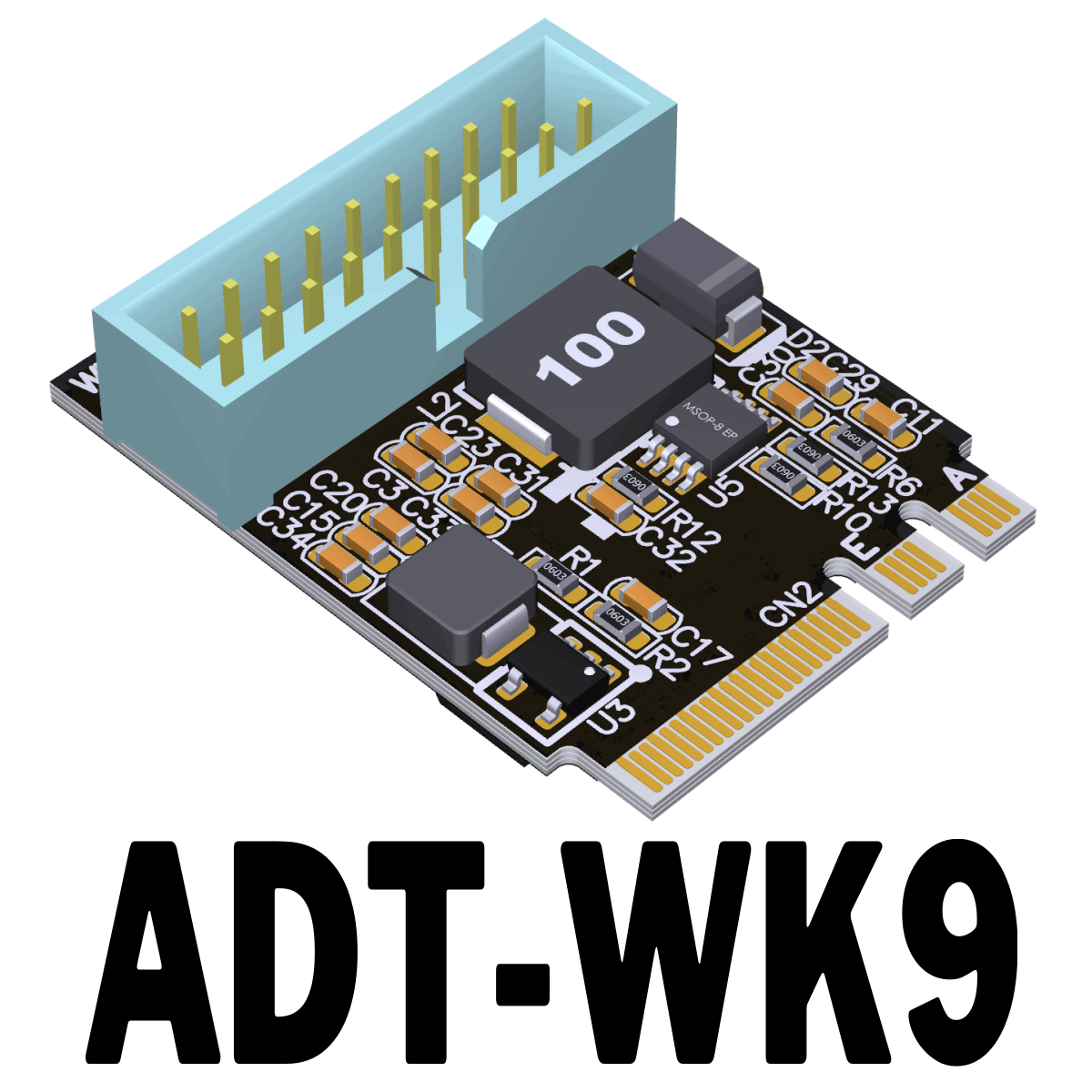

产品名称： M.2 A.E key 转 USB3.0 19PIN转接板（含电源保护芯片）

传输速度：USB3.0标准，传输速度高达5Gbps，比USB2.0标准传输速度快10倍

产品用途：用于M.2 2230 A.E key转接USB3.0 19PIN，可用于扩展USB3.0接口，可快速高效地传输大量信息，本商品供转接用途

适用设备：USB无线网卡、USB固态硬盘、USB鼠标接收器

采购提示：务必先买1-2个样品测试验证无误后再批量采购。本产品仅转接板，不包含硬盘盒等其他演示设备。

产品图片：

技术问题总汇：

产品厚度限制？

如下图，转接板厚度为5mm，能否装得下须依照个人设备为准

主控芯片规格：（Renesas μPD720202）

Compliant with Universal Serial Bus 3.0 Specification Revision 1.0, which is released by USB

Implementers Forum, Inc

- Supports the following speed data rate as follows: Low-Speed (1.5 Mbps) / Full-Speed (12

Mbps) / Hi-Speed (480 Mbps) / SuperSpeed (5 Gbps)

- μPD720202 supports up to 2 downstream ports for all speeds

- Supports all USB compliant data transfer types as follows; Control / Bulk / Interrupt /

Isochronous transfer

 Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0

- Supports USB debugging capability on all SuperSpeed ports.

 Supports USB legacy function

 Compliant with PCI Express Base Specification Revision 2.0

 Supports Latency Tolerance Reporting ECN of PCI Express Specification

 Supports PCI Express Card Electromechanical Specification Revision 2.0

 Supports PCI Bus Power Management Interface Specification Revision 1.2

 Supports USB Battery Charging Specification Revision 1.2 and other portable devices

- DCP mode of BC 1.2

- CDP mode of BC 1.2

- China Mobile Phone Chargers

- EU Mobile Phone Chargers

- Apple iOS products

 Operational registers are direct-mapped to PCI memory space

 Supports Serial Peripheral Interface (SPI) type ROM for Firmware

 Supports Firmware Download Interface from system BIOS or system software
