WK6

ADT工厂直销,产品性能优良,口碑超好产品,100%全检通电测试发货

公司品牌： ADT/尔达特

产品型号：WK6

产品名称：M.2 B-key WWAN 4G网卡插槽转SD 4.0接口转接板

转板规格：M.2 B-key WWAN接口，尺寸30x42mm， 转接板支持SD 4.0 UHS-II

适用设备：SD卡

产品用途：可让笔记本空着用不到的4G网卡插槽转成SD接口，本商品供转接用途

采购提示：务必先买1~2个样品测试验证无误后再批量采购。本商品仅转接板，不包含SD内存卡等演示设备。 本店可开立普票，如需开票请于提交订单时联系客服。

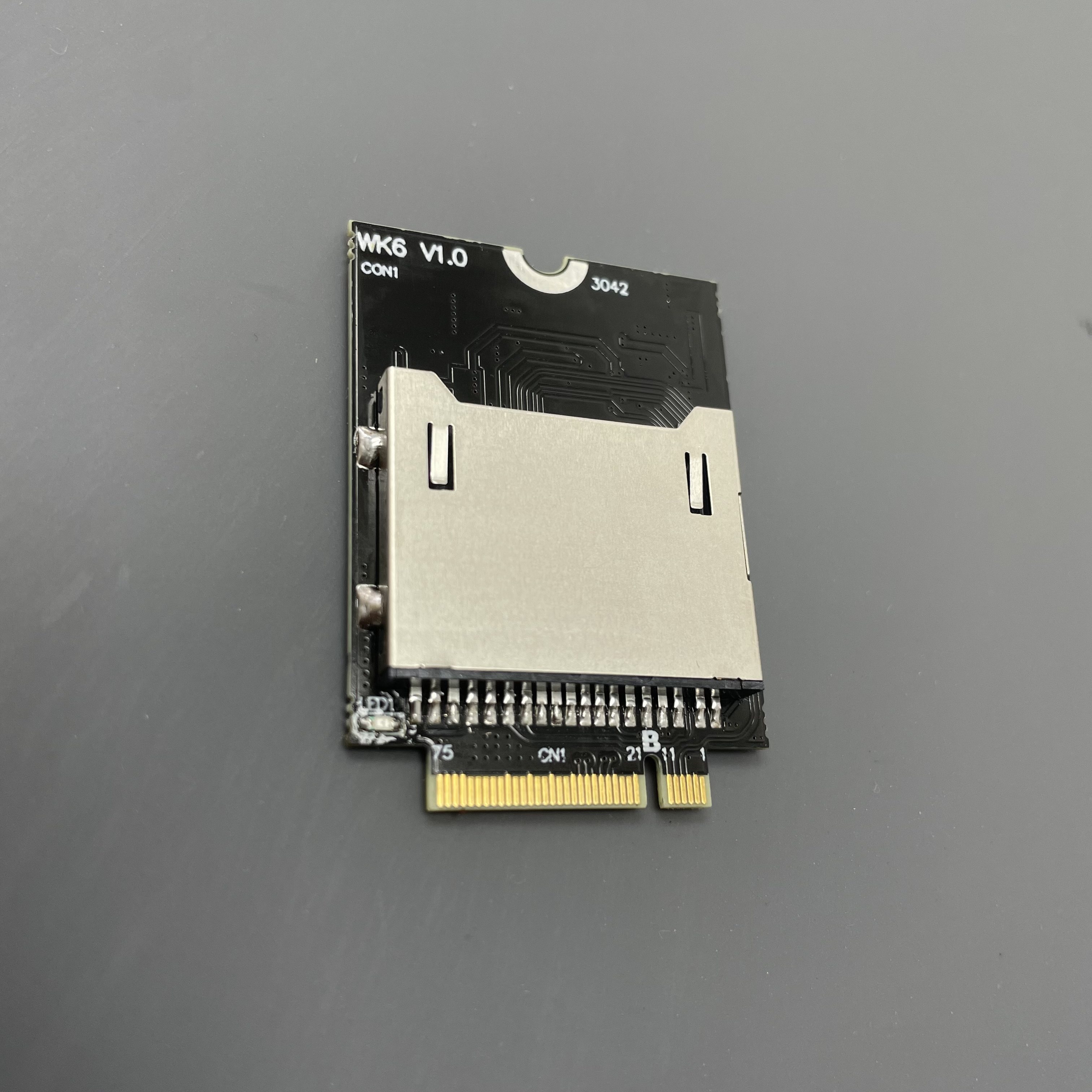

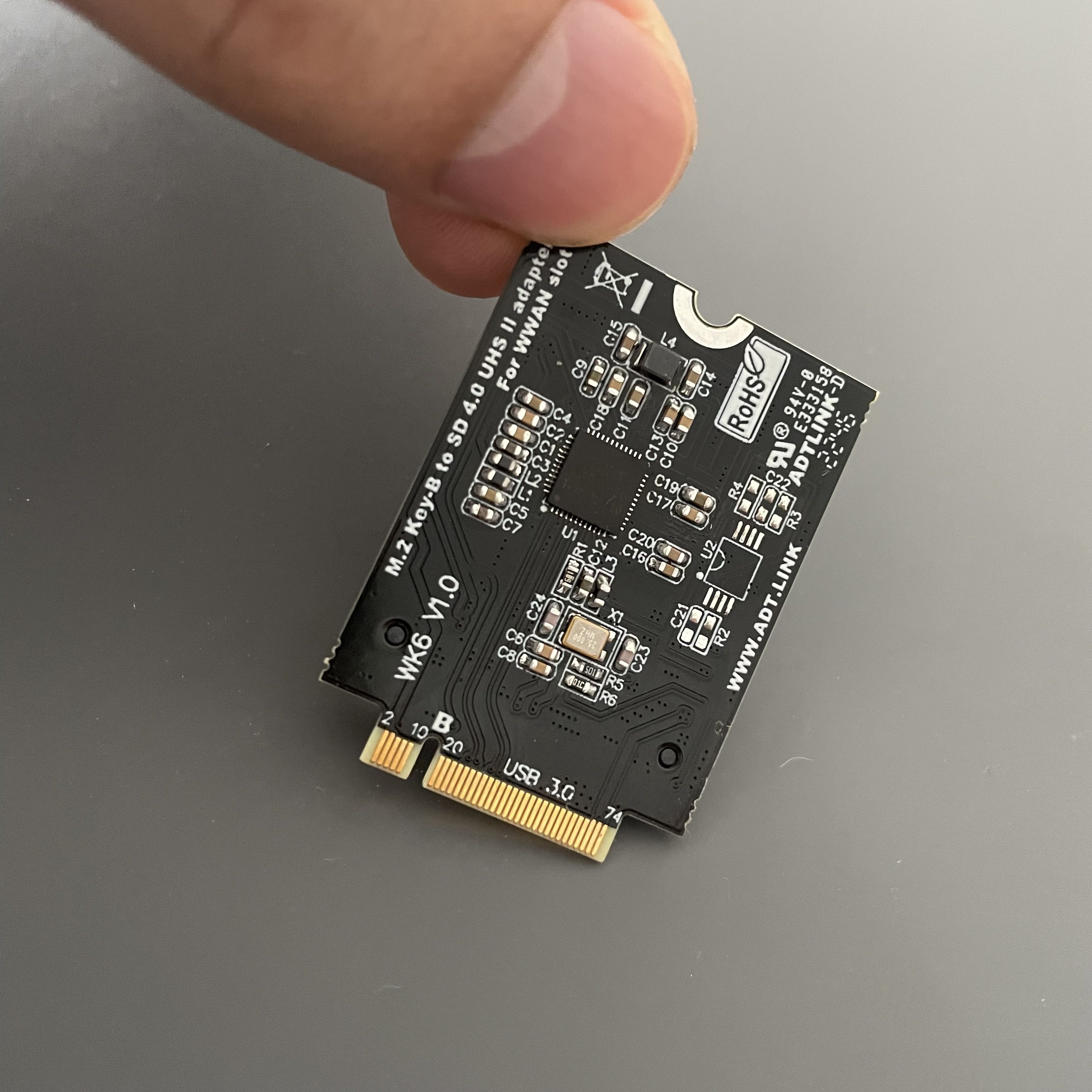

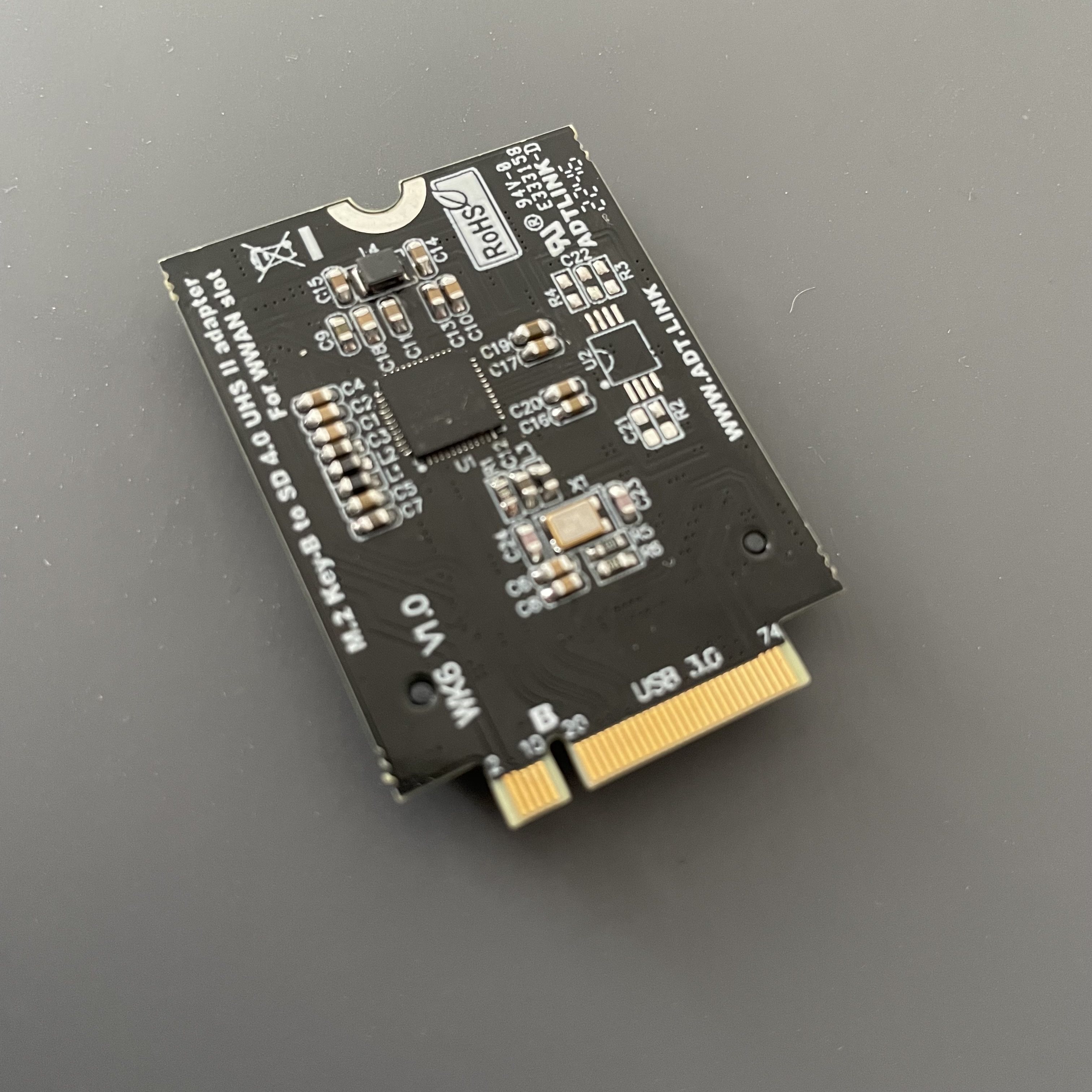

产品图片：

本商品仅转接板，不包含SD卡等演示设备

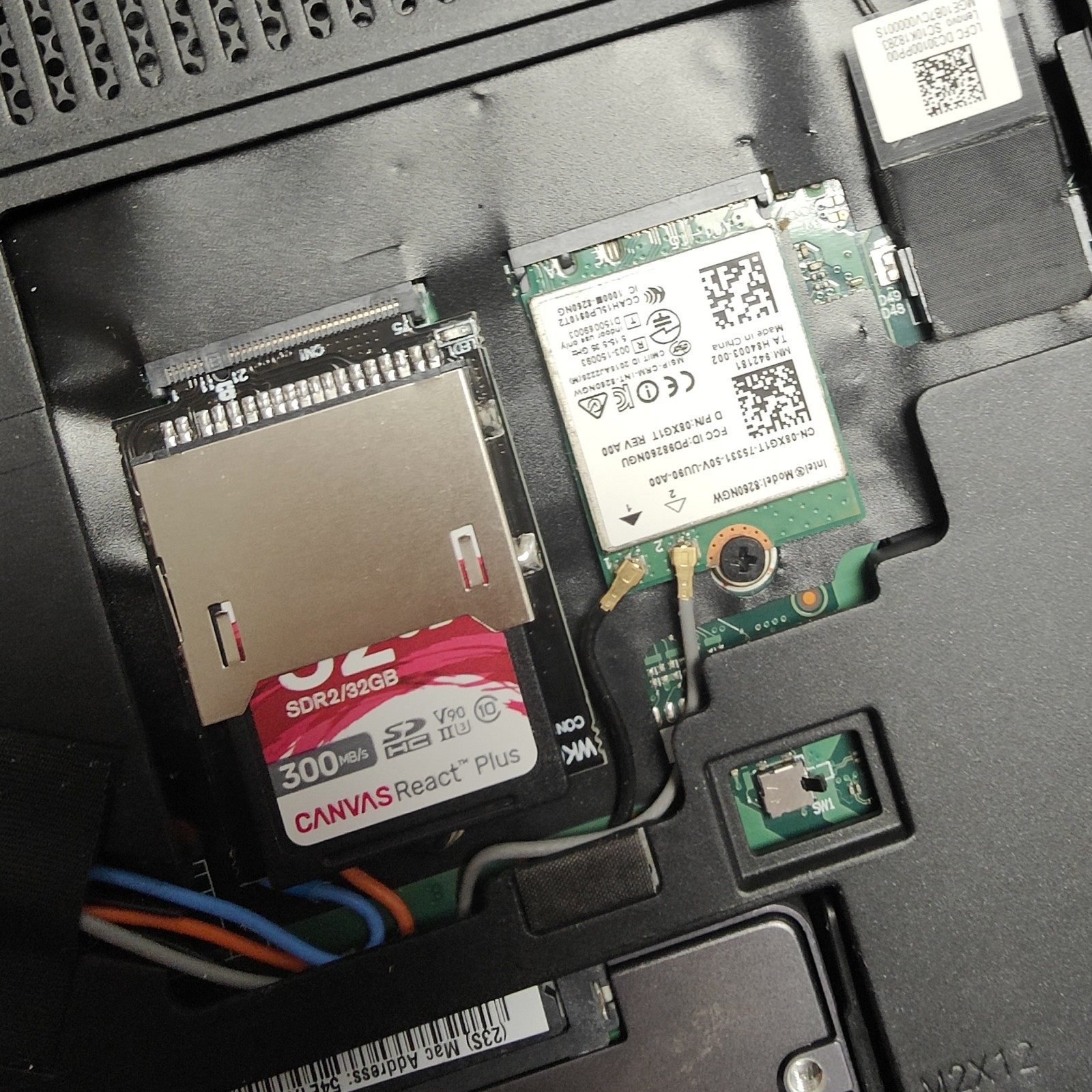

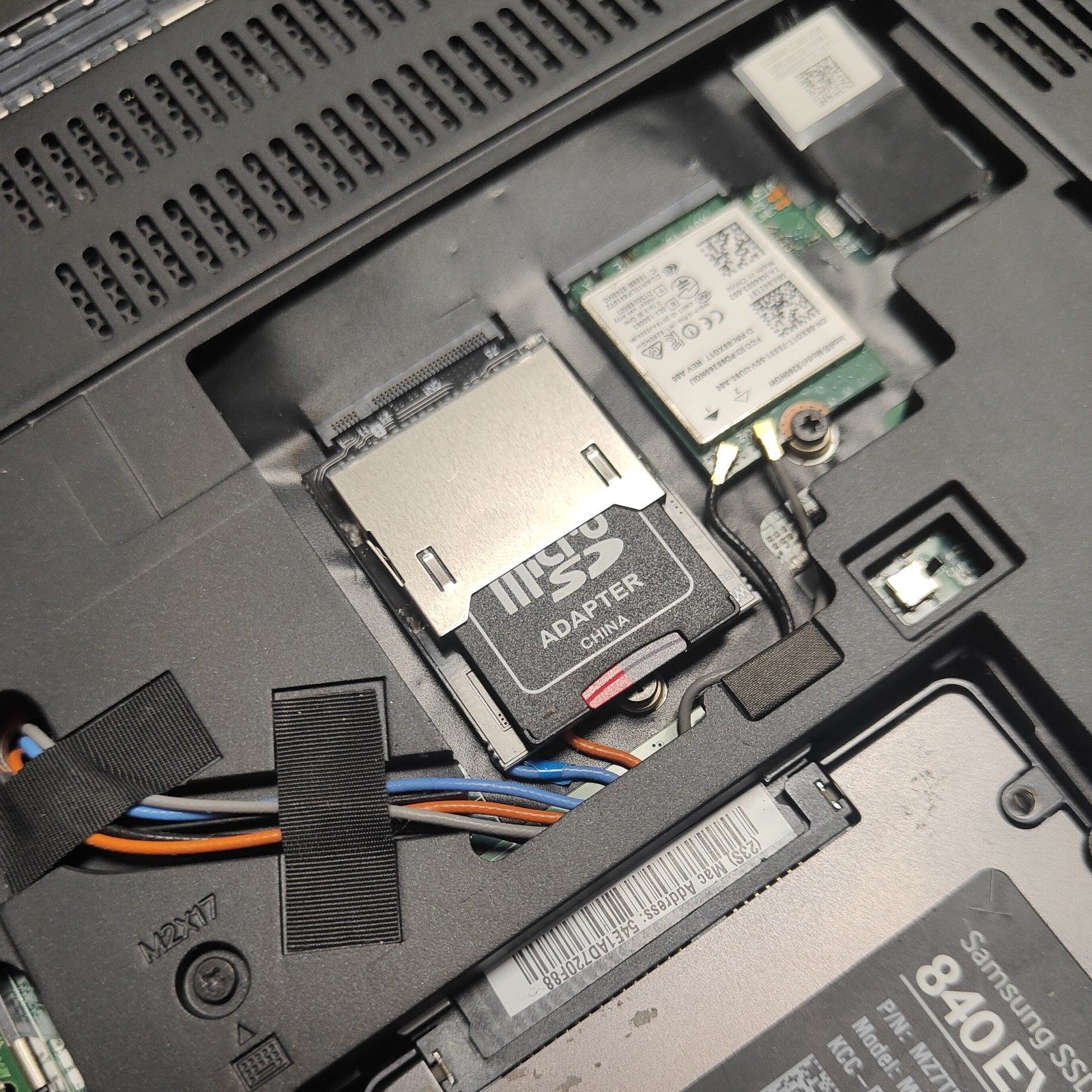

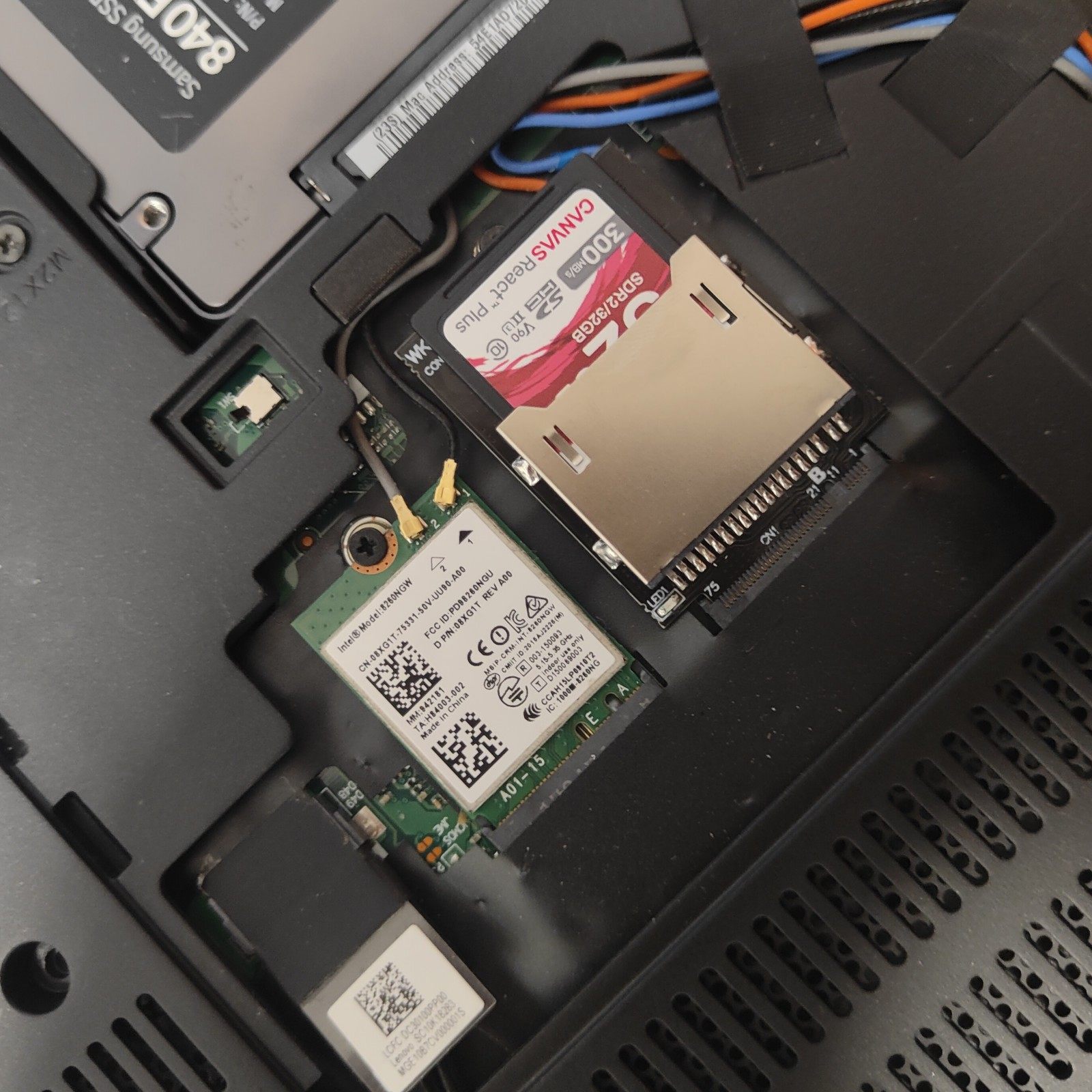

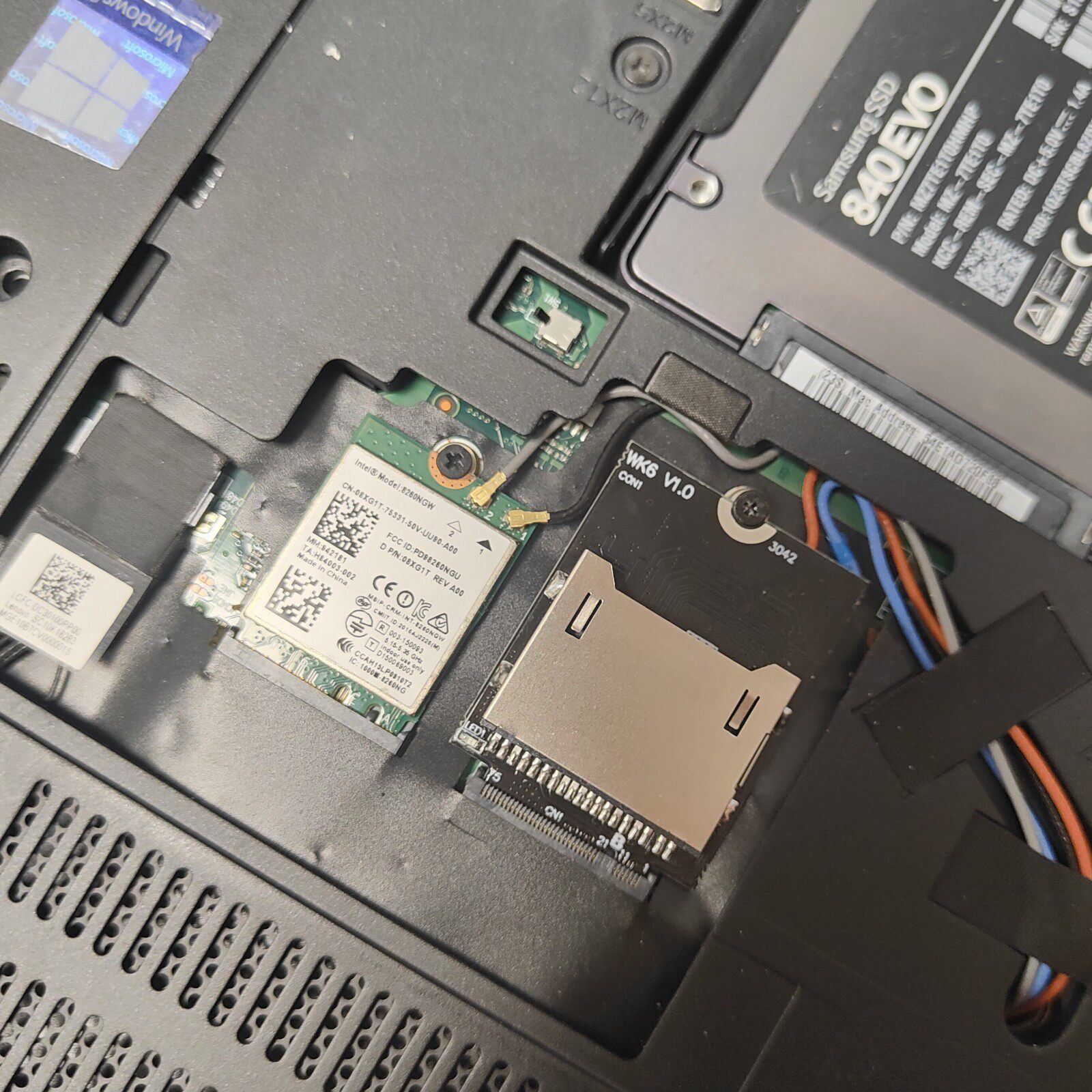

以上图片的SD卡仅供演示参考，本商品仅转接板不包含SD卡等演示设备

技术问题总汇：

产品的尺寸厚度限制？

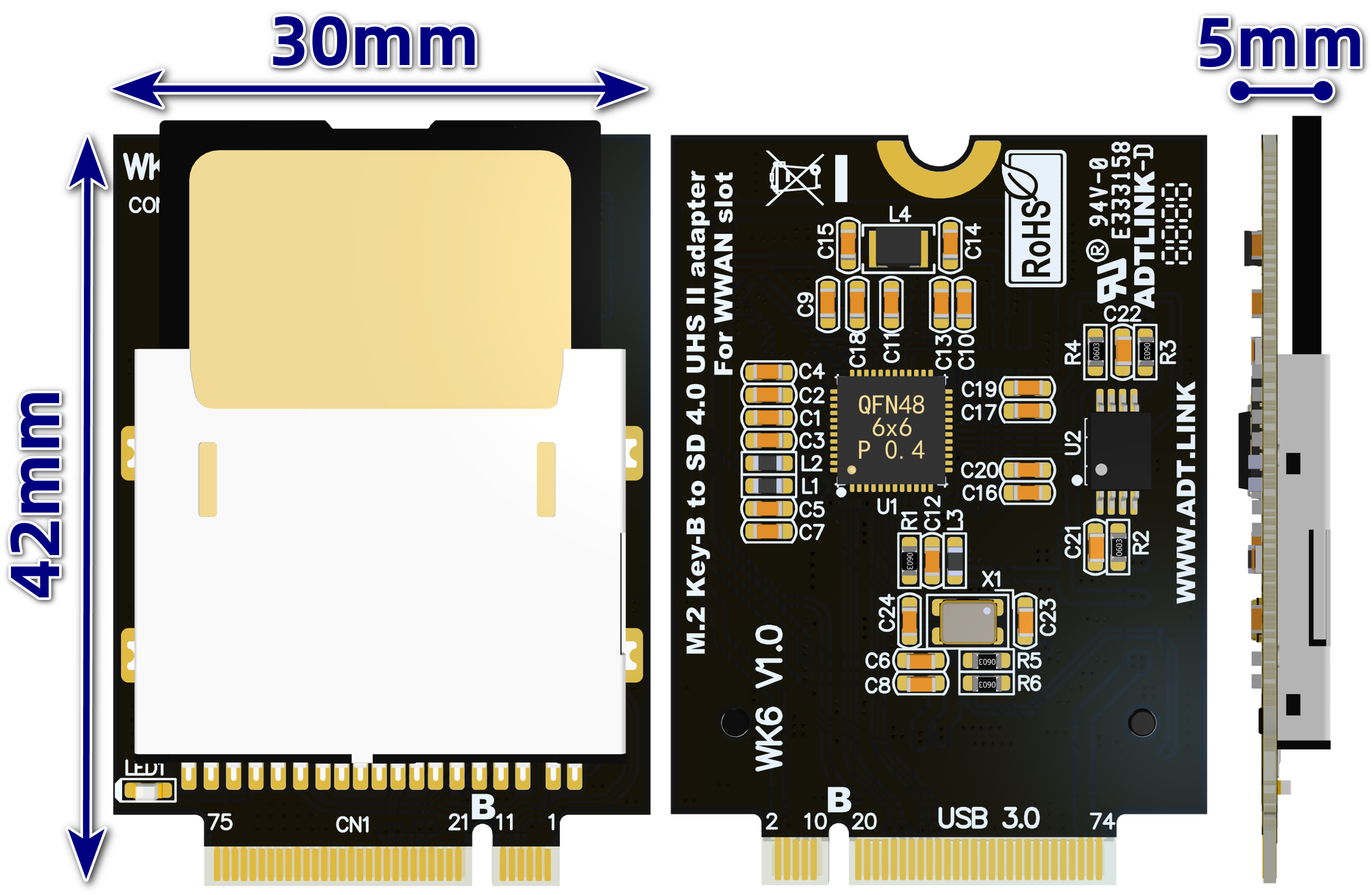

如下图，转接板厚度为5mm，能否装得下需依你的笔记本空间为准

芯片规格：

Genesys GL3232S
USB 3.2 GEN1 to SD 4.0
Memory Card Reader Controller

 USB specification compliance
- Comply with Universal Serial Bus 3. 1 Specification ( USB 3.1 GEN1)
- Comply with Universal Serial Bus Specification rev. 2.0 (USB 2.0)
- Comply with USB Mass Storage Class Specification rev. 1.0
- Support USB Mass Storage Class Bulk Only Transport (BOT)
- Support 1 device address and up to 3 endpoints: Control (0) / Bulk Data Read In (1) / Bulk Data Write Out (2)
- Support 5 Gbps SuperSpeed, 480 Mbps high speed, and 12 Mbps full speed transfer rates
 Integrated USB building blocks
- SuperSpeed US B/ USB 2.0 transceiver macro (UTM), Serial Interface Engine (SIE), and embedded P ower O n R eset (POR)
 Embedded high speed 8051 micro controller
 High efficien cy hardware DMA engine improves data transfer performance between USB and flash card interfaces
 Support Se cure Digital TM v1.0 / v1.1 / v2.0/ SDHC / SDXC c apacity up to 2TB)
 Support Secure Digital TM v 3.0 UHS I (Ultra High Speed): SDR12/SDR25/SDR50/DDR50/SDR104
 Support Secure Digital TM v 4.0 UHS II: Full Duplex Mode and Half Duplex Mode
 Support DDR200 speed mode to enhance the UHS-I performance
 Support SANDISK EXTREME® 160 MB/s microSD UHS-I CARD
 Support MultiMediaCard TM (MMC)
- MMC specification v3. x / v4.0 / v4.1 v4.2 / v4.3 / v4.4
- x1 / x4 bit data bus
 Support HUAWEI Nano Memory Card
 Support ISP (In System Programming) for firmware upgrade from the external SPI F lash via USB port
 On Chip power MOSFETs for supplying flash media card power
 On chip 5V to 3.3V and 3.3V to 1. 2 V regulator
 On chip 5V to 1.2V DC DC to improve power efficiency.
 Support Over Current protection mechanism
 Support USB 2.0 LPM (Link Power Management)
 Support USB 3.1 GEN1 LTM (Latency Tolerance Messaging)
 Support USB 3.1 GEN1 U1/U2/U3 low power link state
 Support La tency Tolerance Messaging
 Support remote wakeup funct ion
 Support Intel Power Optimizer
 Support Windows Connected Standby
 Support Spread Spectrum Clock for SD to reduce EMI effect
 Available in QFN48 pin package (6x6mm)

3D下载：

http://www.adtlink.cn/download/ADT_WK6_3D.zip
