R55SF R55SL 4.0

Product ID：R55SF

Interface: M.2 WiFi / M.2 WiFi

Application: Extension

Transfer speed: PCIe 4.0 x1

Product description: ADT-Link M.2 Key A.E. Extension Cable for M.2 WiFi Card GPU extension cable

Buy Now

ADT-Link M.2 WiFi Extension Cable

Brand name: ADT-LINK

Product name: M.2 key A.E. WiFi Card extension cable

Product model: R55SF R55SL 4.0

Transfer speed: PCIe 4.0 x1 full speed, 16G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized

Application: M.2 WiFi Card extension cable

ADT R55SF Part-Number Description:

Part-Number	Description	Bandwidth
R55SF 4.0	M.2 WiFi(A.E key) to M.2 WiFi(A.E key/E key) extension cables,Connector 180°	PCIe 4.0 x1 (46G/bps Max.)
R55SL 4.0	M.2 WiFi(A.E key) to M.2 WiFi(A.E key/E key)extension cables,Connector 90°	PCIe 4.0 x1 (46G/bps Max.)

Cable length Description:

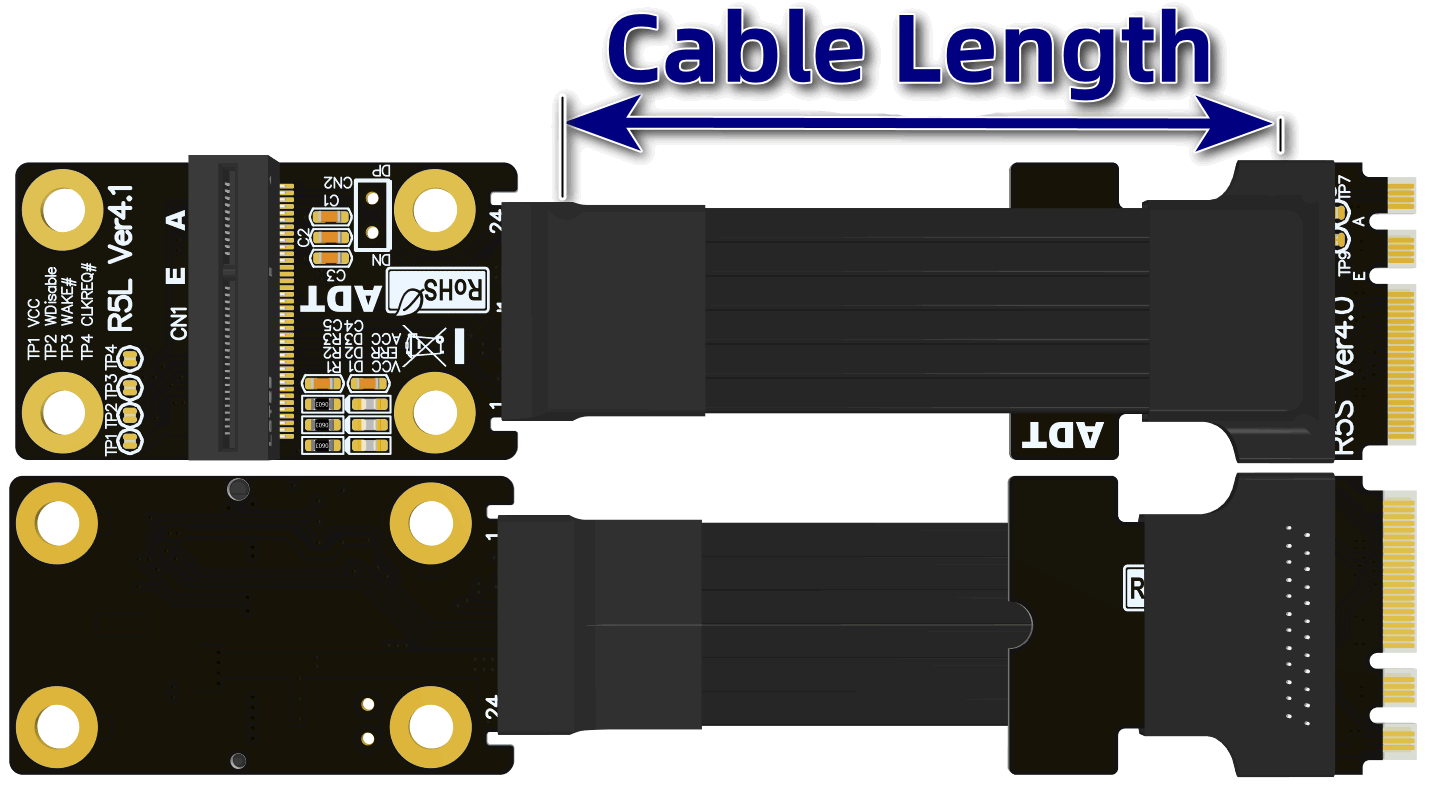

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
