R54SF 4.0

Product ID：R54SF 4.0

Interface: M.2 WiFi / M.2 NVMe

Application: Extension

Transfer speed: PCIe 4.0 x1

Product description: ADT-Link M.2 Key A.E. WiFi card Extension Cable for M.2 NVMe extension cable

Buy Now

ADT-Link M.2 WiFi to M.2 NVMe Extension Cable

Brand name: ADT-LINK

Product name: M.2 key A.E. WiFi to M.2 key M NVMe extension cable

Product model: R54SF 4.0

Transfer speed: PCIe 4.0 x1 , 16G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized,

Application: M.2 NVMe SSD to M.2 WiFi slot extension cable

Usage restrictions: PCIe 4.0 has high requirements on the equipment. As long as the extension cable is connected, the signal will be attenuated. This product does not guarantee the full speed of PCI-E 4.0. The equipment is aging. If the signal is poor or the environment is not good, please slow down to PCIe 3.0 or lower.

ADT R54SF Part-Number Description:

Part-Number	Description	Bandwidth
R54SF 4.0	M.2 key M NVMe SSD to M.2 key A.E. WiFi connector extension cables	PCIe 4.0 x1 (16G/bps Max.)

Cable length Description:

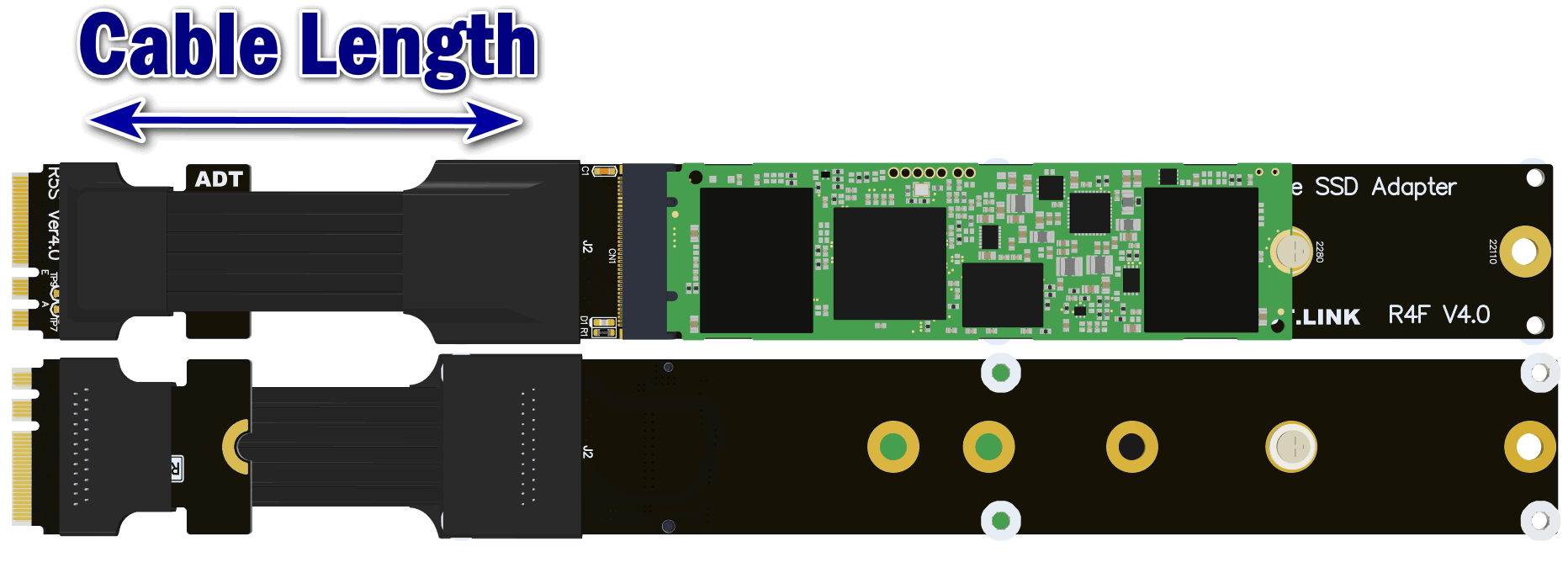

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
