WQ34

Product ID:WQ34

Interface: PCIe x16 to Quad M.2 Key M

Application: NVMe adapter

Transfer speed: PCIe 4.0x4

Product description: WQ34 PCIe x16 to Quad M.2 NVMe adapter

ADT-Link PCIe x16 to Quad M.2 NVMe SSD adapter

Brand name: ADT-LINK

Product name: PCIe x16 to Quad M.2 NVMe SSD adapter

Product model: WQ34

Transfer speed: PCIe gen4 x16

Weight: 20g

Dimension: PCIe x16 card. Support Quad M.2 NVMe card

Application: Bifurcation PCIe for Quad NVMe SSD to PCIe x16 slot

System requirements: The motherboard must have a free PCIe x16 interface and support Bifurcation PCIe 4x4 splitting function

Product Specifications:
Bifurcation supports PCI Express4.0 x4x4x4x4
M.2 slot support  2242, 2260, 2280, 22110 SSD sizes


Part-Number Description:

BrandPart-Number
Description
Speed
ADTLINKWQ34PCIe x16 to Quad M.2 NVMe SSD adapterPCIe 4.0 4x4 (Max.)

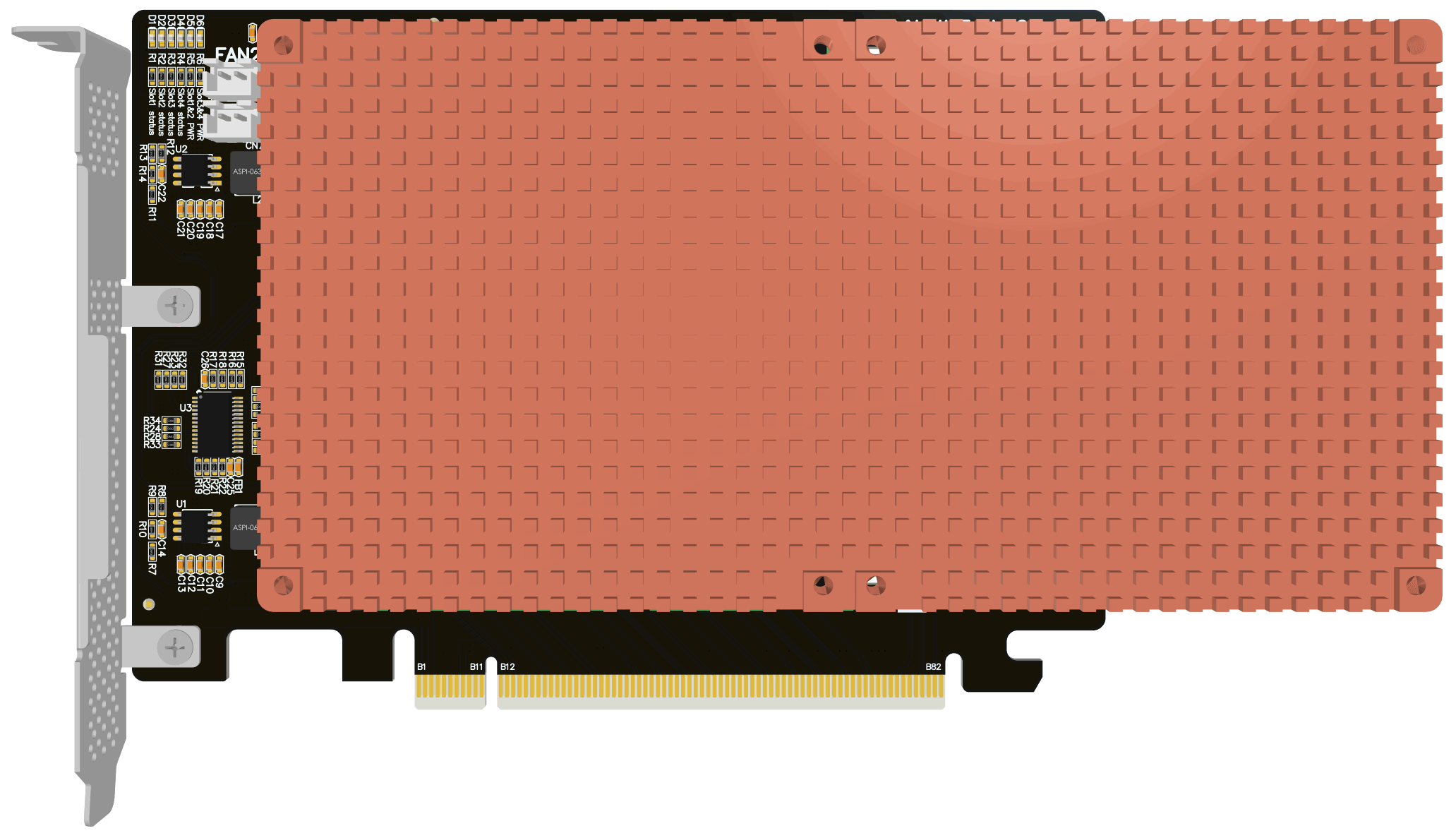

ADTLINKWQ34-HTPCIe x16 to Quad M.2 NVMe SSD adapter with heat sink
PCIe 4.0 4x4 (Max.)

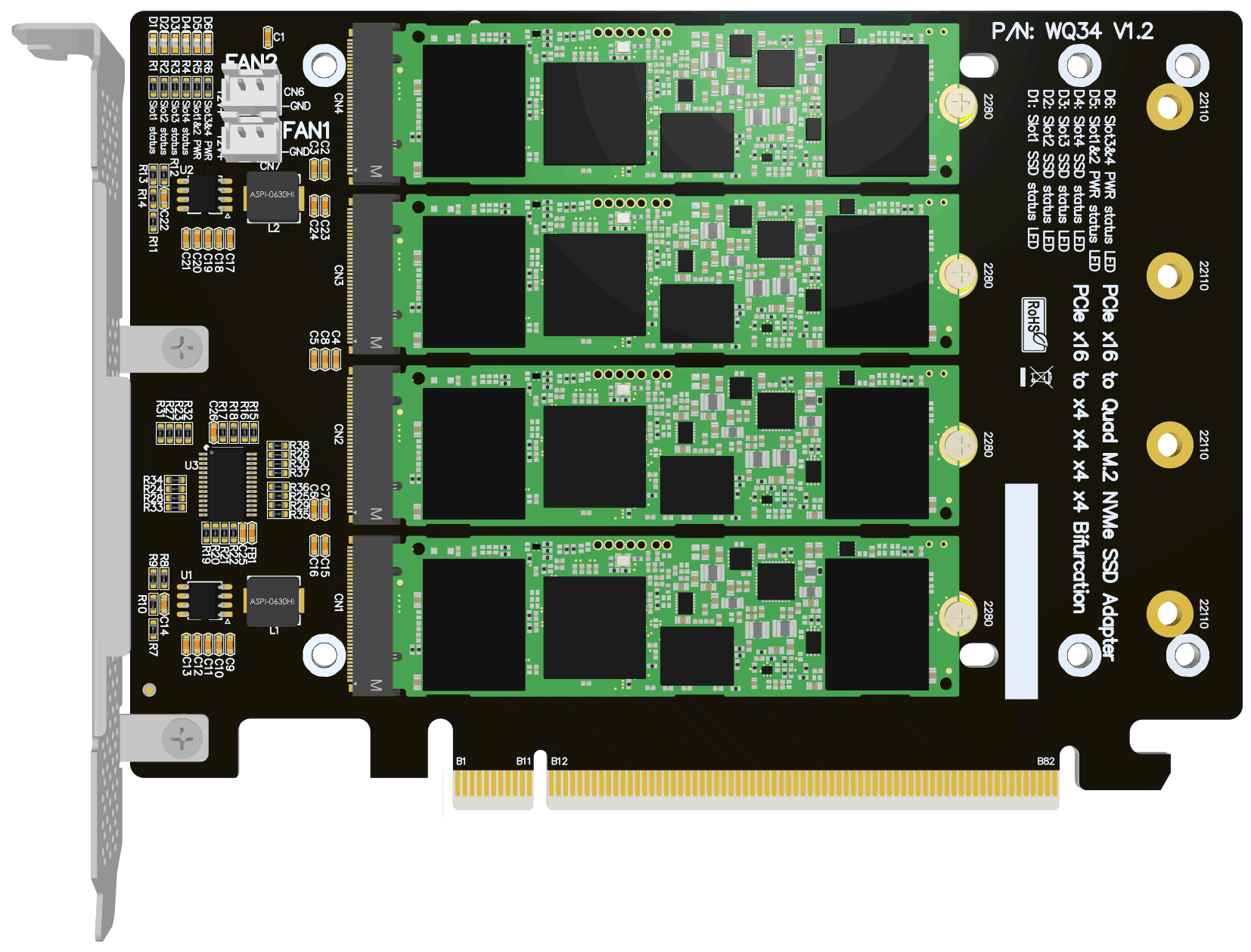

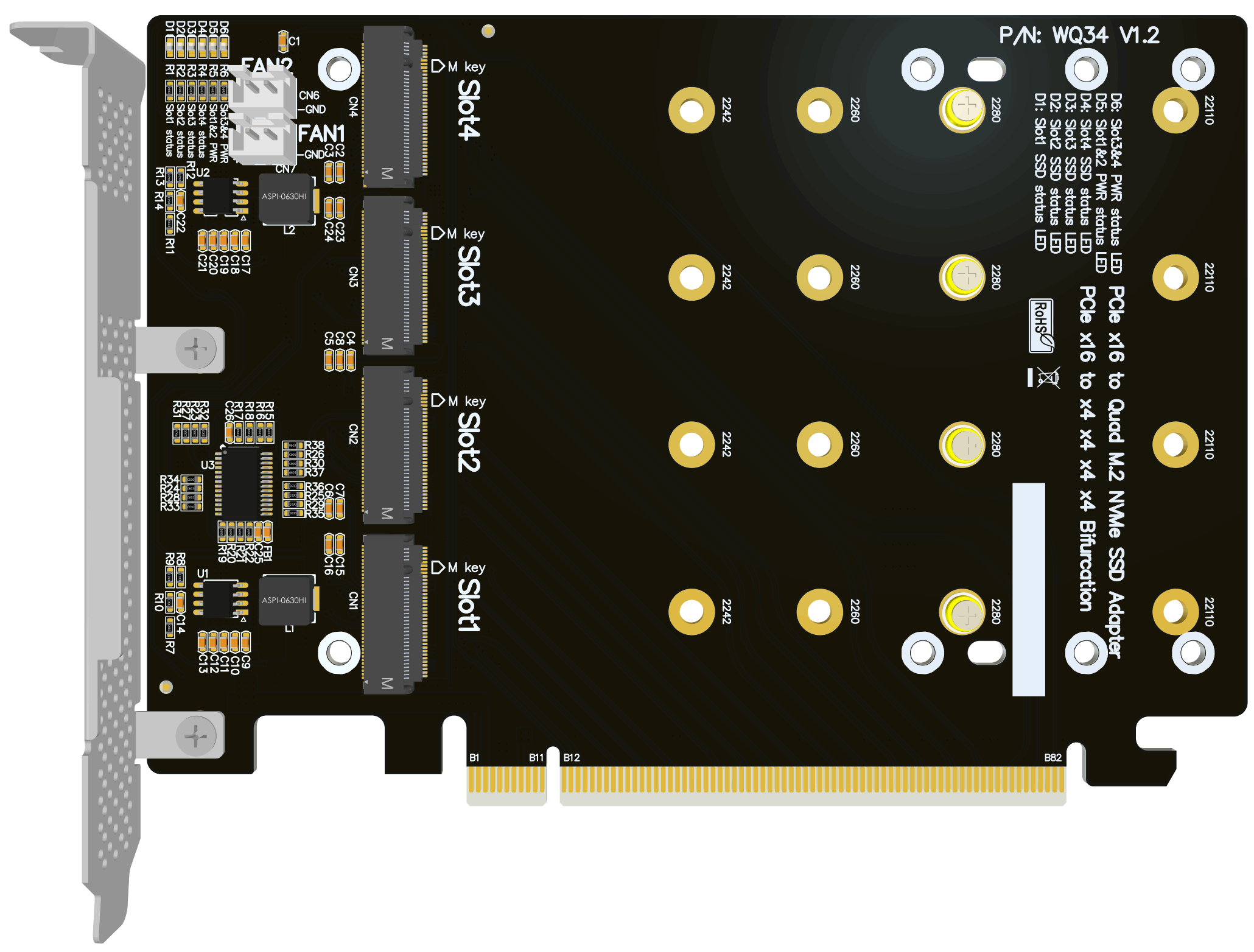

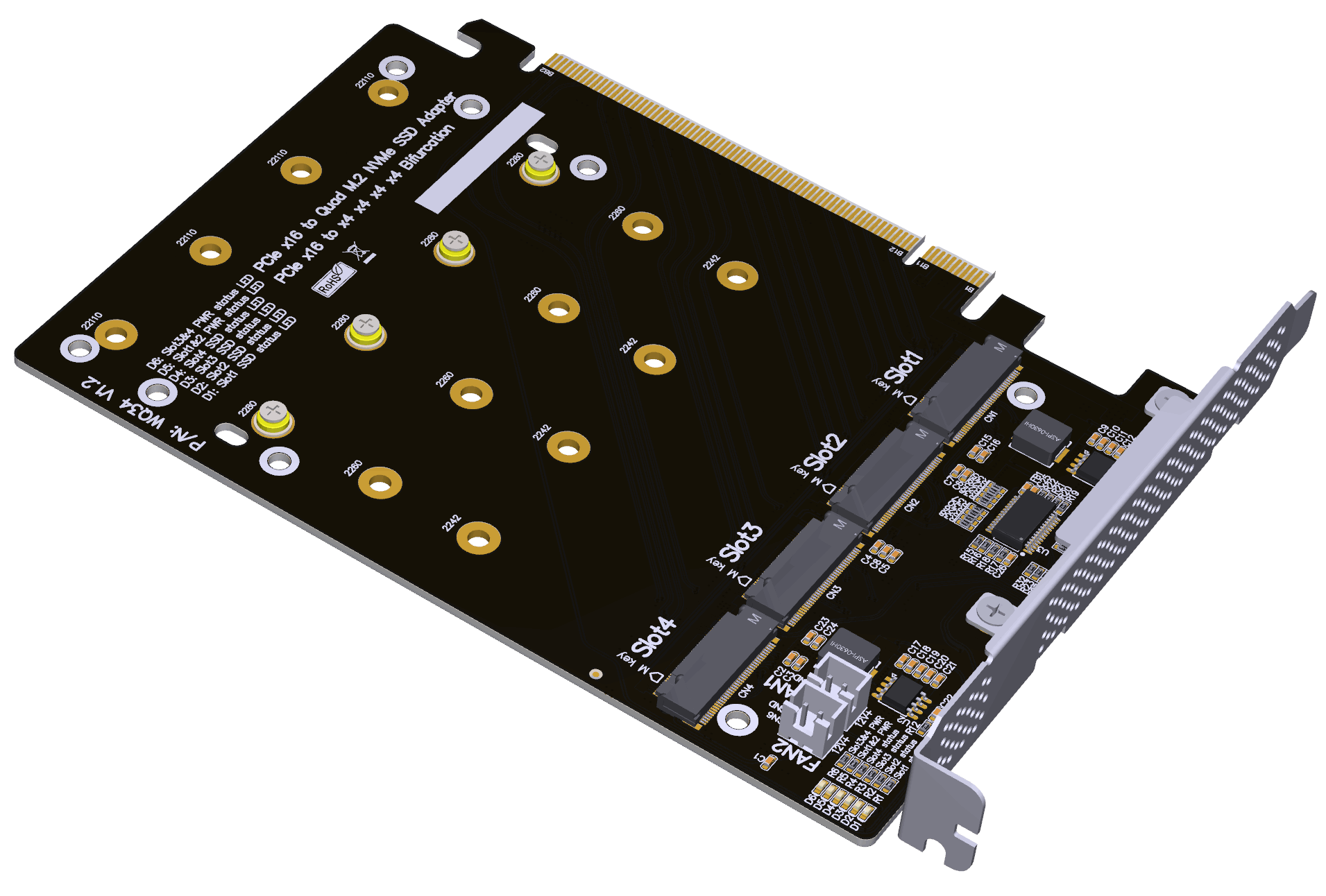

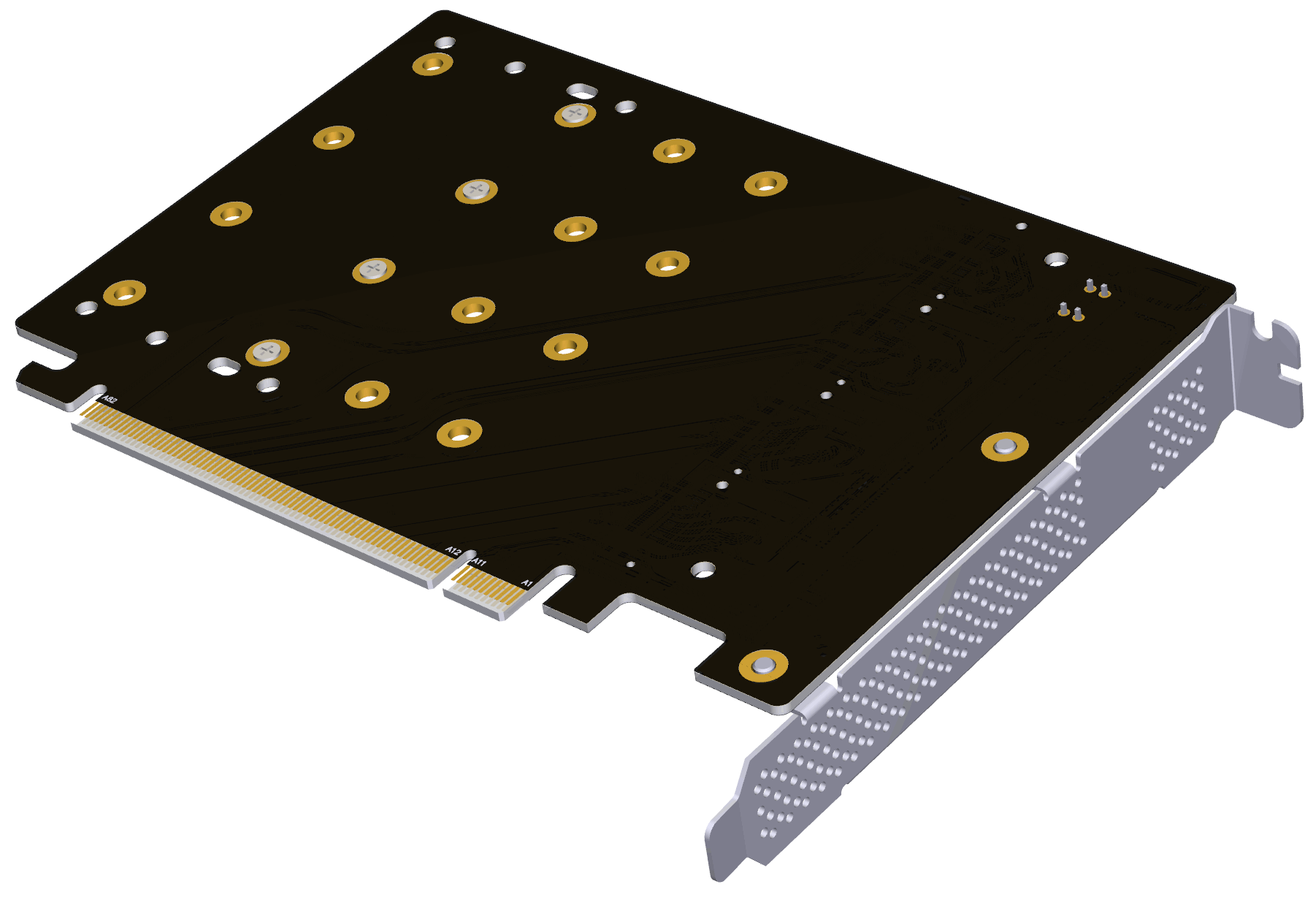

Photo:



Q&A:
How to confirm whether the motherboard supports Bifurcation PCIE split?

Please check your motherboard manual, manual or BIOS option will explain Bandwidth PCIE channel splitting or Bifurcation option. If not mentioned then not supported, option please choose 4x4 or x4x4x4x4

ASUS motherboard supported models and split technical instructions

https://www.asus.com/support/FAQ/1037507/

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

Schematic & 3D model files download http://www.adt.link/Uploads/download/ADT_WQ34.zip

FTP: Hong Kong

Schematic & 3D model files download http://www.adtlink.cn/Uploads/download/ADT_WQ34.zip

WebShop:

http://www.adt.link/product/WQ34-Shop.html
