UTT3-MM-20P series

Product ID：UTT3-MM-20P series
Interface:TYPE-C / TYPE-C
Application: USB extension cable
Shelf time：2022-05-17
Product description: USB 3.2 Type-C male to Type-C male flat cable

Buy Now

USB 3.2 Type-C male to Type-C male flat cable

Brand name: ADT-LINK

Product name: USB 3.2 Type-C male to Type-C male flat cable

Product model: UTT3-MM-20P series

Transfer speed: gen2x2 within 50cm ; gen1x2 within 1 meter

Current capacity: 3A (measured to support 3A within 50cm, 1.5A within 1 meter)

Wire length: 3~300 cm, the length can be customized

Product application: GPS navigator, ROCK Pi 4 Raspberry Pi microcontroller development board, built-in USB device to extend the use of adapter.

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.

ADT USB series Part-Number Description:

S=USB-A ; C=USB-C ; W=USB-B ; F=USB-E

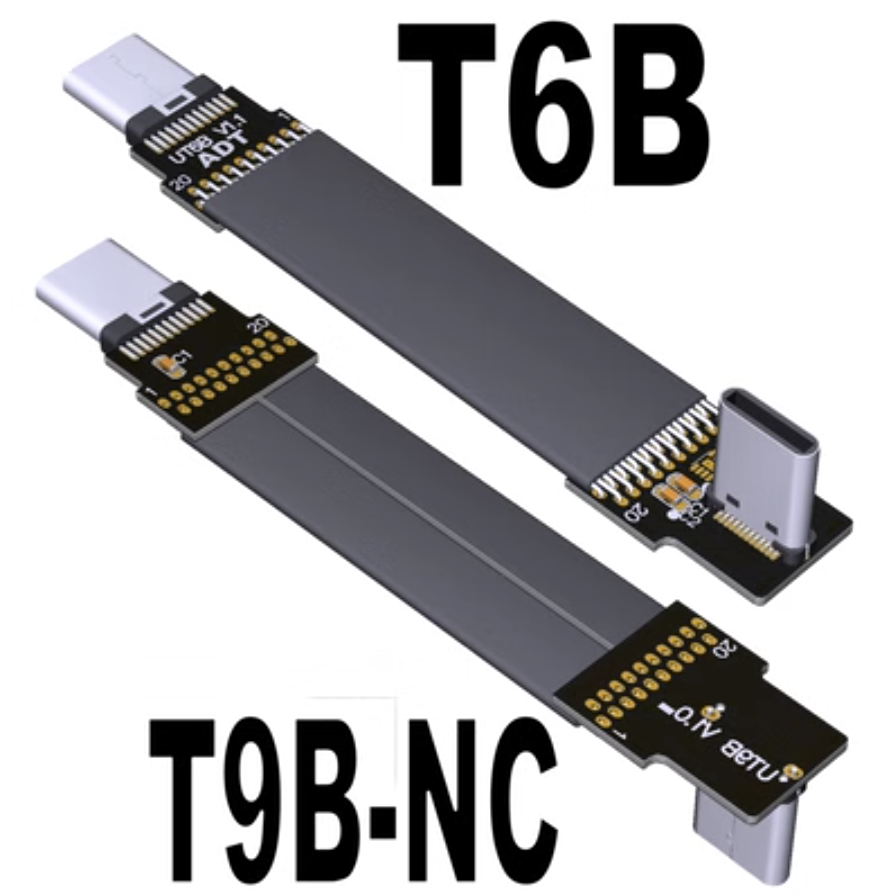

Product List:

Brand	Part-number	Product-Description
ADTLINK	UT6A-UT6B	USB 3.2 Type-C male to Type-C male flat cable
ADTLINK	UT6A-UT6B-NC	USB 3.2 Type-C male to Type-C male flat cable
ADTLINK	UT9A-UT6B	USB 3.2 Type-C male to Type-C male flat cable
ADTLINK	UT9A-UT6B-NC	USB 3.2 Type-C male to Type-C male flat cable

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 4cm black arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Can wires and PCB connectors be split?

No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.

Cable thickness? Can it be bent?

The thickness of the wire is 1.4mm, and it can be bent and folded without affecting the use.

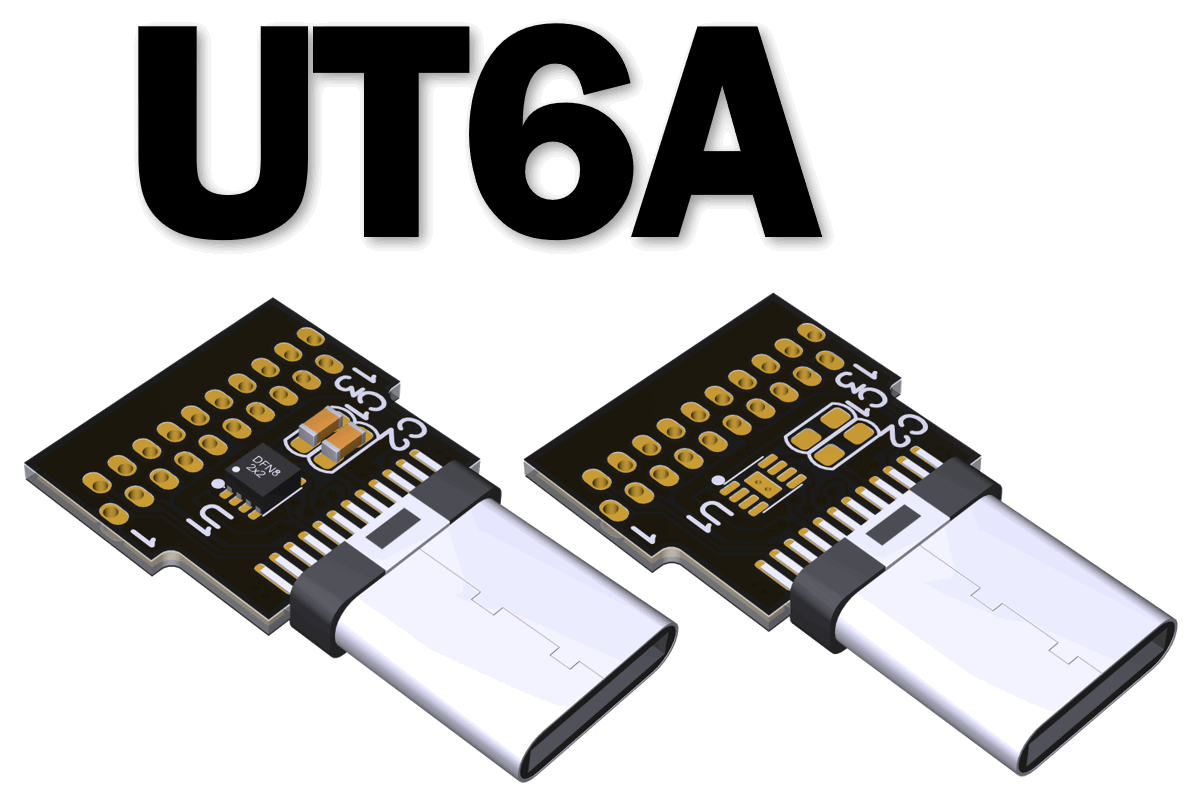

What is the difference between product model T6A with chip and without chip?

T6A with chip refers to the PCB with RT1710 e-mark chip from RichTek, which supports high current 3A, up to 5A. Compatibility, scalability, and security are relatively good. Support Alternate Mode, Vendor Defined Message (USB PD)

The T6A-NC version without a chip is only suitable for general use and does not support high current. The USB data transmission function can still be used normally.
