Product ID：R33SS, R33FF, R33LR, R33NS, R33NF, R33NL, R33NR, R33VF

Interface: PCIe x16 / PCIe x16

Application: Signal swap

Product description: PCI express x16 jumpers for board to board , Edge Card connector Flat Cable Assemblies for PCI Express Applications

WebStore

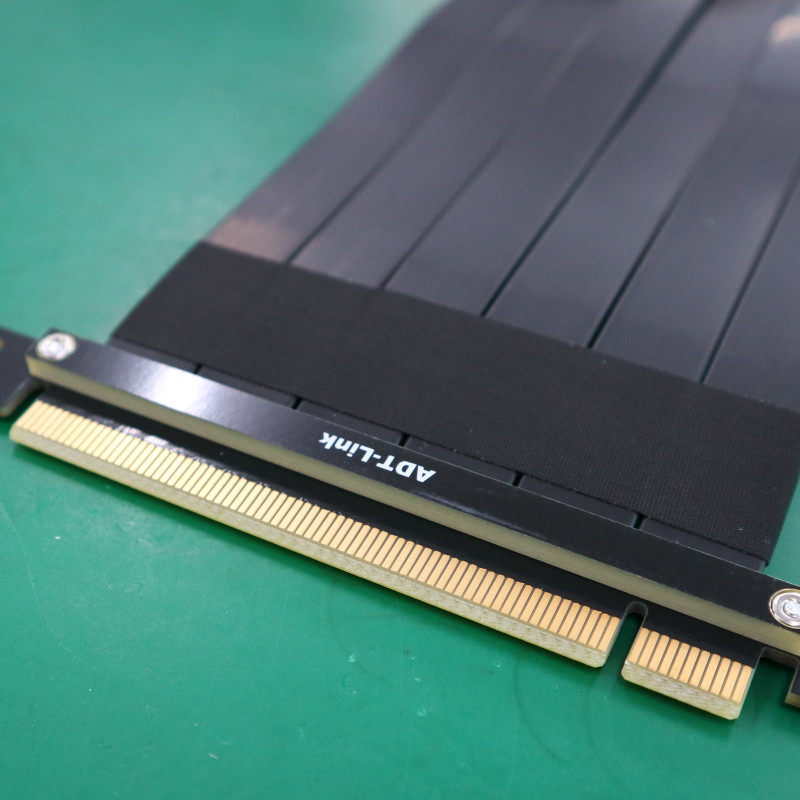

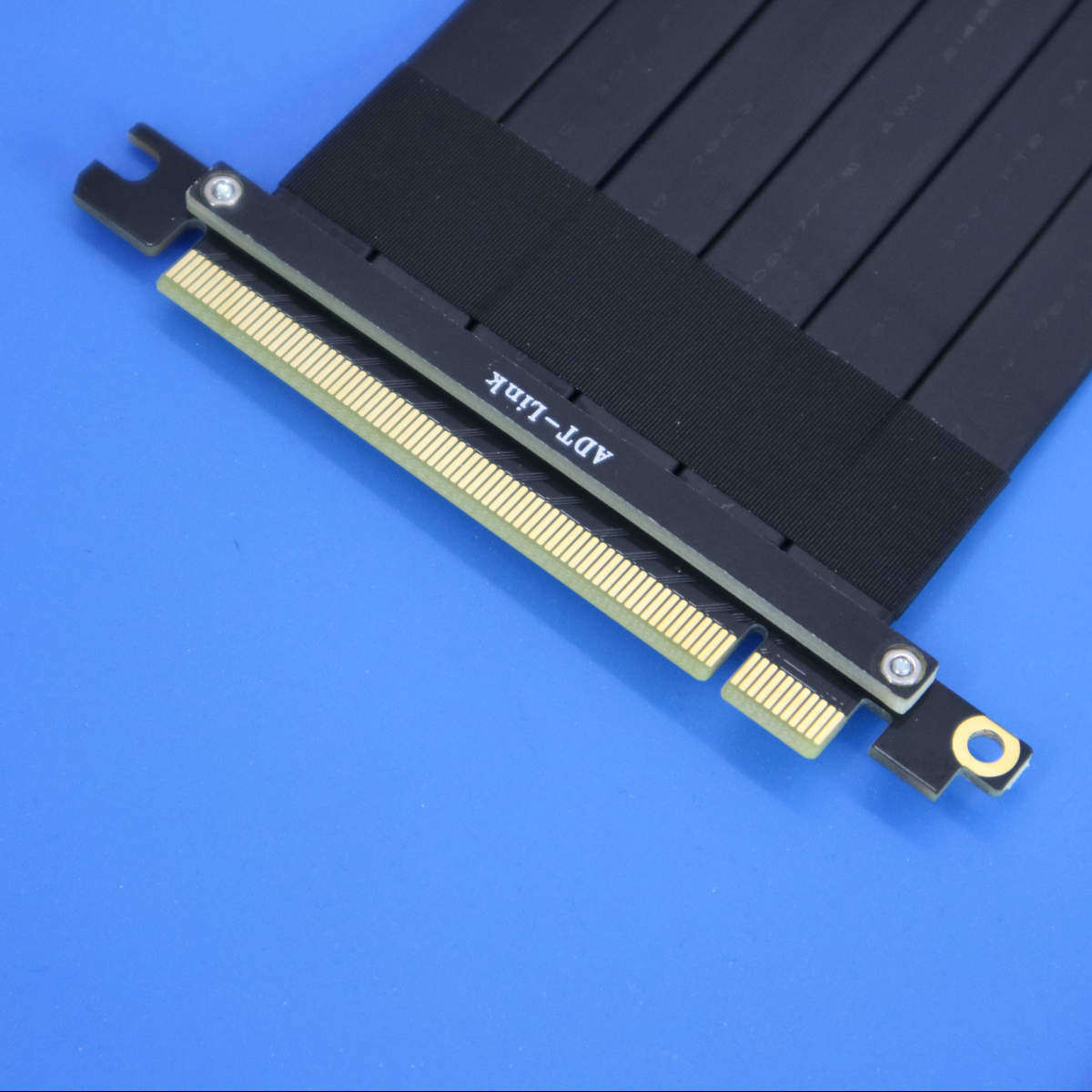

ADT-Link PCI express 3.0 x16 Jumper Cable

Brand name: ADT-LINK

Product name: PCIe x16 jumpers cable

Product model: R33SS, R33FF, R33LR, R33NS, R33NF, R33NL, R33NR, R33VF

Transfer speed: PCIe 3.0 x16 full speed, 128G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized,

Application: PCIe x16 board to board jumpers , extender , adapter , flexible , foldable , pluggable

Operating Temp: -20 ~ 80^oC

RoHS Compliant: Yes

If your applications uses a mother board that needs to link to another PCB via PCIe, and that PCB has PCIe connectors instead of edge fingers, then the PCIe Jumper Assemblies may fit your need. All of the speed and flexibility of the original ADT Extender Assemblies, but for card-to-card applications.

ADT PCIe Jumper products Part-Number Description:

Part-Number	Description	Bandwidth

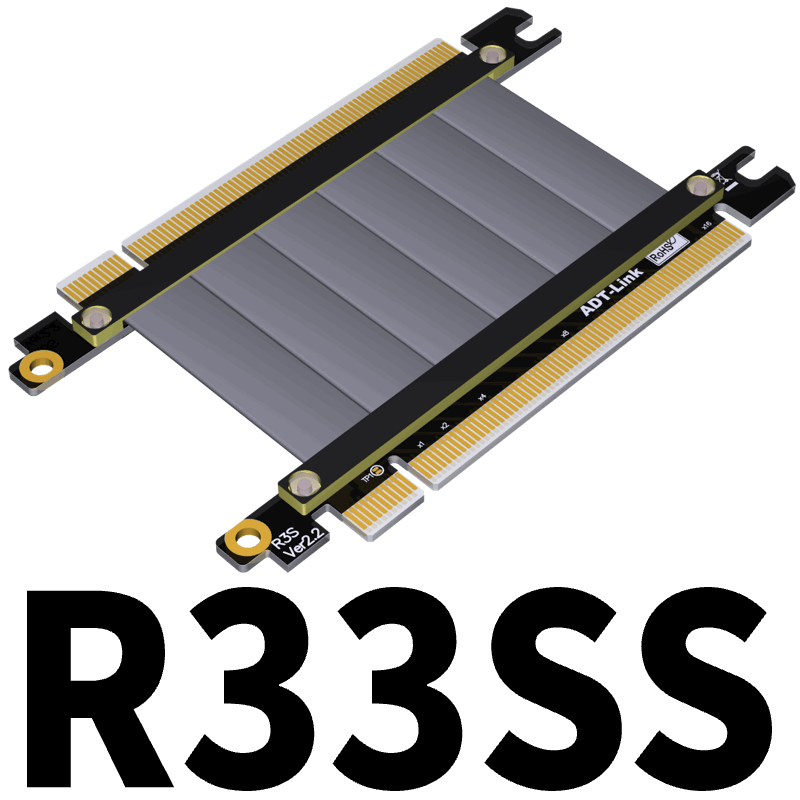

R33SS	PCI-E x16 ,goldfinger to goldfinger, Tx to Tx direct extension	PCIe 3.0 x16 (128G/bps)

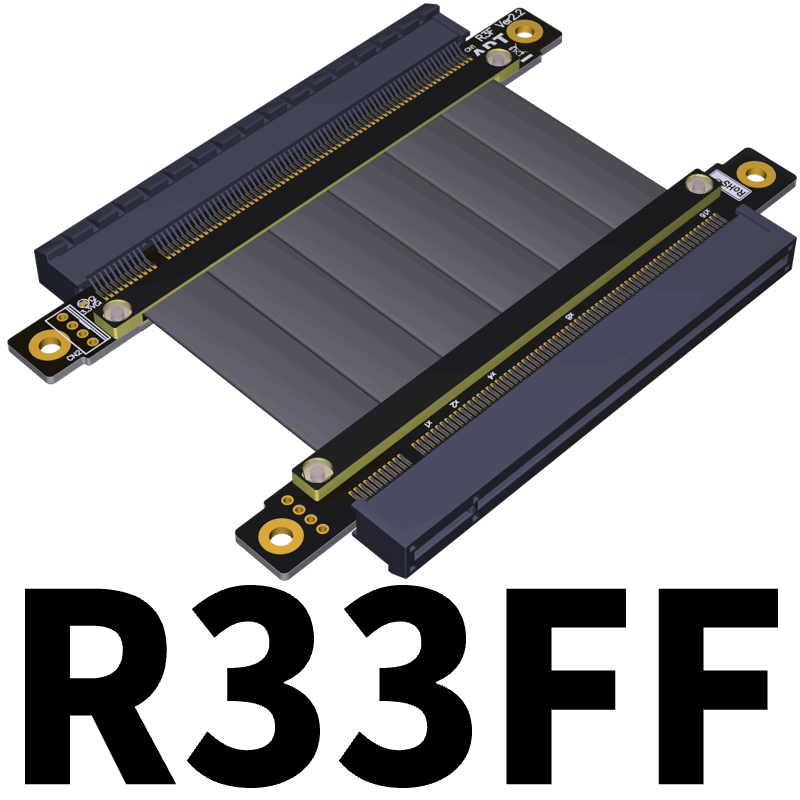

R33FF	PCI-E x16 ,connector to connector, Tx to Tx direct extension	PCIe 3.0 x16 (128G/bps)

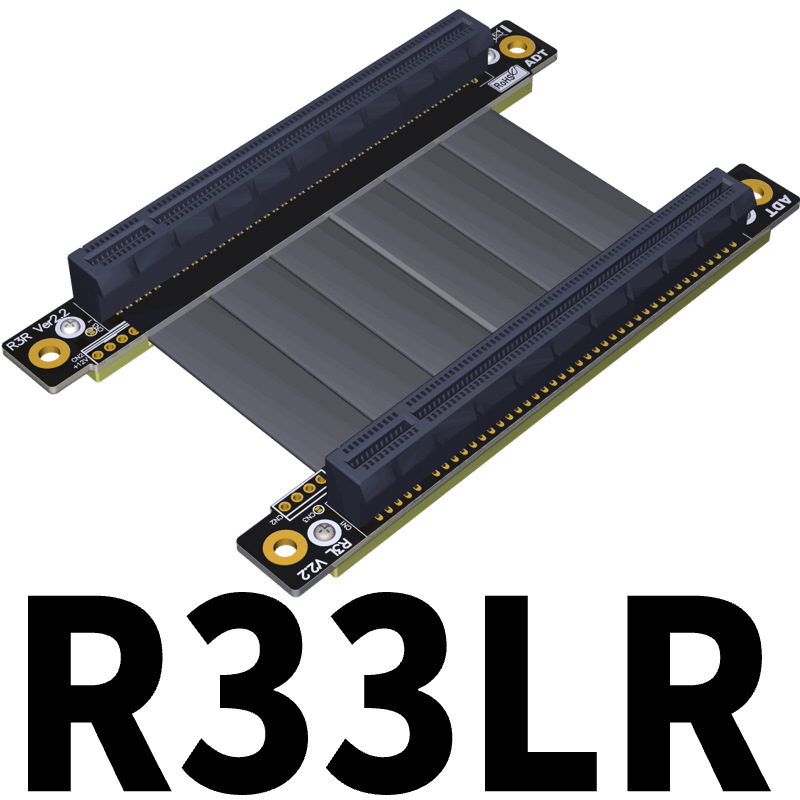

R33LR	PCI-E x16 ,connector to connector, Tx to Tx direct extension	PCIe 3.0 x16 (128G/bps)

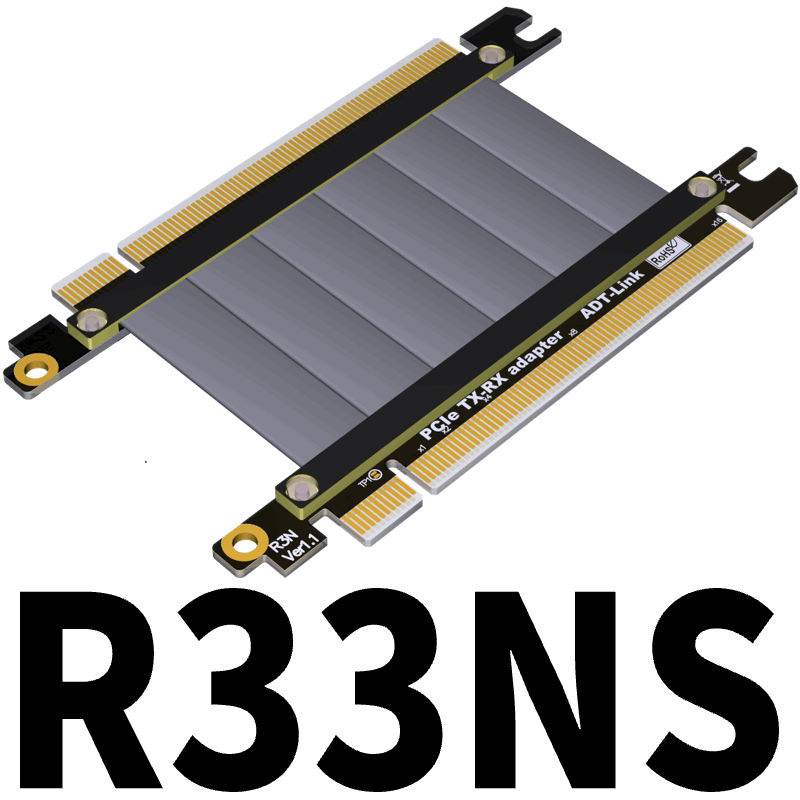

R33NS	PCI-E x16 ,goldfinger to goldfinger, Tx to Rx signal swap	PCIe 3.0 x16 (128G/bps)

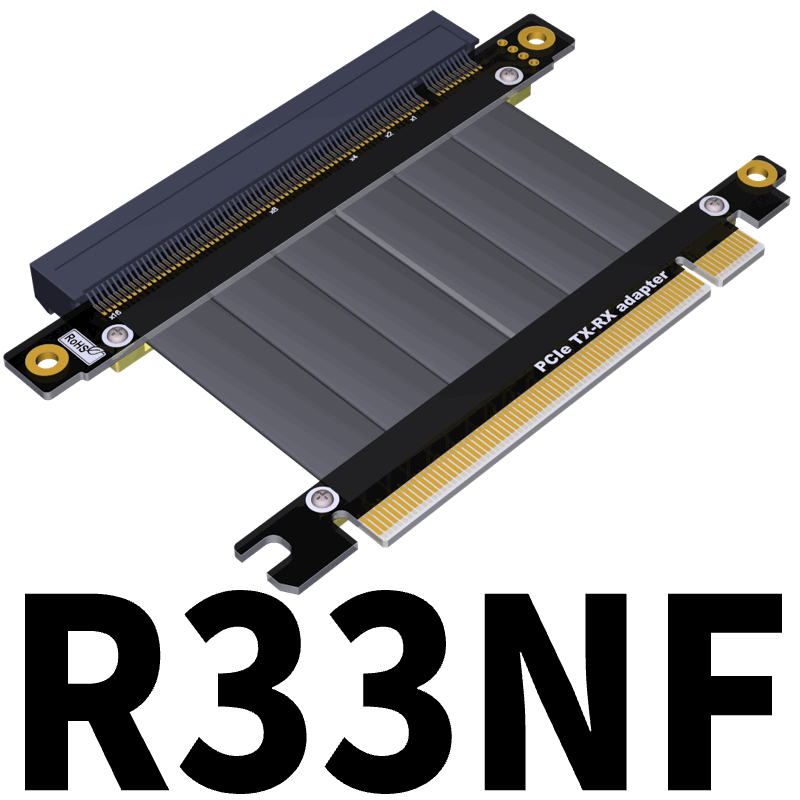

R33NF	PCI-E x16 ,connector to connector, Tx to Rx signal swap	PCIe 3.0 x16 (128G/bps)

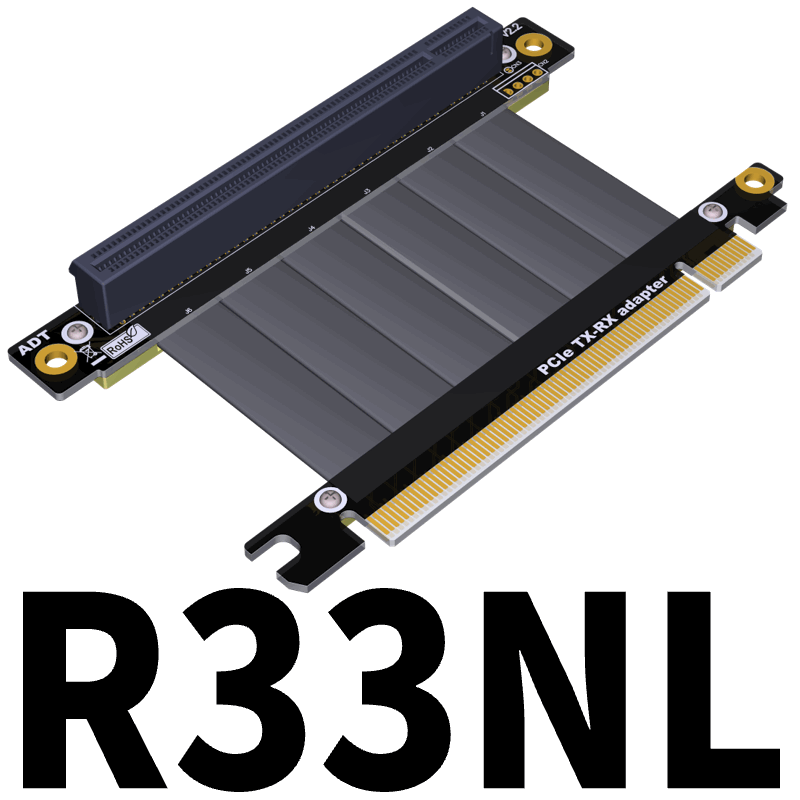

R33NL	PCI-E x16 ,connector to connector, Tx to Rx signal swap	PCIe 3.0 x16 (128G/bps)

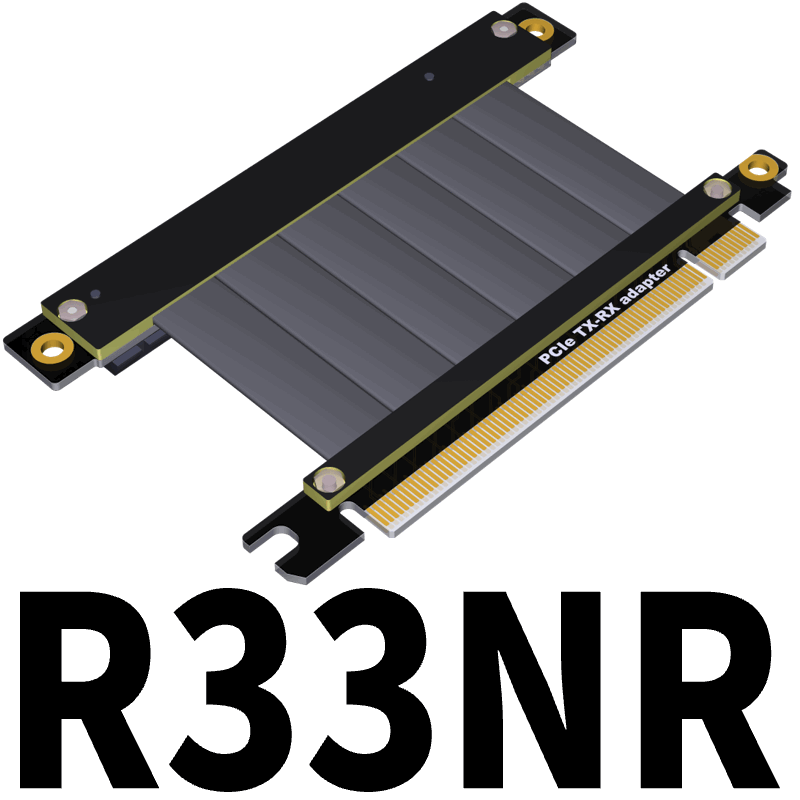

R33NR	PCI-E x16 ,connector to connector, Tx to Rx signal swap	PCIe 3.0 x16 (128G/bps)

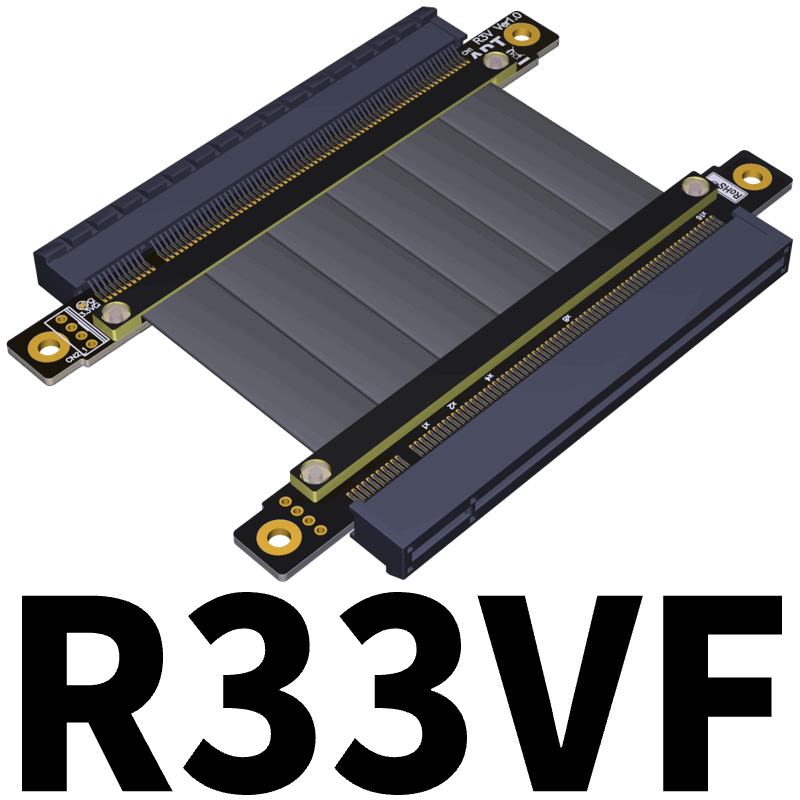

R33VF	PCI-E x16 ,goldfinger to connector, Tx to Rx signal swap	PCIe 3.0 x16 (128G/bps)
R33VL	PCI-E x16 ,goldfinger to connector, Tx to Rx signal swap	PCIe 3.0 x16 (128G/bps)
R33VR	PCI-E x16 ,goldfinger to connector, Tx to Rx signal swap	PCIe 3.0 x16 (128G/bps)

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Cable thickness? Can it be bent?
The thickness of the wire is 1.4mm, and it can be bent and folded without affecting the use.

Is there a PCIe Tx-Rx signal exchange?

The PCI express signal trace of this product refers to the following picture.

Model R11SS signal extension function, PCIe signal direct connection has no conversion, Tx to Tx, Rx to Rx, suitable for Jump, Extension use.
Model R11NS differential signals are exchanged, PCIe differential signals Tx to Rx, Rx to Tx, suitable for Master-Slave applications.
