R27SL

Product ID: R27SL , R27SL-TU

Interface: U.2 / PCIe x4

Application: U.2 NVMe Extension

Transfer speed: PCIe3.0 x4

Product description: PCIe x4 to U.2 extender adapter for U.2 NVMe SSD

Buy Now

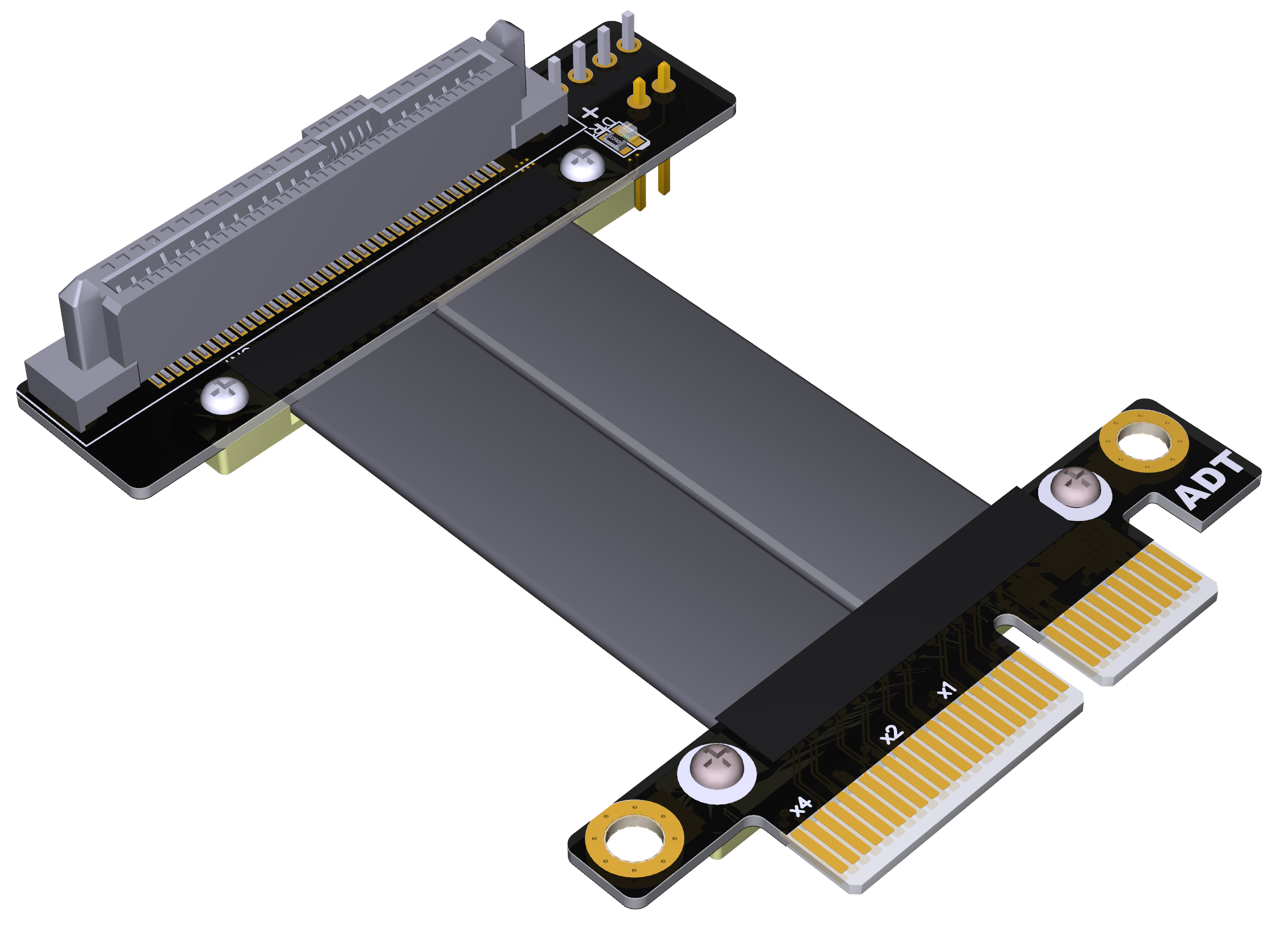

ADT-Link PCI express 3.0 x4 to U.2 (SFF-8639) Extension Cable

Brand name: ADT-LINK

Product name: PCIe x4 to U.2 extension cable

Product model: R27SL , R27SL-TU

Transfer speed: PCIe3.0 x4 full speed, 32G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized,

Application: PCI-E x4 to U.2 (SFF8639) extension

ADT R22 series Part-Number Description:

Part-Number	Description	Bandwidth
R22SL	PCIe x4 to U.2 cable extension	PCIe 3.0 x4 (32G/bps)
R22SL-TU	PCIe x4 to U.2 cable turn down extension	PCIe 3.0 x4 (32G/bps)

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.
