HAA-MM-24P series

Product ID:HAA-MM-24P

Interface: HDMI / HDMI

Application: HDMI Cable

Shelf time:2022-07-04

Product description: HDMI 2.1 type-A male to type-A male Flat Cable

HDMI 2.1 type-A male to type-A male Flat Cable

Brand name: ADT-LINK

Product name: HDMI 2.1 type-A male to type-A male Flat Cable

Product model: HAA-MM-24P series

Transfer-speed: support HDMI V2.1 bandwidth up to 48G.bps, resolutions up to 4K@165Hz, 8K@60Hz

Wire length: 3 ~ 200 cm, the length can be customized,

Application: For FPV Aerial Photography Gopro Camera

Purchase restriction: This product is designed to connect to built-in internal devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support returns and exchanges. Please consider carefully before placing an order.


ADT HAA-MM-24P series Part-Number Description:

BrandPart-NumberProduct-Description

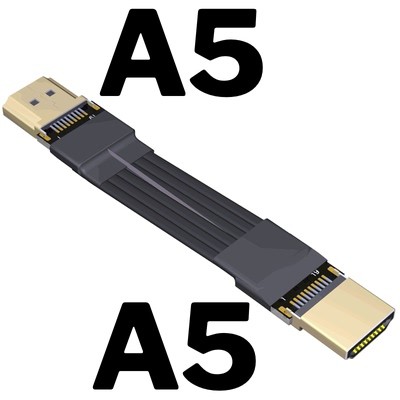

ADTLINKHA5-HA5HDMI 2.1 A-type flat mount male to A-type flat mount male

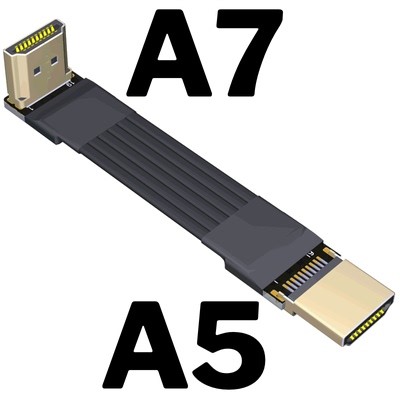

ADTLINKHA5-HA6HDMI 2.1 A-type flat mount male to A-type turn up male

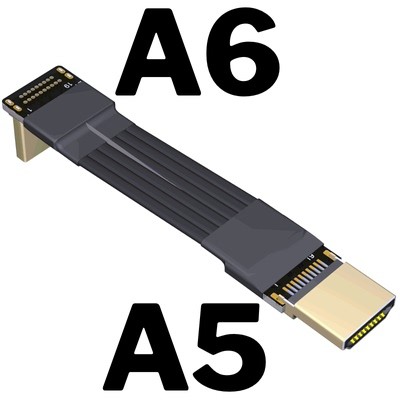

ADTLINKHA5-HA7HDMI 2.1 A-type flat mount male to A-type turn down male

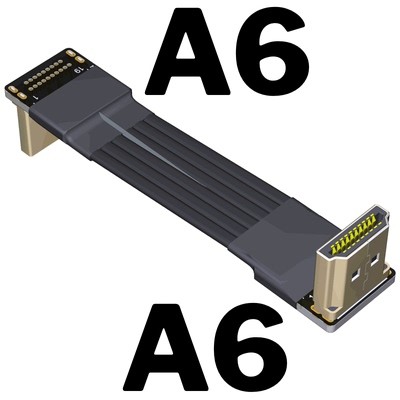

ADTLINKHA6-HA6HDMI 2.1 A-type turn up male to A-type turn up male

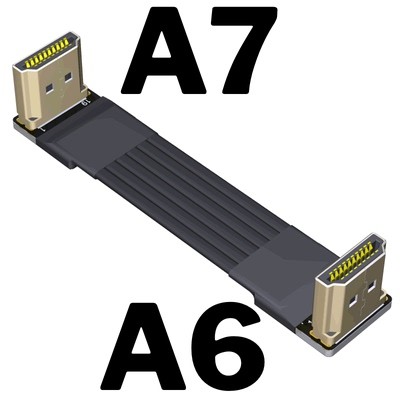

ADTLINKHA6-HA7HDMI 2.1 A-type turn up male to A-type turn down male

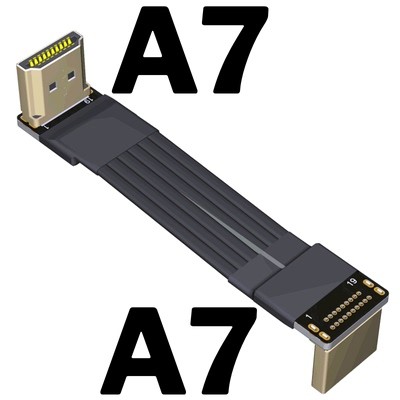

ADTLINKHA7-HA7HDMI 2.1 A-type turn down male to A-type turn down male




Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

Yes, there is a metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Cable thickness? Can it be bent?

The thickness of the wire is 1.3mm, and it can be bent and folded without affecting the use.

Can wires and PCB connectors be split?

No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.

Photo:

Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

3D PDF files download: http://www.adt.link/download/HAA-MM-24P.ZIP

Schematic download: http://www.adt.link/download/schematic_hdmi.pdf

FTP: Hong Kong

3D PDF files download: http://www.adtlink.cn/download/HAA-MM-24P.ZIP

Schematic download: http://www.adtlink.cn/download/schematic_hdmi.pdf

Webshop:

http://www.adt.link/product/HAA-MM-24P-Shop.html
