M22SF,M22SL,M22SR 4.0

Product ID:M22SF,M22SL,M22SR 4.0

Interface:PCIe 4.0x4 / PCIe x4

Transferspeed:PCIe4.0 x4 , 64G/bps (Max.)

Product description:PCIe 4.0x4 extender adapter jumper for audio, wireless LAN, usb cards.

Buy Now

ADT-Link PCI express 4.0 x4 Extension Riser Cable

Brand name: ADT-LINK

Product name: PCIe x4 extension cable

Product model:M22SF,M22SL,M22SR

Transferspeed:PCIe4.0 x4 , 64G/bps (Max.)

Wire length:5 ~ 100 cm, the length can be customized,

Application: PCIe x4 Capture Card , RAID SSD, LAN, USB cards, extension

ADT R22 series Part-Number Description:

Part-Number	Description	Bandwidth

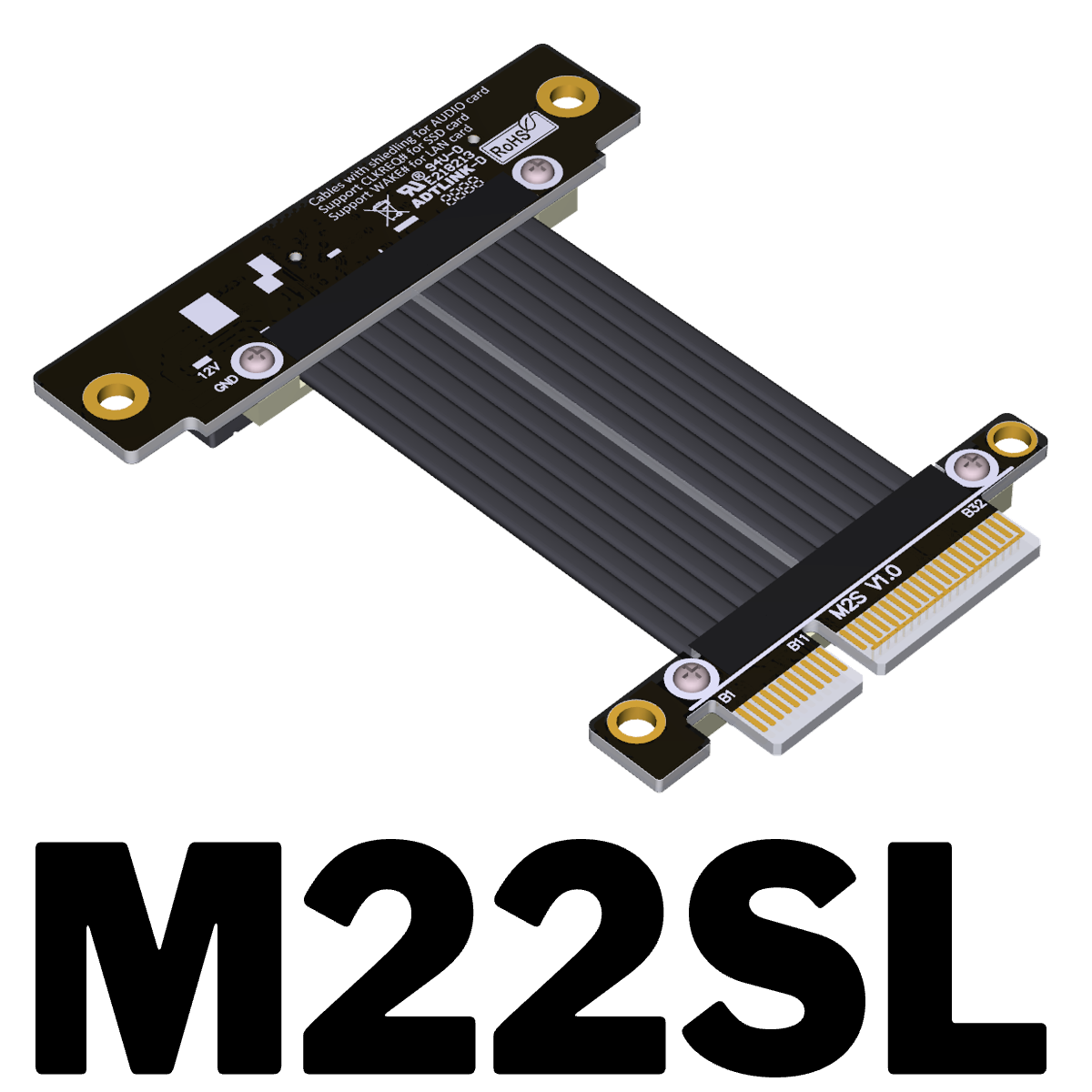

M22SL	PCI-E x4 to x4 turn 90 degree upright right angle extension cables	PCIe 4.0 x4 (64G/bps)

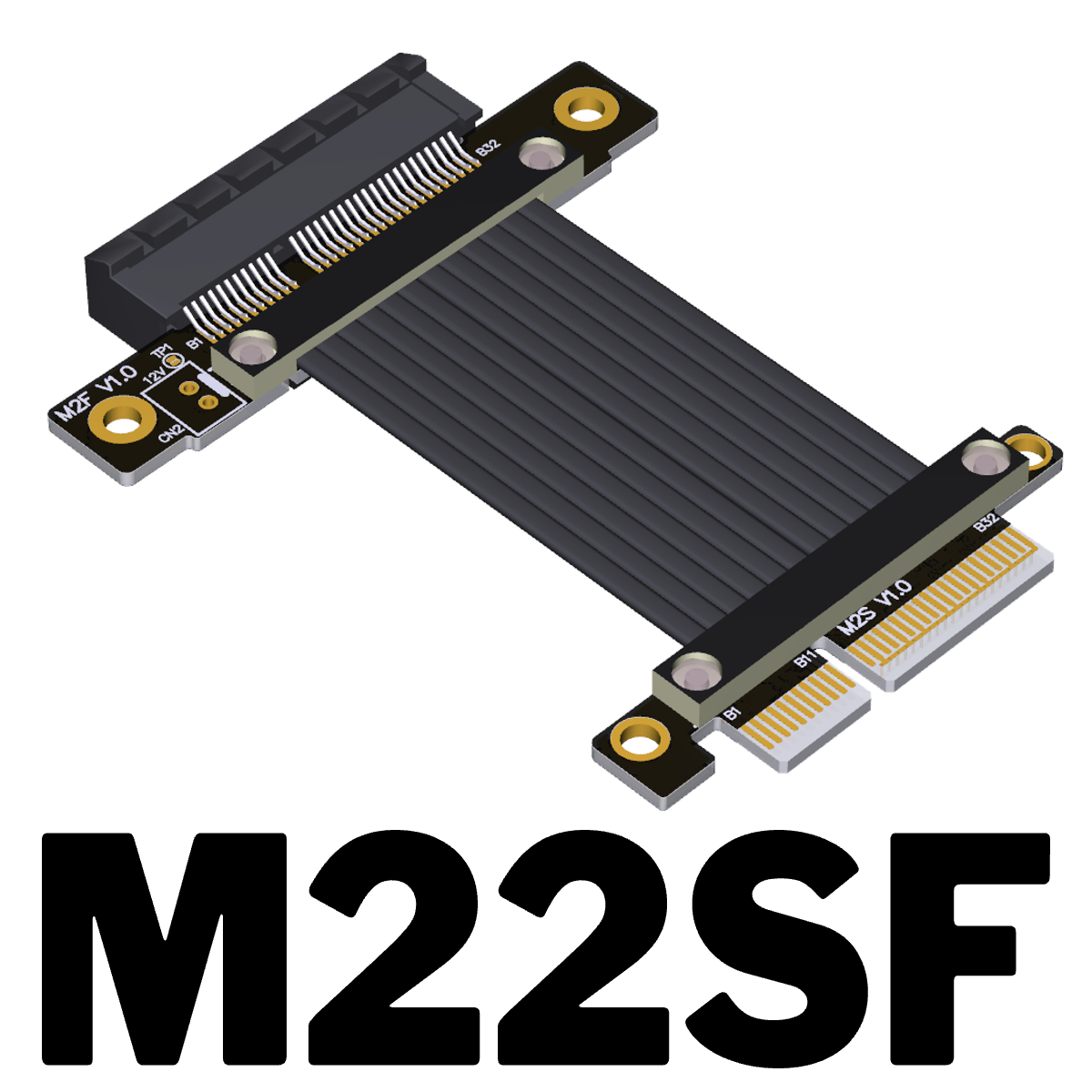

M22SF	PCI-E x4 to x4 turn 180 degree splint vertical extension cables	PCIe 4.0 x4 (64G/bps)

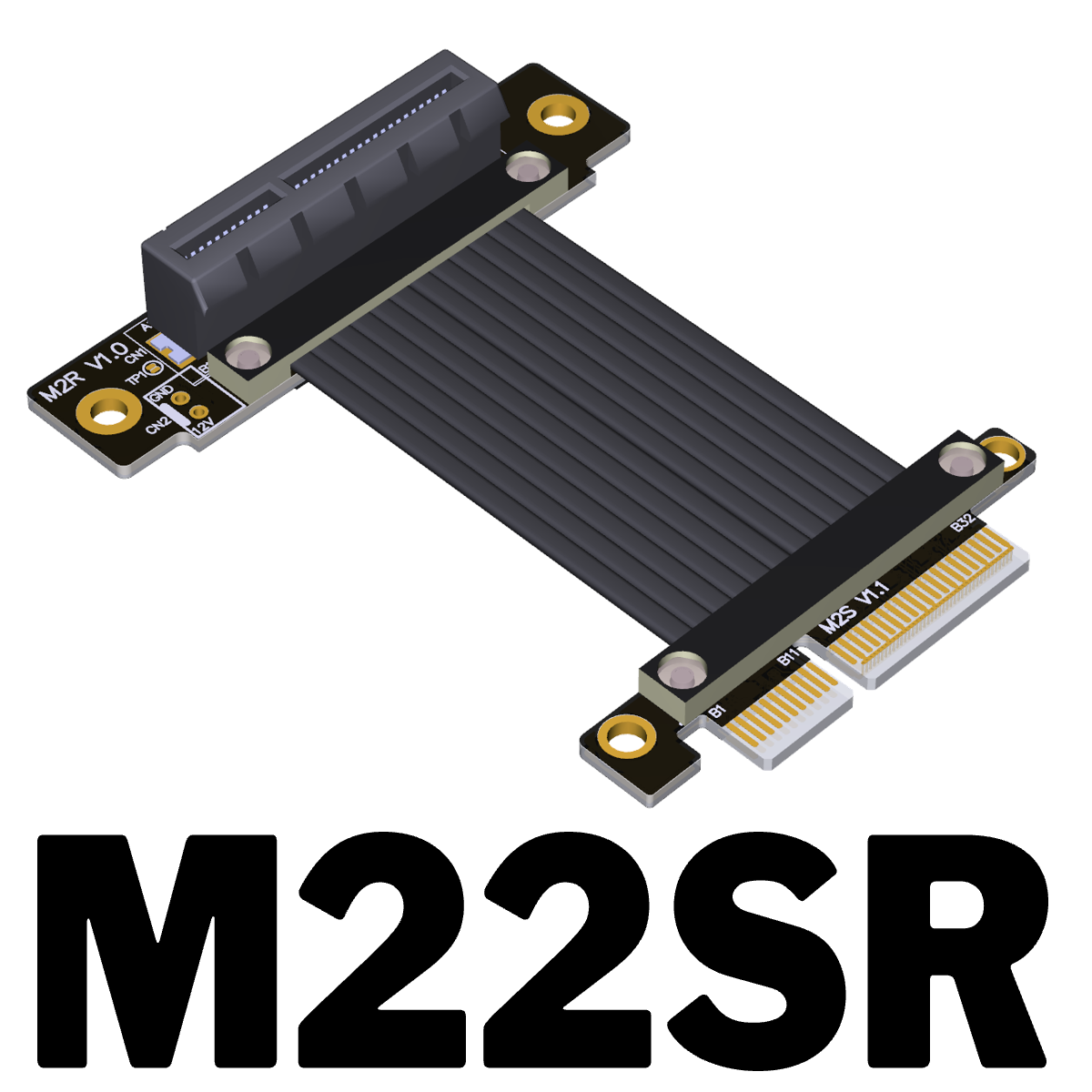

M22SR	PCI-E x4 to x4 turn 270 degree inverted reverse extension cables	PCIe 4.0 x4 (64G/bps)

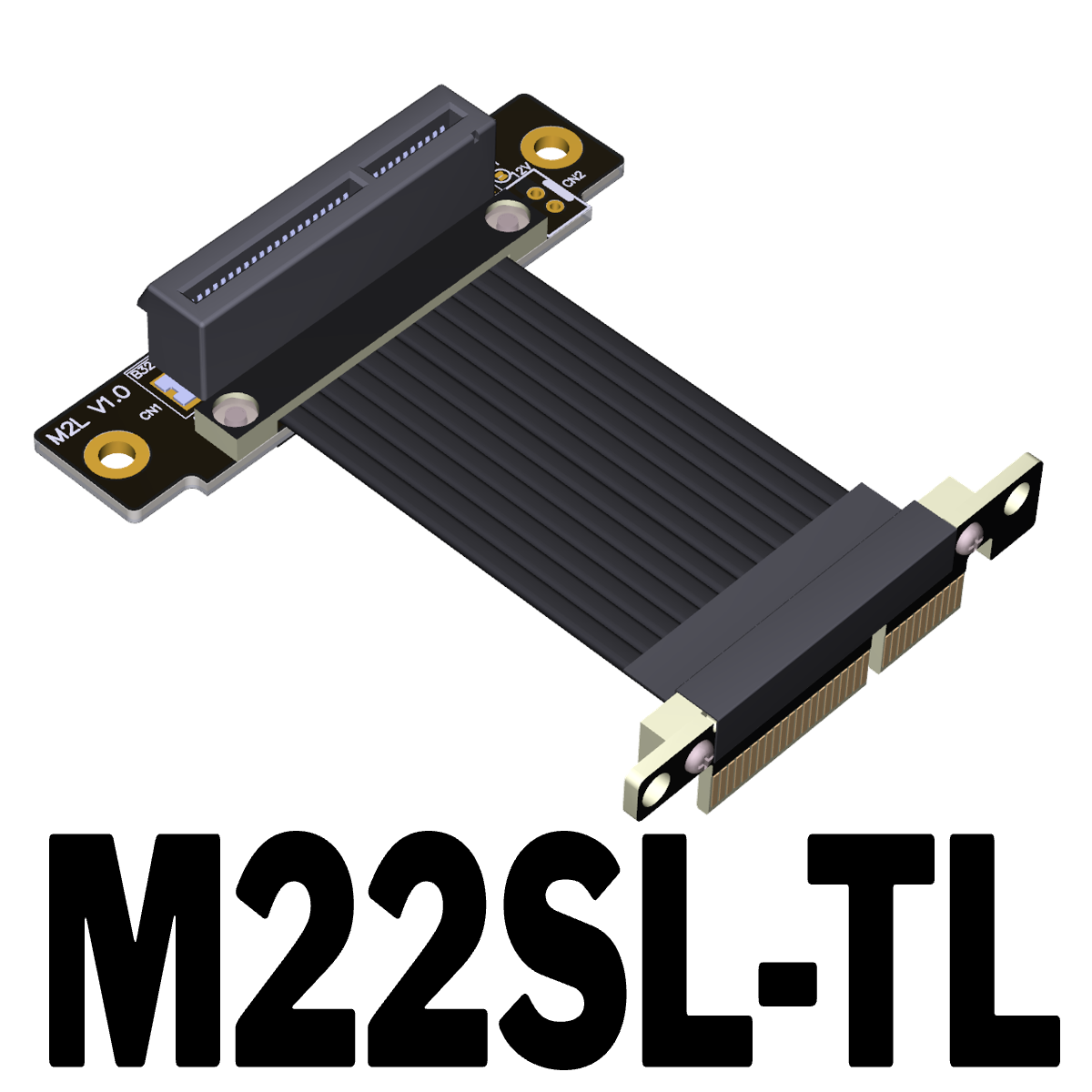

M22SL-TL	PCI-E x4 to x4 connector turn 90 degree and finger turn 90 degree upright right angle extension cables	PCIe 4.0 x4 (64G/bps)

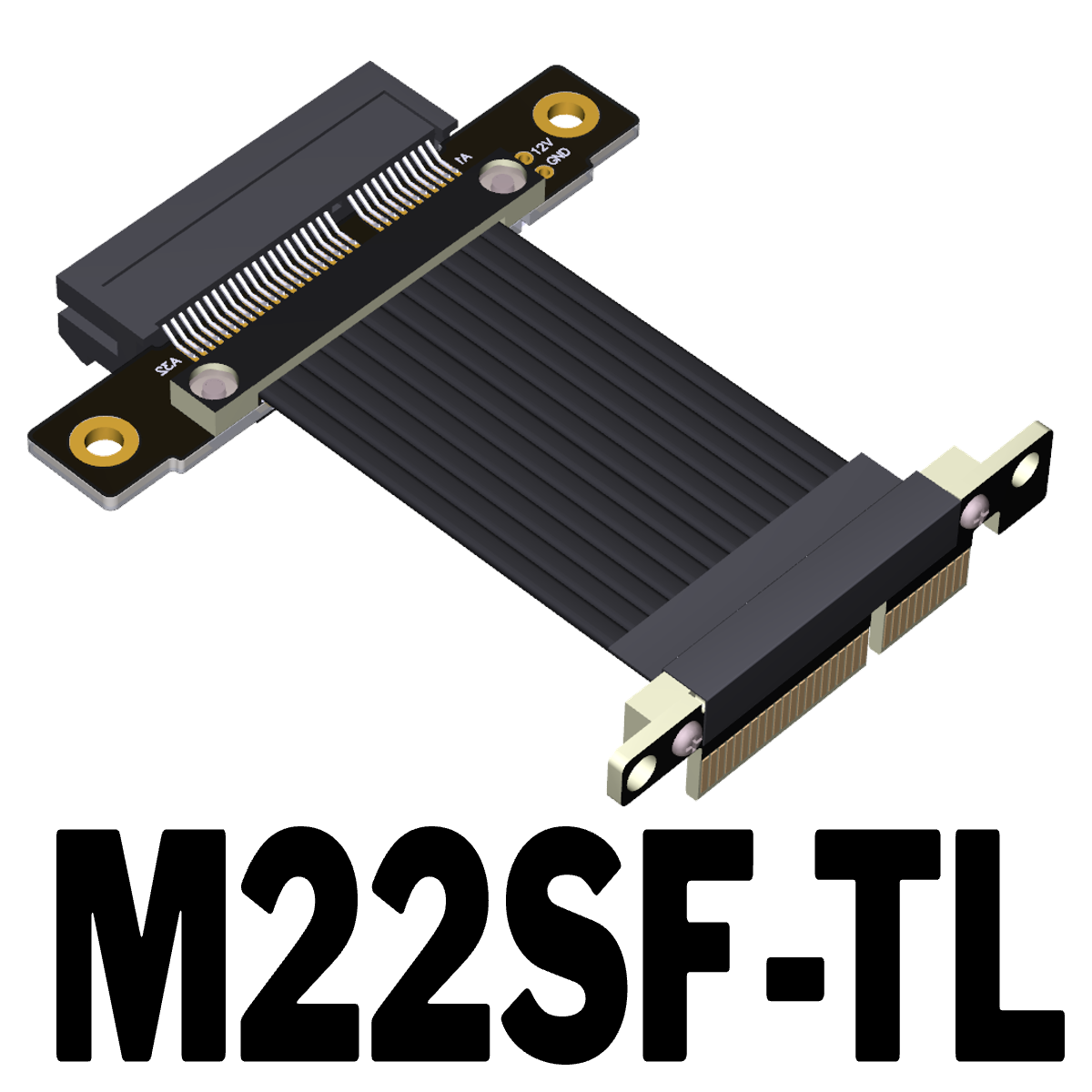

M22SF-TL	PCI-E x4 to x4 connector turn 180 degree and finger turn 90 degree upright right angle extension cables	PCIe 4.0 x4 (64G/bps)
M22SR-TL	PCI-E x4 to x4 connector turn 270 degree and finger turn 90 degree upright right angle extension cables	PCIe 4.0 x4 (64G/bps)

M22: PCIe x4 to x4

SL: turn 90 degree upright right angle ; SF: turn 180 degree splint vertical ; SR: turn 270 degree inverted reverse angle

-PW solder 4P power connector and bundle 15Pin SATA external power cable

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
