R41JF R41JL 4.0

Product ID：R41JF 4.0 ; R41JL 4.0

Interface: M.2 NVMe / PCIe x1

Transferspeed:PCIe4.0 x1, gen4

Application: Extension

Product description: M.2 NVMe to PCIE 4.0 extender riser adapter

Buy Now

ADT-Link M.2 NVMe to PCI express x1 Extension Cable

Brand name: ADT-LINK

Product name:M.2 NVMe to PCIe extension cable

Product model:R41JF 4.0 ; R41JL 4.0

Transferspeed:PCIe4.0 x1, gen4, 16G/bps (Max.)

Wire length:10 ~ 100 cm, the length can be customized

Application: PCIe x1 USB, wireless LAN, Audio or Capture cards to M.2(ultra SSD, M-key)extension

Usage restrictions: PCIe 4.0 has high requirements on the equipment. As long as the extension cable is connected, the signal will be attenuated. This product does not guarantee the full speed of PCI-E 4.0. The equipment is aging. If the signal is poor or the environment is not good, please slow down to PCIe 3.0 or lower.

Part-Number Description:

Part-Number	Description	Bandwidth (Max.)

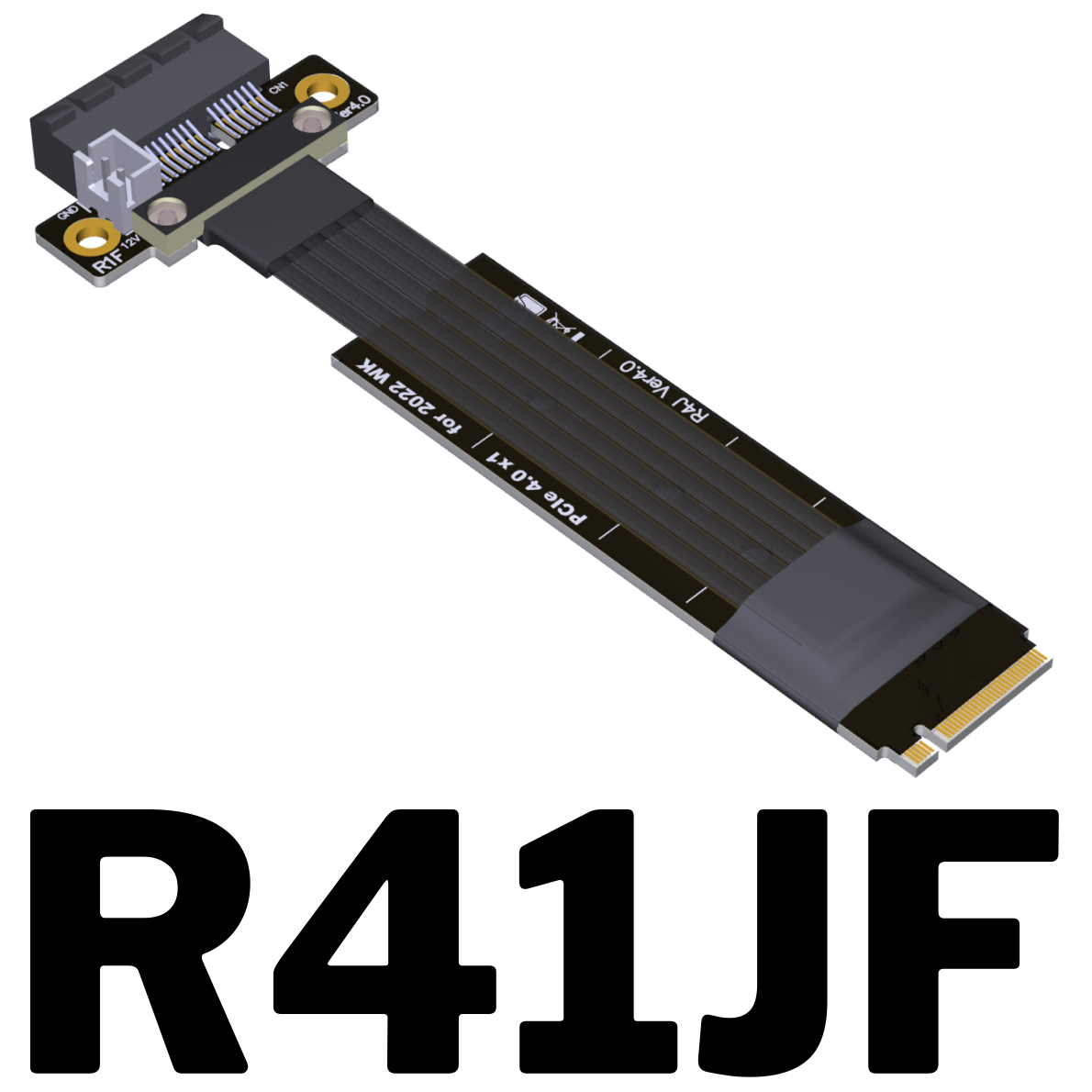

R41JF 4.0	M.2 key-M NVMe to PCIe x1 turn 180 degree splint vertical extension cables	PCIe 4.0 x1 (16G/bps)

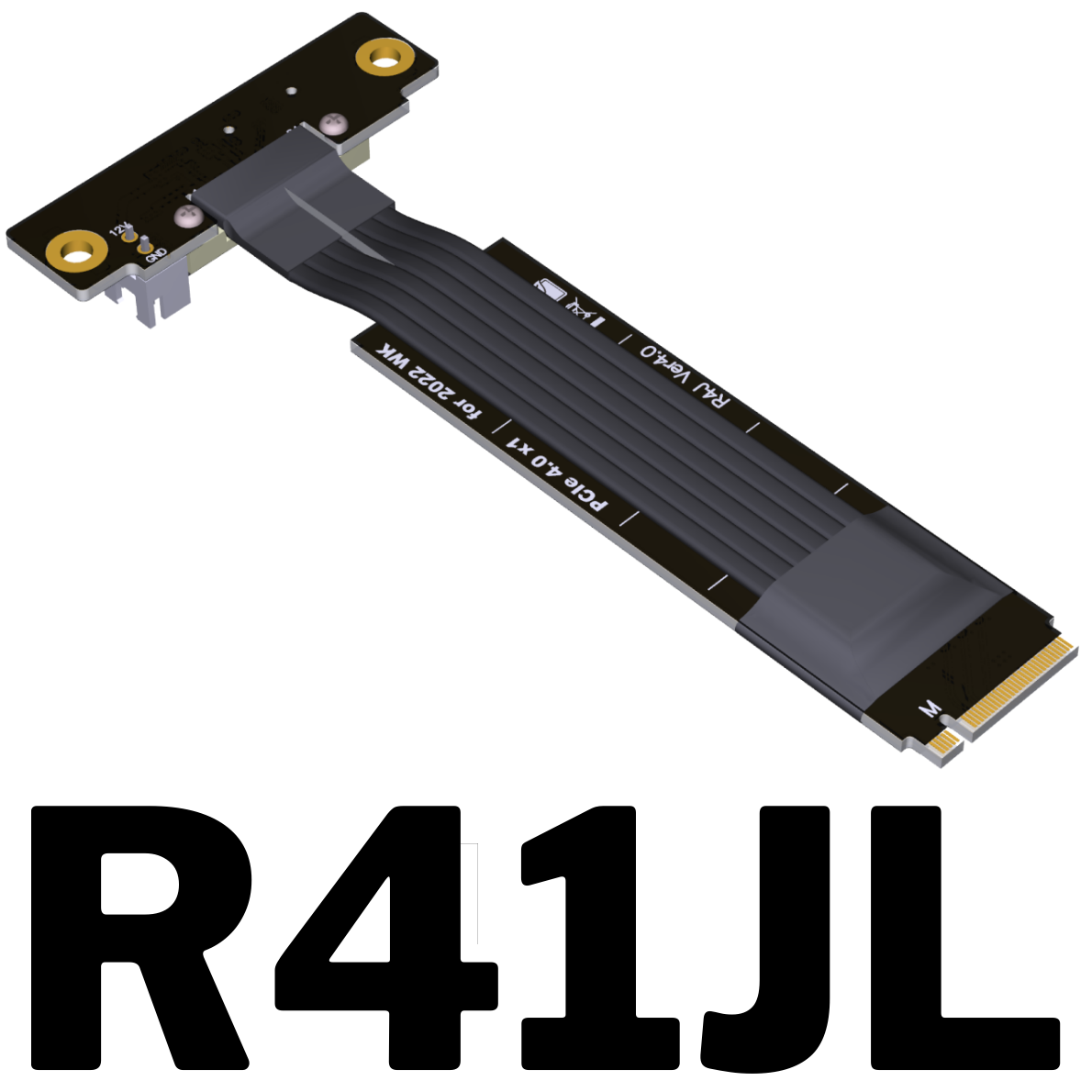

R41JL 4.0	M.2 key-M NVMe to PCIe x1 turn 90 degree extension cables	PCIe 4.0 x1 (16G/bps)

JL: turn 90 degree upright right angle ; JF: turn 180 degree splint vertical

Accessories description:

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

Cable length Description:

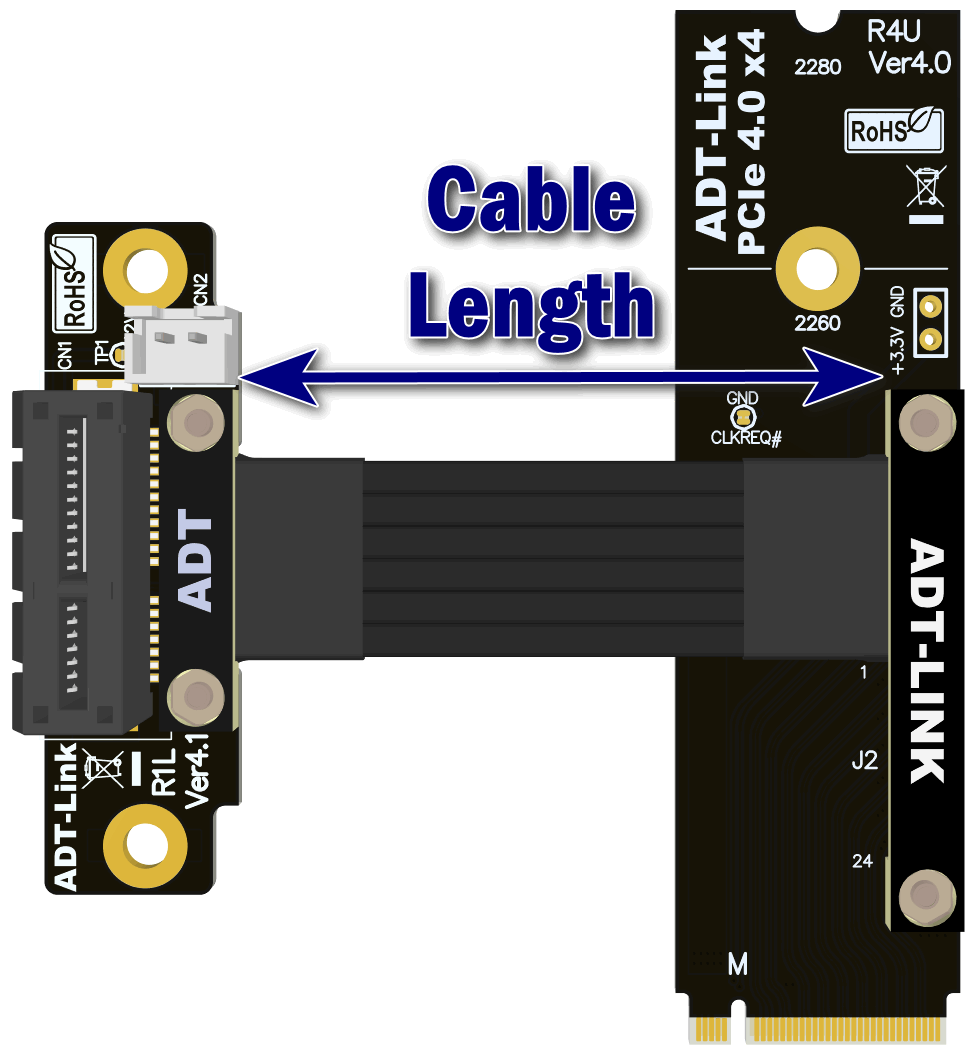

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
