F47SF,F47SM,F47SD

Product ID：F47SF,F47SM,F47SD

Interface: M.2 NVMe / U.2/U.3/E1.S/E3.S

Application: Extension

Shelf time：2024-09-23

Buy Now

ADT-Link M.2 NVMe to U.2/U.3/E1.S/E3.S SSD extension cable

Brand name: ADT-LINK

Product name: M.2 NVMe to U.2/U.3/E1.S/E3.S SSD extension cable

Product model: F47SF,F47SM,F47SD

Transfer speed: PCIe4.0 x4 , 64G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized

Application: U.2/U.3 NVMe SSD cards to M.2 NVMe slot extension

Part-Number Description:

Part-Number	Description	Bandwidth (Max.)

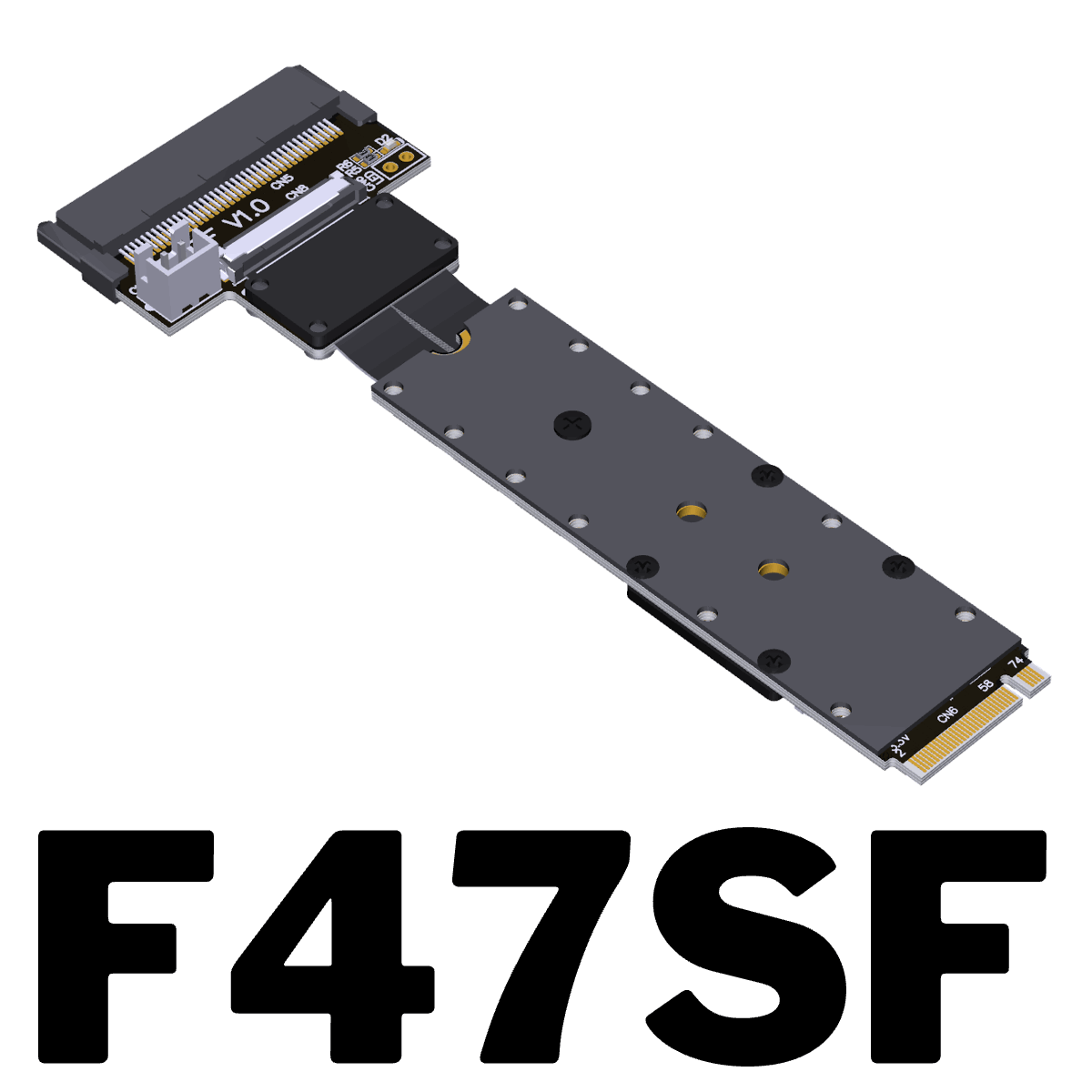

F47SF	M.2 key-M NVMe to U.2 SFF8639 turn 180 degree splint vertical extension cables	PCIe 4.0 x4 (64G/bps)

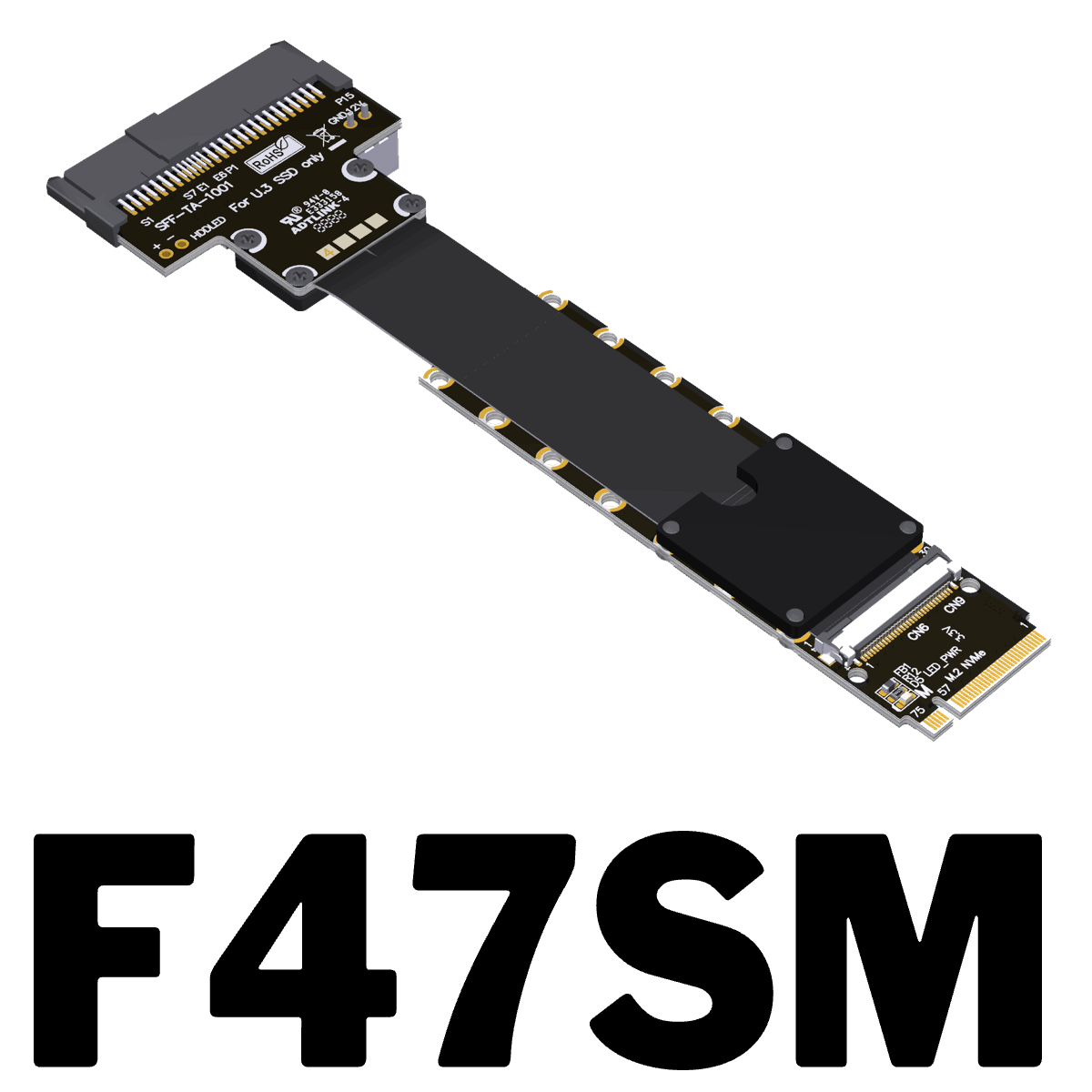

F47SM	M.2 key-M NVMe to U.3 SFF-TA-1001 turn 180 degree splint vertical extension cables	PCIe 4.0 x4 (64G/bps)

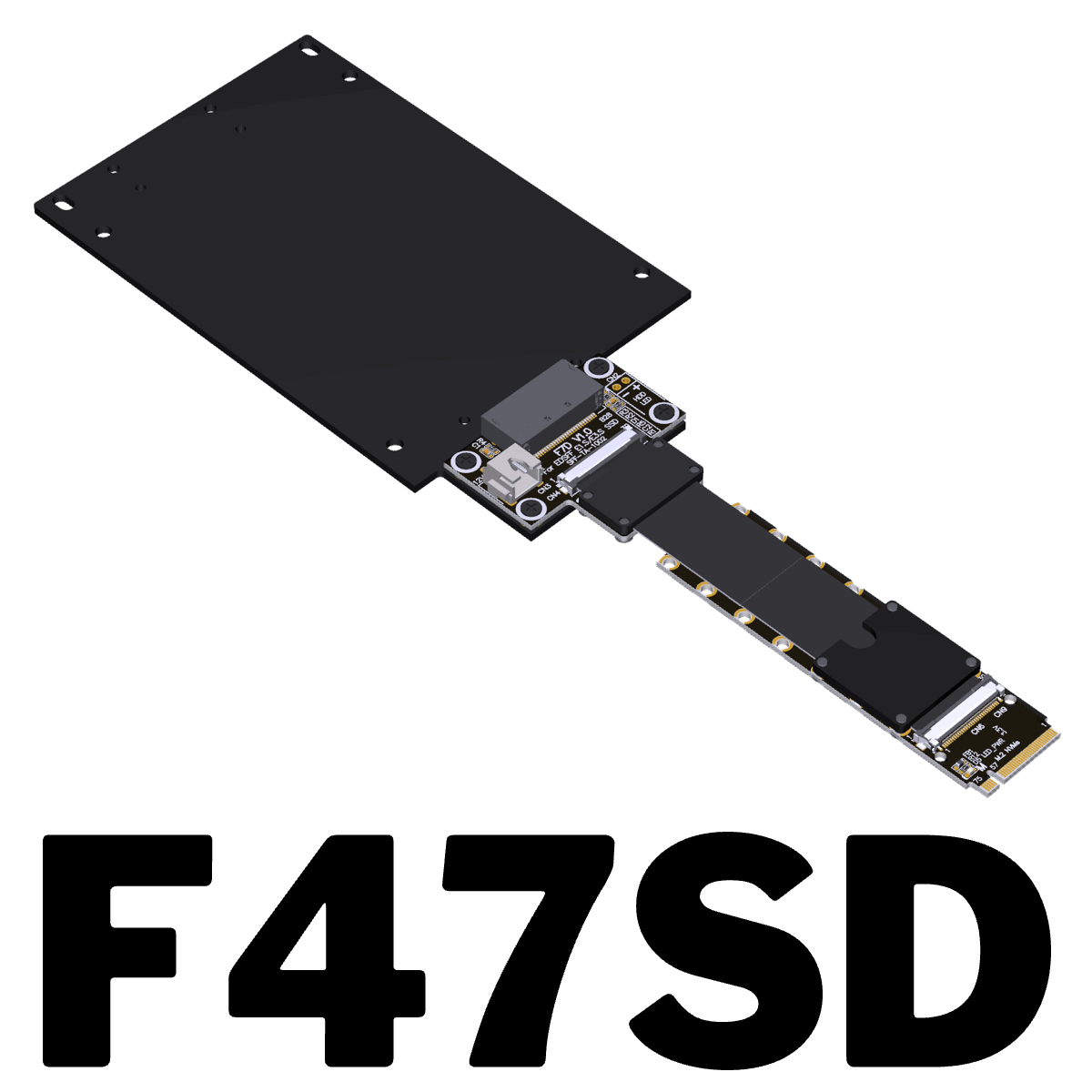

F47SD	M.2 key-M NVMe to E1.S/E3.S (SFF-TA-1002) turn 180 degree splint vertical extension cables	PCIe 5.0 x4 (128G/bps)

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Accessories description:

A SATA power adapter cable is included with the product, and it must be connected to have 12V power supply.

Product advantages:

1.UL certified wire, the fifth generation FFC flat cable design is fully shielded, soft and durable, and the ultra-thin thickness is only 0.5mm.
2. It is reinforced with 1.5mm aluminum alloy gasket to prevent disconnection and disconnection problems. It is strong and durable and can effectively block interference and noise.
3. Connect to 12V power supply and send SATA power adapter.
4. Add 0.8mm fixing plate to prevent PCB board deformation and bending, which can extend the service life of PCB board and save hardware replacement cost.
5. UL certified four-layer PCB board, gold finger is fully gold-plated 10µ", with good conductivity, which can reduce the blue screen problem caused by oxidation and rust impedance.
6. UL certified four-layer PCB board, advanced design, exquisite craftsmanship, stable and fast signal, excellent wiring, good isolation, and high-frequency impedance board can reach PCIe 4.0 standard.
7. U.2 SFF8639/U.3 SFF-TA-1001 connector

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

What is the thickness of the cable? Is it soft? Can it be bent?

The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.

Can the cable be disassembled?

Both ends of the FFC cable can be disassembled, which is very convenient. To avoid plug-in loss, the FFC cable is only allowed to be disassembled 10 times.
